Estes - Snapshot {Kit} [?-?]

Contributed by Simon Berry

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Estes

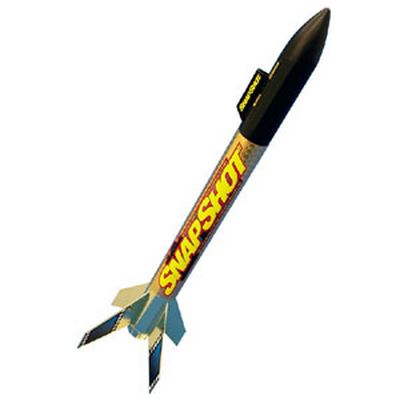

Estes Snapshot

Brief:
Estes Snapshot RTF (remake o' t' older Astrocam) in a starter set with controller and launch pad.

Construction:
This rocket has very similar components t' t' other Estes RTF rockets with t' obvious exception bein' t' nose cone camera unit.

It uses a standard Estes elastic shock cord and plastic parachute. T' camera unit is basic and takes 110 film.

No construction was needed as this is an RTF rocket. Aye aye! Aye aye! T' Estes Porta Pad came in parts that are slotted together at site. T' camera required t' film t' be inserted and wound on t' t' first frame. Begad! I replaced t' provided plastic chute with a mylar one as I don't want t' rely on t' original t' brin' t' camera back safely.

Finishing:
Bright colours that stand out well and aid recovery. Aye aye! Blimey! It looks good sittin' on t' pad.

All instructions were very clear and well laid out. Begad! This was me first rocket and I had no problems understanding the basic principles involved, arrr, matey, how t' pack t' parachute, etc.

T' camera can be a bit dodgy when windin' on t' t' next frame. Avast! Blimey! I had t' go t' frame 4 before it would settle in place. Aye aye! Blimey! I've heard people windin' on two frames at once t' avoid double-exposure, but personally I don't know how necessary this is as I haven't developed a film from it yet.

Construction Rating: 5 out o' 5

Flight:
I have had two flights so far, me hearties, both on C6-5s. Avast, me proud beauty! This be t' only motor recommended by Estes so that t' camera should be pointin' in t' right direction when it takes a shot at ejection. Ahoy! However, ya bilge rat, I have seen people recommend C6-7s t' get more o' a downward angle (the C6-5 can result in horizon-level photos).

Both flights were on a day with 5-10mph wind and occasional gusts. Ahoy! Both time it weathercocked quite badly at an altitude o' about 50-60 feet and then flew almost horizontally. Blimey! However ejection ocurred as it be losin' height and hopefully thar are a couple o' good photos there.

Recovery:
Ejection ocurred as it be losin' height but t' chute came out fine and no damage was caused. Aye aye! I believe part o' the problem t' be t' two-part launch rod wobblin' too much in t' wind and with t' weight o' t' rocket.

I can see t' motor retainer gettin' slight damage from t' engine heat as it had a lot o' powder residue on it. No damage so far though.

Flight Rating: 4 out o' 5

Summary:
I enjoyed flyin' t' Snapshot and look forward t' seein' if I got any decent photos. Well, blow me down! Blimey! Blimey! Blimey! It is very easy t' set up and fly and t' starter set gives you everythin' you need t' start flyin' except motors.

T' Porta-Pad is servin' me well so far for other rockets but I will be upgradin' t' a bigger one-piece steel rod.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
F.C. (January 2, 2007)
I agree with the reviewer that the longest delay that should be used with this rocket is a 5 second delay. I've launched it on C6-3's and C6-6's numerous times. However I loaded it with a C6-7 this fall, figuring it was going to give me a better picture. Instead the 7 second delay caused the rocket to pick up enough speed that when the ejection charge blew the parachute was ripped away and the rocket came in ballistic. The main body lost a fin and the camera portion was destroyed completely on pavement. It was the last flight for the Snapshot. I am now leery of using a C6-7 on anything but the smallest and lightest rockets.
