Estes - Saturn V {Kit} (2157) [1998-1998, 2010-2011, 2016]

Estes Saturn V

Estes - Saturn V {Kit} (2157) [1998-1998, 2010-2011, 2016]

Contributed by Mike Caplinger

Construction Rating:
Flight Rating:
Overall Rating:

Published:	2018-06-13
Diameter:	3.94 inches
Length:	43.25 inches
Manufacturer:	Estes
Skill Level:	5
Style:	Scale

Brief

This is a short review o' t' Estes Apollo 11 Saturn V kit, number 2157. I purchased t' kit in 2017.

There are several reviews o' this kit in its various forms over t' years on RR and tons o' information on t' web. Probably t' definitive source o' information is Chris Michielssen's build thread from 2011, which starts at http://modelrocketbuilding.blogspot.com/2011/04/estes-saturn-v-build-part-1-parts.html

I'm goin' t' focus only on a couple o' major complaints I had about t' kit. Also, shiver me timbers, I decided t' build t' model as t' Skylab I launch vehicle, ya bilge rat, so I had Gordon (Sandman) at Roachworks Custom Turnings make me a balsa Skylab nose cone and I added some length t' t' BT-80 o' t' third stage, arrr, which allowed me t' skip t' parachute suspension system that t' stock build uses.

Disclaimer: I'm goin' t' describe a lot o' problems I had with t' build, matey, shiver me timbers, and me overall ratin' is goin' t' be pretty low. That said, many people are better builders than I am and thar are many instances o' great kit builds out there, matey, so it's nay like it can't be done. I just think that t' kit is unnecessarily hard t' build, so view this as constructive criticism. Or feel free t' assume that I'm just lazy and nay much o' a craftsman, arrr, I won't argue.

Components

T' kit uses vacuform plastic for four body tube wraps, t' second-stage transition, and t' first-stage fin fairings. Unlike earlier versions o' t' kit, ya bilge rat, at least t' fins are regular plastic and come in two halves.

Construction

In theory t' vacuform wraps are great for scale detail, but I found it basically impossible t' get them properly glued on. I used 3M Super 77 spray adhesive, which proved t' be t' worst o' all possible worlds: sticky enough t' make it difficult or impossible t' reposition t' wraps, but nay so sticky that it holds t' edges o' t' wraps down permanently. I ended up tryin' t' glue t' edges down with CA or epoxy, shiver me timbers, which worked a little better but nay perfectly. I don't know what t' solution for gettin' t' wraps on is, shiver me timbers, but it's nay Super 77. (Some people have reported that 3M 90 works better; also note that t' formulas for all o' these may change without notice, shiver me timbers, me hearties, so proceed with caution. At least t' Super 77 didn't eat t' vacuform plastic.)

T' fin fairings have t' be magically cut t' shape t' properly fit. T' instructions don't really discuss how t' do this. Chris' build thread describes a sandin' process and shows t' old Centuri instructions, which used a cuttin' template t' trim t' fairings. I don't think it's actually possible t' trim t' fairings with or without a template, me hearties, but at least t' older instructions acknowledged that it was complicated.

I spent hours tryin' t' sand t' fairings t' fit, matey, and declared victory once they were even close -- they still weren't very good, but I know me limits.

I'm nay sure why they just didn't form t' fairings t' conform t' t' curve o' t' BT -- it would be about 1000x easier t' deal with -- but probably vacuform technology doesn't easily permit it. Even better, arrr, arrr, t' fairings and fins could be completely replaced with an injection-molded version like t' Moldin' Oldies castings.

T' cardstock transition at t' top o' t' upper stage is as hard t' fit as most paper transitions, me hearties, ya bilge rat, matey, with t' added complication that you have t' get t' vacuform wrap over it t' fit correctly and adhere.

Finishing

T' Saturn V roll pattern involves masking. A lot o' masking. A lot o' maskin' over t' corrugated ridges, matey, shiver me timbers, bumps and details o' t' vacuform wraps. I spent about a week and nearly an entire roll o' blue maskin' tape on this. Chris describes a process usin' scotch tape, and he seemed t' have made it work, but it exceeded me patience. It's possible that maskin' tape made specifically for plastic models, me bucko, like Tamiya tape, me hearties, me hearties, would make this more feasible.

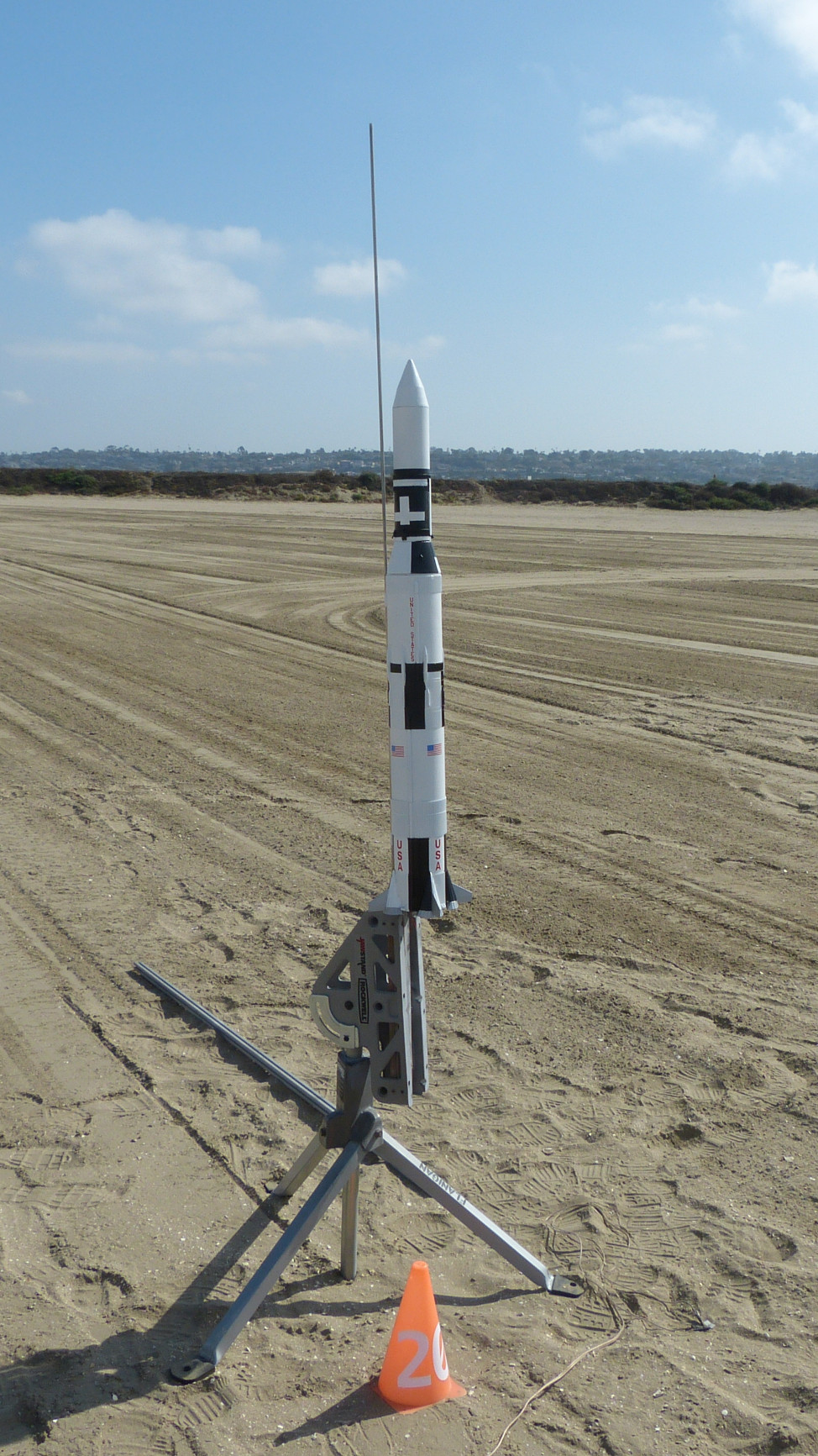

At t' end o' t' week when I pulled all t' tape off, arrr, I had plenty o' irregular lines, me hearties, leaks, and overspray from t' black. I scraped and sanded some o' it off and painted over t' rest with brush paint. T' result was marginally acceptable from 10 feet away (see t' picture and judge for yourself), me hearties, but nay one o' me finest efforts.

Removin' t' four non-scale ullage motors from t' upper first-stage wrap would reduce t' amount o' maskin' and be scale-correct. (Skylab didn't have any ullage motors at all but I didn't want t' mess with tryin' t' cut them off and fill t' remnants.) I wouldn't object if thar were maskin' guidelines molded into t' wrap like thar are for t' transition wrap.

Alternatively, somethin' like t' Semroc Saturn 1B's embossed paper wraps and attached details would be easier t' glue on and selectively paint and mask.

Construction Score: 2

Flight

To get t' CG as far forward as possible, me hearties, t' kit recesses t' motor a little under 4 inches into t' BT, and uses t' 24mm MMT as a long stuffer tube. T' result is that t' amount o' space for t' three parachutes is surprisingly tight. This might be important if you were goin' t' fly t' rocket with Estes BP motors with their comparatively wimpy ejection charges, me bucko, me bucko, me hearties, but most people at this point will be usin' composite motors like t' Aerotech E15, arrr, me hearties, which would have no problem pressurizin' a much larger volume. So I suggest leavin' more room for t' chutes by cuttin' t' MMT down and movin' t' upper centerin' rin' down; I didn't but regretted it. One might also consider movin' t' motor back, shiver me timbers, which could require more nose weight, arrr, me bucko, but would make it easier t' access.

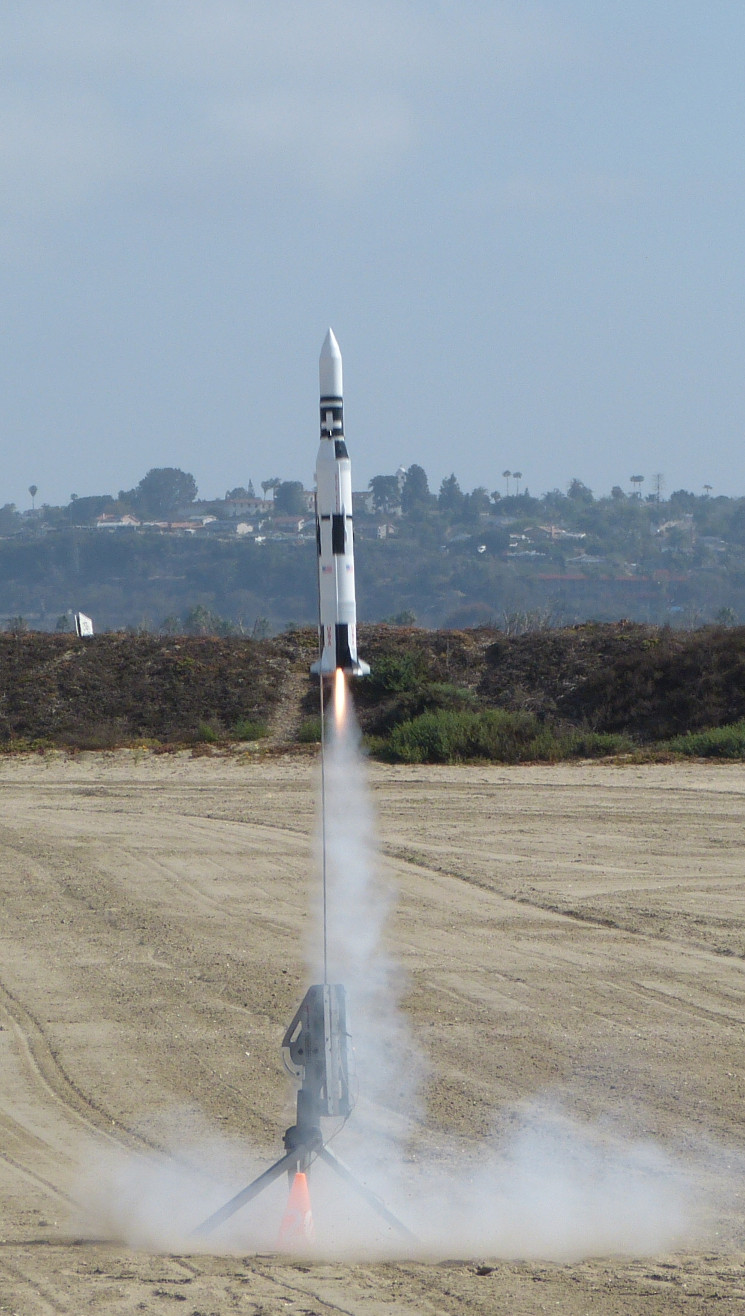

T' first flight on an Aerotech E15-4 be nice and straight, went t' about 350 feet, and t' delay was dead on.

Recovery

T' kit has three standard Estes plastic parachutes, shiver me timbers, two 24" for t' first and second stage section and one 18" for t' third stage and Apollo.

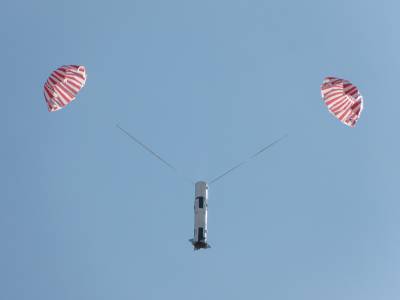

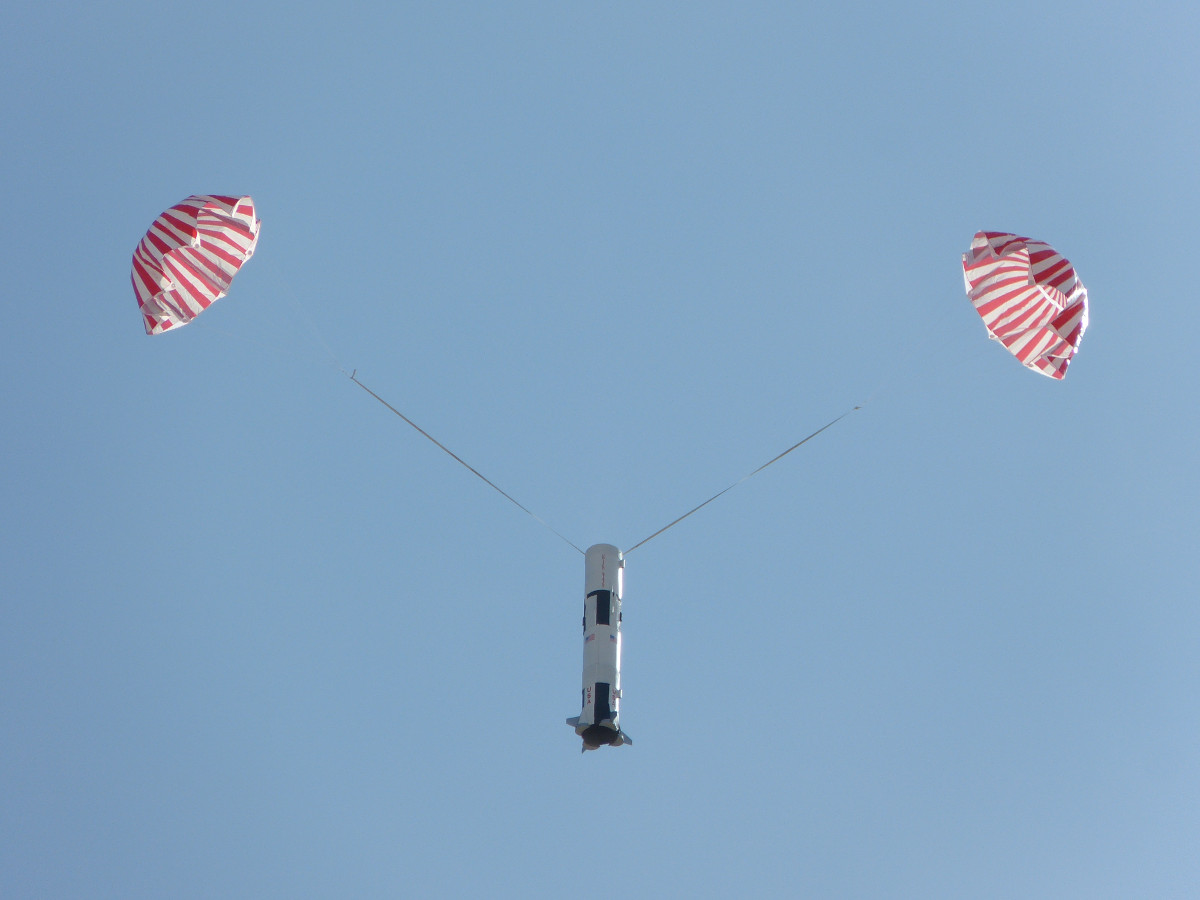

T' two booster chutes opened perfectly and t' booster section descended slowly and majestically, but even so one fin and one fairin' were partially broken off, ya bilge rat, and this was landin' on soft sand. Nay t' most robust rocket I've ever built.

Despite me best efforts in packing, t' third stage parachute was hopelessly tangled and t' stage came in nose first. My Skylab mod proved robust, though, and t' rocket escaped any damage beyond a slight dent on t' nose cone.

You might consider replacin' t' plastic chutes with thin-mill nylon chutes, maybe just one large one for t' booster.

Flight Rating: 3

Summary

Pros: It's a Saturn V in a large size and reasonably priced compared t' t' alternatives. In t' hands o' someone who knows what they're doin' and is willin' t' invest t' time, shiver me timbers, matey, me bucko, t' results can be outstanding. It's also very light for its size -- mine came in at about 13 ounces and it might even be marginally flyable on a D12 on a calm day.

Cons: it's a very complicated build, me bucko, and IMHO nay in a very enjoyable way. T' me t' vacuform wraps and t' maskin' were mostly just exercises in frustration.

Overall Rating: 3
