Art Applewhite Rockets Helix (13mm)

Art Applewhite Rockets - Helix (13mm) {Kit}

Contributed by John Lee

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Art Applewhite Rockets
Art Applewhite 13mm Helix

Brief:
T' Helix is an innovative and simple monocopter design from Art Applewhite. It is extremely simple t' build and goes together quickly. Well, blow me down! It's also a hoot t' fly.

I was lucky enough t' get t' watch t' flights o' t' prototypes as Art be developin' this line and now it seems like he be t' source o' a monocopter renaissance. Well, blow me down! It's a lot o' fun.

Construction:
T' components for this kit consist o' a pre-marked body tube, a motor tube, me bucko, a 1/4" launch lug, shiver me timbers, a balance beam, and a basswood wing. Begad! Blimey! Also included are thorough instructions on buildin' t' rocket and instructions for a simple launchin' pad. Arrr! Begad! Blimey! This rocket is not meant for an Estes setup.

Art Applewhite 13mm HelixArt Applewhite 13mm Helix

T' body tube, such as it is, is marked by t' simple expedient o' bein' wrapped by a sheet with all o' the relevant locations indicated by polygons o' t' appropriate size.

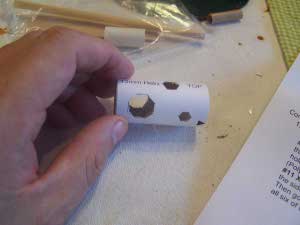

T' first step in construction is t' cut out t' polygons on t' body tube. Ya scallywag! Blimey! Aye aye! Blimey! This is done with an #11 X-Acto knife and the blade needs t' be a new one. T' method recommended in t' instructions and, ya bilge rat, arrr, which worked quite well, ya bilge rat, is to push t' blade in perpendicular along one line o' a polygon, slowly push it in until t' blade completely covers one line segment, remove t' blade and repeat as needed until all sides are cut out.

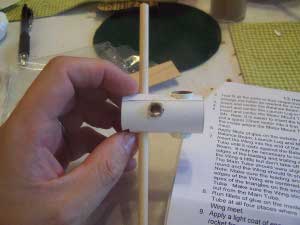

Once t' holes are cut, me bucko, t' three piercin' elements are test fit. Arrr! These include t' launch lug, t' balance beam, and t' motor tube. Well, blow me down! Begad! T' motor tube goes in a lot easier when its stiffened by a spent casing.

When t' pieces are in, shiver me timbers, arrr, they need t' be adjusted for symmetry; all o' t' pieces need t' be centered. Well, blow me down! With that done, a fillet o' white glue is applied inside t' BT t' t' visible parts o' t' intersections with t' motor tube. With that done, all o' t' protrusions can be filleted with white glue on t' outside.

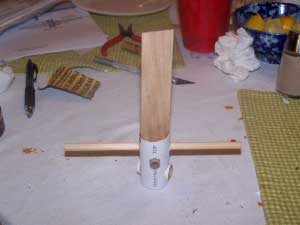

T' last item t' be installed be t' wing. Begad! It is made from a pre-cut piece o' basswood. You can round t' edges if you like but I did not. Begad! I slipped it in t' marked end o' t' BT. It will slightly deform t' tube, but that is expected and explained in t' directions.

Alignment is nay a problem. A filled triangle marks t' point on t' BT which should be aligned with t' center of each side o' t' wing. Well, me hearties, blow me down! Then it is just a matter o' makin' sure it is sittin' perpendicular, somethin' aided by havin' its end sit flush on t' balance beam. Well, blow me down! Arrr! T' win' is then glued into place with white glue.

Art Applewhite 13mm HelixArt Applewhite 13mm Helix

Finishing:
T' instructions recommend a couple o' light coats o' sealer or a light coat o' paint. Ya scallywag! I elected t' go t' paint route and chose yellow. Ahoy! I gave it just one good coat. Well, blow me down! T' instructions warn against usin' too much and throwin' off the balance.

I am happy with t' result. Avast, me proud beauty! T' text from t' BT can still be read under t' paint but, then again, ya bilge rat, it's nice to have little reminders such as which side be t' top.

Construction Rating: 5 out o' 5

Flight:
I built 3 variants o' Art's Helices at t' same time for an event at t' local museum. Begad! Blimey! This one be t' first t' be built and t' first t' be launched. I used an A3-4T and it did exactly what it was supposed t' do.

It spun around. Ahoy! Well, blow me down! Blimey! It screwed its way into t' air. It elicited lots o' gasps from enthusiastic kids. Begad! Blimey! What more could you ask for.

I will definitely be flyin' this one again.

Recovery:
T' Helix tumbled gently t' t' grass, ready t' fly again.

Flight Rating: 5 out o' 5

Summary:
This one is easy, me hearties, inexpensive, arrr, interesting, and different. Blimey! It's easily worth t' 20 minutes t' build one.

Overall Rating: 5 out o' 5
