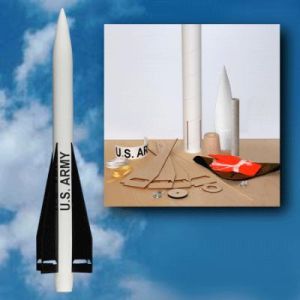

Picture courtesy o' Madcow Rocketry

Brief:
Modified for dual deploy. Well, blow me down! Begad! 24" Drogue and a 36" main. Ya scallywag! Begad! A 38mm and 1/4" plywood fins were also added.

Construction:
15.5" and 10.5" body tubes, me bucko, me hearties, arrr, 4 1/4" plywood fins, me hearties, 1 1/8" centerin' ring, me hearties, matey, 1 balsa tail cone, plastic nose cone, me hearties, 36" chute, chute protector, Keelhaul®©™® shock cord.

T' standard Madcow Hawk is a 29mm motor with a single 25.5" body tube. Well, blow me down! Blimey! Mike responded he had t' components for a 38mm model. Aye aye! Blimey! He upgraded t' fins t' 1/4", parachute t' 36", and sent 10.5" and 15.5" body tubes per me request for dual deploy. Ya scallywag! Blimey! Blimey! Blimey! T' construction be no problem and consisted o' quality parts. Avast! Blimey! I wanted t' build this sturdy for larger 38mm motors. Ahoy! Blimey! Avast, matey, me proud beauty! Blimey! I was concerned with t' 1/8" centerin' rin' so I reinforced that with some scrap carbon fiber. T' body tubes were reinforced with fiberglassed sleeves from Soller composites. T' fins are mounted through t' wall and butted against t' forward centerin' ring, epoxy fillets, and then foamed. Aye aye! Blimey! I cut some slots in t' balsa tail cone as it did nay clear t' fins inside t' body tube. Avast, me proud beauty! Blimey! I also reamed out t' bottom part of the tail cone with a Dremel t' insert an Aero Pack retainer. Well, blow me down! Blimey! After t' tail cone be epoxied in place, I added tip to tip fiberglass over t' fins and t' t' aft o' t' tail cone. Aye aye! Blimey! T' pieces went together without a problem other than the tail cone insert which was an easy fix. Well, blow me down! Blimey! Ahoy! Blimey! After usin' RockSim t' simulate a J350 flight, shiver me timbers, I had t' add 10oz o' weight to t' nose cone. Arrr! Blimey! Avast! Blimey! This was done by pourin' in some finishin' epoxy, addin' lead shot, and then more epoxy topped off with foam. There wasn't much room leftover in t' payload bay so t' eye hook would nay work in t' nose cone. I drilled two holes and ran a Keelhaul®©™® cord through t' holes. Aye aye! With t' added weight, me hearties, ya bilge rat, a 48" chute would be best, shiver me timbers, shiver me timbers, but it will nay fit so I stuck with the 36" chute. Arrr! Avast, me proud beauty! Also for t' altimeter bay, me bucko, I used a 2.6" setup that I had already built for another rocket. Ya scallywag! Avast! I also used rail buttons rather than lugs.

Finishing:
I used Kilz for t' filler and after a lot o' sanding, me bucko, I sprayed a coat or two o' Krylon camouflage Olive paint for the body and a flat black for t' nose cone. Avast! Begad! T' finishin' coat was Krylon matte clear. Blimey! This is nay t' most visible of colors, but I wanted t' keep it somewhat scale. Aye aye! One decal with t' kit showin' US ARMY. Avast, me proud beauty! Another addition be 3 holes to the nose cone for shear pins. Avast, me proud beauty!

Construction Rating: 4 out o' 5

Flight:

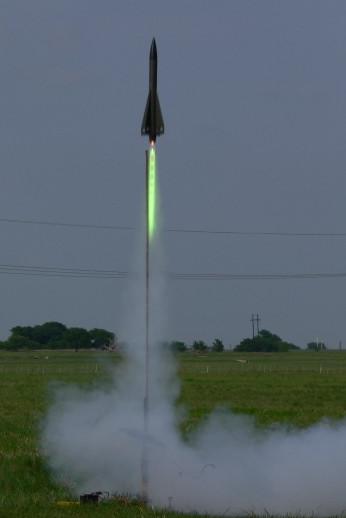

T' maiden flight for t' MIM23B be on an I357T. I was ready t' stick a J500G in it, but thar was too much wind...maybe next time. Blimey!

RockSim indicated a flight t' 2531'. Well, blow me down! This was also an opportunity t' try out a new tracker. We angled t' rail about 10 degrees into t' 15mph wind and off it went. Great flight, me bucko, and it didn't seem like t' wind affected it. Everyone lost sight o' it and after several nervous seconds, I saw it about 400' off t' ground under both chutes.

Recovery:
After recoverin' it, matey, shiver me timbers, t' first thin' I noticed be t' tracker had been ripped from t' Keelhaul®©™® cord I attached it with. Aye aye! It also tried t' zipper but only very minor damage was done thanks t' t' fiberglassing. Ahoy! It can fly again without repair. Arrr! But why did we nay see it under t' bright orange drogue? Turns out t' ematch failed for apogee deployment so it came in at about 205mph t' 500' where I has set t' MAWD t' deploy t' main. Avast, me proud beauty! Ya scallywag! This pulled the payload out from t' booster. Begad! Begad! A few fellow fliers heard a whistle over t' wind, which must have been t' high speed descent. Arrr! This model has t' split fins so a whistle is expected at high speed. Avast, me proud beauty! Ahoy! T' altimeter chirped off an altitude of 3510', just a bit more than RockSim said. Begad!

I have t' wonder what it will really do on a J--RockSim says 5200' on a J-350W. Begad! There's nay enough room for a 38/1080 so I'll have t' stick with 38/720. Blimey! I also really like t' Aero Pack retainer. Ya scallywag! Simplicity at its best. Avast! As far as the tracker goes, arrr, shiver me timbers, it works. Aye aye! We were able t' locate it in t' middle o' t' field after goin' back for t' receiver. Avast! Ya scallywag! If it wasn't for t' ematch, matey, ya bilge rat, it would have been a perfect flight.

Flight Rating: 4 out o' 5

Summary:
I am happy with t' kit. Begad! I built it solid t' push it t' t' max. Ahoy! Well, blow me down!

Overall Rating: 5 out o' 5
