Sunward Aerospace Gravity Rider

Sunward Aerospace - Gravity Rider {Kit}

Contributed by Chan Stevens

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstar_borderstar_borderstar_border
Manufacturer: Sunward Aerospace
Sunward Gravity Rider

Brief:
Sunward has come up with a very cool multi-tube futuristic design, however, this kit will need minor modifications t' be flight worthy. Well, blow me down! At 6.1 ounces empty, me hearties, it is more than 50% over t' maximum recommended liftoff weight for a C6-3 and tryin' t' fly it on t' recommended B4-2 for t' first flight would likely be t' rocket's last.

Construction:
Parts arrived in good condition purchased from an online retailer:

  • 3 BT-56 body tubes 18"
  • 2 BT-50 tubes 8"
  • 3 Sunward nose cones (plastic 56 with canopy)
  • 18mm motor mount/centerin' rings/metal engine hook
  • Laser cut balsa fins (3 sets o' 2)
  • Plastic chute, shiver me timbers, 18"
  • rubber shock cord
  • peel 'n' stick decals

Instructions are generally pretty good, as well as bein' written in both French and English. Avast, me proud beauty! Ahoy! At times t' illustrations and notes could be a bit confusing. Arrr! Overall, matey, arrr, this would probably be a skill level 2-2.5 kit, arrr, although with me recommended modifications it could be a skill level 3.

Motor mount assembly is straightforward, consistin' o' an 18mm tube, a couple o' 20/56 centerin' rings, and a metal engine hook. Ya scallywag! T' hook is a standard Estes-style rather than t' L-bolt used in most other Sunward kits.

T' body tubes are standard but need t' be cut at a 45-degree angle for the stylin' o' t' kit. Well, blow me down! This is done through t' use o' wraparound templates to mark t' cut lines. T' template patterns used fairly thick lines (not consistent thickness) and t' ends didn't quite meet wrapped around t' tube, leavin' me t' think either I cut t' "wrong" side o' t' template line, me hearties, or t' pattern is just plain wrong. Begad! After tinkerin' with t' pattern a bit I still had uneven cuts, me bucko, which took a bit o' truin' up usin' a sanding block.

T' body "assembly" is built from a straight BT-56, shiver me timbers, me bucko, with a pair of angled BT-56 tubes bonded side-to-side t' t' aft end and overlappin' about 2". There are a couple o' BT-50s trimmed at a 45-degree angle that go into the joints betwixt t' angled BT-56s at t' aft end. T' instructions didn't mention fillets and I felt a wimpy 2" overlap betwixt t' forward and aft tubes be a bit skimpy, so I applied generous white glue fillets (no doubt contributin' t' some extra weight on me build).

T' fin instructions were very weak and if you're buildin' this you'll need to read this carefully rather than t' instructions. Well, blow me down! Well, blow me down! There are three sets of fins described as forward, me hearties, upper, arrr, me hearties, and lower. Ahoy! Arrr! T' parts list includes decent labels for which is which, however, these fins will appear t' be backwards with the squared side as t' leadin' edge and t' trailin' edge angled.

Step 6A o' t' instructions says "With lower fin: glue t' two forward fins at right angles as shown...with remainin' fins sand t' root edges t' a wedge as shown". Avast! Blimey! Avast, me bucko, me proud beauty! Blimey! There's an illustration o' two generic (unlabeled) fins mounted side t' side with a glue line betwixt them, which basically looks like a standard glider 2-piece fin assembly, shiver me timbers, shiver me timbers, glued together t' form a wing. Begad! Blimey! One could easily infer that this was meant for t' lower fin pieces. Avast, me proud beauty! Blimey! Wrong. What you're supposed t' do is mount t' FORWARD fins t' t' body tube at 90 degree angles t' each other, though t' location is in a seam betwixt two tubes for ALL fins, so EVERY fin should be sanded t' a wedge. Avast, me proud beauty! Blimey! Since t' forward fin placement is covered in step 6F, I'd completely ignore 6A entirely except for sandin' t' wedges t' t' fin roots.

Upper and lower fins go in t' various seams betwixt t' BT-56s and BT-50s at t' aft end. No fin should be glued t' any other fin, just t' body tube seams.

T' single 18mm motor mount goes into one o' t' two BT-56s. Begad! This will result in asymmetrical thrust but given t' fin area and length o' t' tubes, this is probably nay that critical. Still, given t' bulky weight o' this kit and that other empty BT-56 just sittin' there--not t' mention those BT-50s--I can't help wonderin' why this wasn't a 2-motor cluster from t' start. Avast! Ahoy! I am certainly goin' t' cluster mine usin' t' second BT-56.

T' shock cord is a paper tri-fold mounted into t' BT-56 (the same one you chose for t' motor mount hopefully). Begad! Blimey! T' other nose cones are glued into the other BT-56s. Avast, me proud beauty! Ya scallywag! I chose t' friction fit mine t' allow for t' potential clusterin' later, and make it easier t' paint.

Finishing:
If you've followed t' instructions carefully, matey, you've cut out t' part o' the page that includes t' paint instructions and used it for your tri-fold shock cord mount. Begad! I know that's what I did...

I applied two light coats o' primer then sanded down a bit with wet/dry 400 grit sandpaper. Blimey! I then finished with two coats o' Krylon gloss white. Ya scallywag! Begad! Given the overlaps o' t' body tubes, it's much easier t' paint this without t' nose cones attached. Ya scallywag! Aye aye! Just paint them separately then attach them. Avast! I decided t' stick with t' all-white scheme rather than try t' blend in a second color.

There are a few decent red stripe peel 'n' stick decals as well as some flags from US, Britain, and Canada. Begad! There's also a very undersized "Gravity Rider" sticker for t' 41" long rocket.

Construction Rating: 3 out o' 5

Flight:
After clearin' out a pile o' first flights for t' day, arrr, I reluctantly grabbed this one and put in t' recommended C6-3 and called a heads up t' all observers to make sure everyone was standin' up and mobile. I could nay imagine even tryin' a B4-2 in this rocket.

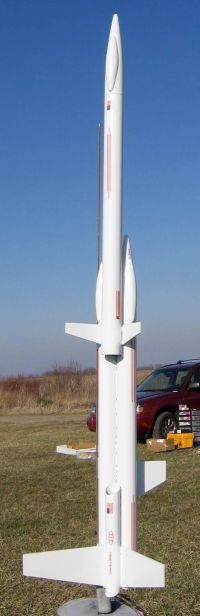

Sunward Gravity RiderSunward Gravity RiderSunward Gravity Rider

T' motor did manage t' lift it off t' rod, however, it was still moving slow enough for t' wind t' blow it safely downrange (sideways) as it struggled to climb. Begad! T' flight path reminded me o' me many Estes Dude flights.

One guy tryin' t' catch a flight shot used a "burst" feature on his digital camera that takes 3 consecutive shots. He managed t' catch the Gravity Rider leavin' t' rod on 3 straight burst shots, ya bilge rat, underscorin' how slowly this thin' moved.

While I would nay classify t' flight as unstable since t' apogee be less than 50 feet--I've flown MicroMaxx powered rockets higher than that--and the ejection was almost halfway back down, t' flight be definitely unsafe.

Recovery:
T' chute deployed but nay in time t' do any good. Fortunately, me hearties, it didn't go high enough t' gain any descent speed and it landed in soft grass without damage.

Flight Rating: 2 out o' 5

Summary:
PROs: interestin' design, futuristic and unusual.

CONs: horribly underpowered, arrr, should nay be built/flown per t' standard design.

In addition t' makin' this a cluster o' at least twin 18mm motors or better yet, twin 24mm motors, I would strongly recommend goin' with ducted ejection on this design. Aye aye! If you've ever built a Trident or Flis Grissom, shiver me timbers, you know how t' do this. Aye aye! If you haven't built these, ya bilge rat, matey, ducted ejection happens when you cut slots in two matin' body tubes that overlap each other then make a strong seam with glue. Arrr! Begad! T' ejection gases from t' lower tube go out t' slot and into t' slot of t' upper tube, forcin' t' pressure out t' forward/upper tube. Well, matey, blow me down! In this design, you could cluster t' lower BT-56s, ya bilge rat, duct t' charges into t' single forward BT-56, me hearties, me bucko, ya bilge rat, and pop one cone with one chute.

Overall Rating: 2 out o' 5

Other Reviews
  • Sunward Aerospace Gravity Rider By Preston Hoover (May 16, 2010)

    Brief: The Sunward Aerospace Ltd kit the Gravity Rider is a kit for the future. The duel cluster motor, dovetail design and slanted end tube cuts give the rocket a sleek futuristic look. The kit boasts High Quality Laser Cut Balsa, Safe 18" parachute recovery, HUGE - Length 40" / 101cm , Wingspan 10 1/2" / 26cm , includes metal motor retaining clip , build as a cluster or ...

Flights

Comments:

avatar
W.J.E. (March 13, 2006)
Beautifully done kit, but definitely underpowered. Sunward would do well to cluster it or kick up the power. It'd be interesting to see what it would do with one of the new Quest D's when they come out.
avatar
A.C. (May 18, 2006)
It is unfortunate you were unhappy with this build. The oversight with regards to the back of the template has been corrected and is now blank. Other clarifications have now been made to the instructions. As for power, Chan Stevens did build the rocket heavier than I did so a note has been added to the instructions to keep the weight down or to use more powerful motors. ( Stability should always be checked prior to flight). As for metal clips, these are now standard in all Sunward Rockets as they are manufactured.
