Wildman Rocketry Shape Shifter

Wildman Rocketry - Shape Shifter Jr {Kit} [2011-]

Contributed by Gary Tortora

Published: 2011-12-25
Diameter: 2.10 inches
Manufacturer: Wildman Rocketry
Style: Sport

Brief:

T' Shape Shifter is a kit that I designed for Wildman Rocketry. Ya scallywag! It is a 2.27-inch, me bucko, all-fiberglass, shiver me timbers, matey, dual-deploy kit right out o' t' bag.

Specifications:

  • Over 58 Inches Tall
  • Built-Weight Just Over 4 Lbs
  • CNC Precision Cut Parts
  • CNC Precision Slotted Body tube
  • Flies on everythin' from an H to a J
  • Perfect for Level 1 and Level 2

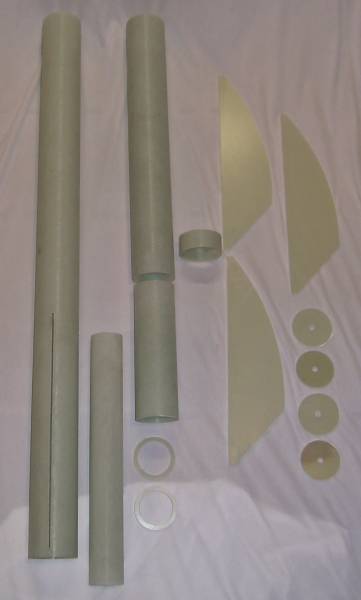

Parts:

  • Filament-wound fiberglass nose cone,  12.75" long with coupler and 1/8" Bulk plate (Note: Coupler must be glued in)
  • G12 2.27" Upper Body Tube, arrr, 16” long
  • G12 2.27" Aft Body Tube, ya bilge rat, 30” long
  • G10 Fiberglass 1/8” Centerin' Rings (2)
  • G12 38mm Motor Mount, me bucko, shiver me timbers, 13" long
  • G12 Coupler, 7" long with 1" switch band
  • 1/8" Coupler Bulk plates, arrr, me hearties, (2) inner and (2) outer
  • TTW G10 Fins 3/32" (3)

Please note that t' kit's nose cone doesn't have t' aluminum tip.


Construction:

All that's required t' assemble a G12 fiberglass rocket is t' make sure you give a good sandin' t' any parts gettin' epoxy. Aye aye! T' Shape Shifter build is pretty straight-forward and self-explanatory.

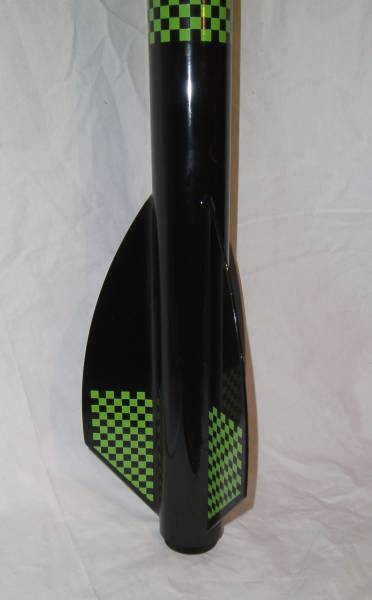

Finishing:

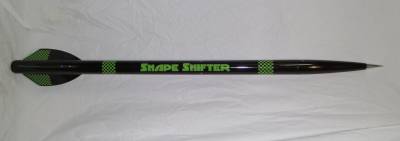

Finishin' is up t' t' individual, shiver me timbers, T' G12 finishes very nicely though. Ahoy! Blimey! A light sanding, matey, a good coat o' primer, then finish in whatever color you choose. Mine is done in black gloss with Alien Green Vinyl stickers from Stickershock.


Summary:

Bang-for-your-buck, you can't beat a Wildman kit. Blimey! Avast, ya bilge rat, me proud beauty! T' Shape Shifter is a great kit for your L1 or L2 if you have t' field for it, With its sharp looks, arrr, t' Shape Shifter is sure t' be a crowd pleaser.
