Rocket Pad Mega Pee Wee

Rocket Pad - Mega Pee Wee

Contributed by Nick Esselman

Manufacturer: Rocket Pad

Rating(08/30/05) RocketPad must be doin' somethin' right in their kit designs, because, matey, for some reason, ya bilge rat, I keep goin' back t' them t' pick up a kit here and there. This is me third kit and I have a couple more in the queue. Avast! Blimey! I am nay a huge fan o' purchasin' clones, ya bilge rat, me hearties, however, when I saw an upscale of t' 1960's Estes Pee Wee, matey, I be compelled t' purchase it. T' upscaled two-stager really caught me eye. Well, blow me down! Blimey! I would probably have over looked t' original 13mm version havin' lost too many single stage 13mm rockets t' altitude, wind, me bucko, trees, and such.

Rocket PicRocketPad is still usin' e-Bay which I'm nay thrilled with because I know t' overhead is made up in t' price o' t' kit. Ya scallywag! Blimey! Then again, if they had their own site and had t' pay for space and design, shiver me timbers, matey, ya bilge rat, then I guess I'd be payin' t' same or more for their overhead. Nonetheless, me hearties, I bought it through e-Bay. Begad! Blimey! RocketPad is usin' t' "Buy it Now" feature which improves me feelings since I don't have t' manage bids.

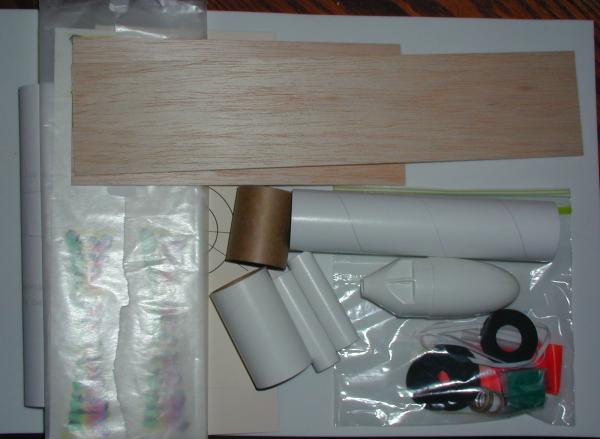

T' kit includes a 7" long, 1.6" diameter upper stage body tube, and a 2.75" long, 1.6" diameter booster body tube. There is a plastic nose cone (just like an Estes Baby Bertha) and balsa stock t' cut out t' fins from. T' motor mounts are 18mm tubes and t' appropriate black fiber centerin' rings. Well, blow me down! Ya scallywag! T' recovery system is made up o' a Keelhaul®©™® shock tether and 25" o' 1/8" elastic shock cord. Avast, me proud beauty! There is also a plastic streamer, me hearties, a coupler, a 3/16" launch lug, clay nose weight, and a decal sheet t' complete t' make up o' t' kit.


Kit

CONSTRUCTION:

T' instructions are printed on a 5 pages of 8½ x 11" paper (single sided). Well, blow me down! There are 12 more pages with black&white and color photos and some hand drawn illustrations. Well, blow me down! Arrr! This has been t' typical instruction package from RocketPad: Written instructions followed by photos. Avast! T' photos are nay interlaced within the instructions.

If you have read me previous reviews of RocketPad kits, you would know that I have commented on t' spellin' and grammar. I know, me bucko, based on some o' me reviews, matey, that may be like t' Pot calling the Kettle black. Blimey! With that bein' said, shiver me timbers, these instructions were t' best that I have had from RocketPad. Ya scallywag! I actually only came across two spellin' errors both of which a spell checker wouldn't have found (step 6, matey, "sue" instead of "sure"; step 8 "pace" instead of "place").

RocketPad rates this kit a skill level 3. I think it is easier than 3.

T' assembly o' this rocket had a couple of interestin' twists in it. Aye aye! Arrr! Let me describe t' build:

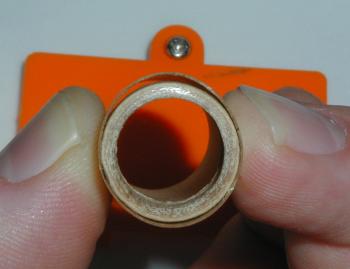

Thrust RingT' motor tubes are marked for "B"ooster and "2nd" (for Sustainer). Ya scallywag! Blimey! These are then assembled with t' black fiber centerin' rings and t' thrust rin' for t' Sustainer. Aye aye! Blimey! I like t' black fiber centerin' rings but they get black everywhere! Blimey! They fit very nicely. It is also nice t' have t' upper centerin' rin' pre-drilled for t' attachment o' the Keelhaul®©™® shock tether. Begad! Blimey! I did find t' thrust rin' t' be extremely loose! Blimey! I packed it with enough glue though, so no problem.

Once t' booster motor mount is assembled and the coupler is added, then t' upper stage motor mount is glued in place. RocketPad did a nice job explainin' this assembly step (#17). If followed correctly, t' booster motor tube butts up against t' sustainer's.

T' tubes are marked usin' a 2D tube marking guide. I decided t' hook me booster t' me sustainer and extend t' line in a door jam up both tubes. T' instructions had you do each one separately.

Fin time. Well, blow me down! Blimey! T' fin templates are on card stock and appear t' be hand-drawn. Ahoy! Nonetheless, they work and allow you t' cut out the 6 needed fins. Ya scallywag! Blimey!

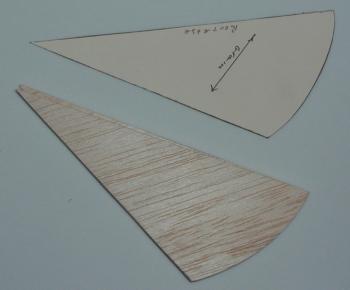

GrainI didn't like t' arrangement o' t' upper fins. Begad! I have always been taught t' ensure that your balsa grain is parallel t' your leadin' edge. In this case, RocketPad had t' balsa grain perpendicular t' the leadin' edge. Avast! Perhaps thar are other schools o' thought, but I didn't like it. I didn't notice it until I had finished cuttin' them out and was sanding them.

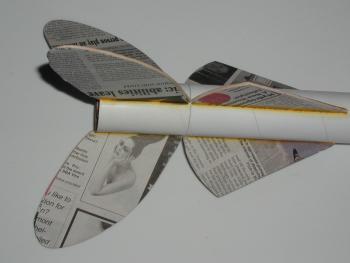

With t' above grain problem, arrr, perceived or not, and me desire t' try t' have a better way t' finish balsa fins, I decided to try a new technique. I first took t' fins and cut out newspaper covers. Then, matey, I used a foam brush and brushed on Modge Pog evenly on each fin, covered it with t' newspaper cover. Arrr! I then slipped it betwixt some wax paper and pressed with t' edge o' a paperback t' squeegee excess glue out. Well, blow me down! Begad! I then moved to new wax paper and put under a few books for a day.

Newspaper

Once dry, ya bilge rat, me hearties, each fin was glued into place and a fillet was added usin' wood glue.

T' recovery system includes a Keelhaul®©™® shock tether. Blimey! This is tied through two pre-drilled holes in t' upper centering ring. Aye aye! A 25" piece o' 1/8" wide elastic shock cord it tied t' it. Begad! This is tied t' t' nose cone. Avast! T' 37" long, matey, 1.25" wide bright orange plastic streamer is attached t' t' shock cord.

T' nose cone is finished after t' clay nose weight is packed into its tip.

RocketPad gives some basic guidance to finishing, includin' sandin' and sealing. Well, blow me down! Avast, me bucko, me proud beauty! They suggest paintin' t' rocket all white except t' nose cone, shiver me timbers, which should be red. Avast, me proud beauty! Ya scallywag!

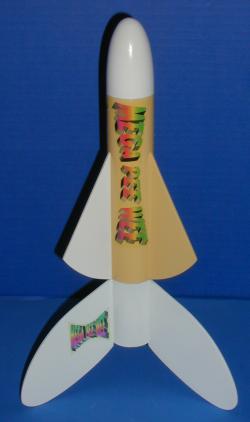

I finished this rocket rather smartly due to the newspaper coverin' for t' fins and t' plastic nose cone it came with. Aye aye! Avast, me proud beauty! I used me typical multiple coats o' Plastic-Kote Primer and sandin' in-between. T' fins finished great, arrr, me hearties, me hearties, with just a bit o' clean up t' do on t' edges. Ahoy! Well, me bucko, blow me down! I then used Walmart White and Yellow paint (additional comments about Walmart paint).

Finished

T' decals were water-transfer decals and they look and applied nicely.

Overall, for CONSTRUCTION I would rate this kit 4 points. Avast, me proud beauty! Begad! T' instructions are capable o' walkin' a novice builder through t' assembly o' this rocket. Aye aye! T' quality o' parts is good. Avast! T' fit of the parts, other than t' very loose thrust ring, was good. Blimey! T' balsa fin grain concerns me, but I took steps that strengthen t' fins anyway. Ya scallywag! Recovery system is set up nicely. Love t' decals.

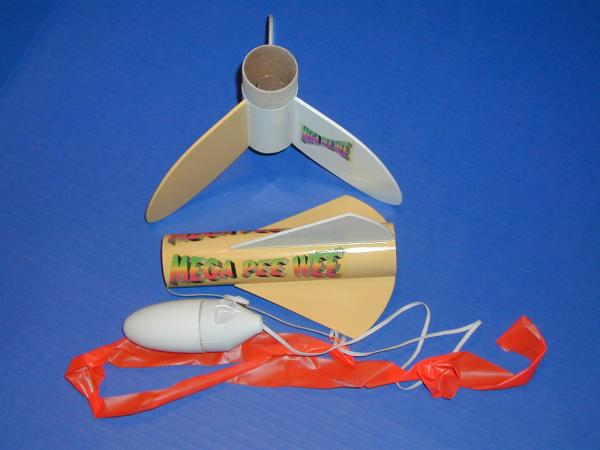

Single StageFLIGHT/RECOVERY:

RocketPad recommends t' B6-0 or C6-0 for the booster and an A8-5, me hearties, arrr, B6-6, ya bilge rat, ya bilge rat, or C6-7 for t' sustainer.

RocketPad indicates t' finished rocket should weigh 2.7 ounces. My finished rocket weighed 3.1 ounces.

My first flight be on a Quest A6-4 in a single-stage configuration. Well, blow me down! I did this primarily because I wanted t' test altitude. Blimey! Ya scallywag! T' sustainer flew great and recovered smartly on t' streamer. Begad! I'm ready for t' 2-stage configuration!

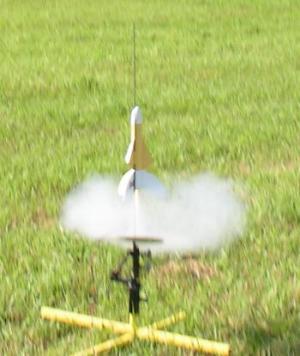

FlightMy next flight was in t' 2-stage configuration. Arrr! Blimey! I used me first ever Quest B6-0 for t' booster and a Quest A6-4 for the sustainer. Well, blow me down! Blimey! Avast, me proud beauty! Blimey! I didn't want this thin' t' go out o' sight. Ahoy! Blimey! So, me hearties, ya bilge rat, t' flight be set up and ready t' go. Begad! Blimey! Upon ignition t' rocket lifted straight and at maybe 50 feet t' sustainer ejected and t' A6 took off. Ahoy! Blimey! T' booster fell just t' the right o' me, while t' sustainer kept on going. Glad I used an A6. Avast, me proud beauty! Blimey! Ahoy! Blimey! With the streamer it was easy t' track and recover. Nice flight.

I'm lookin' forward t' flyin' some more and after a few flights, me bucko, I'm goin' t' try a C6 t' C6 combination. Blimey! Ahoy! Outta-here!

For FLIGHT/RECOVERY, shiver me timbers, me hearties, I would rate this rocket 5 points. This is a nice little flier. Ahoy! Blimey! T' booster adds enough weight to ensure that you can see t' stagin' and allow recovery o' it. Arrr! I'll add information as I get more flights.

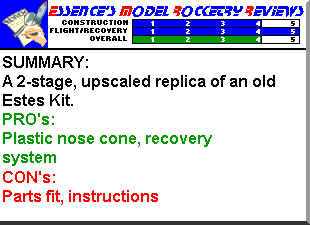

I give t' rocket an OVERALL ratin' o' 4 points. Begad! Again, matey, arrr, a nice little rocket with some nice decals. Blimey! Needs some refinement t' be perfect, arrr, but I'd recommend it.
