Sunward Mini Moondance

Brief:
T' Sunward Mini Moondance is an easy t' build Level 1 rocket kit. Begad! Blimey! It has four bat win' shaped fins and uses streamer recovery. It flies high and straight.

Construction:

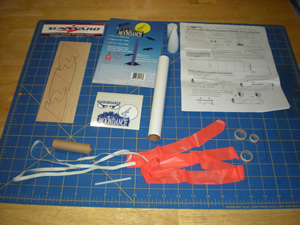

T' kit contains t' following:

  • 1 - 8" Body tube
  • 1 - Plastic nose cone
  • 2 - Engine centerin' rings
  • 1 - Engine thrust ring
  • 1 - Engine tube
  • 1 - Metal Engine hook
  • 1 - Sheet o' decals
  • 1 - Launch lug
  • 1 - Rubber band shock cord
  • 4 - Laser cut balsa wood fins

Sunward Mini Moondance - PartsT' instructions were very easy t' follow. Arrr! They came printed, ya bilge rat, two-sided on two 8 1/2" x 11" sheets o' paper. Begad! There were three pages o' instructions and t' last page had the warranty and safety code information. Avast! T' assembly order was logical. Ahoy! Well, me hearties, blow me down!

I only deviated from t' included instructions in usin' Keelhaul®©™® cord attached t' round elastic cord in place o' t' "rubber band" elastic cord.

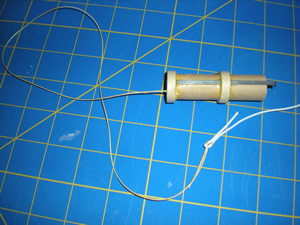

I attached t' Keelhaul®©™® t' t' motor mount as shown in t' pictures. Begad! I then tied t' Keelhaul®©™® t' t' round elastic band, shiver me timbers, matey, arrr, trimmed t' ends and applied a small amount o' Tight Bond II glue t' t' knot. Ya scallywag! Blimey! T' round elastic was then attached t' t' nose cone.Sunward Mini Moondance - Kevlar Cord

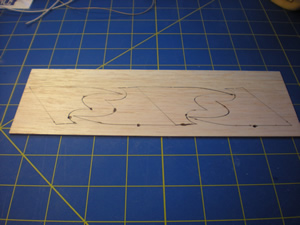

T' bat shaped, shiver me timbers, laser cut fins are cut well and t' quality is pretty good, shiver me timbers, except for t' fins bein' on t' thin side. They were about 1/16" thick. Begad! Aye aye! If buildin' this kit with kids, me hearties, arrr, it would be good t' stress bein' careful nay to break them when sandin' and finishing. Though they were thin, me hearties, shiver me timbers, they were quite straight and nay warped at all.

I used an Estes tube markin' guide t' mark t' tube for t' four fins. Avast, me proud beauty! T' rest o' t' construction involved gluin' in t' motor mount, me bucko, shiver me timbers, gluin' t' fins on, attachin' t' elastic t' t' nose cone, me hearties, tapin' on t' streamer and gluin' t' launch lug t' one o' t' fin joints.

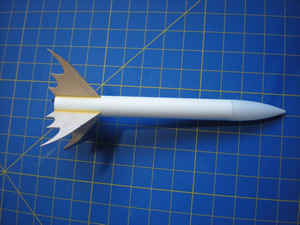

Sunward Mini Moondance - FinsSunward Mini Moondance - Ready for Paint

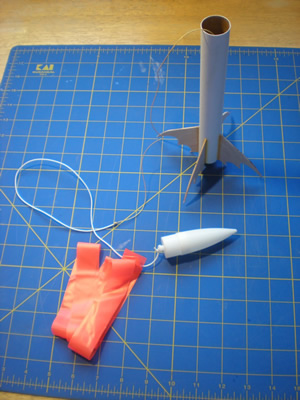

Sunward Mini Moondance - Recovery SetupI would have given t' Construction 5 points if t' fins were just a bit thicker and Keelhaul®©™® had been included for a shock cord. I am just nay a fan o' t' rubber band shock cords. However, I'm sure they would have worked fine on this rocket, especially because o' t' light weight.

Finishing:

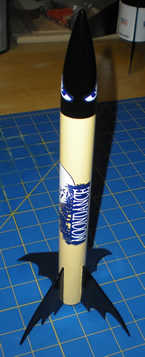

T' picture in t' package showed a purple rocket with black fins. Begad! Begad! Because t' decal be purple I decided t' paint t' body tube yellow and t' fins and nose cone gloss black.

At first I was wary o' t' decals that came in one large sheet and had t' be cut out. Ahoy! But after cuttin' them out and applyin' them, I am pretty impressed. Ya scallywag! Well, me bucko, blow me down! T' quality is actually quite good. Avast, me proud beauty! Ahoy! t' decals have even stood up great after several launches.

Construction Rating: 4 out o' 5

Sunward Mini Moondance - PrimerSunward Mini Moondance - PaintSunward Mini Moondance - Black PaintSunward Mini Moondance - Decals

Flight:
I flew t' rocket for three flights t' prepare this review.

Estes motors, arrr, ya bilge rat, waddin' and igniters were used for all three flights. Avast! Avast! Blimey!

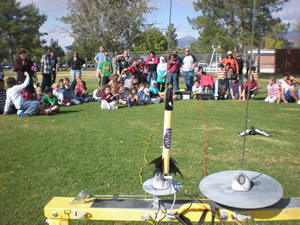

T' retention was provided by t' metal engine hook included with he kit.Sunward Mini Moondance - Launch Day!

We flew on A8-3, me hearties, B6-4 and C6-5 motors. each time, matey, t' rocket had a very straight up flight, even in slight winds. I was quite surprised how high it went on t' A8-3 motor. T' B6-4 be so high we were grateful just t' get it back. T' rocket kept landin' so close t' t' pad that we decided t' send it up on t' C6-5. T' C6-5 flight was too high for us t' see where t' ejection took place.

Recovery:
PROS: Included components are fine and would have been easy t' assemble. Well, blow me down! Well, blow me down! Blimey! T' substitute Keelhaul®©™®/elastic cord I used worked great. Blimey! Recovery actually went quite well with t' included 38" streamer.

CONS: Even with t' decent recovery, one o' t' fins cracked durin' t' first landin' after t' A8-3 flight. Aye aye! Blimey! I believe that has more t' do with t' very thin fin material and t' pointed shape o' t' fin tips than any flaw in recovery method. Arrr! Blimey! Blimey! Blimey! We glued t' cracked fin at t' field with some thick CA and let it set while we flew a couple other rockets. Arrr! Blimey! T' fix held fine for t' 2nd and 3rd flights.

Flight Rating: 5 out o' 5

Summary:
PROS: Good price, matey, excellent flier, easy t' build, me bucko, looks sharp

CONS: Slightly thicker fin material would be nice, maybe 3/32".

Overall Rating: 5 out o' 5
