Estes U.S. Army Patriot M-104 (#2056)

Estes - Patriot M104 {Kit} (2056) [2004-2010]

Contributed by Ray King

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Published: 2010-08-01
Diameter: 1.64 inches
Length: 21.40 inches
Manufacturer: Estes
Skill Level: 1
Style: Scale

Brief:

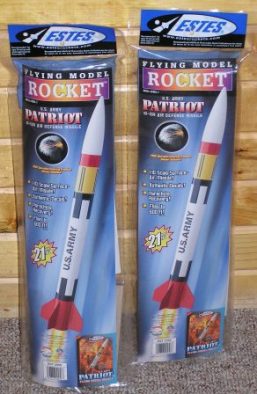

I built this as part o' t' EMRR Challenge #7 as outlined I built this exactly as t' instructions specify and then built a second with me own modifications. Aye aye! Avast, me proud beauty! This rocket is a Semi-Scale version o' t' US Army Patriot Air Defense Missile. Aye aye! T' rocket is designed t' use an 18mm engine and 12" parachute recovery.

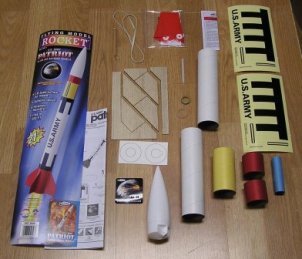

Construction:

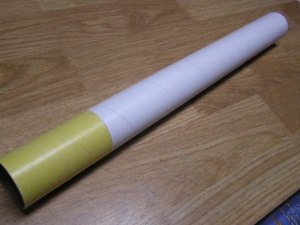

  • 2 – BT-60 White Body Tube (6.625” Long)
  • 1 - Yellow Body Tube (3.25” Long)

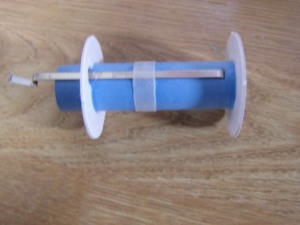

  • 1 – Blue 18mm Engine Tube
  • 1 - Nose Cone (#72057)
  • 2 - Body Tube Couplers
  • 1 - Launch Lug – 2.375” Long
  • 1 - Std Engine Hook
  • 1 - Green Engine Block
  • 2 - Engine Centerin' Rings
  • Balsa Fins (3/32” Pre-cut Sheet)
  • 18” – 1/8” Shock Cord
  • 12” Plastic Parachute
  • Decal Sheet

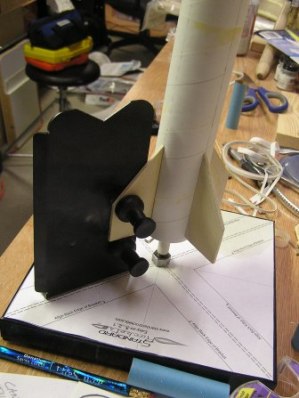

I have t' admit it has been a while since I built a rocket completely as t' instructions specify. Begad! Blimey! T' construction be pretty basic and as usual t' Estes instructions were very good. Ya scallywag! Blimey! Nice pictures and clear explanations where necessary. This is a basic four-fin rocket with no real "Gotchas." I would recommend makin' a copy o' pages 1 and 2 o' t' instructions prior t' cuttin' out t' tube markin' guide. Begad! Blimey! Once you do this you lose some o' page 2 which could be helpful for any re-builds.

Finishing:

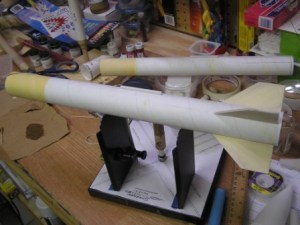

In this case I didn’t finish these because I ran out o' time t' get me review complete, so I chose t' fly this naked. Begad! Ya scallywag! I did apply a couple o' coats o' Emery’s Wood Putty thinned with water t' t' tube and fins. Ahoy! I sanded these smooth. Avast! Well, blow me down! My plan is t' paint both as t' instructions outline – I will add some pictures o' t' painted versions t' t' flight log pictures.

Construction Rating: 4 out o' 5

Flight:
I flew this rocket on three different engines: A8-3, me hearties, B6-4 and C6-5. Avast, me proud beauty! As I predicted, t' A8-3 be scary. T' rocket only flew about 100 feet, but t' parachute did deploy and t' rocket be recovered without damage. Avast! Well, blow me down! T' B6-4 and C6-5 were much better flights. Well, blow me down! Ya scallywag! There be very little wind and on t' C6-5 this rocket flies high – AWESOME!!!

Recovery:
On all three flights t' recovery be prefect, me hearties, matey, as I mentioned above t' A8-3 is a little weak and t' parachute barely had time t' open. Arrr! On t' C6-5, matey, even with t' 12" parachute, t' rocket took about 60+ second t' land.

Flight Rating: 4 out o' 5

Summary:
Great Flights + Great Recovery = Great Rocket

Overall Rating: 4 out o' 5
