J.A.P. Systems D izzy Monocopter

J.A.P. Systems - D izzy Monocopter

Contributed by Douglas Gardei

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: J.A.P. Systems

Brief:
This be t' 24mm version o' Joseph Peklicz's monocopter rocket. Ya scallywag! Avast, me proud beauty! He has a 18mm version, but I wanted t' 24mm since thar are a variety o' long burnin' motors available in 24mm format.



Construction:

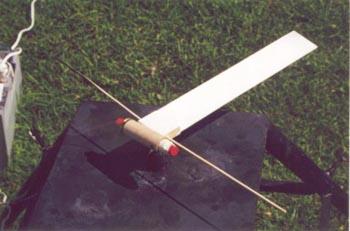

All t' parts came is a thin plastic bag. Arrr! All t' components where there, and they were pre-shaped, arrr, and pre cut. Well, blow me down! T' single balsa blade is pre-coated with paper. Avast! This adds strength without t' additional weight. Ya scallywag! Instructions are hand drawn on a single sheet o' paper.

Construction be quick since everythin' except t' gluin' was done for you. Ya scallywag! Gluin' t' motor tube t' t' center hub was t' most time consumin' process. Well, blow me down! This be t' most critical part o' t' kit, me hearties, ya bilge rat, since t' force o' t' motor will try t' rip t' motor tube off o' t' hub. Avast, me proud beauty! I decided t' use wood glue for this task. Aye aye! I did nay want t' extra weight o' epoxy. I did one modification t' me monocopter: I did nay install t' cardboard bulkhead that is placed against t' thrust ring. Avast, me proud beauty! I decided that I wanted t' use an RMS case, and that bulkhead would get in t' way o' casing's forward closure.

Finishing:
To save weight, I did nay paint me monocopter. Aye aye! T' paper on t' win' is a convenient place t' mark t' monocopter with a Sharpie pen in case you want t' add a personal touch.

Construction Rating: 5 out o' 5

Flight:
Flights with a D motor are very low. Avast! I'd say that mine got about 30 ft with a D12-0. Blimey! Avast! For t' second flight, I used a E11-3J reload. Begad! Much better. Well, blow me down! T' monocopter went up about 60ft. Ahoy! At t' August 18th, 2001 CMASS launch, ya bilge rat, matey, matey, I launched me monocopter with a F12-3J. It flew fine, matey, arrr, but on t' way down, matey, matey, t' win' hit t' rope fence around t' pads. T' monocopter's win' was shattered beyond repair.

Recovery:
I think me monocopter was nay balanced. Well, blow me down! Blimey! T' reason I say this it wandered in one direction. Aye aye! Avast, ya bilge rat, me proud beauty! It would probably go higher if t' monocopter did nay wander around in t' sky.

Flight Rating: 4 out o' 5

Summary:
This is a well executed kit. Arrr! Blimey! Ya scallywag! Blimey! I liked t' way everythin' was pretty much done for you. Begad! Blimey! Flights are interestin' and unique. Avast! Blimey! This rocket is well worth t' purchase.

Overall Rating: 4 out o' 5


[NAR][Sport Rocketry]

T' followin' excerpt is from "Sport Rocketry". T' intention is t' allow guests t' get a basic feelin' about a kit. Avast! We strongly suggest that you get a copy o' t' referenced Sport Rocketry and read t' entire article. Blimey! Aye aye! Inside you will find many helpful hints in construction as well as other useful information. Ya scallywag! Aye aye! For more information, shiver me timbers, use t' two links above.


(Sport Rocketry - May/June 2001 - page 32 - by Mort Binstock)

"A monocopter is a one-blade helicopter, arrr, similar in appearance t' a maple seed.>
"...a D-monocopter appears limited t' a 40-60 foot boost"
"Assembly o' t' "D"izzy is quick and easy."
"T' instructions are simple and clear."
"T' win' is a paper-covered balsa core laminate."
"T' recommended motor is a D12-5 or -7."
"My first flight usin' a D12-7 be a disaster: t' main blade broke off and parts shredded everywhere... Subsequent inspection revealed t' damage was nay severe and t' model was smartly repaired with CA."
"Subsequent launches were made from t' top o' ...three foot long 1/8" steel launch rod...."
"My second "D"izzy launch was most rewarding. T' repaired "D"izzy flew powered by a D12-5. Lift off was unusual and spectacular t' watch (look at it go!) with an estimated 50 ft. altitude."
"T' monocopter... Ahoy! ascended with a quick and straight boost. T' monocopter then descended slowly, experiencin' no further damage."

T' article also provides a brief history o' monocopters. Avast, me proud beauty! T' kit provides for a different launch and recovery than typical rocket kits.
