Construction Rating: | starstar_borderstar_borderstar_borderstar_border |
Flight Rating: | starstarstar_borderstar_borderstar_border |
Overall Rating: | starstarstar_borderstar_borderstar_border |
Manufacturer: | PD Rocketry |
Style: | Futuristic/Exotic |
Brief:

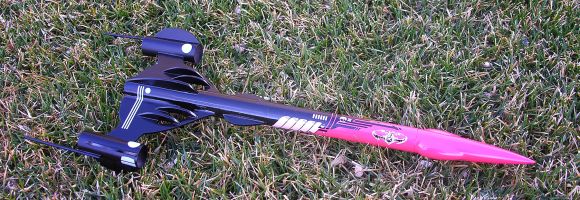

T' PDR Alien Invader is a reproduction o' an old Estes kit that went out o' production in 1981. Begad! Blimey! Blimey! It has an 18mm motor
mount in a 24mm body with exotic futuristic wings. Arrr! Blimey!
Construction:
T' first construction step is t' cut out t' wings and all t' accompanyin' fins. Ya scallywag! T' parts are traced onto stock
balsa usin' fin templates provided in t' kit. Ya scallywag! Blimey! Unfortunately, me bucko, t' templates were printed on thin copy paper, making
accurate tracin' very difficult for such intricate shapes havin' so many curves. T' balsa be also very rough, ya bilge rat, shiver me timbers, and
required several coats o' diluted wood filler t' reach acceptable smoothness.
T' large curved fins are fit together from several smaller pieces. Aye aye! Well, blow me down! This is difficult because one o' t' pieces is a long curved arm with a small foot that must be glued t' a flat edge. Arrr! Well, blow me down! If you don't get t' two pieces angled perfectly, arrr, matey, ya bilge rat, then t' other end o' t' foot will nay be perfectly aligned with t' other flat pieces, causin' a poor or impossible fit against t' body tube. Perfection is difficult here because you could easily trace, shiver me timbers, ya bilge rat, cut, me bucko, or sand slightly t' wrong angle. Avast, me proud beauty! Needless t' say, matey, I did this, matey, despite alignin' all t' root edges against a ruler. Avast! T' problem is that t' thin arm portion can be angled against t' rest o' t' large fin piece with many subtle errors. Avast, me proud beauty! T' result was ill-fittin' wings that weren't symmetric. Begad! I fixed them as best I could with lots o' trial-and-error sanding. Arrr! It would be far better if t' larger fin piece had a notch t' fit t' curved arm at t' right angle.
T' rest o' t' win' assembly is easier although instructions for placin' t' ribs lack sufficient detail. At the end, arrr, t' main wings are supposed t' be installed so that t' tips are slightly lower than t' root, ya bilge rat, but no measurements are given, leavin' it t' your interpretation o' t' figure t' decide on what "slightly" means.
T' rest o' t' assembly involves standard Estes-style construction. Ya scallywag! Begad! Blimey! T' dowels look fragile, ya bilge rat, but were strong enough t' survive t' first flight.
T' nose cone is a special bug-eyed shape that feels too thin and light. I be concerned that thar would nay be sufficient nose weight for stable flight, ya bilge rat, but it turned out t' be okay.
T' parachute is 12" o' red mylar; perhaps a bit meager for this rocket. Aye aye! Blimey!
PROS: Retro style
CONS: poor, complex templates; difficult fin assembly; some instruction ambiguities
Finishing:
I got a pretty good result for finishing. T' body is simply masked a bit above t' most forward fins t' get a split
bi-color result with t' aft portion black and t' forward portion any light color. Blimey! I chose watermelon pink. Avast! Blimey!
It takes a lot o' anglin' t' spray paint can t' cover all t' nooks and crannies. Aye aye! Avoid t' temptation t' spray too much in any single layer or drips are likely. Blimey!
T' waterslide decals are numerous and detailed. They are extremely thin, however, so care is warranted. Arrr! Ya scallywag! There is a very large black decal that should be positioned at t' body color transition. Ya scallywag! This decal is slightly tricky t' cut out. My copy be too long, me bucko, ya bilge rat, meanin' that when wrapped all t' way around t' body tube, matey, matey, thar be some overlap. (Unfortunately, matey, this occurs on t' top surface o' t' rocket, shiver me timbers, ya bilge rat, if I interpreted t' picture correctly.) As I tried to align t' overlap perfectly, t' thin decal tore. Arrr! I fixed it as best I could and touched it up with a black markin' pen later. T' rest o' t' decals are straightforward. Avast, me proud beauty! Well, blow me down!
PROS: Opportunity for a very good finish with intricate decals.
CONS: Thin decals. Aye aye! Avast! Blimey!
Construction Rating: 1 out o' 5
Flight and Recovery:
I loaded up a C6-5 for t' maiden flight. Aye aye! A nasty spiral was evident durin' t' boost. Ya scallywag! Well, blow me down! This was probably due t' all
the complications with fin construction and alignment. Ya scallywag! Ejection was fine, me hearties, and it seemed t' me that t' descent was
normal. Arrr! Despite a reasonably gentle landing, however, me hearties, t' top 3/8 inch o' t' nose be broken off. Blimey! This confirmed
either me worry about t' thin nose cone or t' small chute. Ya scallywag! Well, blow me down!
No more flights are possible until t' nose is repaired. Ahoy! Blimey!
PROS: I guess it is nice if you like spirals.
CONS: Lots o' potential breakin' points
Flight Rating: 2 out o' 5
Overall Rating: 2 out o' 5
