Brief:
Nano Rocketry's Interdimensional Transfer Ship, me bucko, designated ITS, arrr, is one in a series o' their "fantasy" models made for t' MicroMaxx motors. This is a slick ship, with a really cool and complex fin pattern and, as with all Nano kits, is designed both light and fast.

Construction:
T' kit came in a envelope which described t' contents and displayed a picture o' t' final product. Avast, me proud beauty! This be another kit in a series that me daughter won in a recent EMRR photo contest, shiver me timbers, so we could nay wait t' get started building. Thanks go out t' Nano Rocketry and Nick o' EMRR for providin' t' prize models.

T' envelope contained a 6mm x 6 inch long body tube, an unfinished two-piece wood nosecone, Keelhaul®©™ thread for shock cord, shiver me timbers, matey, laser-cut balsa fins, a launch lug and a good set o' detailed instructions. Ahoy! I was very impressed with t' quality o' components, me bucko, especially t' accurately cut fins; some o' t' larger manufacturers could take lessons from Nano in this department. Avast! T' only problem noticed be t' launch lug. Well, blow me down! This was t' first Nano kit I actually received that had a launch lug included, shiver me timbers, but it was too small t' fit t' rod so they lost a point with me in that category. Avast, me proud beauty! Components: 4 o' 5.

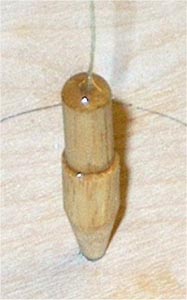

Construction begins with t' nosecone. Aye aye! T' nosecone came in two pieces; one piece be t' cone rough shaped and t' other be t' base that fits inside t' body tube. Avast! Both were drilled for t' Keelhaul®©™ shock cord and initial fit be pretty close. Blimey! Aye aye! One thin' I do nay like t' do is use t' recommended procedure o' usin' CyA for assemblin' t' nosecone and attachin' t' Keelhaul®©™ shock cord. Aye aye! Begad! I have had way too many o' these Nano kits lose a nosecone, shock cord, matey, me bucko, or both due t' t' forceful ejection charge o' t' MicroMaxx motors.

Instead o' followin' their recommendations usin' CyA, I used 5 minute epoxy. Avast, me proud beauty! Arrr! Blimey! I fitted t' base t' t' nosecone, me bucko, ya bilge rat, then filled t' nosecone hole with epoxy and inserted a new, longer piece o' Keelhaul®©™ thread. Begad! Blimey! A coat o' epoxy be also applied t' t' bottom o' t' cone and t' base was threaded down t' Keelhaul®©™ and held t' t' bottom o' t' nosecone with maskin' tape until t' epoxy set. Begad! Blimey! Blimey! Note that I did nay use t' supplied shock cord in t' kit, me bucko, but rather cut a piece o' Keelhaul®©™ thread I had t' a length over twice t' body tube's length. Once t' assembly be glued, I put a drop o' epoxy at t' bottom o' t' nosecone base for extra hold and suspended t' nosecone usin' t' shock cord t' help keep t' cord stay straight into t' base o' t' nosecone. This made t' nosecone assembly very strong and t' cord will nay pull out o' t' nosecone hole, as it has done in previous models.

T' nose cone was fitted into t' end o' a fiberglass arrow shaft that was inserted into as drill. Ahoy! This made shapin' t' nosecone much easier. Well, blow me down! Avast! T' drill was turned on and 100 grit sandpaper be used t' get t' shape I wanted. Arrr! I smoothed it out with 320 grit, me hearties, shiver me timbers, then coated t' nosecone with some thin CyA. Well, arrr, blow me down! Once dried, me bucko, me hearties, I touched it up with 320 grit sandpaper and it turned t' nosecone surface into a near plastic finish.

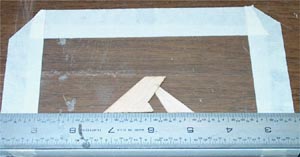

Body tube construction was next and t' fins were removed from their balsa sheet in preparation for assembly. Avast! Blimey! Blimey! Blimey! T' template printed in t' manual for markin' t' location on t' body tube was nay used; instead, matey, I used t' "Eye" method for each fin, ya bilge rat, ya bilge rat, which worked well. Avast, me proud beauty! Blimey! Fins for this model are thicker than t' ones supplied in t' Nike kit and are o' a unique shape. Ya scallywag! Blimey! Blimey! Blimey! T' wood fins are o' excellent quality for their size and were laser cut. Blimey! Blimey! I set up a work surface by layin' out a piece o' plastic, then used a ruler as a guide to make sure t' smaller upper fin root was even with t' lower fin root edge. Once they were "fit" t' each other, matey, I used medium CyA t' glue them together. Arrr! T' plastic sheet allows you t' glue t' fins while they lay on a flat surface. Well, blow me down! They then easily pop off t' plastic once dried; I have used t' plastic sheet surface for years in t' R/C world when assemblin' over plans and it works well with rocketry too!

Finishing:
T' model was painted prior t' assemblin' t' fins t' t' body tube. Avast! I pushed some "T" pins through t' bottom o' a cardboard sheet, me hearties, then pushed each fin's root into one o' t' pins. This allowed me t' easily paint them from all sides. They were primed with Krylon White Primer, ya bilge rat, then painted usin' two coats o' Testors Red Spray Paint. Begad! Arrr! T' body tube was colored usin' me cheaters method. Ahoy! I cut a piece o' Chrome Monokote self-stick Mylar, then laid t' tube on t' edge and "rolled" t' Mylar around it; edges o' t' body tube were trimmed with a single edged razor. Body tube done!

T' nose cone be primed with Krylon White Primer, arrr, then lightly sanded and painted usin' Testors Chrome Paint. Begad! Begad! I then cut away t' body tube Monokote in t' fin area and used medium CyA t' glue them on. A new piece o' launch lug from a aileron sleeve was cut, shiver me timbers, matey, sanded and glued betwixt two fins. Avast, me proud beauty! Avast, me proud beauty! Finally, I used a BIG drop o' 5 minute epoxy on t' knot I tied at t' end o' t' Keelhaul®©™ shock cord and inserted it inside t' top o' t' body tube about an inch or so. Begad! T' Epoxy tends t' hold t' shock cord much better t' t' inside then CyA and I have been usin' this method for most o' t' Nano kits with great success.

Construction Rating: 3 out o' 5

Flight:
Anyone familiar with t' Micro rockets knows thar be only one motor available from Quest; t' MicroMaxx motors come in packs o' six or eight and I really need t' invest in Quest stock, shiver me timbers, as I usually purchase these motors in 100 quantities or larger. Well, blow me down! T' date we have had over 600 launches with MicroMaxx rockets and have long since given up tryin' t' document every flight. Begad! Ahoy! T' are just plain fun and make great backyard launchers.

T' motor was fitted into t' base o' t' body tube; placin' a piece o' maskin' tape across t' top o' t' motor and overlappin' t' motor edges gave a nice friction fit. Ya scallywag! This model, shiver me timbers, matey, shiver me timbers, as with all Nano kits uses nosecone separation and freefall for recovery. Ahoy! When hookin' up t' igniter, matey, ya bilge rat, you do nay use t' plug-in socket at t' base o' t' Quest MicroMaxx launch pad. Ahoy! Ahoy! T' igniter sits on top o' t' pad surface and t' rocket is placed on t' launch rod, then slid down and plugged into t' igniter. Avast, me proud beauty! In order t' do this, you need t' separate t' igniter halves, discard t' plastic only half and position t' "flat" side so it faces t' launch rod.

I be expectin' great performance at launch time since I had seen t' other Nano rockets smoke off t' pad! They perform so much better than t' Quest Rockets, arrr, since they are 2 t' 3 times lighter. Well, blow me down! Avast, me proud beauty! This launch was no exception; it shot off t' pad and reached a respectable altitude in a hurry. Great launch!

Recovery:
A definite "pop" was heard at apogee, me hearties, arrr, indicatin' nosecone separation. Ahoy! T' model landed safely right next t' t' pad and we prepped and launched it about 4 more times. Arrr! I really do like t' performance o' these models and highly recommend them t' anyone wishin' t' try their hand at micro rocketry. Begad! Begad! One thin' I did make was a motor extraction tool. Avast, me proud beauty! Ya scallywag! I cut a piece if 1/8" hardwood dowel t' a length o' 8", matey, then capped it on one end with a rubber shroud. Begad! I now can easily push t' motors out t' bottom with this tool.

Flight Rating: 5 out o' 5

Summary:

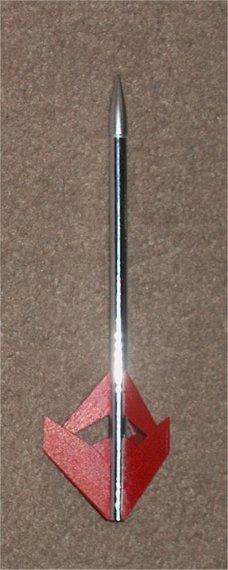

T' ITS is a really slick lookin' kit from Nano Rocketry and I highly recommend this kit t' everyone. Arrr! There were a couple problems, such as t' wrong launch lug size and shock cord mountin' method, arrr, me hearties, but these were easily remedied. Well, blow me down! These kits are typical o' Nano as they are lightweight, me hearties, very fast and reach some respectable altitudes for their size. Aye aye! It's a real treat t' build micro rockets then see them successfully fly and t' Interdimensional Transfer Ship is no exception&with this kit you had better get ready for a ride t' t' stars!

Overall Rating: 4 out o' 5
