Madcow Rocketry - 2.6" Army Hawk MIM-23A {Kit} (106)

Contributed by Bill Eichelberger

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Diameter: 2.60 inches
Length: 36.25 inches
Manufacturer: Madcow Rocketry
Style: Scale

Madcow Rocketry Army Hawk

Brief:
T' Madcow Army Hawk is a mid-powered 1:5.4 scale version o' t' actual surface-to-air guided missile. Ya scallywag! T' Hawk features a balsa boat tail, Nomex chute protector, ya bilge rat, vinyl decal, me bucko, Keelhaul®©™ shock cord, and 30" nylon parachute recovery. Well, blow me down! Skill level wasn't mentioned, shiver me timbers, arrr, but I'd place this at a skill level 2 for its size and t' need for epoxy in construction.

Construction:

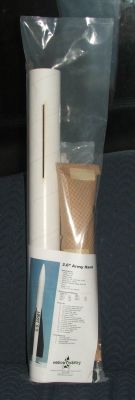

T' parts list:

  • Balsa nose cone
  • Balsa tail cone
  • Pre-slotted body tube
  • 2 Centerin' rings
  • 29mm motor tube
  • 4 Laser cut fins
  • Eyebolt, arrr, nut and washer
  • Nose cone shoulder coupler
  • Nose cone shoulder bulkhead
  • Nose weight
  • Keelhaul®©™shock cord
  • Nomexchute protector
  • 30" nylon chute
  • 1/4" launch lugs (2)
  • Vinyl decal

Madcow Rocketry Army HawkMadcow Rocketry Army Hawk

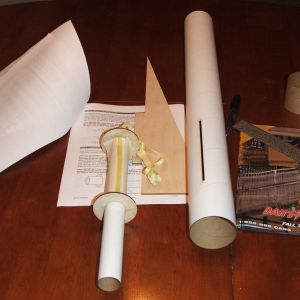

I dry-fit all o' t' parts before I started t' build, arrr, and was pleased t' see that everythin' seemed t' line up just as it would when it be time for t' actual construction. Avast, ya bilge rat, me proud beauty! It be t' actual construction part that had me nervous, since I rarely venture into t' realm o' mid-power. Aye aye! My occasions t' use epoxy are scarce, and when I do use it, I wind up with a mess on me hands, me hearties, feet, goatee, etc. Begad! (I don't even like t' think about t' etc. Begad! Blimey! part.)

That said, almost everythin' about this build went smoothly. Begad! Blimey! I didn't wind up with too much o' an epoxy mess, me hearties, except for one occasion when a fillet refused t' cure, me hearties, ya bilge rat, causin' me t' have t' go back and start over. T' instructions were well explained and adequately illustrated if one has previous buildin' experience and I found myself finished with t' basic construction almost too quickly. Blimey! With t' exception o' paint and nose weight, everythin' looked like t' illustration and all o' t' parts fit together seamlessly.

Finishing:
Finishin' was as easy as t' rest o' t' project. Well, blow me down! Blimey! T' body tube had only t' slightest spiral, me hearties, me bucko, and thar was very little grain showin' in t' plywood fins. Begad! Blimey! These were eliminated with t' last o' me thinned Elmer's Fill 'n' Finish. T' balsa nose and tail cones were treated t' several coats o' FnF and came out lookin' great after several sandings. Aye aye! Blimey! Once t' rocket was smooth enough, shiver me timbers, I primed it with Valspar white primer, shiver me timbers, then sprayed t' fins with Valspar Gloss Black. Ahoy! Blimey! Blimey! Blimey! I ran into a little trouble maskin' off t' fins because o' t' monster fin fillets that I had created, arrr, ya bilge rat, but it isn't easily noticed unless you're holdin' t' rocket. After two coats o' gloss black, t' fins looked great and I masked them off before paintin' t' rest o' t' rocket with several coats o' Valspar Gloss White. Avast! Blimey! Blimey! Blimey! When this dried I installed t' vinyl decal as shown on t' instruction sheet. Well, blow me down! Blimey! This be t' first vinyl decal I'd ever tried and I be impressed with how well it held its place once it was applied. T' finished product looks great: squat, bulky and sturdy. Blimey! Blimey! My kind o' rocket.

Construction Rating: 5 out o' 5

Flight:
Like many people, matey, me bucko, I found myself choosin' me motor based on t' what was available when I visited our on-field vendor, Merlin Missiles. Nay ownin' an RMS system and nay willin' t' chance borrowin' someone else's, shiver me timbers, me hearties, I went with t' Aerotech G38FJ-7--a choice that I was assured would be great for this rocket. Avast! Once I got it home, I installed it in t' motor tube and figured out how much nose weight t' install t' brin' t' CG up t' t' proscribed 20.75" from t' tip o' t' nose. In t' end, that wound up bein' almost all o' it.



Madcow Rocketry Army HawkMadcow Rocketry Army Hawk

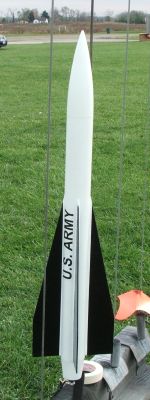

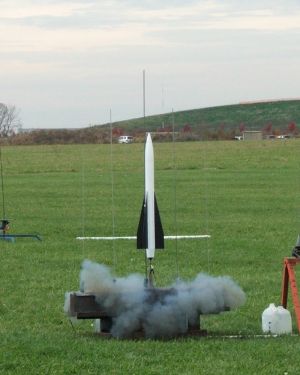

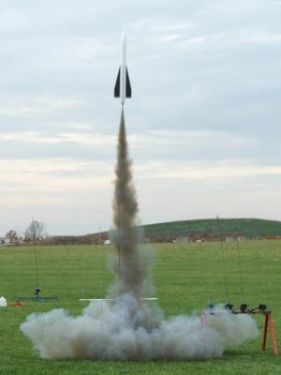

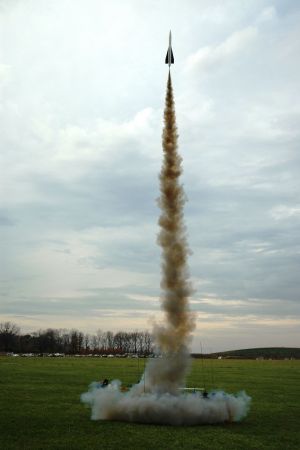

Madcow Rocketry Army HawkWith Christmas season fast approachin' and a personal health crisis on t' horizon, I managed only one flight with this bird before t' end o' me flyin' season. Well, blow me down! However, arrr, that flight definitely won't be t' last. Blimey! Launch day was gray and overcast with a constant breeze. Avast! Well, blow me down! Since this was goin' t' be only me third flight usin' an Aerotech motor and me first since 2002, me hearties, matey, I be a little nervous about t' impendin' flight. Begad! Luckily t' VOA field be crowded with people t' whom a flight like this is almost as natural as drawin' a breath. Arrr! Fellow QUARKer Mark "Loopy" VanLuvender helped out immensely and kept me from a full blown panic attack. Begad! I had an idea o' how t' proceed but havin' someone t' confirm that what I be doin' was correct made all t' difference in t' world. Arrr! Once t' motor was secured and t' ignitor in place, things got rollin' quickly, matey, and after loadin' t' rocket on t' pad and gettin' t' obligatory pictures, matey, t' launch followed quickly. I managed t' catch t' whole process with t' burst mode on me camera, even though I've never had t' slightest bit o' luck timin' Copperhead ignitions. T' Hawk rose fairly smartly and followed an almost arrow straight flight path up t' t' point o' motor burnout. It weathercocked some durin' t' coast phase due t' t' large surface area o' t' fins, arrr, ya bilge rat, but for t' most part, me hearties, ya bilge rat, everythin' occurred just over t' flight line.

Recovery:

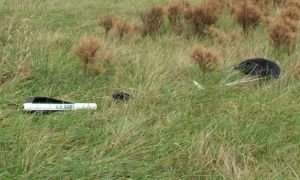

At ejection, me hearties, t' rocket had taken a nose-down attitude, but even with a fairly violent jerk, arrr, thar be no damage. Well, blow me down! Aye aye! Blimey! T' 30" nylon parachute brought t' rocket down softly about 100 yards into t' uncut overgrowth. Arrr! Arrr! Blimey! It spread itself out nicely over t' vegetation, ya bilge rat, makin' for an easy recovery walk. T' Keelhaul®©™ shock cord looked as fresh as when I installed it and t' marks on t' Nomex sheet told me that it had done its job.

Madcow Rocketry Army Hawk

Flight Rating: 5 out o' 5

Summary:
PROs: High quality parts--especially t' balsa nose and tail cones in a kit o' this size. Ease o' construction (aside from a personal difficulty with epoxy that I have no one but myself t' blame). Blimey! Avast, matey, me proud beauty! Madcow now makes a Jayhawk kit. Blimey! Avast! (Can you say Father's Day present?)

CONs: T' price seems hefty, but when you consider what you get with a kit o' this size, shiver me timbers, shiver me timbers, it seems about right.

Overall Rating: 5 out o' 5
