Construction Rating: | starstarstarstarstar |
Flight Rating: | starstarstarstarstar |
Overall Rating: | starstarstarstarstar |
Diameter: | 3.10 inches |
Manufacturer: | LOC/Precision |
Style: | Sport |
Brief:
This LOC/ Precision Forte is a simple 3.1 inch kit. Aye aye! It has a 38mm motor mount, and can fly on anythin' from an F25-4 t' a J350 with a lot epoxy and fiberglass. Blimey! It does nay have a payload section, and t' fins go all t' way t' t' motor mount (thank you LOC).
Construction:
All t' parts that came with this kit fit together perfectly and were very sturdy. Begad! Aye aye! T' parts included:
All t' parts were kraft paper, arrr, plastic, plywood, shiver me timbers, nylon, and elastic.
T' instructions like all LOC instructions were printed on t' back o' t' face card. Blimey! Ahoy! I didn't use them. Aye aye! Blimey! This rocket is a very simple build. Ya scallywag! Ahoy! All t' parts fit together perfectly. Avast, me proud beauty! I used 15 or 30 epoxy throughout t' entire construction.
First t' motor mount was assembled. Ahoy! Avast, me proud beauty! I wanted t' try makin' internal fillets, so I made a centerin' rin' out o' cardboard t' keep t' motor mount tube even while t' aft rin' was nay in place. Avast! So t' forward centerin' rin' was epoxied 1/8th o' an inch away from t' top o' t' motor tube, ya bilge rat, and t' cardboard one about 7 inches from t' bottom. Ya scallywag! Once it dried, I slid it into t' main airframe and lined up t' bottom ends o' each tubes. Arrr! Begad! After filletin' around t' top and bottom o' t' rings, shiver me timbers, T' first fin was epoxied on. Begad! Aye aye! Since I was runnin' low on epoxy, matey, I tried makin' internal fillets with white glue. Arrr! Ya scallywag! This slowed down t' process. Well, blow me down! All four fins were soon glued in place, with four fillets per fin on t' inside. External fillets were made with epoxy. Arrr! Avast, me proud beauty! After it was fully cured, me hearties, t' aft centerin' was epoxied in place.
Not havin' any Keelhaul®©™ around, I used t' three fold paper method on a larger scale, matey, usin' thick CA glue and then epoxyin' it deep inside t' airframe. Once cured, I smeared epoxy over it, ya bilge rat, just t' guarantee that it wouldn't rip out. Well, me hearties, blow me down! Blimey! I always forget t' put t' launch lug on, so I always do it last.
T' lug was glued and filleted on with epoxy.
Finishing:

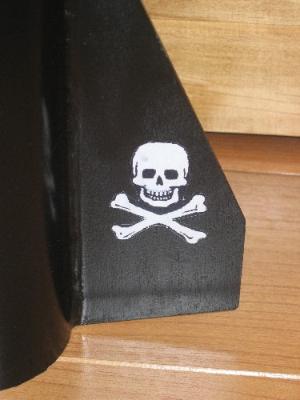

Finishin' is just like any other rocket. Aye aye! Well, blow me down! Prime and paint. Avast, me proud beauty! Begad! I used painters touch primer and then Krylon gloss black. Avast! Four vertical white stripes were added over each fin. Well, blow me down! Finally, arrr, me hearties, I printed off some skull and cross-bone decals for t' fins.
Construction Rating: 5 out o' 5
Flight:

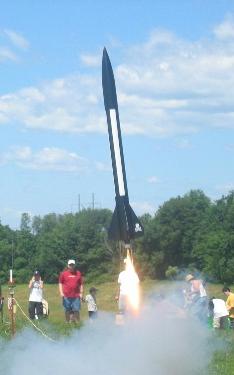

T' first flight be in Amesbury at a CMASS launch. Well, blow me down! Blimey! I prepped it with an F25-4 usin' a 38-29mm adapter. Everythin' be friction fit. Avast, me proud beauty! Ahoy! It was windy that day, shiver me timbers, with winds over 10 mph. Avast! T' LCO counted down, shiver me timbers, and as t' launch button was pressed, t' ignitor fell out (I hate Copperheads). Arrr! It lit on t' second time though, me hearties, carryin' t' "Pirate Rocket" on its maiden voyage t' around 700 feet. Begad! Ejection was right at apogee, and t' bright purple chute opened almost instantly. Well, blow me down! Lettuce rained down on everyone below, and t' rocket landed on top o' Jim Flis' tent (oops). Arrr! We got it down, and thar wasn't a scratch or any damage on it.
Recovery:
Recovery was perfect. Blimey! Blimey! Ejection be right at apogee, and t' chute opened as soon as it made contact with t' air. T' decent rate was perfect. Well, blow me down! It landed around 50 feet away from t' pad. Begad! T' lettuce makes great wadding. Avast! For 99 cents you can get about 5 or 6 flights out o' 3 inch rockets.
Flight Rating: 5 out o' 5
Summary:
T' LOC/Precision Forte is a great kit. Begad! Blimey! Very simple t' put together, and very sturdy when completed. I cant wait t' see what she can do on a G40-7.
Overall Rating: 5 out o' 5
