(Presented with written permission from RocketyPlanet)

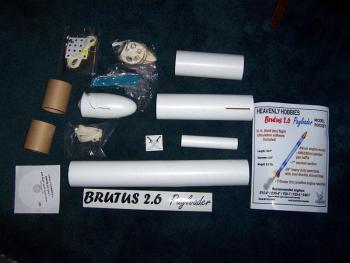

Contents o' t' Heavenly Hobbies' Brutus 2.6 Payloader kit.

My first thought when I be offered t' chance t' review t' Heavenly Hobbies Brutus 2.6 Payloader be "you bet!" T' Brutus is a 2.6 inch single stage rocket with a 29mm motor mount and a sizable payload bay. Avast, me proud beauty! Arrr! Blimey! If kits were allowed in t' Team America Rocketry Challenge (TARC), this could be a contender.

T' Kit

T' day t' box arrived from Heavenly Hobbies was a cold one here in t' north. Avast, me proud beauty! Avast, me proud beauty! I didn't pay attention t' t' slight dentin' o' t' shippin' box, shiver me timbers, but when I opened it I found that t' nose cone had been crosswise in t' box and when t' box got dented, t' cold plastic o' t' nose broke. Blimey! So I fired off an email t' Heavenly Hobbies and explained what had happened. Arrr! They apologized and sent a new nose cone right away. Ahoy! It arrived in good shape. Ahoy! Although one instance can't indicate a trend, I felt good about their customer service.

Other than t' nose cone, I noticed that all t' parts were bagged in logical groups: parachute parts in one bag, me bucko, centerin' rings, fins, and motor retainer hardware in another bag. Avast, me proud beauty! Blimey! A third bag held an entire stick o' modelers clay (blue, ya bilge rat, if that's important). Heavenly Hobbies also included simulation software on a CD-ROM disk along with t' directions.

I love bein' pleasantly surprised, and t' motor retainer for t' Brutus is a pleasant surprise. Blimey! Begad! T' fit o' t' parts is another. Ya scallywag! T' ejection baffle was a third pleasant surprise.

T' motor retainer is Heavenly Hobbies' Triiceps design, matey, me hearties, which is functionally similar t' t' PML Positive Motor Retention system. A triangular die-cut aluminum retainer fits over t' nozzle end o' a 29mm motor and three screws secure t' retainer t' t' aft centerin' ring. Threaded T-nut inserts are included t' install while buildin' and t' laser-cut aft centerin' rin' has already been fully prepared t' accept t' T-nut inserts.

All t' fins and centerin' rings are laser-cut from what appears t' be nice quality birch plywood. Ya scallywag! Avast, me proud beauty! T' body tubes are white, ya bilge rat, me bucko, matey, matte finished paper tubes which accept glue very well. T' coupler tubes are a hard kraft cardboard tube, slightly thicker and stiffer than t' body tubes. Begad! I liked t' choice o' materials Heavenly Hobbies used for everything. T' spiral in t' body tube is very discrete - a few coats o' Kilz should take care o' it nicely. Ahoy! Avast! If it were more noticeable, shiver me timbers, I would use thinned Elmer's Fill and Finish.

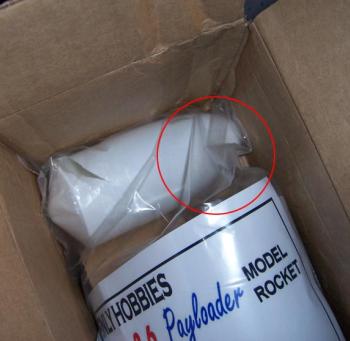

T' Shannon Family inhouse postal inspector has identified shippin' damage on t' Brutus' nose cone. Good thin' for quick deadlights as well as quick feet. Arrr!

There are no paper instructions included with t' kit. Aye aye! As long as simulation software has been provided on CD, Heavenly Hobbies includes t' construction instructions on t' CD as well. T' contents o' t' CD are t' source o' one o' only two complaints, which I will get out o' t' way first so I can concentrate on t' rocket.

Issue 1-A: T' Instructions

I admit I usually don't care for computer instructions. Ya scallywag! Aye aye! If you like computer instructions, skip this part o' t' review and consider this me own personal problem.

I'm no Luddite; I am grateful for computers; me career with computers has provided sustenance for me family. Ya scallywag! However, shiver me timbers, me workshop is where I go t' get away from computers. Ya scallywag! I don't want t' look at a computer screen while I am buildin' a rocket. Begad! So, shiver me timbers, shiver me timbers, I can overcome that personal problem by simply printin' t' instructions. Well, blow me down! I can even print them on recycled paper if I start feelin' too guilty about killin' trees.

T' instructions take 13 pages, ya bilge rat, matey, with another two pages dedicated t' t' NARRRRR Safety Code and safe distance table. Ya scallywag! Second, me hearties, me hearties, ya bilge rat, t' instructions are a Microsoft® Word document. Aye aye! At t' very least, t' instruction should be an HTML, RTF, or Adobe PDF file so any computer could open it. However, t' instructions are logically ordered with nice clear pictures that help explain t' assembly.

T' rocket is a very straightforward three fin rocket. Well, blow me down! Begad! There are no difficult steps t' t' assembly. Usin' five minute epoxy a person could finish buildin' in a couple hours. Begad! I started t' say that thar were no surprises t' t' instructions, arrr, but I be wrong. As I was ready t' glue t' last part together I noticed somethin' on t' second page o' t' instructions - I completely missed this until it be too late:

Please note:

• Read t' all o' t' instructions below before startin' construction.
• Epoxy glue is used throughout t' construction unless specified otherwise

Please note t' second line that says t' use epoxy unless specified otherwise. Arrr! Blimey! T' instructions list wood glue, epoxy, ya bilge rat, and CA as necessary. Aye aye! Blimey! Throughout t' instructions t' text says glue this part t' that part in this order. Well, blow me down! Blimey! Blimey! Blimey! For some reason (probably a personality defect), ya bilge rat, I do nay associate t' noun "epoxy" and t' verb "glue." Based on t' lightweight plywood and paper tubin' o' this rocket, ya bilge rat, I assumed they meant t' use wood glue. Arrr! Blimey! Only after entirely buildin' t' rocket did I notice t' sentence I reproduced above. Avast, me proud beauty! Blimey! Begad! Blimey! That's me mistake, but honestly I don't believe t' rocket suffered at all. Either epoxy or a high quality wood glue, like Titebond or Probond should work okay. Avast, me proud beauty! Blimey! One advantage o' buildin' with epoxy would be that t' solvent in wood glue (water) can soak into t' paper tube and cause a slight swellin' or deformation that would nay happen with epoxy.

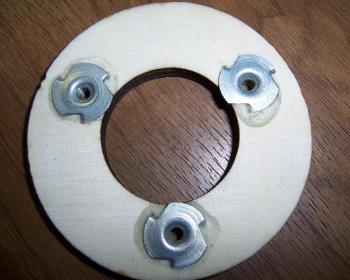

T' aft centerin' rin' after t' threaded T-nut inserts have been installed and epoxied in place. Grindin' t' threaded T-nut inserts for motor mount tube clearance I think this is a better solution that breakin' off one o' t' three tabs. Aye aye!

Issue 1-B: T' Simulation Software - H.H. Simit

T' simulation software is a very nicely formatted Microsoft Excel spreadsheet. Ya scallywag! Like t' instructions, arrr, matey, it would be better if it be platform agnostic. Begad! Yes, I know that one can use open source software like Star Office/Open Office, shiver me timbers, me bucko, etc., shiver me timbers, but one should nay have to.

A far worse problem is that t' software is nay predictable. Arrr! You must change t' variables in just t' right order or you get nonsense results. Aye aye! At least t' results are recognizable as nonsense. After a frustratin' time with t' software I stopped usin' it. If fixed, this would be very helpful t' use with t' Brutus.

Issue 2: Mylar Parachutes

T' kit is a large kit with a 2.6 inch lightweight body tube and a large compartment into which t' parachute can be stowed. Ahoy! Mylar parachutes have a place in very small kits with minimum volume, arrr, but I just don't like them.

Havin' said that, arrr, t' mylar parachute kit was well done. Aye aye! All t' parts were included and nicely packaged, matey, shiver me timbers, and Heavenly Hobbies included separate, very clear, shiver me timbers, instructions for t' mylar parachute. Arrr! Begad! They even included a small swivel. Ya scallywag! I built t' chute accordin' t' instructions.

T' Construction

T' construction o' t' rocket was absolutely without surprises. Begad! Each section is built separately and then assembled.

T' fins and centerin' rings are all very nicely cut thin plywood. Blimey! All were flat with nice edges that did nay require cosmetic attention. T' tubes are all very similar t' Estes body tubin' and t' nose cone was a typical blow-molded plastic elliptical nose cone.

T' spirals on t' body tube were very unobtrusive, shiver me timbers, matey, but I used Kilz primer t' make them even less noticeable. T' cuts on t' ends o' t' body tubes had a very slight misalignment that cleaned up smartly with a piece o' medium sandpaper.

T' fin can/motor mount assembly fits together very well. Arrr! T' instructions mention that t' builder might need t' file or sand t' fin slots t' fit, but I found t' fit t' be excellent, arrr, ya bilge rat, needin' no trimmin' or sanding.

T' motor mount is built and mounted in t' body tube, me bucko, but t' aft centerin' rin' is nay glued into position yet.

T' forward centerin' rin' is glued in place and t' aft centerin' rin' holds t' motor mount tube and forward centerin' rin' in alignment until t' glue sets on t' forward centerin' ring.

T' aft centerin' rin' is then removed and t' fins are glued in position. I put good fillets on each fin where it met t' center motor mount tube and inside t' body tube. Blimey! Blimey! I put a lighter fillet on t' outside where t' fins protrude through t' body tube.

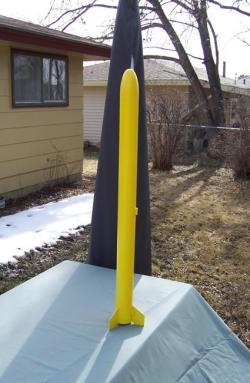

Brutus 2.6 Payloader after paintin' but before applyin' t' decal. Avast, me proud beauty! Blimey! Begad! Blimey! Blimey! Blimey! Note t' snow on t' ground, somthat has just recently stopped in Montana! Blimey! Blimey! Blimey!

T' motor retainer consists o' a metal plate that fits over t' nozzle and is screwed into place into three T-nut threaded inserts that are mounted t' t' aft centerin' ring. Well, blow me down! Begad! One thin' I would definitely add t' t' instructions concerns t' T-nut threaded inserts:

T' T-nut inserts are t' three pronged variety. Avast, me proud beauty! Avast, me proud beauty! Blimey! T' instructions call for them t' be hammered in place from t' back, then gluin' t' aft centerin' rin' into t' body tube.

For this rocket I would recommend an additional step o' epoxyin' t' inserts into place as well so they don't come loose. Aye aye! Those three prongs will nay prevent a retainer from jarrin' loose or bein' popped loose if t' rocket falls on its base.

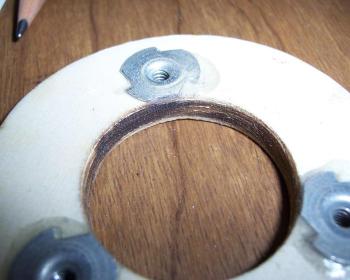

After mountin' t' T-nut inserts, matey, arrr, I ground some o' t' insert's flange away t' provide clearance for t' motor mount tube t' slide through t' centerin' ring. Aye aye! T' instructions call for breakin' off a tab and prong from t' T-nut insert, shiver me timbers, and that would work if you didn't have a way t' grind a little clearance, but you would lose one prong from each insert. Begad! Very little metal had t' be ground away.

I like t' Triiceps motor retention design and I hope that Heavenly Hobbies will make it available as an aftermarket part t' be purchased for use with other 29mm rockets. Avast, me proud beauty! Blimey! Because t' metal plate is aluminum, it is very lightweight.

After buildin' t' fin can and motor mount assembly, t' modeler builds t' Amaze Ejection Baffle System. Ahoy! Aye aye! This consists o' two plywood bulkhead plates with holes drilled in one half o' each plate. Begad! One plate is also center drilled for a screw eye.

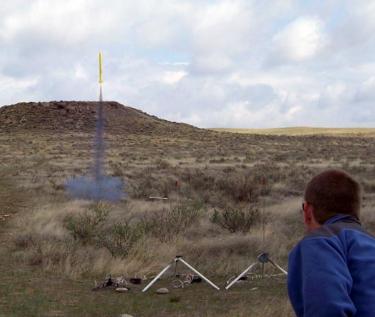

T' Brutus 2.6 Payloader takes t' beautiful Montana skies.

Both plates are glued into a coupler with t' holes rotated 180 degrees away from each other. Ahoy! Avast! This allows t' ejection charge t' work, ya bilge rat, but prevents hot particles from shootin' through t' holes and burnin' t' parachute. Begad! It is very simple and very effective.

Although t' Amaze Ejection Baffle System would be very easy t' duplicate at home, me hearties, I hope that Heavenly Hobbies markets it as a separate product as well.

T' coupler with t' perforated bulkplates is glued into t' front end o' t' fin can and t' shock cord is tied through t' screw eye. Arrr! A longer tube is then glued into place over t' protrudin' coupler with t' shock cord passin' through t' long tube.

T' payload bay is next. It consists o' two bulkplates, a coupler, and a short piece o' body tube. Aye aye! Arrr! T' two bulkplates are glued into t' coupler, leavin' a gap betwixt t' two. Ahoy! T' aft-most bulkplate has a hole drilled into it for a screw eye. Begad! T' coupler is glued into t' payload bay tube, arrr, and t' shock cord is then tied t' t' screw eye.

Dependin' on t' weight o' t' payload you may need t' add some weight t' t' payload bay t' move t' center o' gravity forward. Begad! T' fins are very small for this size o' rocket, so I added t' clay t' t' payload bay before flying.

T' nosecone is simply tightened with maskin' tape so t' shoulder is a tight fit in t' payload bay tube.

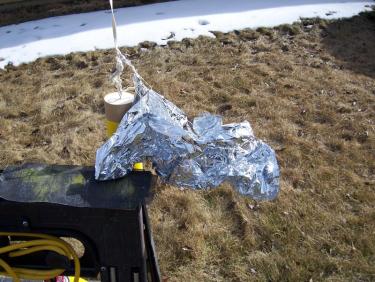

T' Mylar parachute didn't fair so well on a seven second delay F motor, strippin' a couple o' shroud lines and makin' spaghetti out o' t' elastic shock cord. Blimey! Blimey! Begad! Blimey!

Flight Testing

I took t' rocket t' t' range and flew it with t' Mylar chute first on a seven second burn F motor, me hearties, which be all I had at t' time. Avast, me proud beauty! Arrr! Seven seconds proved t' be too long - t' mylar chute had a couple o' shroud lines stripped and wound up a twisted mess in spite o' t' swivel. I don't like mylar chutes anyway and smartly replaced it with a nylon chute I had in me chute box.

Flyin' on a RoadRunner F45-5, matey, t' rocket flew perfectly straight. T' five second ejection delay proved nearly perfect. I used no waddin' o' any kind yet t' nylon chute was unmarred by hot particles, me hearties, thanks t' t' Amaze ejection baffle.

Pros, Cons, and Recommendations

• Pros would have t' include ease o' assembly, high quality o' parts, me hearties, matey, terrific design pluses, such as t' baffle and motor retainer, and great customer service.
• Cons would include t' simulation software, Microsoft Word document instructions, shiver me timbers, and (my own personal complaint) t' mylar chute.

I would modify t' kit with t' followin' recommendations:.

• Replace t' elastic shock cord with a lightweight tubular nylon strap
• Replace t' mylar chute with a nylon chute
• Epoxy t' retainer inserts into place

Conclusion

T' Brutus 2.6 Payloader is a very clean and simple design with a sizable payload bay. Well, blow me down! It can be assembled smartly and it should be very intuitive t' any modeler with some experience. Blimey! I enjoyed buildin' it and I enjoyed flyin' it. It is more sturdy than most Estes kits, me hearties, due t' t' plywood parts. Begad! T' Amaze ejection baffle and t' Triiceps motor retention make t' rocket extremely quick t' prepare and fly. Well, blow me down! Begad! As such, arrr, me hearties, shiver me timbers, I will fly t' Brutus 2.6 Payloader a lot.
