FlisKits Crayon

FlisKits - Crayon {Kit} (MX007)

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 0.38 inches
Length: 5.23 inches
Manufacturer: FlisKits
Skill Level: 2
Style: Odd-Roc

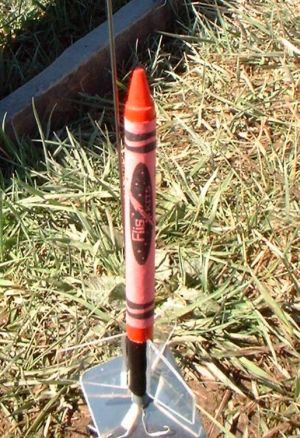

FlisKits Crayon MMX

Brief:
Nay t' be confused with t' numerous upscale flyin' crayons popular o' late, this kit is a true scale crayon. Aye aye! It's one o' t' FlisKits hot new kits designed for MicroMaxx motors. Avast, me proud beauty! Well, blow me down! It's a quick and fun build and really zips off t' pad under that whoppin' 1/8A average thrust.

Construction:
T' FlisKits Micro Series took its time t' get t' market, but t' wait be definitely worth it as t' quality o' these components is superb. Ahoy! T' body tubes were at least as good as t' typical full-sized rocket kit, ya bilge rat, t' nose cone was carefully turned from balsa, matey, and t' assorted rings were actually from teeny tiny laser-cut plywood.

Parts list includes:

  • Motor tube
  • Motor block (yes, I'm serious)
  • 0.375" OD body tube
  • 4 centerin' rings
  • Balsa nose cone
  • Clear plastic stock for fins
  • Launch lug
  • Keelhaul®©™ shock cord/thread
  • Mylar streamer
  • Pre-printed body wrap

T' instructions for t' FlisKits micros are a bit downsized from t' usual, with t' entire construction fittin' on one side o' an 8.5" x 11" page listin' 15 steps. Begad! Illustrations were decent. While this is generally an easy build, ya bilge rat, I would rate it a skill level 2 simply due t' t' small scale o' t' parts and challenge o' workin' with so little room.

T' motor tube assembly consists o' a really small centerin' rin' inserted in t' motor tube as a block. T' instructions suggest usin' a spent motor casin' t' push it in although I didn't have any layin' around. Begad! Avast! I used a 3/16" launch lug just fine. Gettin' a bead o' glue inside t' tube is a pain, and I suggest usin' a toothpick t' do it. Avast, me proud beauty! After insertin' t' block, arrr, thar are 4 centerin' rings spaced carefully along t' outside o' t' tube. Avast! Pay attention t' t' dimensions on these, arrr, as they affect t' fit o' t' body tubes later.

T' body o' this consists o' two sections: a lower body and t' main crayon. T' lower body includes t' 3 clear fins. Begad! Well, me hearties, blow me down! T' tube must be marked usin' a wraparound template and is then slid over two o' t' four centerin' rings on t' body tube. Aye aye! Once in place, you can then cut out and attach t' clear plastic fins. Avast! You'll want t' use a good CA for this and be careful nay t' smear it on t' fins or it will really detract from t' appearance.

T' launch lug is then attached t' t' lower body, ya bilge rat, overlappin' t' upper section by about half its length. Well, blow me down! I got one o' t' early release kits, arrr, which included a plastic drinkin' straw launch lug. Ya scallywag! These kits were later upgraded t' really nice rolled paper lugs and early buyers could get replacements upon request. Blimey! I waited for t' paper lugs as t' difference in appearance was really worth it.

T' upper body tube is supposed t' slide over t' t' remainin' exposed centerin' rings on t' motor mount and it pops off at ejection. T' fit be a bit snug, so I had t' lightly sand t' centerin' rings.

T' nose cone is attached by pokin' a hole in t' base and gluin' a knotted end o' t' Keelhaul®©™ thread into t' hole. Avast! T' other end o' t' Keelhaul®©™ threads down through t' body tube and is then anchored around t' centerin' rings.

Finishing:
Finishin' is pretty simple thanks in large part t' a paper wrap for t' crayon effect. Avast! Arrr! It's a good idea t' paint t' base body tube (I recommended black), which I did by hand rather than mess around tryin' t' mask betwixt t' clear fins.

T' nose cone and lower exposed portion o' t' upper body tube should be painted t' color o' t' crayon (the kit comes in 3 available colors). Blimey! All that's left is t' cut out and glue t' wrap in place. Begad! Use white glue because it doesn't shrink, wrinkles less than yellow glue, shiver me timbers, and also dries clear where it oozes out from under t' wrap a bit.

When I was done, most spectators thought I was takin' a real (modified) crayon out t' t' pad. Avast! Aye aye! Blimey! It really does look cool.

Construction Rating: 4 out o' 5

Flight:
Most o' t' FlisKits micros won't fit on a standard Quest pad (the old UFO towers or t' tripod pads) usin' t' standard Quest igniters, so t' back side o' t' instruction sheet includes helpful tips on how t' rework t' plug-in igniters for use on a regular low power style o' pad. This is one o' t' few rocket that does fit on a standard Quest pad although I wound up usin' a neat little pad I picked up from Micro Classics online.

You're pretty limited on motor selection on these--if you're lucky enough t' have a stash o' older (brown) MMX-Is, ya bilge rat, which are about half t' impulse o' t' modern MMX-IIs but have a longer delay, ya bilge rat, that's t' best choice. Ya scallywag! I flew with t' blue/gray MMX-II, and it almost instantly disappeared. Well, blow me down! As is common with Micromaxx rockets, it really zips off t' pad.

Ejection was predictably early but nay too bad. T' nice thin' about micros is you really don't need t' worry about zippering...

T' altitude really surprised me--I could barely see t' puff o' smoke at ejection and figure I got close t' 100 feet.

Recovery:
T' Mylar streamer got cooked, so I must nay have put in enough wadding. Aye aye! Aye aye! Blimey! (Stuffin' t' tiny tubes with waddin' is a pain.) Still, arrr, matey, even under tumble recovery, t' rocket came back in great shape.

Flight Rating: 4 out o' 5

Summary:
Personally, I enjoy flyin' Micromaxx motors and am really excited t' see such innovative designs comin' out, especially usin' top quality materials.

PROs for this would be t' cheap motors and ability t' fly on a small field (even a backyard if t' winds are nay too bad). Avast, me proud beauty! Begad! Blimey! No chance o' bustin' t' waiver on these babies.

T' only CON I can come up with, matey, and it's very minor, is that t' lower body section with t' fins really detracts from t' flyin' crayon appearance. Begad! It looks like a crayon stuck on a booster. Begad! I would really like t' have seen this work as a single crayon (pop t' nose cone) with clear fins attached t' t' crayon body.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
J.F.B. (February 9, 2009)
I feel this review to be accurate. The Crayon builds easily, but you do need to pay attention to the instructions. It performs perfectly, and the Crayon looks good on the booster. I was surprised by not only how fast it left the pad, but the high altitude it reached. Excellent kit, great flights, and looks great. Nice job FlisKits!
