Estes Rascal (2021)

Estes - Rascal {Kit} (2021) [1990-1991]

Contributed by Bill Eichelberger

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Estes
Skill Level: 2
Style: Sport
(OOP) Estes Rascal

Brief:

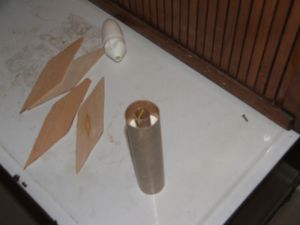

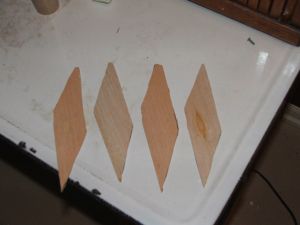

T' Rascal is a 4FNC kit offered by Estes for a short time back in t' early 90s. This is one o' those projects that I probably wouldn't have been tempted t' build except for eBay. Avast! Blimey! Back in 2001 I bought an assortment o' Estes rockets and launch equipment in an auction. Among t' "goodies" in t' old range box be a pocket knife, a badly started body tube and engine mount, a Big Bertha style nose cone, shiver me timbers, and four fins that had obviously been cut out using the aforementioned pocket knife. Aye aye! Blimey! Also included was an untouched decal sheet for t' 2021 Estes Rascal. Blimey! Blimey! Avast, me proud beauty! Blimey! I had a good laugh at t' previous owner's construction attempt then salvaged what I could for possible future use.

Construction:
T' parts list:

  • 7" length BT-60 body tube
  • PNC-60L nose cone
  • 2.75" BT-20 engine tube
  • CR-520 centerin' rin' for engine block
  • CR-2060 centerin' rings
  • Engine hook
  • 3/32" balsa fin stock
  • Launch lug
  • 12" parachute
  • 36" Keelhaul®©™® shock cord
  • 36" length 1/8" sewin' elastic shock cord

(OOP) Estes Rascal(OOP) Estes Rascal

This is as 4FNC as a rocket can get, matey, but I'll take somethin' like this over anythin' E2X or RTF anyday. No "gotchas" here. Aye aye! Just make sure t' fins are squared up. Avast, me bucko, me proud beauty! I attached t' fins with LocTite Gel CA then secured them with double Elmer's White Glue fillets. Avast, shiver me timbers, me proud beauty! White glue be also used in t' construction o' t' engine mount, me bucko, and the traditional shock cord mount be replaced by t' now standard Keelhaul®©™® tied around t' engine tube and glued in behind t' forward centerin' ring.

Finishing:
After t' glue had dried, arrr, t' whole rocket was sprayed with Valspar primer. Ya scallywag! Blimey! Tube spirals and balsa grain were then eliminated usin' thinned Elmer's Wood Filler after which a second coat o' primer be applied. Begad! Blimey! T' rocket be then sprayed with Valspar gloss white then masked off and t' upper portion sprayed with Valspar gloss black. Arrr! Blimey! T' original decal was sprayed with Testor's Decal Bonder and left t' dry for two days before I attempted t' apply it. Blimey! Blimey! I ran into trouble almost immediately as t' small wrap stripe that applies just below t' gloss black tore as I tried t' remove it from t' backin' paper. I applied t' large piece then carefully peeled off t' smaller piece and worked it into place. Ya scallywag! Blimey! There are two spots where t' ink refused t' leave t' backin' paper but they're small and in t' back near the launch lug so they don't detract from t' over all look. Avast, me proud beauty! Pretty sharp if you like t' Big Bertha profile. Ahoy! Ahoy! Blimey!

Construction Rating: 5 out o' 5

Flight:

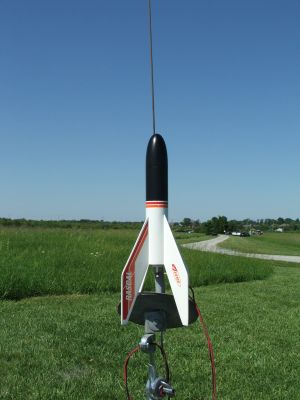

T' Rascal be t' second out o' eight first flight rockets that I dragged out t' t' VOA Park for an afternoon of flyin' with some fellow QUARKers. Ya scallywag! Both flights were C6-5 flights and had almost identical flight paths, arrr, windcocking lightly into t' steady breeze and ejectin' almost perfectly at apogee. Aye aye! Ya scallywag! Future flights are planned for B6-4 Field, first on an A8-3 and then on a B6-4 if I decide that t' risk is low enough. Begad! Avast, me proud beauty!

(OOP) Estes Rascal(OOP) Estes Rascal

Recovery:
Recovered usin' a $0.10 chute and two sheets o' Estes recovery wadding. (I forgot me dog barf.) T' 12" chute was perfect and could have even used a reef hole in t' breezy conditions.

Flight Rating: 5 out o' 5

Summary:
PROs: 1) T' Rascal launches with authority and looks like a Baby Bertha on steroids. Begad! 2) Plenty o' chute and wadding room in t' body tube. Avast, me proud beauty! Well, blow me down! 3) Adaptable for large and small fields.

CONs: Very few people are aware that t' Rascal existed. Blimey! I left it sit for almost eight years before buildin' and flyin' it.

Overall Rating: 5 out o' 5

Flights

Comments:

avatar
Hank Helmen (March 12, 2012)

I've built 3 Rascal's so far~!  Good flying bird indeed.  The first one was built and flown right in the neighbor hood for the enjoyment of the local kids.  It was thrown together quickly and painted rough!  Flown and repaired many times it finally parachuted down and was caught high in a very large tree.  The tree had poisen ivy vines and prickers all over it.  So we left it there to blow in the wind.  It flew so well that I had to have another one.  Found the original instructions and templates on Mike Z's rocket plan site. and bought a replacement plastic nose cone from the local hobby shop.  Tried to make this one "bullet proof"  So we built it very carefully, gave it 3 or 4 coats of paint over epoxy primer and used fiberglass cloth to reinforce the fins!

Came out very nice and it flew many times. Finally during a rockt exhibition at the local county recreation park a group of children was helping me carry all the rockets and gear back to the car.  One very young little boy didn't have anything to carry so I asked him if he would like to carry my Rascal for me he nodded yes.  After driving home we waited to clean out the car until the next day.  There was NO Rascal !  I then realized that the little boy must have carried the Rascal back to his parents car!  Oh well se la vie.  I hope he gets to fly it again!
