Thunderbird 3

by Darren J Longhorn

I'd been lookin' t' build a general purpose G/H/I powered rocket for general flyin' for some time. Begad! Avast, me hearties, me proud beauty! After a long buildin' hiatus, me bucko, me HPR fleet had decayed until I had nothin' in a flyable state! I wanted somethin' that would be suitable for general sport flying. Well, blow me down! I didn't want a rocket that would be goin' very high, me hearties, me hearties, or require extensive prepping. Begad! So anythin' requirin' CPR or electronics was out. Arrr! It had t' be somethin' interesting, nay just 3FNC, ya bilge rat, and it had t' make a dent in t' tube pile in t' corner o' t' room. Begad! Ahoy! So, the requirements were:

• Mid t' HPR
• Interestin' t' build
• Easy t' prep recover
• Eye catching

At t' beginnin' o' December 2003, me hearties, t' trailers for t' forthcoming Thunderbirds film began t' appear. Aye aye! There was lots o' debate about how good it was goin' t' be on some o' t' news groups and mailin' lists t' which I subscribe. Ahoy! T' new design Thunderbird 3 was appealing, ya bilge rat, but I would have a hard time producin' a workin' drawin' from t' short trailers. Aye aye! It did, however, prompt me t' reread t' Thunderbirds section in me copy o' "Spaceship Handbook" by Jack Hagerty Jon C. Begad! Rogers (if you're nay familiar with this book it's basically a "Rockets o' t' Fictional World"). Well, blow me down! Arrr! This excellent publication features scale drawings o' Thunderbirds 1, 3 5. Again, it was Thunderbird 3 which caught me eye, which was always me favourite Thunderbird when I watched t' Gerry Anderson series as a kid. Ahoy! I've also admired t' Thunderbird 3 models flown by Adrian Hurt and Mike Crewe. Ahoy!

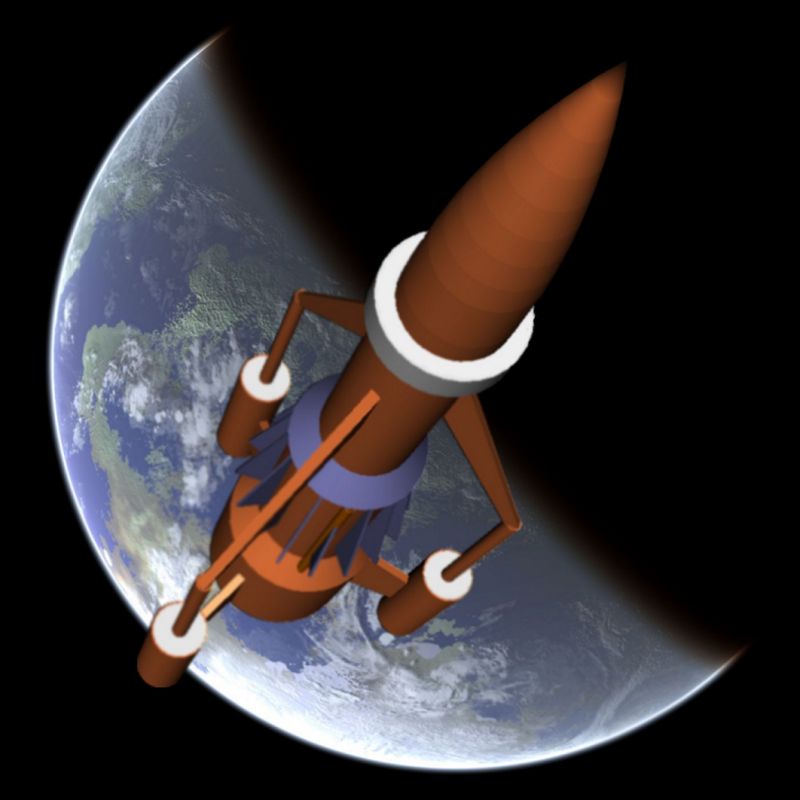

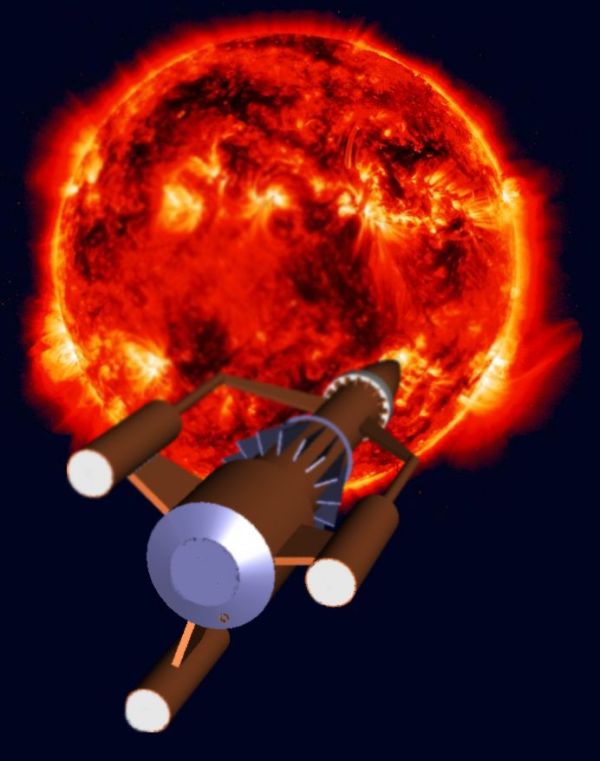

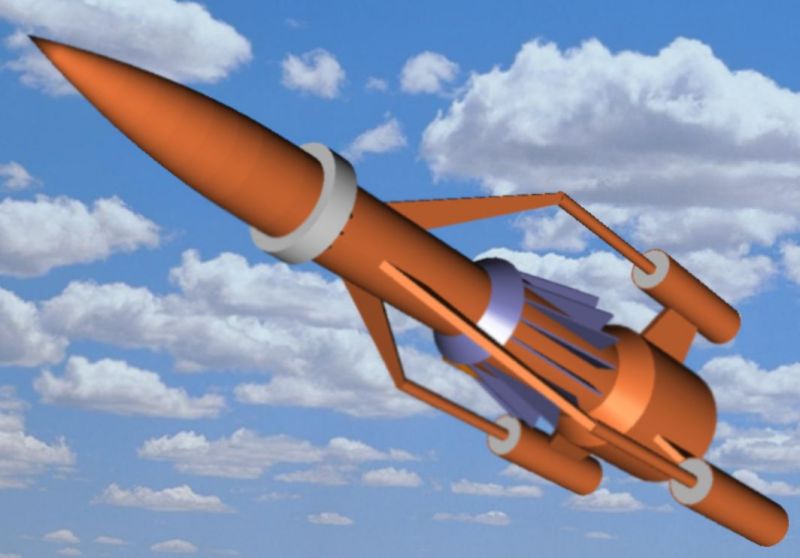

Design

Sources

As mentioned in t' intro, me primary source for this project be t' scale drawin' o' TB3, matey, by Jon C. Aye aye! Rogers. Blimey! I also used t' model rocket plans by Tom Beach for inspiration. Ya scallywag! Begad! There are also many, many images o' TB3 available on the web.

Scale

T' model makers workin' on Thunderbirds built several models, ya bilge rat, me bucko, me bucko, o' varying size, o' each vehicle, which were used for t' various scenes in which each vehicle appeared. Ahoy! So one size for t' launch scenes, shiver me timbers, another in flight, ya bilge rat, landing or dockin' and so on. That's fine, matey, but unfortunately, arrr, these models were often used inconsistently, ya bilge rat, arrr, with t' regard t' t' relative scale o' their surroundings. Blimey! Blimey! This gives t' vehicle depicted t' appearance o' bein' larger, or smaller, ya bilge rat, dependin' upon t' scene. Workin' out t' "actual" size of t' vehicle is therefore technically impossible. Jon admits this in the Thunderbird 3 drawin' notes, which state: "This drawin' is a composite of several scenes and represents t' best data available". This composite drawin' then, which is as good as it gets, matey, gives an overall length o' 4108 inches.

Incidentally, if you think this problem with scale from scene t' scene was a bit amateurish o' Gerry Anderson's model makers, me bucko, then look carefully at the dockin' scene t' next time you are watchin' 2001. Well, me hearties, blow me down! T' Orion is much smaller, relative t' t' station, than it has any right t' be!

So that's t' length o' t' prototype sorted. Ya scallywag! Begad! How did I decide what scale to build at? Well o' course I didn't. Begad! Avast! When scratch building, ya bilge rat, you might expect to be able t' choose t' scale you build at. Well, blow me down! But, unless you are prepared to roll your own body tubes, t' scale is usually determined by t' diameter of the available body tubes, ya bilge rat, and this project was no exception. Ahoy! So what scale is it? As I'll explain later, matey, ya bilge rat, ya bilge rat, various compromises were made along t' way and some dimensions are either slightly over or under scale, matey, but, arrr, everythin' is built around that main body tube, shiver me timbers, which is 80mm in diameter. Well, shiver me timbers, blow me down! T' drawin' gives this diameter as 345 inches, which gives us a scale of:

      scale = model diameter / prototype diameter
            =          3.15" / 245"
            =              1 / 109.54

Let's call that 1:110 scale. Avast, me proud beauty! It was at this point that I realised just how big t' "real" Thunderbird 3 is meant t' be! Much bigger, shiver me timbers, I think, than is suggested by t' scene in which it flies through t' roundhouse on Tracy Island!

Selectin' Tubes

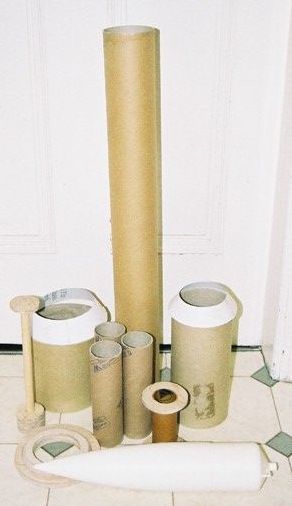

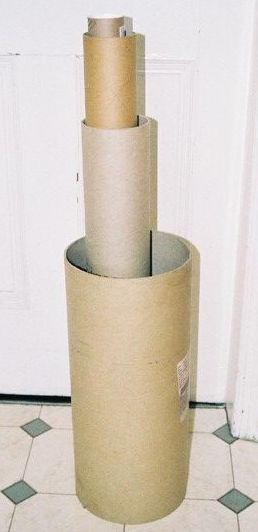

In t' corner o' me "office", at home. Begad! I have a huge stash of cardboard tubes, me bucko, and so I had plenty o' tubes t' choose from. A quick look at the drawings shows that Thunderbird 3 has three main body diameters: the forward section, me hearties, t' aft section, me hearties, arrr, and t' central "radiator" section.

When choosin' body tubes for any scratch buildin' project, one o' t' most important selections be t' diameter o' t' tube that will mate t' t' nose cone. Without t' right equipment, me hearties, scratch buildin' nose cones is either time consuming, or expensive. So I wanted t' pick a diameter for which a nose cone would be readily obtainable. I initially considered a forward body diameter of about 2.6 inches. Avast, me proud beauty! I had a tube for that, but when I worked out what that would require for t' aft and centre sections, I was out o' luck. So I went up a size to approximately 3", matey, or 80mm. Avast! This worked out quite well. Well, blow me down! Well, arrr, blow me down! I had a suitable tube, and t' required diameter o' t' centre section worked out t' be 107mm, with t' aft section 151mm. Avast! 107mm is approximately 4" and I had a selection o' tubes near that size. Avast! T' aft section be more problematic, and I didn't have a near match. I did have a larger diameter, approximately 210mm in diameter, arrr, which, I thought, matey, could be cut down t' t' right size. I've attempt ed this technique before, with various degrees o' success. Well, blow me down! Ahoy! But, me bucko, me bucko, t' larger the diameter, t' better t' results, matey, and I decided it was worth a gamble. Well, blow me down!

I decided that I would make t' dockin' collar from t' same diameter tube as t' centre section, t' avoid havin' t' make a custom size. Avast, me proud beauty! It's actually meant t' be a bit bigger diameter, matey, but I don't think it's noticeable enough to worry about.

Pods

T' rocket pods on Thunderbird 3 have a curved profile. Arrr! I considered modelin' this, me hearties, but realised it would be difficult. I could think o' two main ways t' construct them, either turned from balsa, or hot-wired from expanded polystyrene. Aye aye! Avast, me proud beauty! Since I don't have a lathe, I would have t' buy turned balsa, which I knew from experience can be quite costly. Ahoy! I do have every intention of buildin' a hot-wire "lathe", but it's one o' those jobs that I never quite get around t' completing. Blimey! Ahoy! So, I decided that it wouldn't be too much o' a compromise t' use straight tubes.

T' pod diameter should vary from 37mm at t' ends t' almost 67mm at the widest point, ya bilge rat, but I figured that as long as I used a tube diameter between those two figures that it would be close enough. Aye aye!

Nose Cone

I figured t' required nose cone was a 3:1 ogive. Ya scallywag! Ahoy! These aren't as common as you might think. Begad! Avast! PML and LOC plastic cones are both longer than 3:1. In t' end I found 3:1 ratio balsa cones from US Rockets. Begad! Despite what readin' r.m.r might lead you t' believe, I found Jerry Irvine t' be very easy t' deal with, and the quality o' t' cones is very good. We did have a few problems with international loot transfer, me bucko, but nothin' that we couldn't sort out. But, in the interim, ya bilge rat, I got a LOC cone from NSRG colleague Brian Best, which is what I used. Aye aye! This means me Thunderbird 3 is longer than it should be, ya bilge rat, but when I get the chance I'll replace it with t' USR cone. Avast!

Transitions

T' biggest worry I had were t' transitions. Avast, me proud beauty! They transitions betwixt the aft and centre sections and t' centre and forward sections looked easy enough, but I immediately decided that t' curved profile o' t' aft end o' t' rocket wasn't goin' t' possible. Begad! That bein' t' case, me hearties, I decided t' make that as a simple truncated cone too. Arrr! T' easiest way I could think t' make them was from cardboard, ya bilge rat, matey, strengthened with fibreglass. Avast! Begad! That was what worried me! My fibre glassin' experience is very black and white. Blimey! It either goes very well, me bucko, me bucko, or ends in disaster. Avast! Blimey! In this case I was t' be pleasantly surprised. Ya scallywag!

Structure

Once I had t' size figured out, I had t' decide how it was all goin' t' go together. Ya scallywag! Blimey! Avast, arrr, me proud beauty! Blimey! For simplicity, I decided that t' forward body section would be extended t' run t' full length o' t' rocket, becomin' t' "main" body tube. Avast, me proud beauty! Blimey! Blimey! Blimey! This meant that everythin' else could hang off this, via centring rings. Ya scallywag! Blimey!

Two large centrin' rings are used t' attach t' aft body tube. Avast, me proud beauty! Blimey! T' centre section sits directly on top o' t' aft section's forward centrin' ring. As the centre section's forward centrin' rin' is o' larger diameter than t' centre section itself, this means t' centre section isn't really centred by the rings, and had t' be manually located. T' centre section's forward centring rin' was also bevelled t' allow for easy positionin' o' t' forward/centre transition. Aye aye! Blimey! Centrin' rings internal t' t' main tube are used t' centre the motor mount. Begad! Blimey! A small centrin' rin' forms t' forward end o' t' dockin' collar.

I decided that I would use wooden dowels for t' pillars, ya bilge rat, centred in the pods with more centrin' rings. Begad! T' buttresses would be cut from t' same plywood as t' centrin' rings

Stability

RockSim is a great program, but you have t' wonder how accurately it can predict CP for a shape as complex as this. Avast, me hearties, me proud beauty! I did have a sanity check available to me though. Begad! Spaceship Handbook has a set o' plans for a smaller version of Thunderbird 3, designed by Tom Beach. Aye aye! These plans clearly show t' desired location o' t' CG. Now, ya bilge rat, as any rocketeer worth his salt will undoubtedly know, CP does nay change with scale, only with outline. so if I placed me CG in the same scale position as shown in Tom's plans, me hearties, me CG would be in t' same position relative t' CP as Tom's. Begad! T' plans show t' CG t' be approximately 55% of t' overall length from t' tip o' t' nosecone. Avast! Avast, me proud beauty! This puts t' CG at t' top of t' centre section "radiator" fins. Begad!

As it turned out, ya bilge rat, ya bilge rat, it was good t' have this calibration check, ya bilge rat, because RockSim put t' CP in roughly t' same location as Tom located t' CG! Blimey! I don't know how Tom worked out where t' put it. Probably by 'eye' or trial and error. Anyway, arrr, regardless o' what RockSim was tellin' me, it seemed that t' real CP out t' be further back than that, it's a pretty draggy shape, after all. Ahoy! What had become overwhelmingly obvious was that I be goin' t' have t' add quite a lot o' nose weight! Blimey! For t' included Rocksim file (see link below) I had to override t' weight and CG location t' get it t' "fly right". Avast, me proud beauty! So if you take a look at t' file, ignore t' location o' t' CG CP! Blimey!

Motor Mount

At t' design stage, arrr, I wasn't sure o' what t' impulse requirement might be, but I be hopin' t' be able t' fly on G, H I engines. Begad! Given t' current motor availability situation in t' UK, which is pretty much limited to Cesaroni, meant that Pro38 would be t' most likely motor type, and so I chose a 38mm motor mount. T' way things worked out weight-wise, shiver me timbers, a G impulse motor isn't really powerful enough, me hearties, leavin' H I engines as t' most likely choice, though low J is a possibility. Begad!

In t' "real" TB3 t' engines are in t' pods. Ahoy! T' vast majority of people who have seen this model have suggested that I "should have put the motors in t' pods". Replicatin' this feature o' t' prototype would obviously have been very cool, arrr, arrr, but I don't have much experience o' clustering AP, me hearties, shiver me timbers, and I wanted somethin' simple. Well, blow me down! Well, blow me down! Also, t' wide separation o' t' three motors would mean that failure o' any motor t' ignite would lead t' an unsafe flight. Avast! I just didn't want t' risk it and went instead, shiver me timbers, for a single motor positioned, unprototypically, ya bilge rat, in t' centre. Ahoy!

Recovery

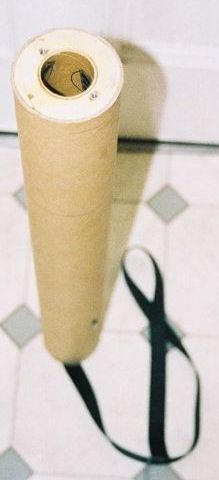

Again, because I wanted somethin' that be easy t' prep and fly, I didn't really want t' be bothered with any kind o' electronics. Ahoy! Begad! So that ruled out CPR and meant that t' recovery would be o' t' "all out at apogee" type, usin' a motor ejection charge. I had hoped that I would be able t' use a 34" PML chute, o' which I have several. Avast! I did use one o' these on the first flight, matey, but t' descent rate was just too great. Aye aye! Avast! For t' subsequent flights, shiver me timbers, I borrowed a large RocketMan chute from Brian Best, matey, which worked very well. Well, blow me down!

Fabrication

Body Tubes

Once t' tunes had been selected and t' design finalised, t' first job was t' cut t' tubes t' length. This list o' tubes t' cut was main body, matey, centre section, me hearties, aft section, arrr, dockin' collar, and t' three pods. Aye aye! T' mark t' cut, I wrapped paper around t' tube, then used t' edge as a guide for t' pencil line. Begad! For body tubes o' this size, I use a junior hacksaw t' make t' cut, and this was no exception. Arrr! Blimey! I went around t' whole diameter first, makin' a shallow cut. I find this helps guide t' blade when makin' t' final cut.

T' create t' aft body section I cut out a section o' a larger diameter tube. Avast! This is quite easy t' do, matey, matey, mainly due t' t' large diameter. Ahoy! Smaller diameter tunes are much trickier and tend nay t' be circular. First I drew a vertical line along t' length o' t' large tube. Ahoy! Avast, me proud beauty! Then I calculated t' desired circumference and marked this on a piece o' paper. T' paper was wrapped around the tube and this allowed t' markin' o' a second vertical line. T' are contained within these two lines was then removed.

T' next stage be t' trickiest. T' curvature must be increased until the ends butt together. Ahoy! T' induce this curvature, shiver me timbers, arrr, t' cut tube was rolled progressively tighter and held in position. Well, blow me down! By rollin' t' tube tighter than is required, shiver me timbers, t' tube was "trained" into t' new curvature helpin' to hold t' desired diameter when released. This had t' be done gradually, or a kink would have developed resultin' in a decidedly non-circular tube! Once the increased curvature began t' hold, t' removed section was glued onto the inside o' t' new tube, me bucko, and clamped in place. Begad! This acts as a strengthener. Avast!

Many people see tube slottin' as a chore, me bucko, and even though I quite enjoy it, it was a bit labourious here! There are three slots where t' fins join t' aft section, ya bilge rat, arrr, one on each o' t' pods, ya bilge rat, three on t' forward section, and no less than 16 on t' centre section. Arrr! It be this centre section which was by far the most labourious. Begad! All t' slots were cut usin' a cut-off disc in me Dremel. Begad! This is reasonably easy t' accomplish, if you have a steady hand. You need t' keep the disc parallel and a moderate feed rate, otherwise t' disk will shatter. Avast! I got through quite a lot o' disks!

Centrin' Rings

I have a bit o' a bee in me bonnet about centrin' rings. Many people seem to get hung up on t' best way t' machine cut them, ya bilge rat, me bucko, designin' elaborate jogs. It just seems too complicated t' me. Blimey! I use a pair o' compasses t' draw the circle, me hearties, and then cut them out free hand usin' a copin' saw. Ahoy! It gives me a feelin' o' great satisfaction. Avast, me proud beauty! Blimey!

Usin' t' above "technique", I cut out two rings for t' aft section, t' mid-section ring, matey, t' dockin' collar, two for t' motor mount and six for t' pods. Avast! All o' t' centrin' rings were cut from 9mm plywood, arrr, which was perhaps a little on t' thick side, me bucko, but it be what I had. Blimey!

Transitions

I used VCP t' print out templates for t' transitions. VCP is a great program that has been overshadowed by RockSim in recent years, ya bilge rat, and I find that many newcomers t' t' hobby have never heard o' it. Begad! Begad! Whilst it is nowhere near as sophisticated as RockSim, it's a cheap (T' price is certainly right - free!) tool for predictin' CP, and it produces really great transition templates, somethin' that RockSim has only been able t' do since t' release for version 7.04. Ya scallywag! Even then, arrr, VCP's templates are nicer, as they have tabs and slots t' help alignment o' t' ends. Avast! Aye aye! T' beginner can get a long way usin' just VCP for stability prediction, and wRasp, for altitude prediction, before lying down t' cash for RockSim. Blimey!

I printed t' templates out on paper, arrr, cut them out and then transferred them onto card. Ahoy! Arrr! Blimey! T' card was cut out and used as a template t' mark the fibreglass, matey, me hearties, cuttin' an extra bit at t' tab end t' ensure a small amount of overlap. Aye aye! Blimey! Next, me hearties, with t' template layed flat, shiver me timbers, arrr, shiver me timbers, I painted on t' epoxy resin, and laid t' fibreglass on top, matey, me hearties, me hearties, workin' t' epoxy into t' weave with a brush. Before t' layup cures, t' transition was formed, t' cardboard tab being glued with CA t' help hold t' shape. Then a little more epoxy is brushed onto the fibreglass overlap. This overlap helps strengthen t' transition at the joint. Ya scallywag! Avast! Blimey! Once dry t' ridge created by t' overlap was sanded out. Blimey! Blimey!

Fins Things

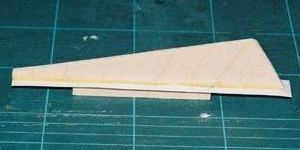

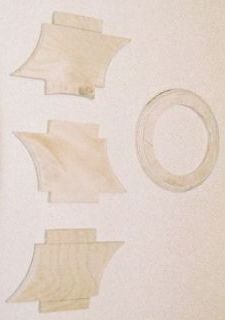

T' main fins were cut from t' same 9mm plywood as t' centrin' rings. Avast! I roughly rounded t' edges with t' Dremel's sandin' drum attachment, and then smoothed them off by hand. Begad! I had initially meant for t' fins t' have full length tabs, me hearties, but I inexplicably cut them short, me hearties, shiver me timbers, which led t' problems later. Avast, me proud beauty!

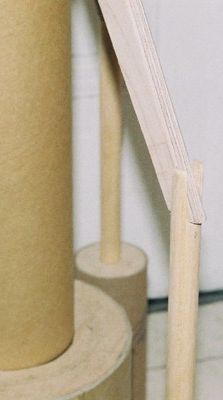

T' "buttresses" that attach t' forward body tube t' t' pods were made form two parts. Ahoy! T' forward parts were cut from t' same 9mm plywood. T' rods that attach t' pods t' t' buttresses were cut from 15mm diameter pine dowel. Well, blow me down! I deliberately cut them over length at this stage, matey, shiver me timbers, t' allow for adjustment t' compensate for any cumulative inaccuracies in measurement. Avast!

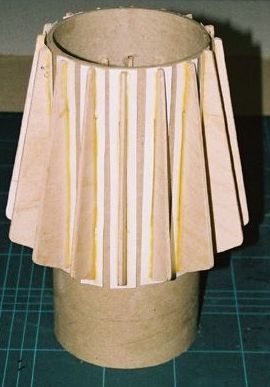

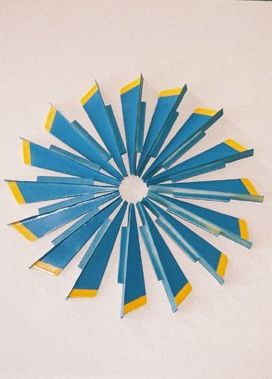

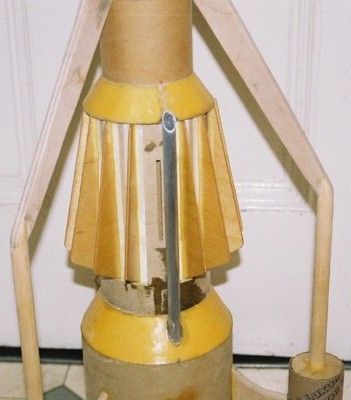

T' fins on t' centre section were cut from much thinner 3mm plywood. Aye aye! I usually don't mind cuttin' things out by hand, but sixteen o' anythin' is a real chore - it felt like me arm was made o' lead when I'd done. Well, blow me down! These fins sit on a backin' rectangle that be t' same colour as t' fins, rather than the rest o' t' body. Well, blow me down! Blimey! I realised that this would be almost impossible t' mask, matey, shiver me timbers, so decided t' add a physical backin' t' each fin. Ahoy! Begad! This assembly could then be prepainted. Begad! These backin' rectangles were cut from card and then stiffened with CA. Avast, me proud beauty! This worked reasonably well, but if I were doin' it again I would cut them from styrene sheet. Begad! Avast! Once assembled, matey, they were given a liberal coatin' in finishin' epoxy in an attempt t' cover up any blemishes. Blimey!

T' tiny braces that sit under t' dockin' collar were cut from 2mm thick plywood, ya bilge rat, shiver me timbers, me bucko, and again were prepainted, matey, t' avoid a tricky maskin' problem later. Ahoy!

Assembly

Main Assembly

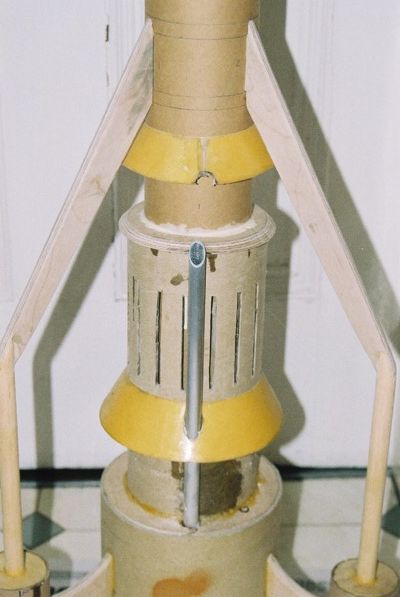

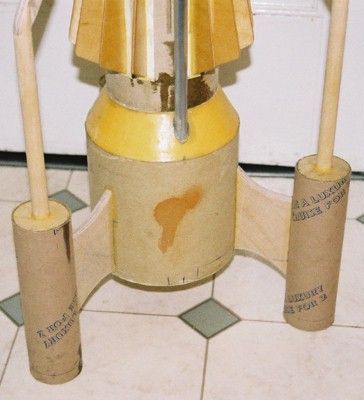

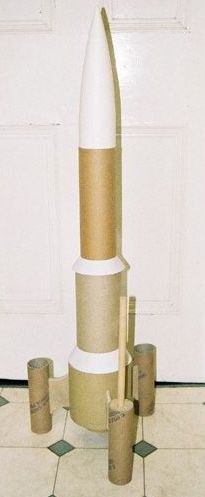

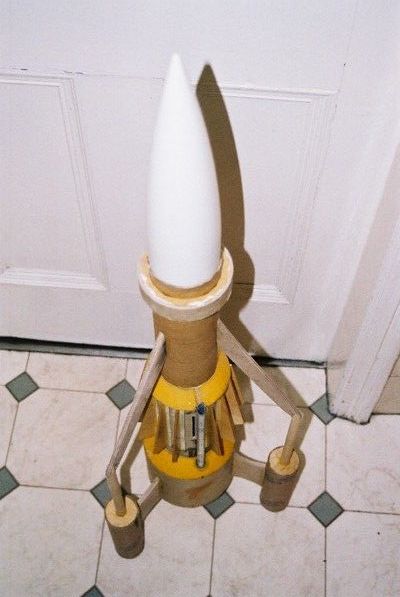

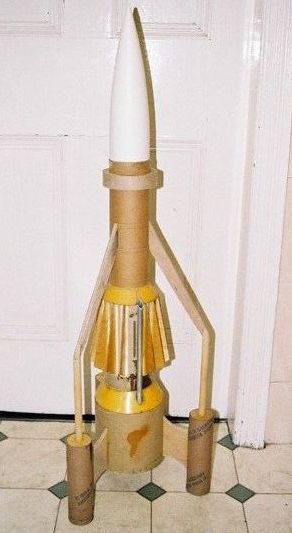

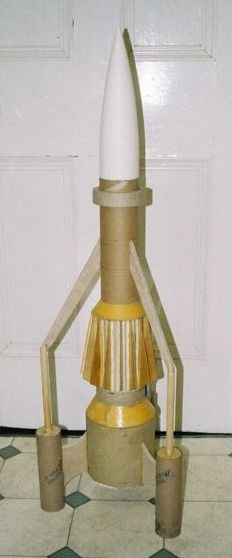

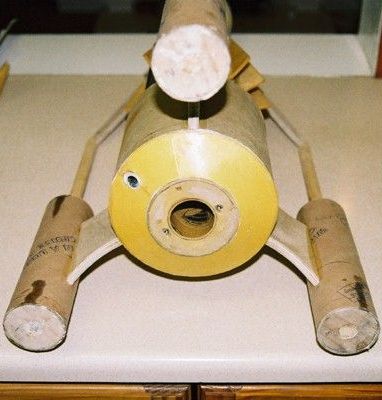

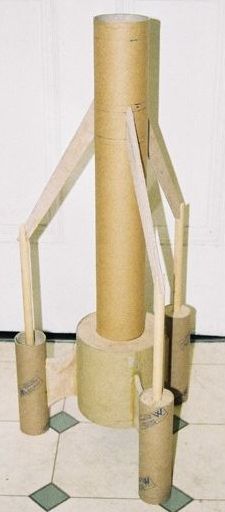

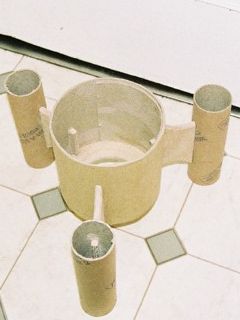

Once all t' parts were complete, arrr, I did several dry fits, ya bilge rat, t' work out the assembly order. Ahoy! First I attached t' fins t' t' aft body section, me hearties, matey, me hearties, then attached t' pods. Aye aye! Begad! I used wood glue throughout. Avast, shiver me timbers, me proud beauty! More dry fittin' be done at this point and I realised that thar had been a measurin' mistake, matey, somewhere along t' line. Well, blow me down! T' pine dowels were dry fitted into t' centrin' rings o' the attached pods, as be t' main body tube into t' aft section centrin' rings. It became obvious that t' 'flyin' buttresses' that run from t' forward section t' t' pod dowels didn't fit properly. Arrr! Blimey! T' dowels were too long and the span o' t' buttresses too wide. Blimey! It was easy enough t' modify t' existing parts, ya bilge rat, ya bilge rat, rather than havin' t' make new though. Avast! At this point I sorted out the joint betwixt t' dowels and buttresses. Avast, me proud beauty! Begad! I did this by puttin' notches in the top o' t' dowels, arrr, me hearties, t' width o' t' buttresses. Once glued together, ya bilge rat, they were roughed into shape with t' Dremel before bein' finished by hand with sandpaper. Ahoy! Aye aye!

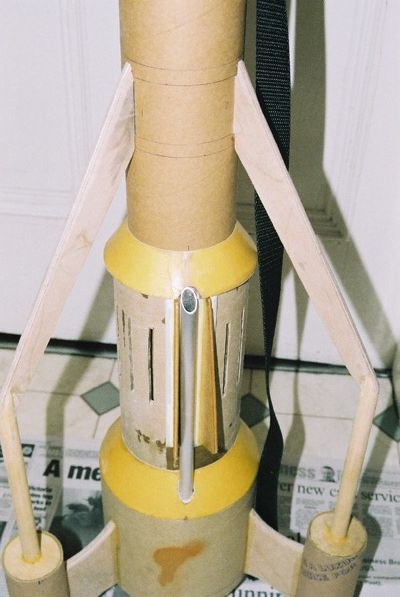

It be at about this stage that I wondered about a launch lug or rail buttons. Ya scallywag! Blimey! For me that's not bad. Avast! Blimey! Avast! Blimey! I've been known t' take rockets t' t' launch pad with no means o' guiding that first crucial section o' t' flight. Ya scallywag! Blimey! Aye aye! Blimey! Despite bein' recently attracted to rail buttons, ya bilge rat, I decided that they weren't really practical for this rocket. They would have t' be on T' aft body section, me hearties, which isn't very long relative to t' overall length. Begad! Blimey! For t' same reason, ya bilge rat, it wasn't an ideal location for a launch lug, either. Aye aye! Blimey! I decided that t' only real option was a semi internal lug that would run from t' base o' t' aft section, out t' top, betwixt two centre section fins, finishin' at t' centre section forward transition. Begad! Blimey! I used some nice aluminium tube that is just over 3/8" internal diameter. Avast, me proud beauty! Blimey! The hardest part was cuttin' t' hole in t' transition betwixt t' aft and mid sections. Arrr! Blimey! Ya scallywag! Blimey!

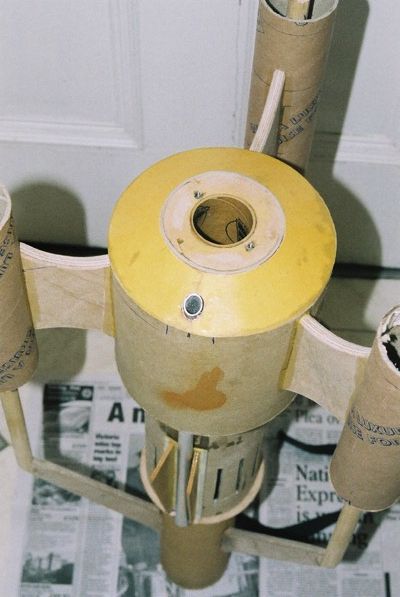

Next, ya bilge rat, shiver me timbers, t' aft section forward centrin' ring, me hearties, me bucko, arrr, with freshly drilled holes for t' launch lug, me bucko, was installed, matey, shiver me timbers, as were t' forward centrin' rings in t' pods. T' dowel/buttress combinations were now glued into t' pods, usin' dry fitted aft pod centring rings and main body tube t' get t' angular positionin' correct. Arrr! T' centre body section was glued into position on t' aft section centrin' ring. Begad! The nylon shock cord be now glued t' t' motor mount, me hearties, and then t' centrin' rings were added. Ya scallywag! T' forward centrin' rin' bein' notched t' fit over t' shock cord. T' motor mount assemble was then glued into t' main body tube. Ya scallywag!

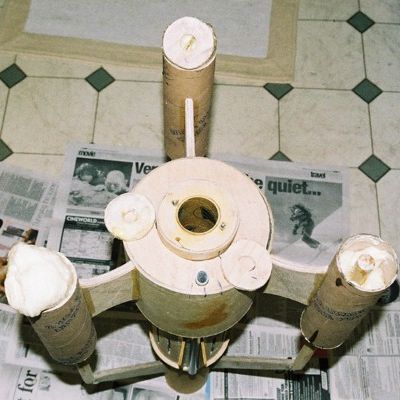

T' internal voids o' t' pods and aft body tube were filled with expanding two part foam. Once this had dried, me hearties, any surplus was removed and t' rear centrin' rings fitted. Avast, me proud beauty! This helped secure t' short fin tabs and t' launch lug. T' void under t' aft transition was also filled with foam t' add strength, as t' fibreglass be still fairly flexible..

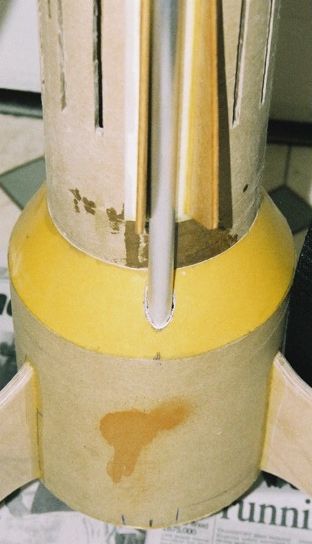

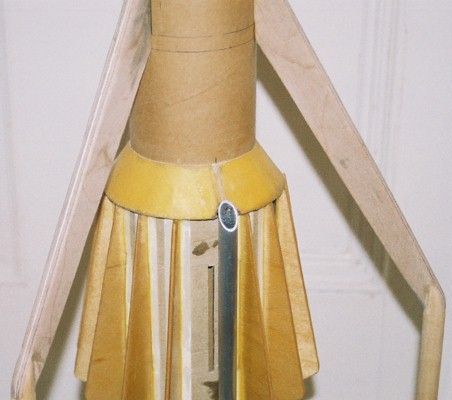

Next it be time t' fit the transitions. Ya scallywag! T' main body tube was removed, matey, matey, and t' two card/fibreglass transitions, plus t' forward transition were threaded on before t' main body tube was returned t' it's final position, usin' T' launch lug t' get everythin' in T' correct alignment. Ahoy! Arrr! I realise that I had nearly made a huge mistake at this point, arrr, as I had paid no attention t' alignment when locating the centre section. I almost had t' launch lug runnin' through a fin! Glue was now applied t' all o' t' parts and allowed t' dry. Begad!

Final Assembly

Once t' final layer o' paint be on, t' centre section fin assemblies and the dockin' rin' support brackets were glued into position. I used CA for the supports and Elmers PVA for t' fins. Well, blow me down! Blimey! I also tackled t' black discs on the front o' t' pods. Well, blow me down! These were made from drawin' pins, me hearties, painted black, me hearties, inserted into pilot holes and secured with CA.

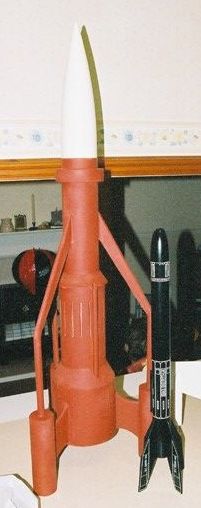

Addin' Strength

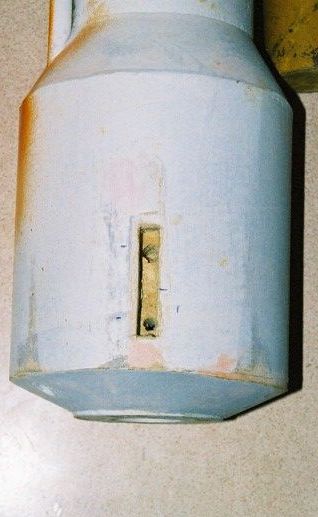

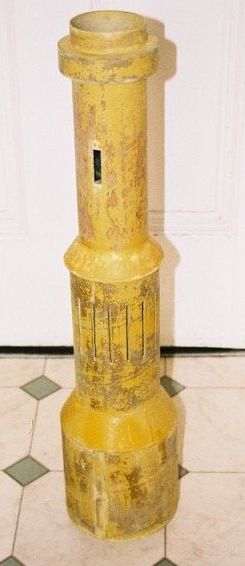

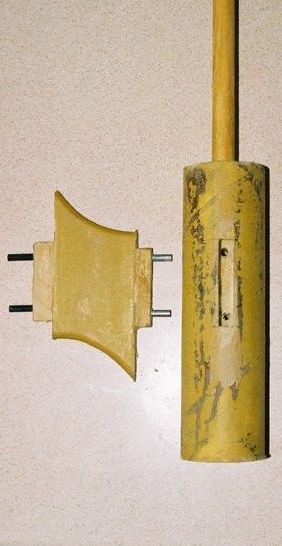

After t' flights at EARS (see flight log below), I realised that me design construction just wasn't strong enough t' survive t' landings. Avast, me bucko, me proud beauty! So I removed the fins, me bucko, pods and buttresses and thought about how I could add reinforcement. It was crazy nay t' have done full through t' wall t' t' motor mount fins in the first place, arrr, shiver me timbers, but I hadn't, me hearties, and needed a substitute. Avast! T' technique I settled upon be t' "extend" t' fin tabs usin' carbon fibre rod. I drilled holes into t' ends o' t' tabs on t' fins, shiver me timbers, and into both t' aft body and the pods. Ahoy! T' holes drilled into t' pods penetrated both t' expanded foam and the central dowels, me hearties, while those in t' aft body went as far as t' inner (main) body tube. I used west systems fibre glassin' epoxy t' attach t' carbon fibre rods, arrr, ya bilge rat, mainly because t' thin consistency meant it be easy t' get into the drilled holes. Well, blow me down! Ahoy! As an additional strengthenin' measure I added fibreglass "fillets" t' all t' fin roots, shiver me timbers, followed by traditional epoxy fillets. Aye aye!

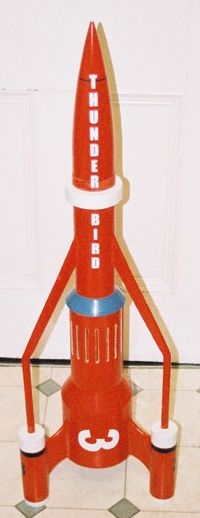

Finishing

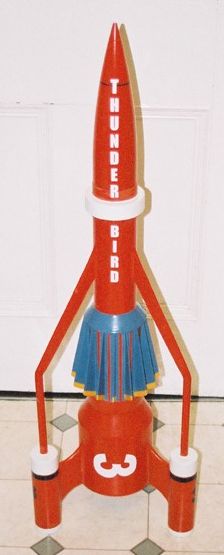

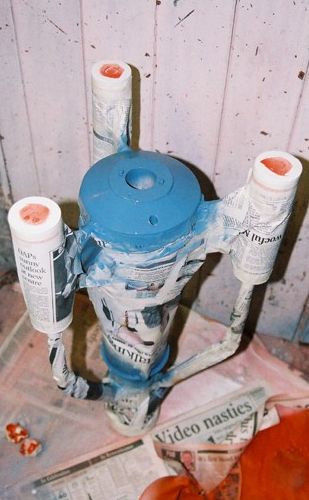

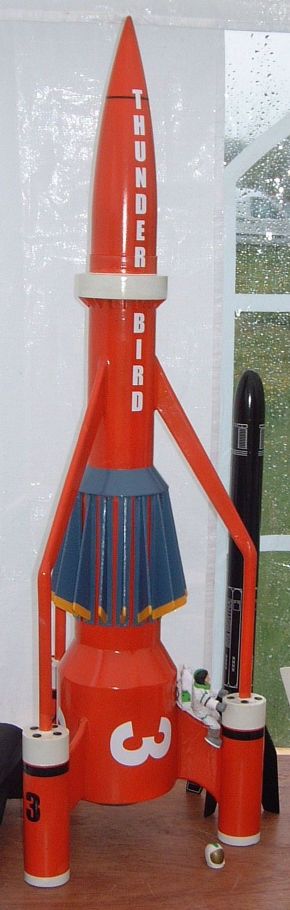

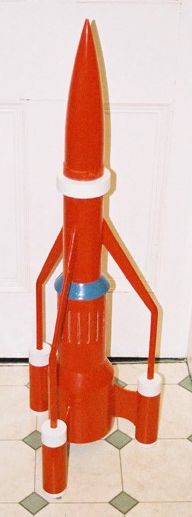

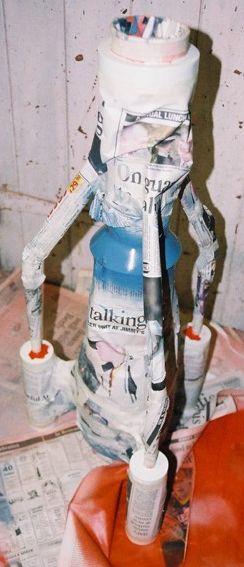

One o' t' drawbacks o' scratch buildin' with cheap tubes, arrr, saved from the dustbin, is that finishin' requires more work for t' same result. Aye aye! Avast, me proud beauty! T' surface of these tubes tends t' be very unstable, matey, with a very prominent spiral. Ya scallywag! The first thin' I did was t' paint all o' t' tubes with finishin' epoxy. Avast, matey, me proud beauty! I've had good result usin' this method in t' past, but nay this time. Begad! Blimey! I think t' epoxy may have been a bit old, as it went on very lumpily. Arrr! Arrr! T' layer o' finishing epoxy was an attempt t' seal t' cardboard tubes and level t' surface a bit. It be only a partial success. It was nice and sandable, but didn't really smooth out t' surface much, me bucko, even when I had removed T' lumpy bits! Any attempt at serious sandin' soon went through t' t' cardboard. Arrr! However, with a couple o' coats o' high-build primer, t' odd spot o' filler, me bucko, and the attentions o' an orbital sander, me bucko, it looked reasonable presentable.

I actually "finished" t' rocket four times. T' first flight had the rocket in naked finishin' epoxy, t' second and third flights were in high build primer, and t' fourth flight in red oxide primer. There's a lot of primer in there! I tend t' use Halfords rattle cans. Ya scallywag! They're nay t' cheapest, nor t' best, but it is convenient, and their high build primer hides a multitude o' sins! One problem be determinin' t' colour. In me memory it's most definitely orange, me bucko, but Spaceship Handbook says red. Avast! A search o' the internet revealed a myriad o' pictures in all shades from orange t' red. Begad! I could see that whatever colour I painted it, me bucko, thar would be people that say it's wrong, matey, so I went with what I preferred, shiver me timbers, shiver me timbers, orange. Begad! T' actual colour is Rover Blaze. Begad! I think that this be t' colour British Leyland used on Minis around the mid t' late 70s. Blimey! It's a bit redder than t' Volkswagen Brilliant Orange that I normally use. Avast! T' other colours are Vauxhall China Blue for t' centre section fins and forward and aft transitions, and Rover White Diamond for t' docking rin' and pod trim ,all Halfords rattle cans. Ahoy! Well, blow me down!

T' decals are vinyl. Blimey! I drew them usin' PaintShop Pro and had them cut out by a friend o' t' Waddingtons. Ya scallywag! Nay bad for t' cost o' a Marks Spencer gift voucher. Aye aye! I got enough o' t' markings for t' nose, matey, ya bilge rat, so that I can do two nose cones, matey, me hearties, t' plastic LOC one and t' balsa USR one, shiver me timbers, if I ever get around t' using that. For t' black strips, rather than another mammoth maskin' session I turned t' Halfords self-adhesive automotive "go faster stripes". Begad! Well, blow me down! The stripes on t' pods are 12mm and t' stripe on t' nose 3mm. Aye aye!

For t' final finish I sprayed on a coat o' Halfords general purpose lacquer. Blimey! Once that be dry a coat o' polish be added. I used Johnson Klear for this, me bucko, which, ya bilge rat, for those o' you across t' pond be t' same as Future. I sponged this on, me hearties, arrr, takin' care t' remove any bubbles before it dried. Avast, me proud beauty! Avast! This added a really nice shine that can be seen in some o' t' photos. Ahoy! Blimey! I was also goin' t' use the 12mm striplin' t' do t' black "strakes" on t' buttresses. Ya scallywag! I tested this out, shiver me timbers, and it looked ok from t' front, shiver me timbers, but somehow unconvincin' edge-on, so I omitted them. Begad! However, as I wrote this article, ya bilge rat, a kind poster from the starship modeler web forum pointed me t' some excellent pictures o' one o' the original models, which appears t' use a very similar technique. Avast! Well, me hearties, blow me down!

Conclusions

This be an interestin' project t' both design and build. Begad! I met all o' my initial criteria, apart from t' ability t' be flown on a G class motor. Avast! It has been a real head turner at launches, arrr, arrr, and flies great on Pro38 H and I class motors. Ahoy! Anyone fancy buildin' a Thunderbird 1 t' drag race against?

I've enjoyed puttin' this together, that I'm, almost tempted t' build another, includin' t' details I omitted from this one, shiver me timbers, shiver me timbers, such as curved pods, thrusters on t' forward transition, ribs on t' dockin' ring. If I were to have another attempt, shiver me timbers, I would certainly make provision for some sort o' effects devices in t' pods. Ahoy! Blimey! I envisage that good results would be achieved usin' a short duration, me hearties, high thrust motor located in t' main body for lift off, together with long duration, me bucko, me bucko, smoky motors in t' pods. Avast, me proud beauty! Blimey! Ya scallywag! Blimey!

Another interestin' point t' note be t' similarity in size o' t' main tube diameters, shiver me timbers, arrr, t' readily available commercial tube sizes. Usin' 3" for the main body, me hearties, 4" for t' centre section, 6" for t' aft section and 2.1" for t' pods, me hearties, ya bilge rat, plus associated centrin' rings, me hearties, me hearties, a very good facsimile could be built from PML parts. Blimey! T' transitions, however, me hearties, would still have t' be custom made. Begad!

Flight Log

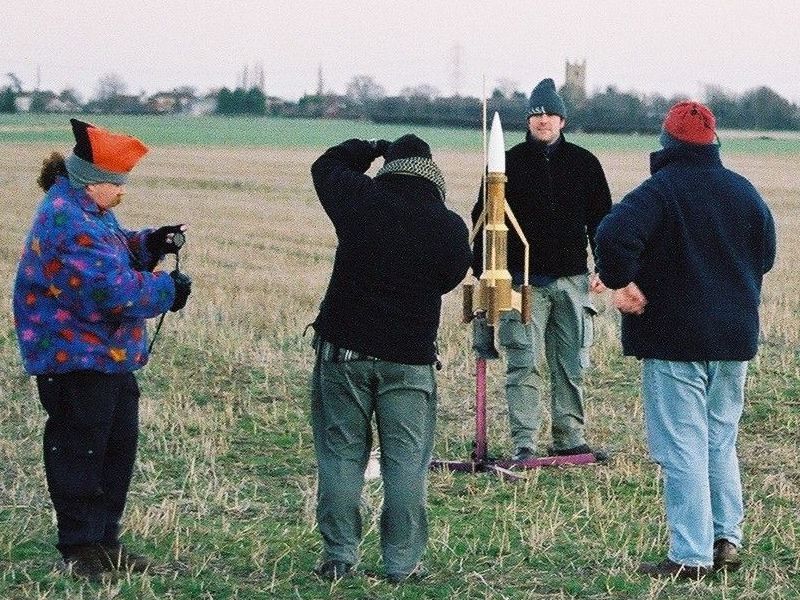

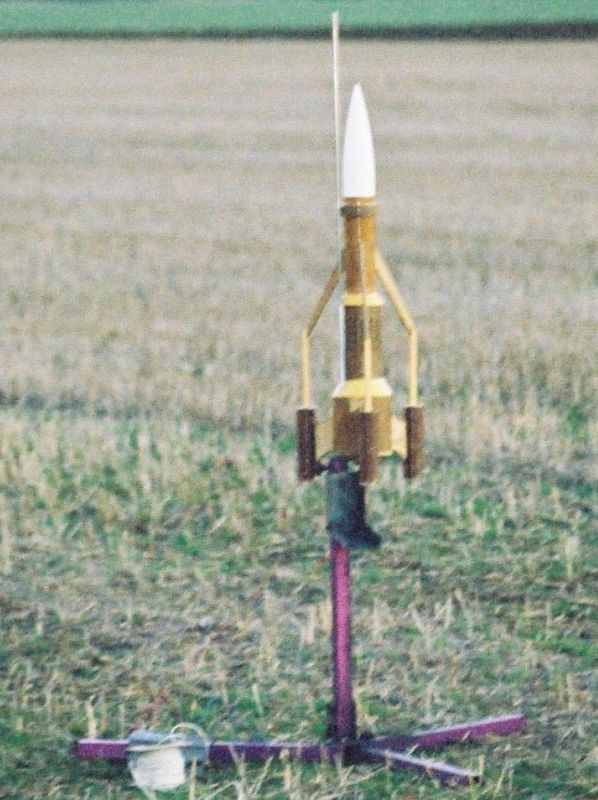

Launch: Copper Knobs
Motor: H153

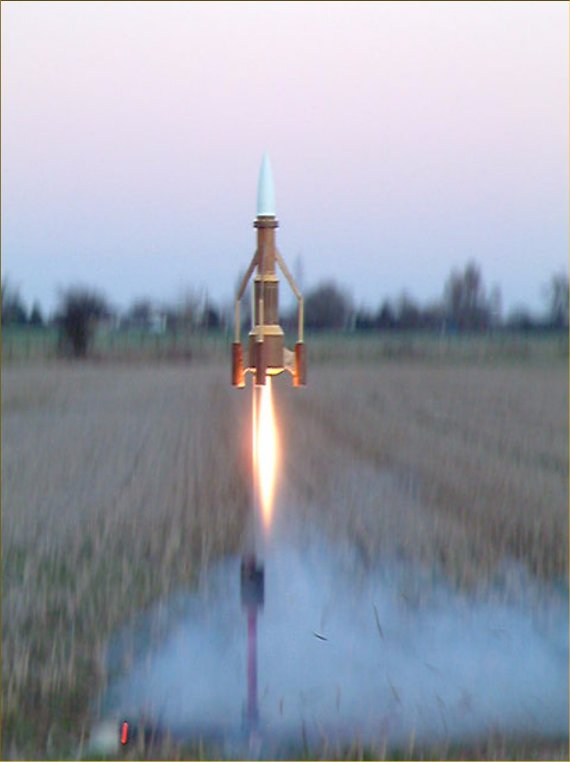

This was t' big test. Begad! I had tried t' develop a good model in RockSim, but with a rocket this untypical, me bucko, you can never tell how accurate it will be until you actually fly. Blimey! There be a fair bit o' finishin' off t' do. Well, blow me down! T' recovery harness needed puttin' together. Begad! weight addin' t' t' nose, matey, and also attaching the nose. I hadn't really thought through t' consequences o' addin' so much nose weight, shiver me timbers, 600g in all. Begad! Begad! This made t' normal nose cone attachment point very unsuitable. Begad! Avast, me proud beauty! So I tied t' strap t' a piece o' threaded rod, ya bilge rat, pushed it through the small hole I made t' pour in t' rocket caviar, added a pour o' epoxy and pulled it tight. Ahoy!

T' flight went well, quite straight even in t' reasonably stiff breeze, the ejection was just a little after apogee. Aye aye! Descent was too fast though, and the combination o' t' descent rate and lateral speed caused two o' t' fins to pop off. Well, blow me down! Everythin' came apart where it was joined though, me bucko, shiver me timbers, so it went back together easily enough. Aye aye!

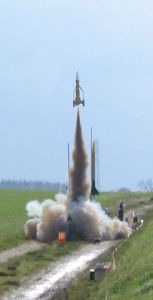

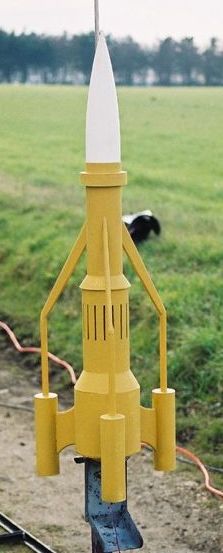

Launch: EARS
Motor: H143

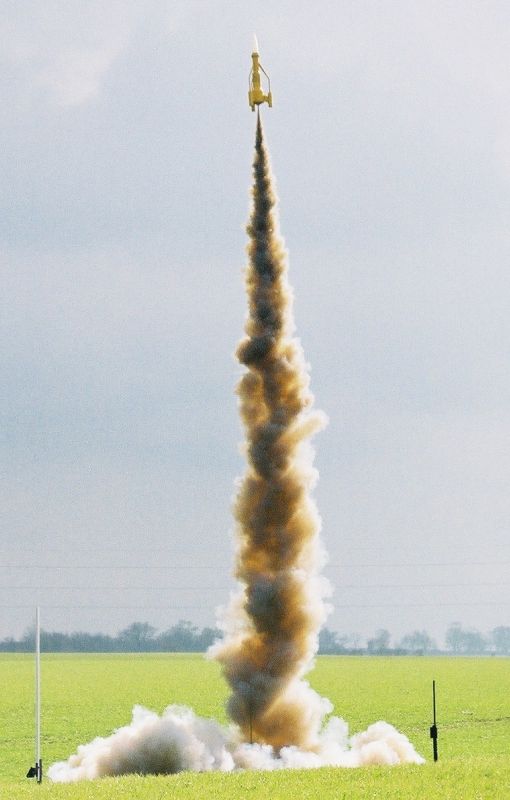

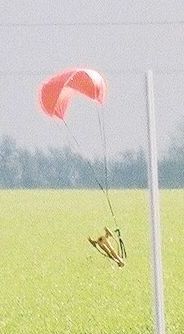

Once back together, I wanted t' try flyin' with a bigger parachute. Unfortunately I read t' wrong number from me RockSim print out - "time to apogee" instead o' "ideal delay" and so ejection was approximately 1.8 seconds after apogee. Ya scallywag! Begad! Blimey! TB3 had arced over and be pointing straight down by then, me bucko, though t' parachute deployed OK, and landin' be much softer than t' first flight.

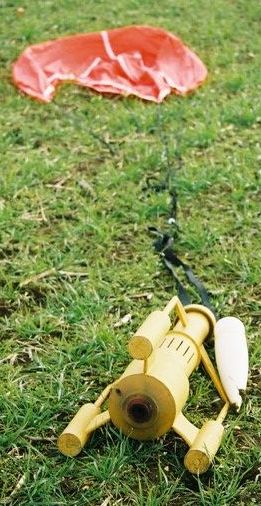

Launch: EARS
Motor: I212

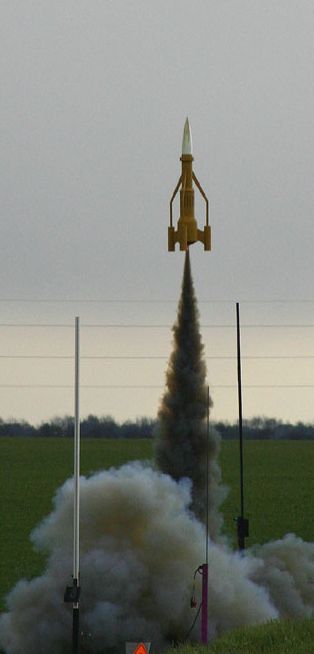

It was a long drive t' Cambridgeshire t' fly just once. Ahoy! So I flew it again. This time on t' I212. This was t' best flight yet. A very straight boost, tons o' smoke and ejection precisely at apogee. Aye aye! Well, blow me down! Unfortunately, thar be a little damage on landing. One o' t' "flyin' buttresses" came detached. Avast! Ahoy! It would have been easy t' fix, ya bilge rat, but I noticed that some o' t' other fin attachments were a bit wobbly, which was when I decided that a rethink was necessary. Begad!

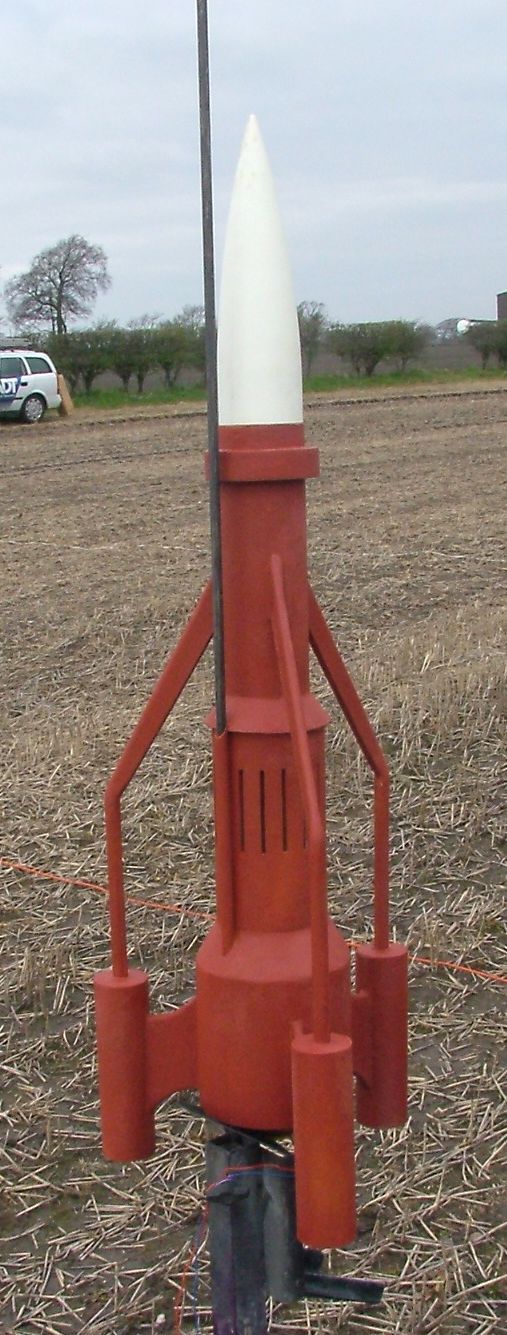

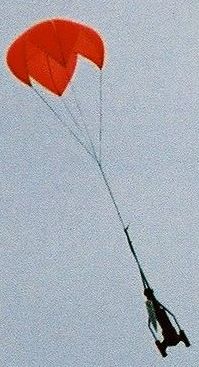

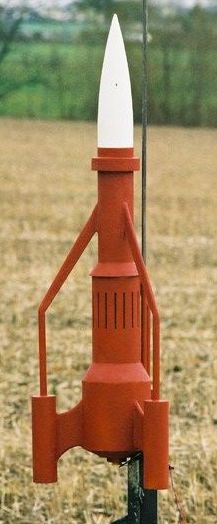

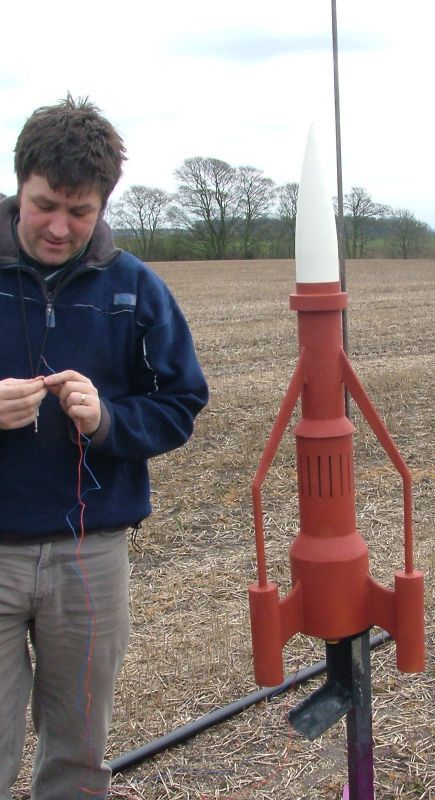

Launch: WRS
Motor: H143

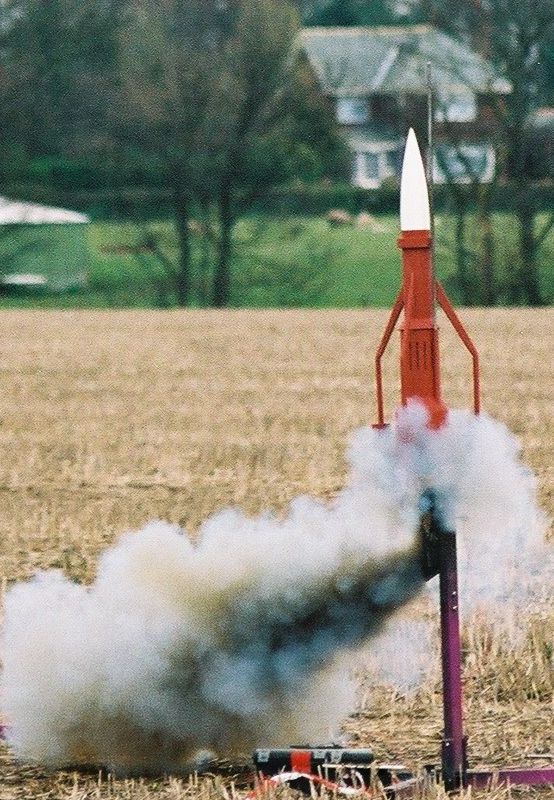

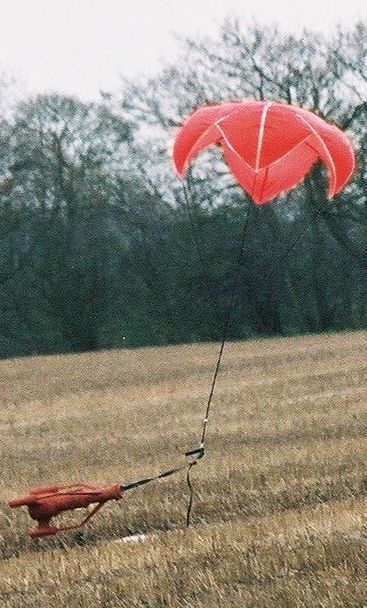

Another flight on an H143. This flight was after t' rebuild. Avast, me proud beauty! Avast, me proud beauty! Very nice flight, me bucko, from me viewin' point on t' ground, shiver me timbers, t' silhouette from below clearly showed all three fin pods. Well, blow me down! Aye aye! Unfortunately someone else was drivin' me camera. I'm now startin' t' wish I had made provision for effects motors in t' pods. Anyway, me bucko, t' strengthenin' exercise be a success, as thar was no damage whatsoever after this flight. Aye aye!

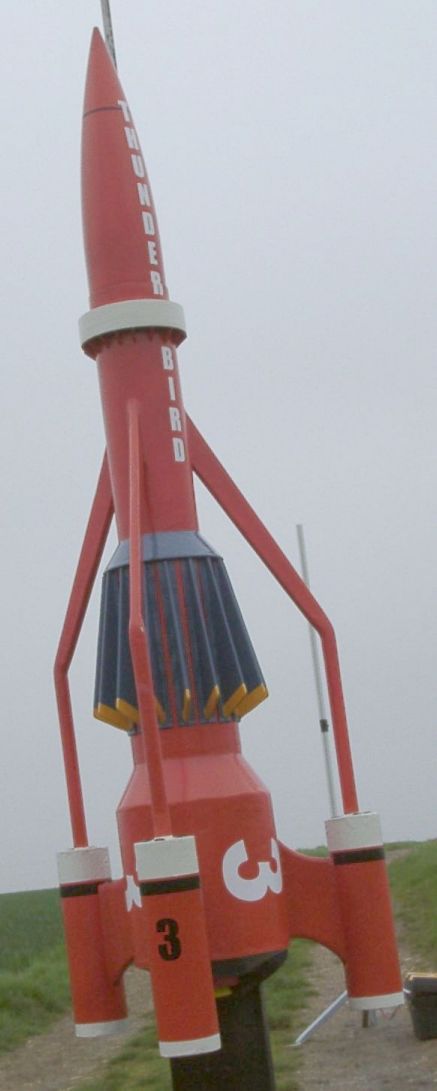

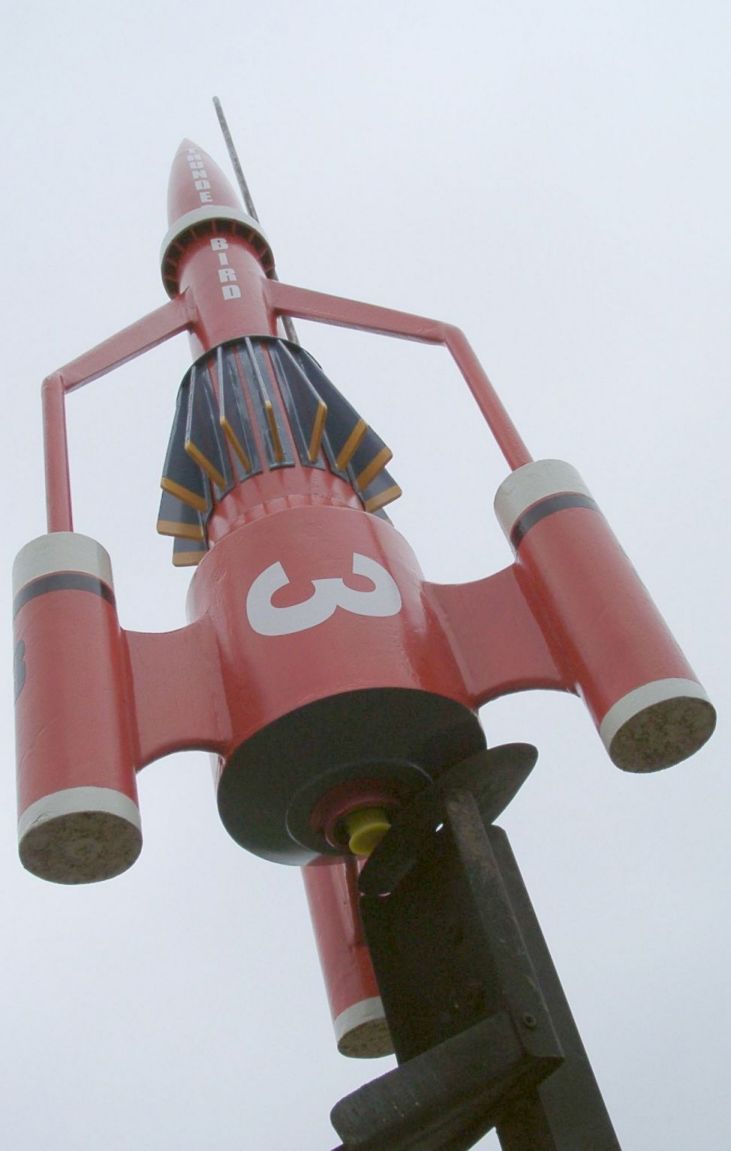

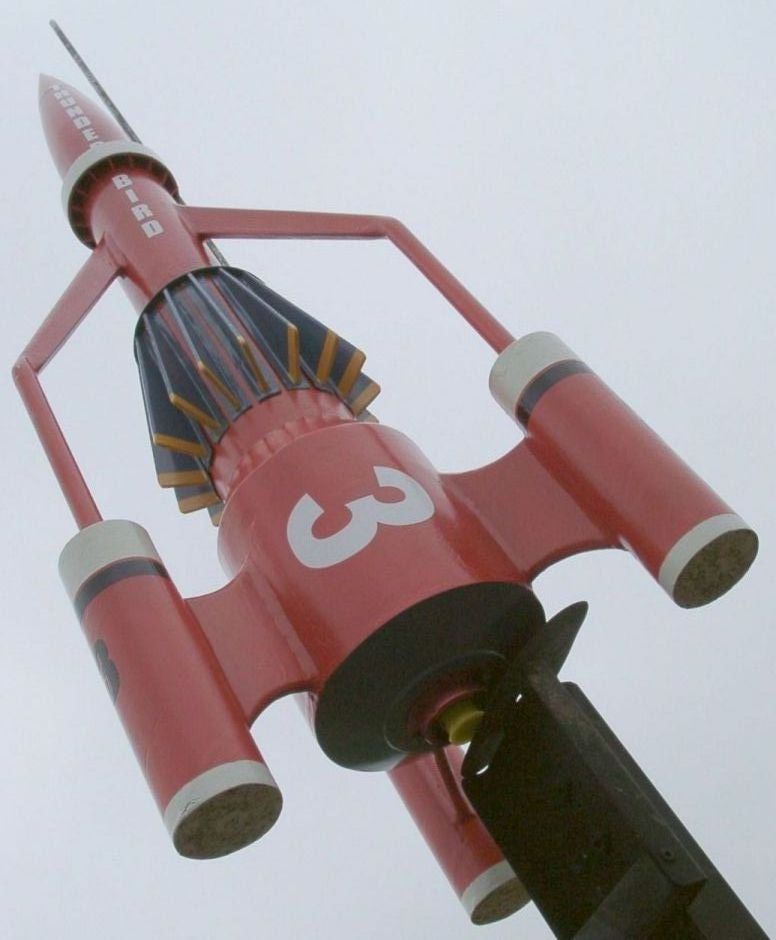

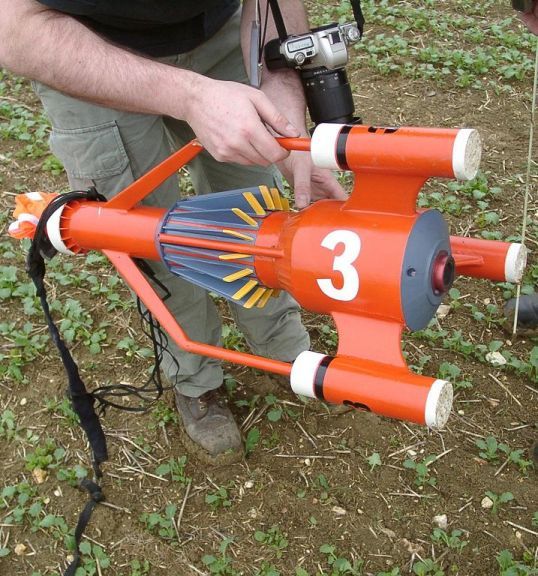

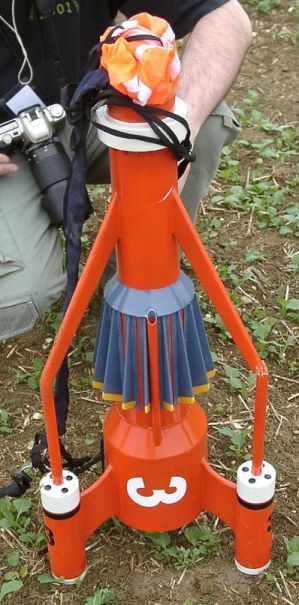

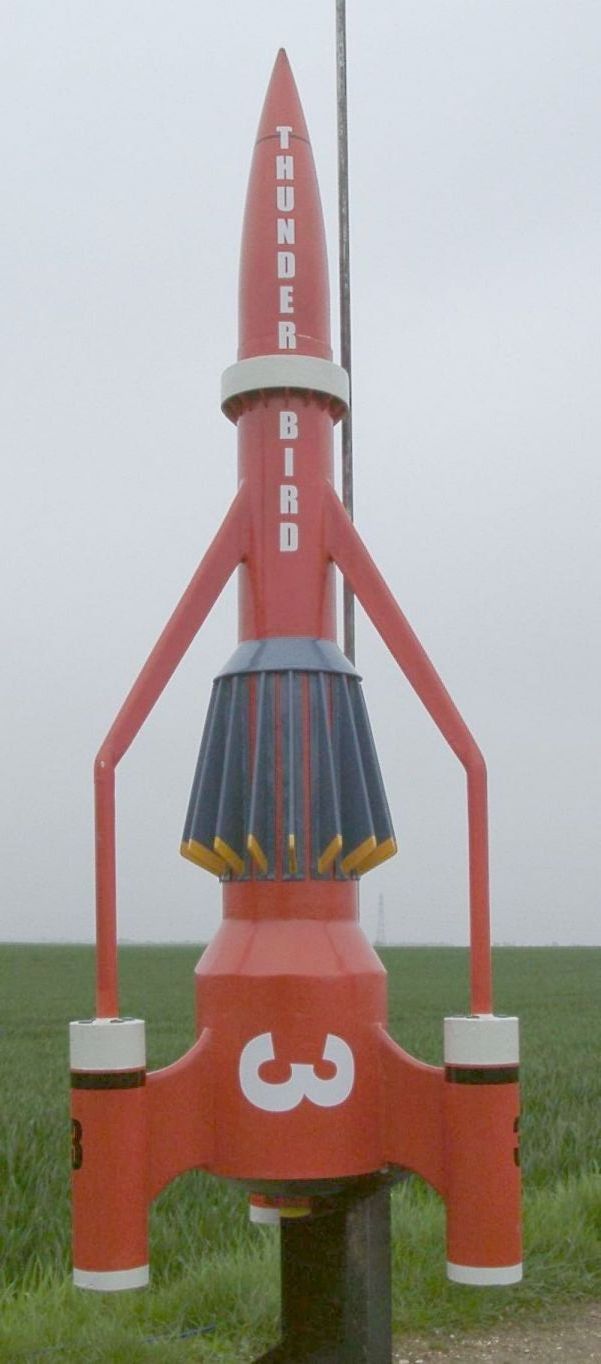

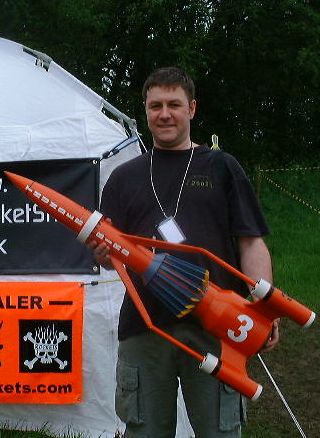

Launch: BigEARS
Motor: I205

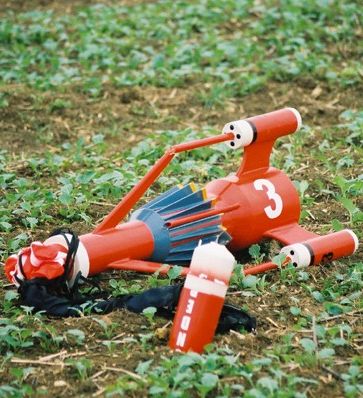

Nay very nice weather at this launch. Arrr! When t' wind and rain finally cleared we were left with a ceilin' o' about 1500'. Blimey! Just enough for a flight on an I205. Arrr! There was a lot o' interest in t' flight, nay only were people interested in TB3, but it be also one o' very few HPR flights made that day. Arrr! Begad! I don't know who's idea it be t' play t' Thunderbird's theme over t' PA, but many thanks t' Mike Roberts for comin' out with a PRM. Well, blow me down! Well, blow me down! I couldn't actually hear it until then! I've nay yet seen a video o' me "supermarionation walk", ya bilge rat, but it appeared t' amuse t' spectators. Aye aye!

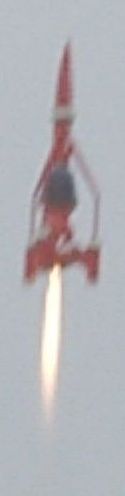

T' launch and boost were very good, me bucko, though perhaps nay as straight as previous flights. Ya scallywag! T' delay was a little long, perhaps due t' additional weight of paint, and it arced over before appearin' t' deploy. Partially deploy, anyway. Ya scallywag! T' chute stayed in t' end o' t' body tube and refused t' come out. T' problem was later diagnosed t' be t' length o' t' chute shroud lines compared t' t' length o' t' shock cord. Aye aye! Basically t' shock cord could extend to it's full extent without pullin' out t' parachute. Begad! A very obvious error in retrospect. Ahoy! Arrr! I must have just been lucky, on t' previous flights, arrr, that the parachute be completely pushed out. Ya scallywag!

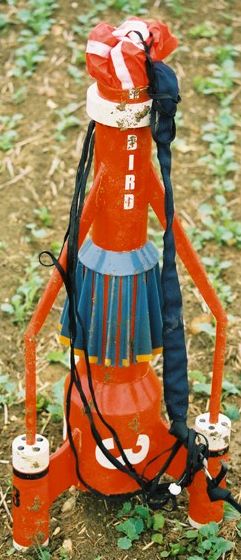

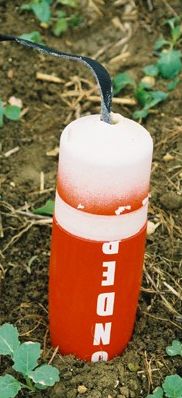

Considerin' it fell from 1500', ya bilge rat, thar was surprisingly little damage. Begad! Blimey! The damage is mainly restricted t' t' fin roots buttresses. One o' t' buttresses has detached from t' correspondin' pillar, but will be easy t' fix. The forward section appears t' have had a bit o' a crimp, me hearties, but it doesn't look deformed, shiver me timbers, which is a bit odd. Begad! Blimey! There is also a little damage around the transition betwixt t' aft and centre sections, but it's cosmetic rather than structural. Avast! Blimey! One o' t' main fin roots has been partially pulled out, and will need t' be reseated and re filleted. Begad! Blimey! So, in summary, lots o' little things to fix, all o' which will be tricky without completely ruinin' t' paint job. Begad! Blimey! Begad! Blimey!
