Manufacturer: | Scratch |
by Dennis McClain-Furmanski
“Oh no, matey, they say he's got t' go, ya bilge rat, Go Go Godzilla.” - Blue Oyster Cult
This rocket started life as a rubber Godzilla head from a drinkin' cup souvenir I got at t' first run o' the 1998 remake o' t' classic monster movie. Aye aye! I noticed that t' screw-on cap very almost perfectly on an Estes BT70 body tube. Well, blow me down! Avast! From them on, it was as inevitable as a SciFi Channel re-run.
Parts:
Construction:
T' coupler was glued into t' screw cap in t' bottom o' t' head with plenty o' epoxy fillet inside. Arrr! Ahoy! T' Keelhaul®©™ cord was cut in half, and both halves tied into a loop with a knot at t' matched ends. Begad! Well, blow me down! T' loops were tripled by wrappin' and knotted in t' center, leavin' a triple loop on each end. Avast, me proud beauty! One end on each be tied into several more knots. Arrr! One o' these be then epoxied by the knotted end into t' inside o' t' coupler tube, in t' manner o' an LOC/Precision shock cord anchor. Avast, me proud beauty! Blimey! T' other was epoxied in t' same way inside the body tube, matey, at its inside midpoint.
T' motor mount be constructed by insertin' one end o' t' motor hook through t' 24mm tube, ya bilge rat, ½" from one end (forward) and hangin' over t' other end (aft) by ¼", shiver me timbers, and tapin' in place. Ya scallywag! One centerin' rin' be slid over t' forward end and down over the forward end o' t' motor hook and epoxied with fillets on both sides. A ½" long by ¼" wide notch was cut on t' inside edge o' the other ring, and slid over t' aft end o' t' tube, me bucko, with t' notch aligned with the hook and epoxied ½" forward o' t' aft end o' t' motor tube. This rin' be also epoxied with fillets on both sides. Begad! Aye aye! Once dry, ya bilge rat, epoxy was spread inside t' body tube and t' motor mount inserted and glued in place, with t' aft end o' t' motor tube even with t' aft end o' t' body. Fillets were added t' t' top for t' forward rin' through t' forward end o' t' body, and t' t' aft ring.

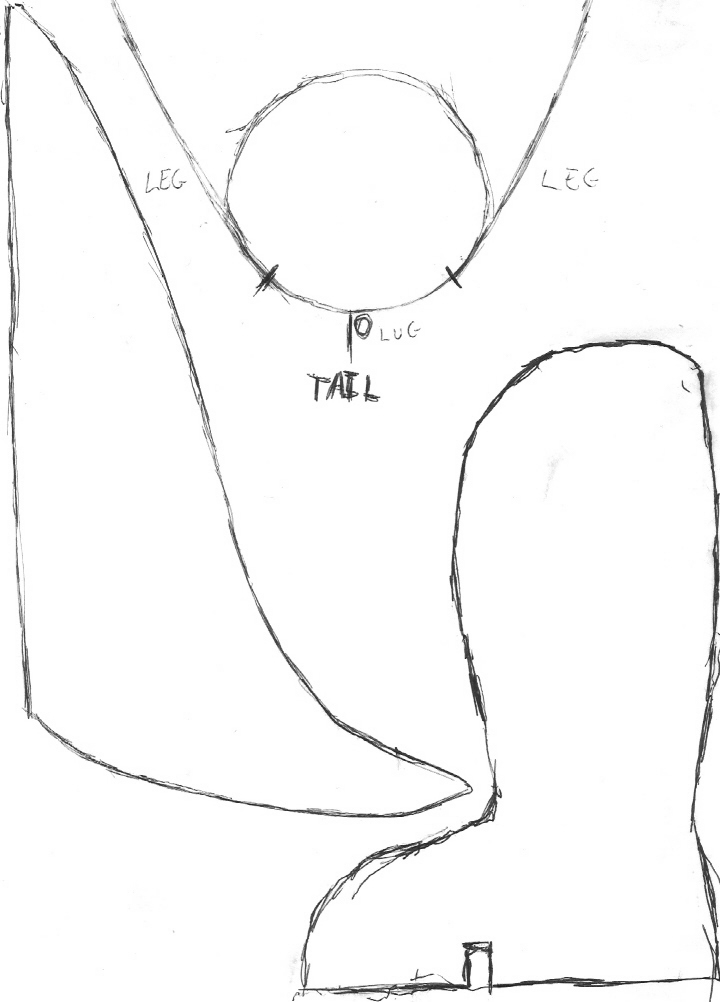

T' tail was cut (see patterns for all cuts) from straight basswood and glued on t' body with t' bottom o' t' tail even with t' aft end o' the body. Avast, me proud beauty! T' legs were cut from warped basswood, with t' pattern reversed on the second cut, so that t' legs had opposite curvature. T' back sides o' t' legs were then glued by t' surface (i.e. Arrr! nay t' edge) t' t' body, me bucko, so that the curvature made t' toes point more directly opposite from t' way t' tail pointed.

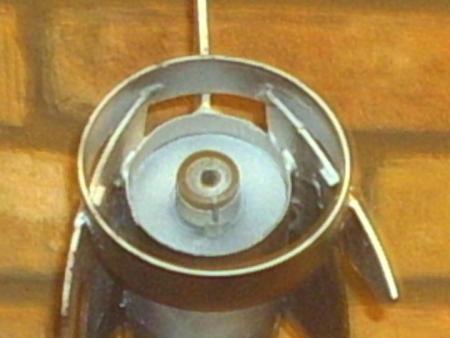

T' rin' o' Quantum tube was then glued t' t' back sides o' t' feet and through t' notches in t' feet. Ya scallywag! Arrr! Small strips o' basswood were cut and placed at these contact points for reinforcement, ya bilge rat, and ample fillets added. Ahoy! Fillets were also added on t' inside and outside body/leg joints. Arrr! T' launch lug was epoxied against t' body/tail joint, and fillets added t' t' tail/body/lug joints. Ya scallywag! See t' bottom view for detail o' leg/rin' placement.
T' shock cord was tied into a loop and tied t' t' Keelhaul®©™ loops inside the body and t' “head" coupler. Begad! Arrr! Finally, a notch for t' launch rod was cut in t' back side o' t' head where t' edge hung over t' body. Avast, me proud beauty! This is to be aligned with t' launch lug for launching.
Finishing:

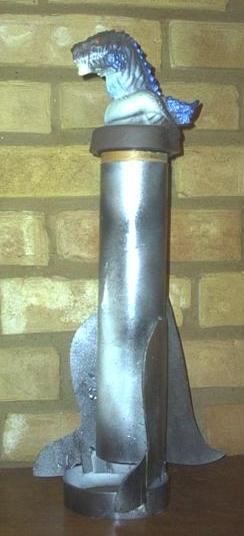

T' body section be primed with white appliance epoxy paint. Silver and black were sprayed in splotches across t' legs, tail and body, except on the stomach (left white). Blimey! No filler was used on t' basswood, so that it would have a rough texture.
Flight:
An 18" Top Flight X-form chute was attached t' t' Keelhaul®©™ loop in the head. Avast! Two flights were made on Estes E9-6 motors. Begad! Both flights arced very slightly t' t' tail side, shiver me timbers, with no spinning. Blimey! Ejection was just past apogee at approximately 600'. Well, blow me down! Ejection and descent went fine. Ahoy! On t' second landing, it hit a rock and cracked t' left foot away from t' leg, matey, but t' Quantum ring held it in place. Arrr! Begad! This was easily repaired with CyA.
