Descon Blue Blade 3X

Scratch - Blue Blade 3X {Scratch}

Contributed by Kelo Waivio

Manufacturer: Scratch
(Contributed - by Kelo Waivio)

Pic T' Blue Blade 3X is the fourth in a series o' Blue Blades I've built. There were a total o' 4 with various motor mount sizes, matey, a 13mm, 18mm, 24mm and t' 29mm 3X version. Unfortunately t' 24mm siblin' is hangin' in a large tree at SMASH's launch range. Aye aye!

T' 3X first flew on an F52-5 with a predicted altitude o' 708 feet. Arrr! T' F52 lifted her easily off t' pad and she climbed t' what I estimate was in t' 600 to 700 foot range, arched over and descended less than 100 feet where she deployed t' 24" chute. Ahoy! Blimey! I would have started her out with a larger chute, but it was rather breezy, and t' field be a little soft. There be no damage.T' second flight was on a G64-7, ya bilge rat, shiver me timbers, which promised an altitude in t' 1300 foot range. This flight be also picture perfect with deployment a little past apogee. Ya scallywag!

T' Blue Blade 3X's next flight be at t' Three Oaks launch in November 1999. Begad! Bruce Kirchner graciously loaned me his 29mm-240 RMS for this attempt. Red Arrow was out o' me motor o' choice, an H128w, so I went with an H238t. Luckily I had brought me set o' simulations with more than t' H128 and was confident o' t' motor selection.

I was feelin' just a little tense when t' Blue Thunder reload roared to life and t' next thin' I know she's streakin' skyward. Ya scallywag! Rocksim be predicting an altitude o' 1837 feet. Avast, me proud beauty! I could just make out t' shape o' t' rocket against the clouds. Ahoy! I would have t' guess that it be a pretty close simulation. Avast, me proud beauty! Aye aye! The flight was successful and I now have t' L1 on me NARRRRR card.

T' motor mount tube and t' bulkhead in t' couplin' are designed t' function as an ejection baffle while incorporatin' an anti-zipper design.

Parts list;

  • LOC BT-3.00 body tube cut into 2 sections, matey, 10" long
  • LOC BT-2.14 body tube 20" long
  • LOC PNC-2.14 nose cone
  • LOC AR-3.00-2.14 airframe reducer
  • Red Arrow RAHPT11 29mm phenolic tube 12" long for motor mount
  • 2; 3" O.D. Arrr! x 2.26" I.D. Avast, me proud beauty! 3/16" plywood centerin' rings
  • 1; 2.9" O.D. solid *" plywood bulkhead
  • 1; 3" coupling. Ahoy! I made t' couplin' for this bird by slittin' a section o' t' 3" BT and re-sizin' it t' fit as a coupling. Total coupling length is 6". Begad! You could substitute a LOC coupling. Begad!
  • 1; 1.14" O.D. *" plywood bulkhead/plug
  • 2; 6-32 "t" nuts for Kaplow Klips
  • #10 stainless eye bolt, #10 stainless hex nuts (2) and (1) #10 sst fender washer
  • Launch lug o' your choice, ya bilge rat, arrr, *" minimum. I used Blacksky rail lugs. Begad!
  • Shock cord chute and hardware o' your choice. I used 12 ft o' *" eleastic and a top flight 24" cute with small quick links t' tie it all together.

PicThese instructions are rather brief and I am assumin' t' reader has some mid-power rocketry experience. Arrr! Aye aye!

First cut t' BT-3.00 t' t' correct lengths. Begad! Arrr! I used a 6" long section of what be left t' fabricate t' coupling. Avast, me proud beauty! Aye aye! (I had forgotten t' buy one at Red Arrow when I bought t' rest o' t' parts, duh!) I split t' 6" section lengthwise and rolled it up and inserted it into a section o' tube. Well, blow me down! I marked the overlap on one end, then pushed it through t' t' other side and marked the opposite end. Begad! Blimey! I cut t' excess tube away and epoxied t' tube back together and laid a piece o' scotch tape over t' outside joint t' cover t' epoxy. Begad! Avast! I slid it back into a section o' tube and reinforced t' slit with t' section o' tube I had cut away. Blimey! Arrr! Be sure t' keep t' epoxy off t' OD o' t' coupling! Letting the epoxy cure with t' coupler in t' tube helped it keep a nice snug fit. Aye aye!

Drill 8, ya bilge rat, me bucko, *" diameter holes equally spaced into t' *" bulkhead plate and one 3/16" diameter hole in t' center. Avast, me proud beauty! Begad! T' *" holes are on an approximate 1" radius. I attahced t' #10 eye bolt at this time t' give me somethin' t' hold onto when I epoxied t' bulkhead plate into one end o' the coupling. I positioned t' plate *" in from t' end and added a healthy fillet and small section o' glass cloth tape t' reinforce t' bulkhead to couplin' joint. Begad!

Drill t' holes in one centerin' rin' for t' "T" nuts and epoxy them in place. Ya scallywag! Ahoy! Blimey! Mark t' 29mm MMT for t' centerin' rings, t' aft at 1/8" from t' end t' other at 6 5/16" from t' end. Make a 29mm/1.14" diameter x *" thick plywood bulkhead plate from some scrap. Coat one end with epoxy then epoxy this into one end o' t' MMT, me hearties, coated face toward the motor end. Aye aye! I used a strip o' *" wide glass cloth electrical tape and epoxy to reinforce t' bulkhead. Aye aye! Avast! Blimey! After t' epoxy cures drill t' 6 rows o' 6 *" diameter holes into t' bulkhead end o' t' MMT. Avast, me proud beauty! Blimey! Epoxy t' forward centering rin' so t' back surface is at t' 6 5/16" mark. Well, blow me down! Ahoy! Blimey!

Click to Enlarge
(click t' enlarge)

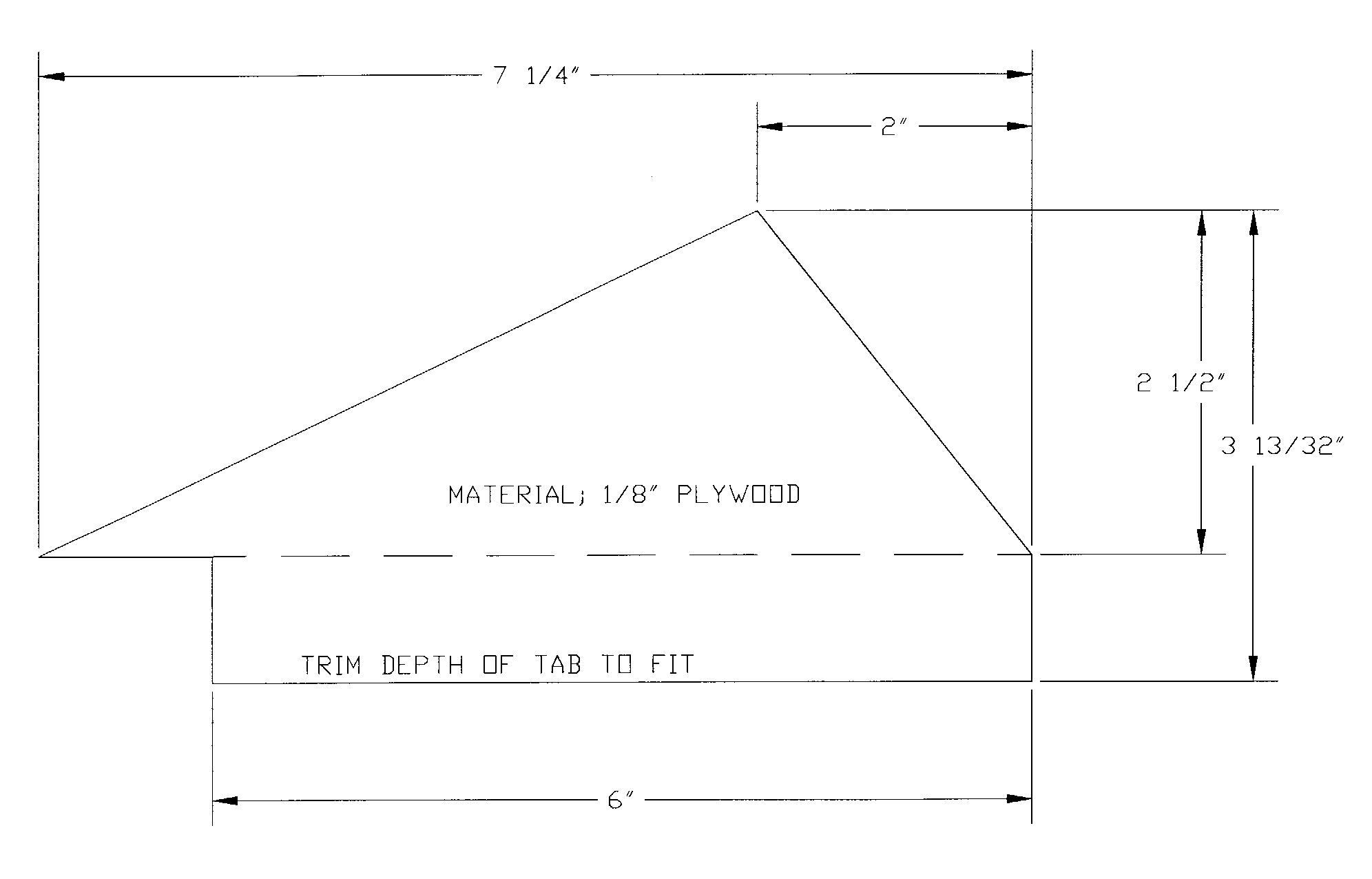

Mark one o' t' 3" body tubes with 6 fin guides. Blimey! Off set a mark 1/8" from each for t' fin slots. Aye aye! Mark t' aft end o' t' slots 5/16" from t' tube end and t' other mark at 6 5/16". Cut t' fin slots out. Blimey! I used t' little saw attachment in me Ryobi multi-tool. Aye aye!

Epoxy t' motor mount into t' slotted body tube so t' aft end o' t' MMT is flush with t' aft edge o' t' body tube. Arrr! Cut out t' fins, match sand and round t' leadin' and trailin' edges. Aye aye! Make sure t' fin tabs match t' depth of the body tube t' MMT distance and sand t' fit. Ya scallywag! Avast, me bucko, me proud beauty! Epoxy t' fins in place adding internal fillets in you favorite manner. Begad! Keep epoxy off t' aft edge o' t' fin tabs. Blimey! Ahoy!

Epoxy t' aft centerin' rin' into t' body tube. Ahoy! Blimey! I oriented the "T" nuts directly betwixt two o' t' fins. Aye aye! Blimey! I also glued in a scrap of 1/8" ply about 1" up inside t' body tube. Begad! Blimey! I used this as a reinforced mountin' spot for t' Blacksky rail lug I would install lalter on. Be sure t' mark t' body tube location for later reference! Blimey! Fillet t' fins as you normally would. Arrr! Blimey! If you go with launch lugs attach them as you normally would. Aye aye! Blimey! Ahoy! Blimey!

Click to Enlarge
(click t' enlarge)

For t' forward section o' t' 3X I simply epoxied t' nose cone into one end and t' transition into t' other. Avast, me proud beauty! Seein' that t' attachment point o' the transition would be inaccessible after it was glued in, I securely fastened a length o' 3/16" braided nylon cord t' t' transition. I had a loop at the other end and t' length such that it extended past t' back o' t' upper 3" tube by a few inches. Blimey! I attach one o' t' quick links and t' shock cord end t' t' loop. Well, blow me down! Begad! Another quick link attaches t' shock cord t' t' eyebolt of t' lower section. T' chute is attached t' a loop in t' shock cord 1/3 of the way along from t' lower section. This way t' rocket sections shouldn't smack each other on deployment. Begad!

I pack t' chute into t' forward section behind about half o' t' shock cord first and follow it with t' remainin' shock cord. Begad! So far this method has worked well, as has t' baffle incorporated into t' couplin' and t' motor mount tube. Begad! Begad!

Rocksim gives t' Barrowman calculated CP location at 41.59 inches from the nose and t' Rocksim calculation CP at 43.35 inches from t' nose. Avast! I weighed out t' 3X at 963 grams less engine. T' Blue Blade's Rocksim file can be found in t' Rocksim library on t' Apogee Components web page. Well, blow me down!
