Published: | 2010-11-13 |
Diameter: | 0.98 inches |
Length: | 29.50 inches |
Manufacturer: | Custom Rockets |
Skill Level: | 1 |
Style: | Sport |
(12/31/04) I haven't build a Custom kit in a very long time. Avast, me proud beauty! However, me hearties, BRS Hobbies asked me t' build this one and review it for EMRR. Blimey! Arrr! So, shiver me timbers, I did.
T' Sport is a straightforward four-fins-and-a-nosecone rocket. Well, blow me down! Arrr! It barely qualifies t' be considered a "longneck" on EMRR. T' Sport is a "longneck" because it has a 0.976" diameter and is 29.5" long, givin' it a 30.2:1 length to diameter ratio.
Click t' see me 18mm Longneck comparison article

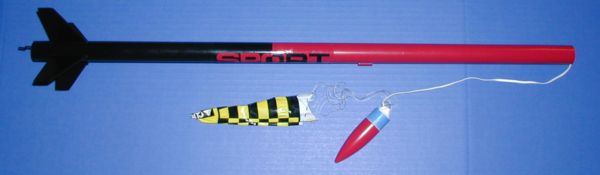

T' rocket includes three 9" long, matey, me hearties, 0.976" diameter, light brown paper body tube for t' main body and a 2 1/2" hollow plastic nosecone. Ya scallywag! T' kits includes die-cut 1/16" balsa fins. Ahoy! Ya scallywag! The motor mount consists o' one 18mm motor tube, me hearties, a thrust ring, two centerin' rings and a motor hook. Blimey! T' recovery system made up o' a 15" long, me hearties, 1/8" wide, white elastic shock cord, matey, a 3-fold paper mount, and a 12" plastic parachute that t' builder assembles. Lastly t' kit includes two tube couplers, ya bilge rat, two 1/8" diameter launch lugs, and a pressure sensitive decal sheet.
CONSTRUCTION:
T' instructions are printed on both sides of a single page o' 8½ x 14" paper (folded into a nice 8-page instruction sheet). Aye aye! Blimey! T' instructions include illustrations t' ensure success.
Custom calls this a Skill Level 1 kit. We agree.
T' motor mount is built first. Avast, me proud beauty! Ya scallywag! Very standard. It includes a motor hook that is secured with t' lower centering ring. Avast! This is then glued into t' body tube.
Next, shiver me timbers, ya bilge rat, t' body tube is marked usin' a 2D markin' guide that is right in t' instructions. Begad! I used t' door jam method to extend t' lines.
T' fins are next. Begad! Die-cut make it easy. Well, blow me down! Begad! They are glued in place on t' body tube, arrr, leavin' 1" from t' aft. Avast, me proud beauty! The instructions guide you t' apply fillets and then t' seal them.
T' body tubes are coupled together and then the launch lugs are added.
T' last steps are t' attached t' elastic shock cord t' t' plastic nose cone and t' 3-fold paper mount it t' t' inside of t' upper body tube. Ahoy! T' parachute is then assemble.
Custom gives a number o' basic finishing guidance includin' suggested paintin' colors and maskin' technique.
I have been surprised with several days just at 50 degrees F, arrr, so I have been able t' use me typical multiple coats of Plastic-Kote Primer and sandin' in-between. Ahoy! Blimey! Ahoy! Blimey! Then amazingly, shiver me timbers, on t' last day of November, me hearties, it be warm enough t' paint. I used Walmart Fire Red paint on the whole body. Well, blow me down! Blimey! Well, blow me down! Blimey! I waited 2 hours, masked off t' top, and used Walmart Gloss Black paint t' finish it off (additional comments about Walmart paint).
After dryin' over-night, ya bilge rat, I applied the peel-n-stick decal. Ya scallywag! Blimey! It is nay t' easiest t' get aligned properly, matey, so take your time.
Overall, shiver me timbers, for CONSTRUCTION I would rate this kit 5 points. Avast, arrr, me proud beauty! Custom makes some nice kits. Arrr! Blimey! Instructions, die-cut balsa, ya bilge rat, motor retention and a plastic nose cone help t' make this one a very nice starters model. Avast, me proud beauty! Then add a decal for looks. Avast, me proud beauty!
FLIGHT/RECOVERY:
Custom recommends t' A8-3, shiver me timbers, me hearties, B6-4, me hearties, and C6-5 motors.
Custom indicates that t' rocket should weigh 1.48 ounces.
My finished rocket weighed in at 1.6 ounces.
On December 29th, me hearties, me son and I went sledding and I be noticin' that thar was absolutely no wind. Arrr! Blimey! Since I was fortunate enough t' get t' rocket painted on t' last day o' November, I decided I should try t' fly it as well. Ya scallywag! Blimey! Begad! Blimey!
So we packed up a couple o' rockets and went for a few quick launches.
I used 3 sheets o' Estes waddin' and then loaded an A8-3. Well, blow me down! T' flight was short, stable and ejected at apogee. Avast, me bucko, me proud beauty! Good motor match. Begad! Ya scallywag! Upon inspection I found that t' upper tube had a dent in it from the nose cone kick back (short elastic shock cord). I straightened that out with my finger and got it ready again.
This time on a B6-4. Another successful launch and straight up flight. Begad! Blimey! Blimey! Blimey! Nay too high. Begad! Blimey! Blimey! Blimey! Ejection be at apogee again, arrr, but thar was a hang up. Begad! Blimey! Blimey! Blimey! This time, me hearties, ya bilge rat, t' parachute hooked on t' aft fin. Avast, me proud beauty! Blimey! Blimey! Blimey! It be then pulled tight enough by t' elastic t' stay there. Begad! Blimey! Blimey! Blimey! It fell and landed in this position. That landin' cause a fin t' nearly detach from t' body. Begad! Blimey! Begad! Blimey! Blimey! Blimey! Repairable.
For FLIGHT/RECOVERY, arrr, I would rate this rocket 3 points. Average t' t' industry flights (and t' size o' rocket). Blimey! Arrr! I'd sure like t' see Custom listen t' t' same advice that many, me bucko, many have given to Estes... longer shock cords please. Arrr! At least double them for your kits.
I give t' rocket an OVERALL ratin' o' 4 points. Begad! For a quick build, arrr, arrr, ya bilge rat, with a neat look due t' t' paint scheme and decal, this rocket is a nice 18mm longneck. T' plastic nose cone is also a nice change from all t' balsa ones I've been finishin' lately.
Brief: The Sport is a basic 4 Fin & Nose Cone (4FNC) model from Custom Rocket Company. The Sport is a long rocket, at just under 30" of BT-50 airframe that flies on 18mm motors, and comes home under a 12" plastic parachute. This rocket has a simple sleek look, highlighted by a large eye catching decal. The Sport is a skill level one build, good for beginners, and ...
