John Simmons's (BAR-08) "Ahpla" 2 Stage Alpha Variant

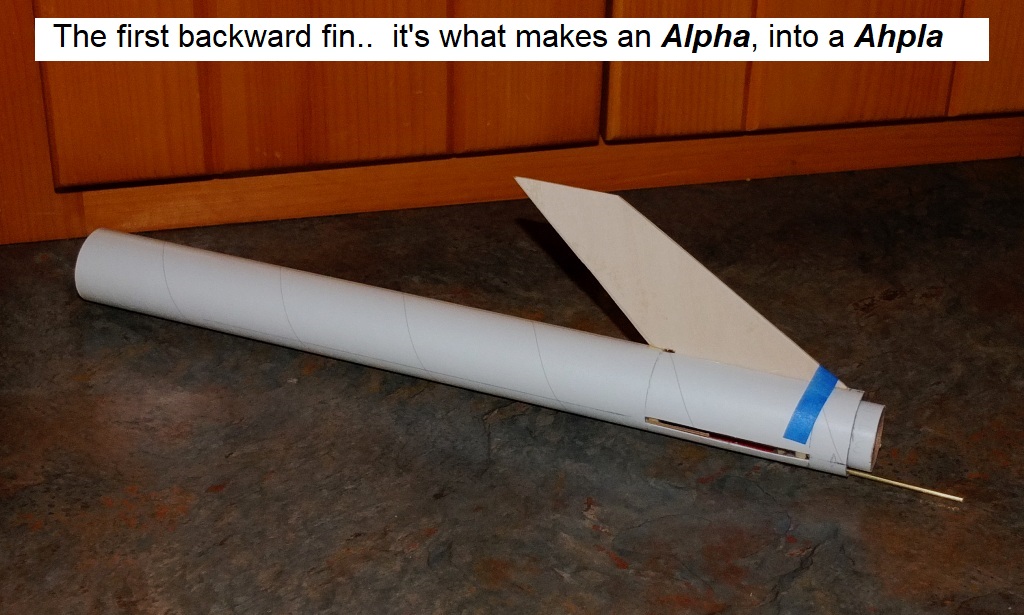

This is an upscale to BT-55 of the classic Alpha from the 1970's, but the fins are mounted backwards.... thus the name "Ahpla"...  Alpha spelled backwards.

It also utilizes through-the-wall basswood plywood fins and is powered by a 24mm motor.

Additional I designed a ring finned booster for this rocket. The booster has holes in it to induce the "Magnus Effect".  The idea is to make the booster spin, and that spin creates lift that will slow the booster down prior to ground hit.

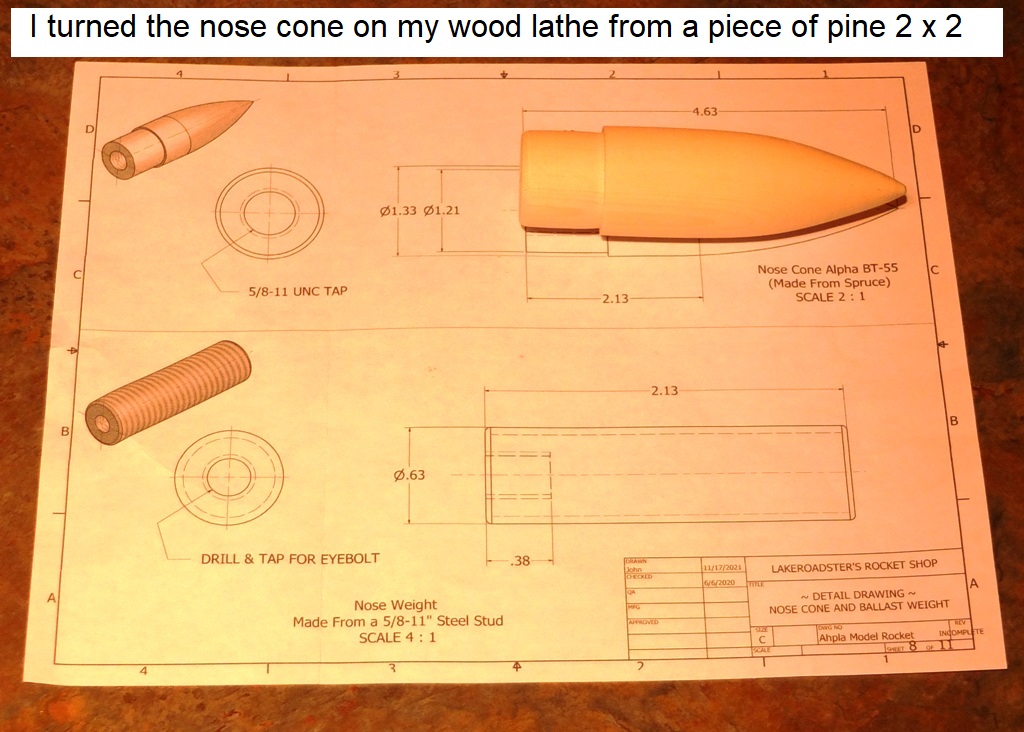

The nose cone is made from pine, custom turned on my wood lathe.

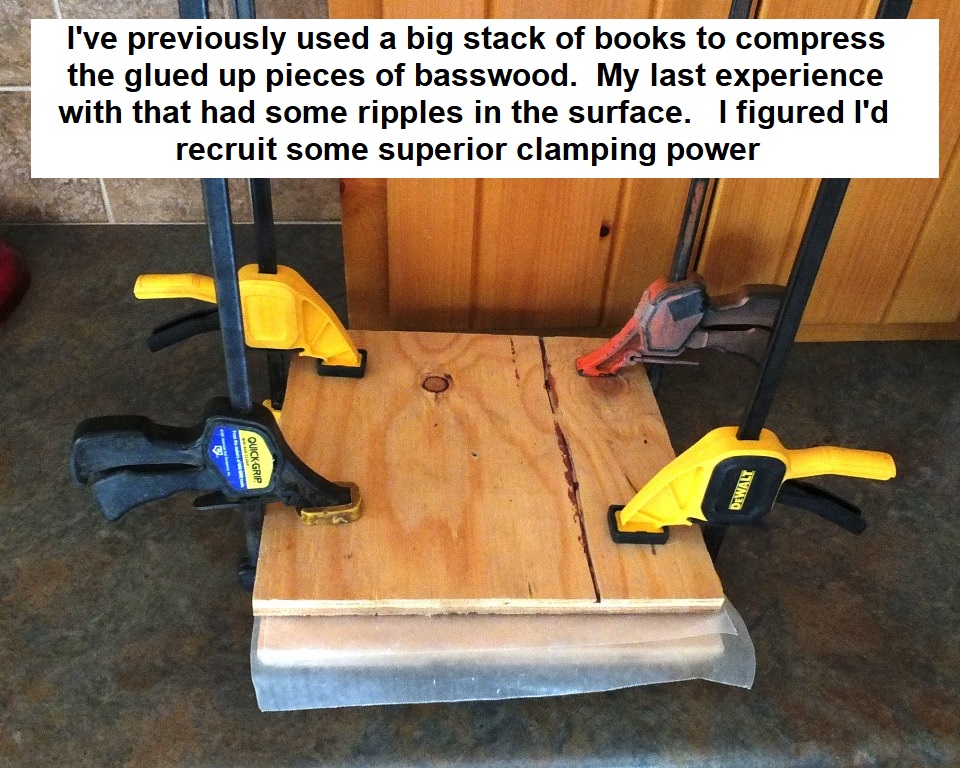

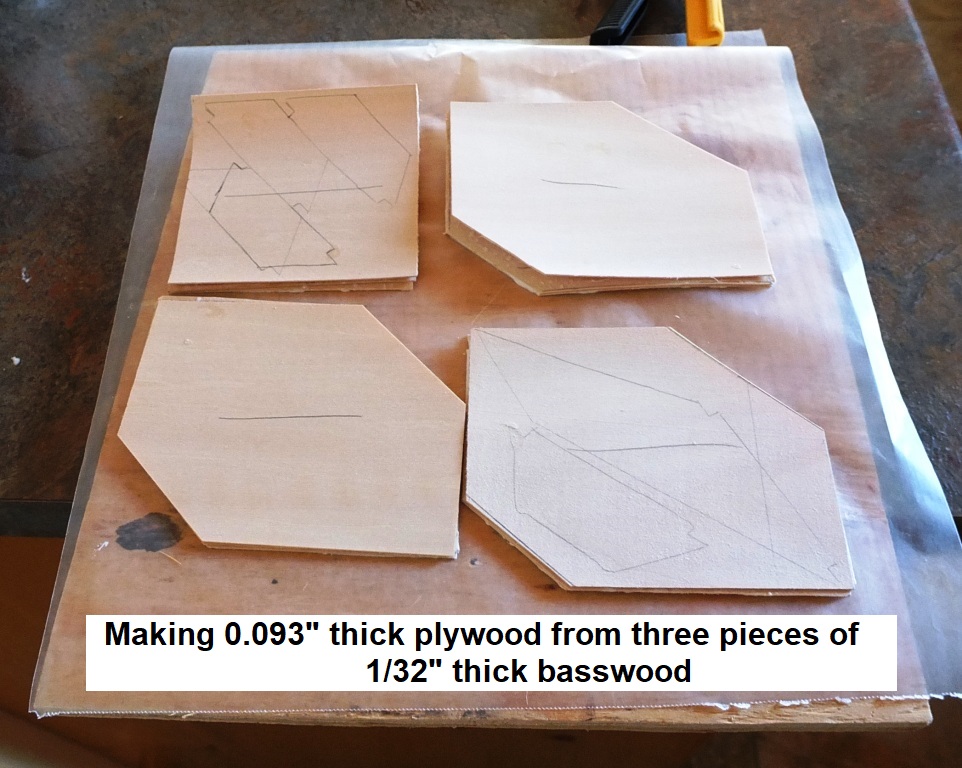

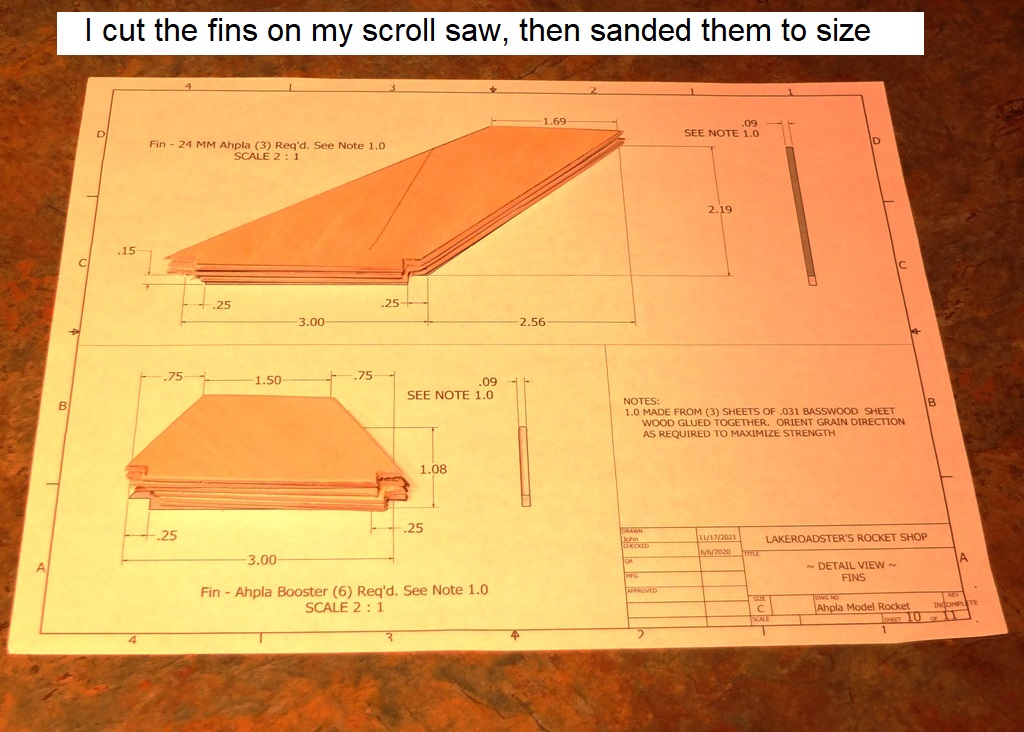

I made the fins from (3) ply's of 1/32" basswood, glued with Gorilla wood glue, and then clamped.

Decals are from Tango Papa.  They were kind enough to upscale the standard Alpha decals just for this project.

Stability was calculated by Open Rocket, and verified via swing tests as a single stage, and with the booster.

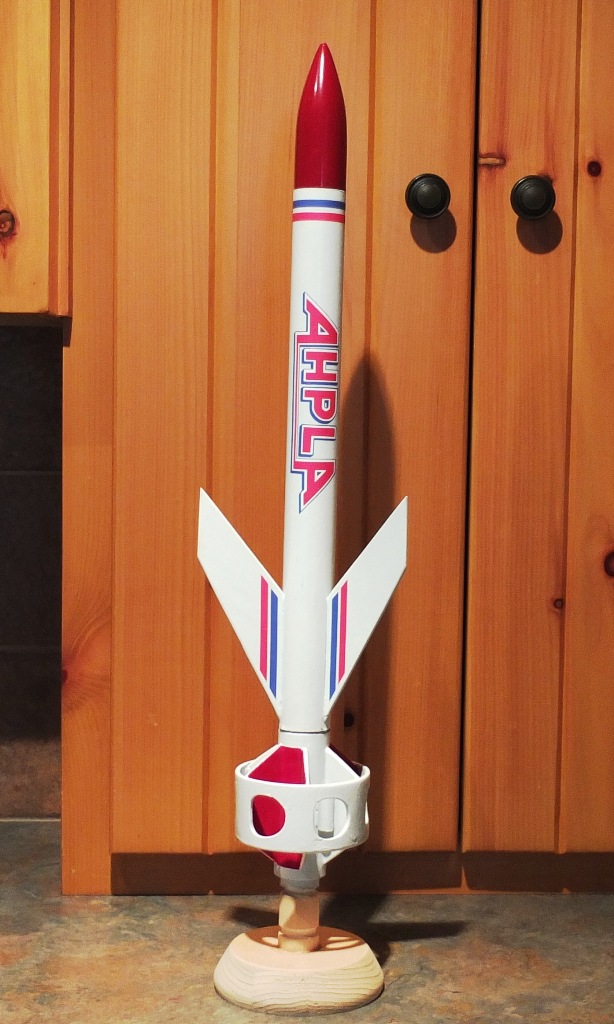

Ahpla: Photo Shoot

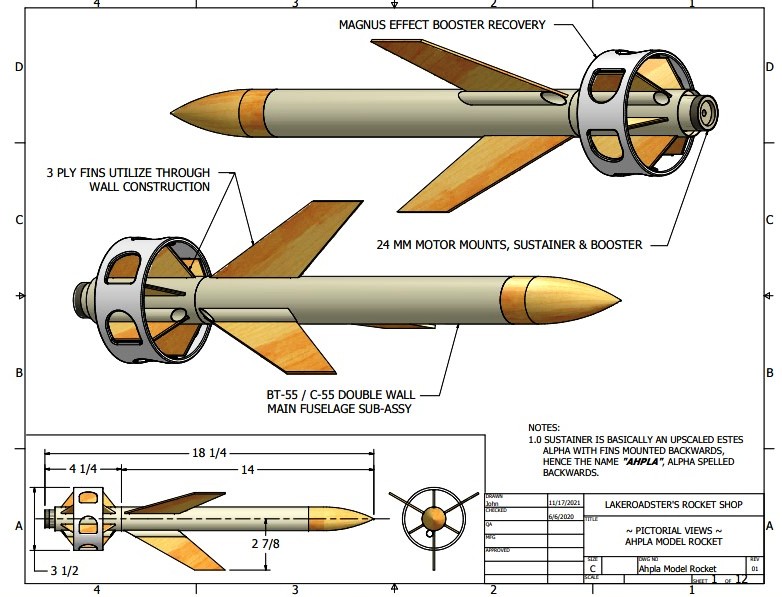

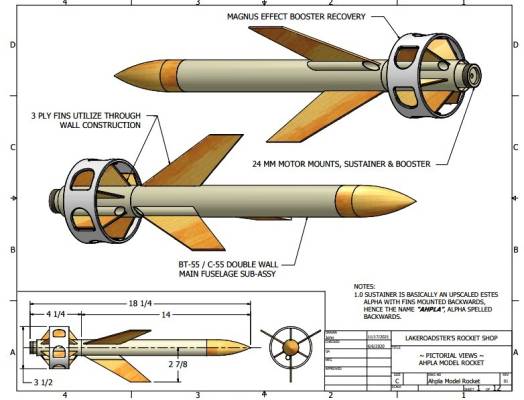

Ahpla Drawing: Pictorial Views

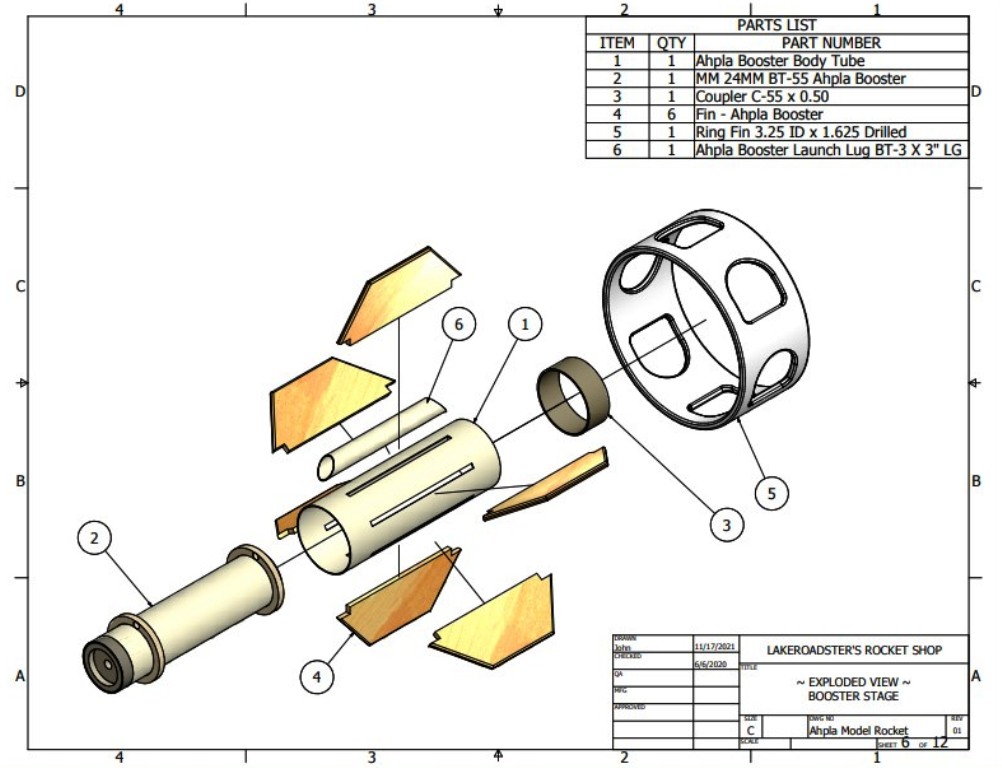

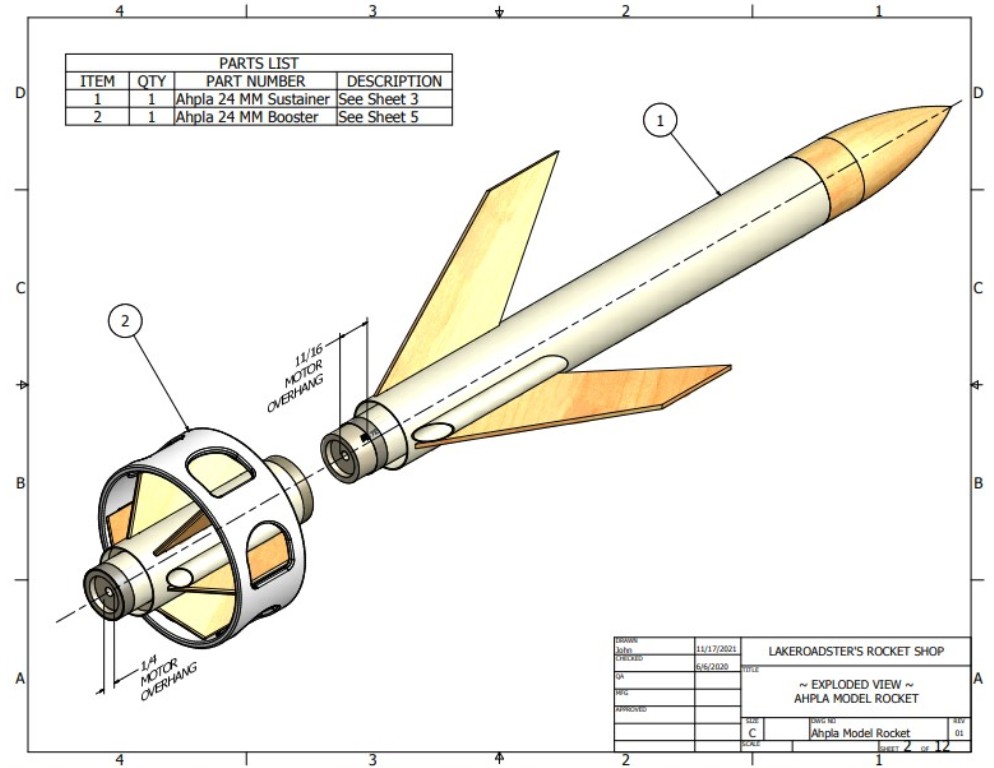

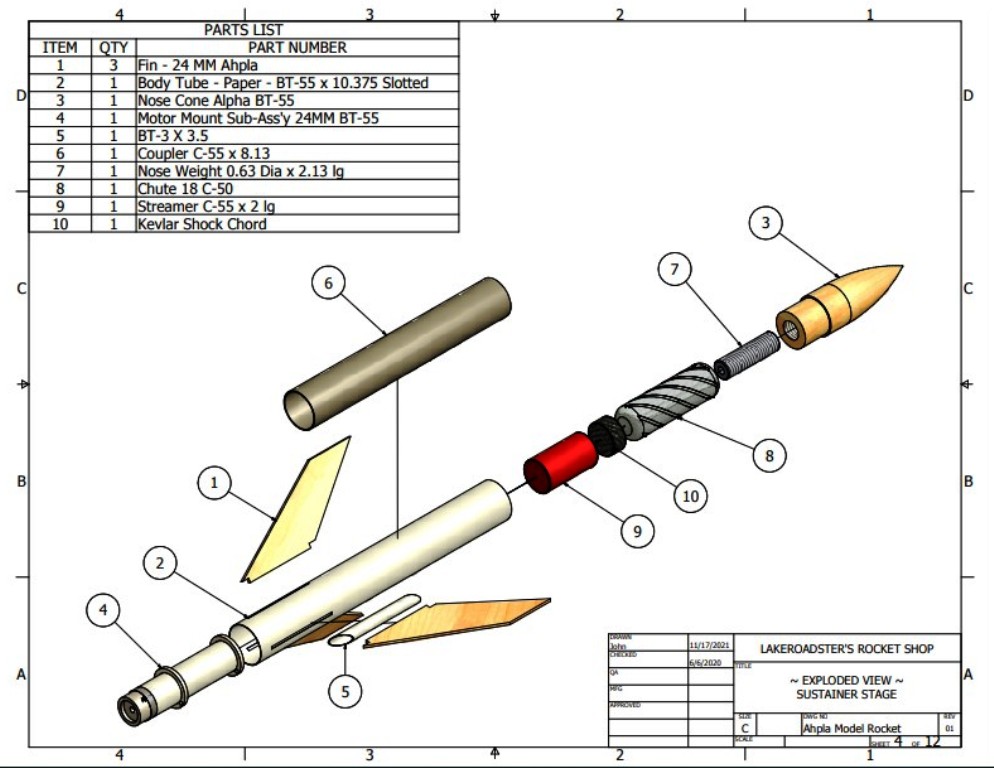

Ahpla Drawing: Exploded Views

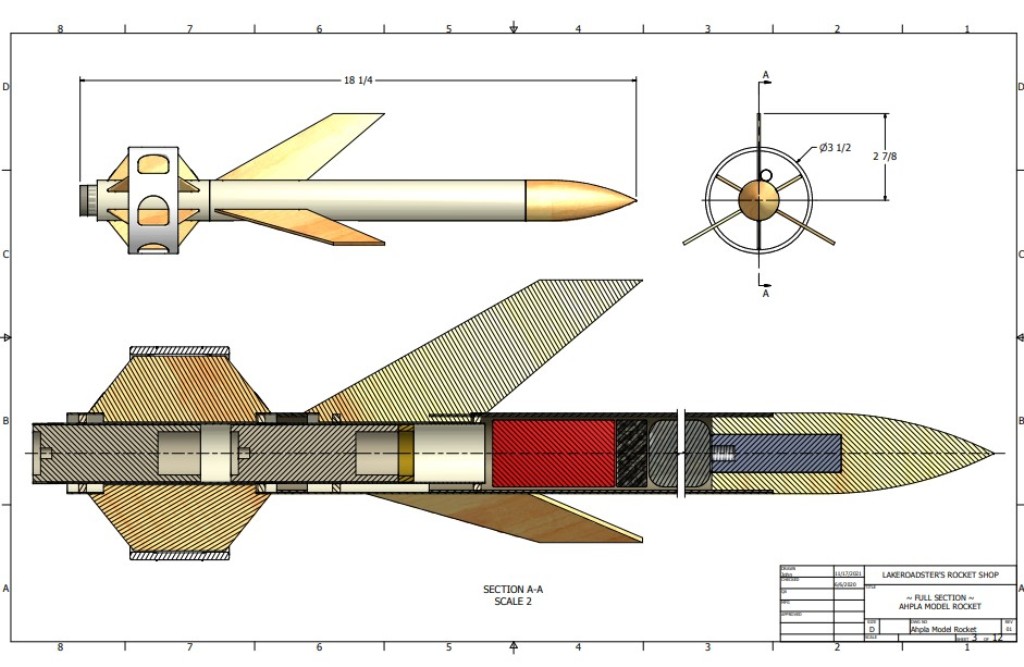

Ahpla Drawing: Sectional View


Ahpla Drawing: 1st Stage Presentation


Ahpla Drawing: 2nd Stage Presentation

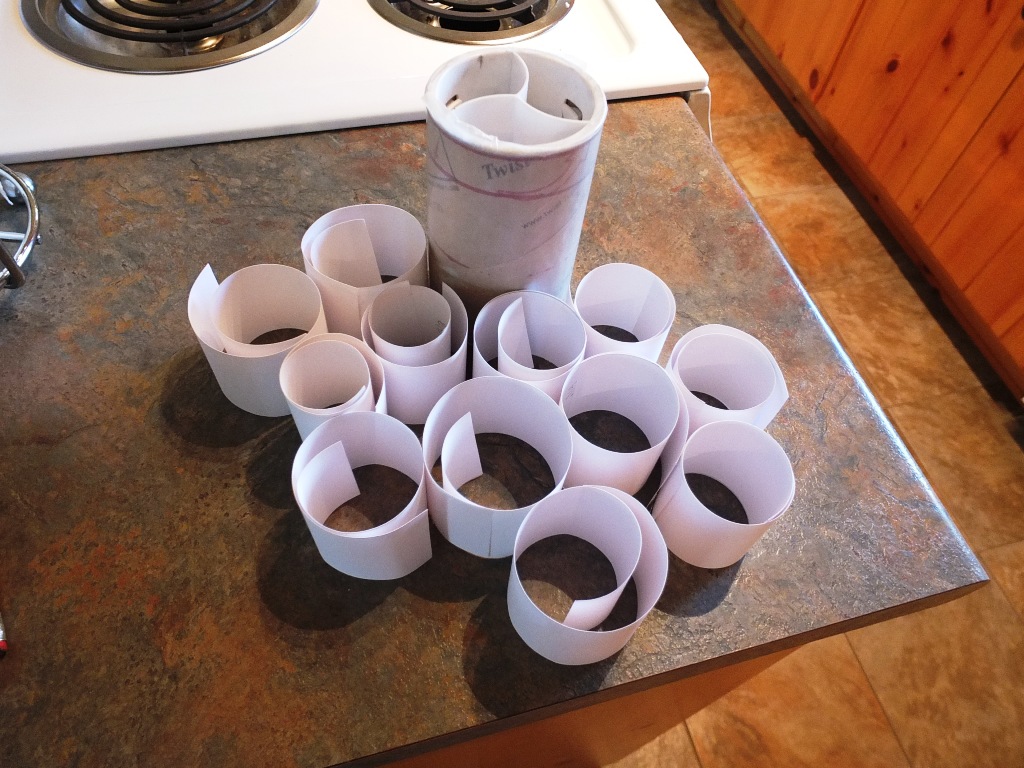

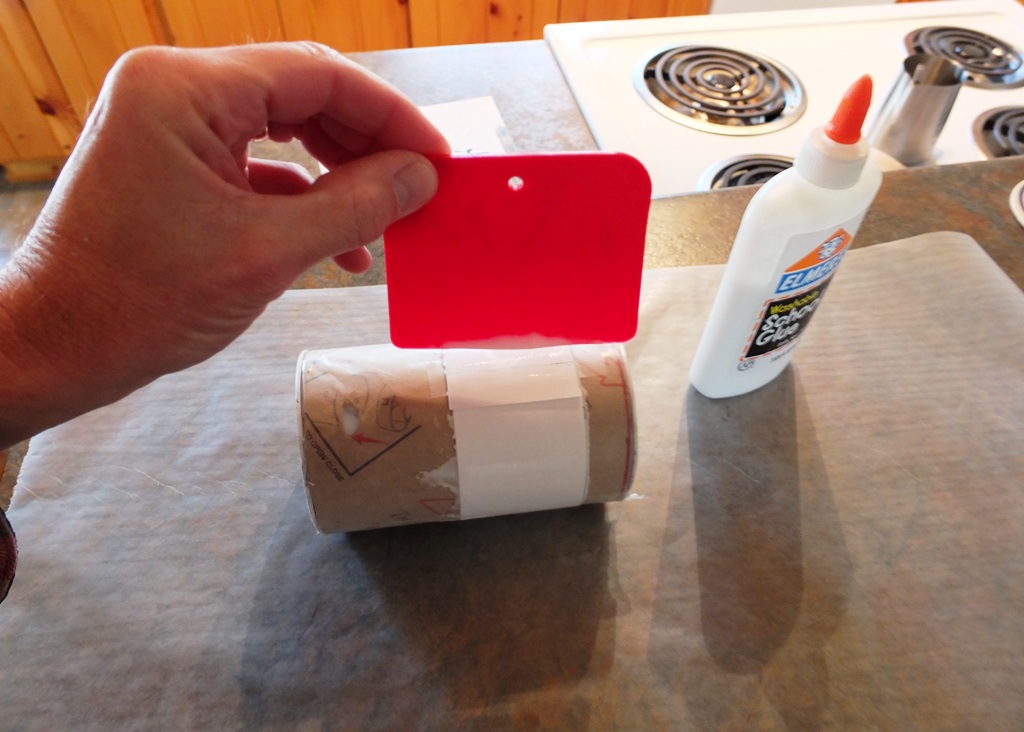

Ahpla Ring Fin: Paper Forming

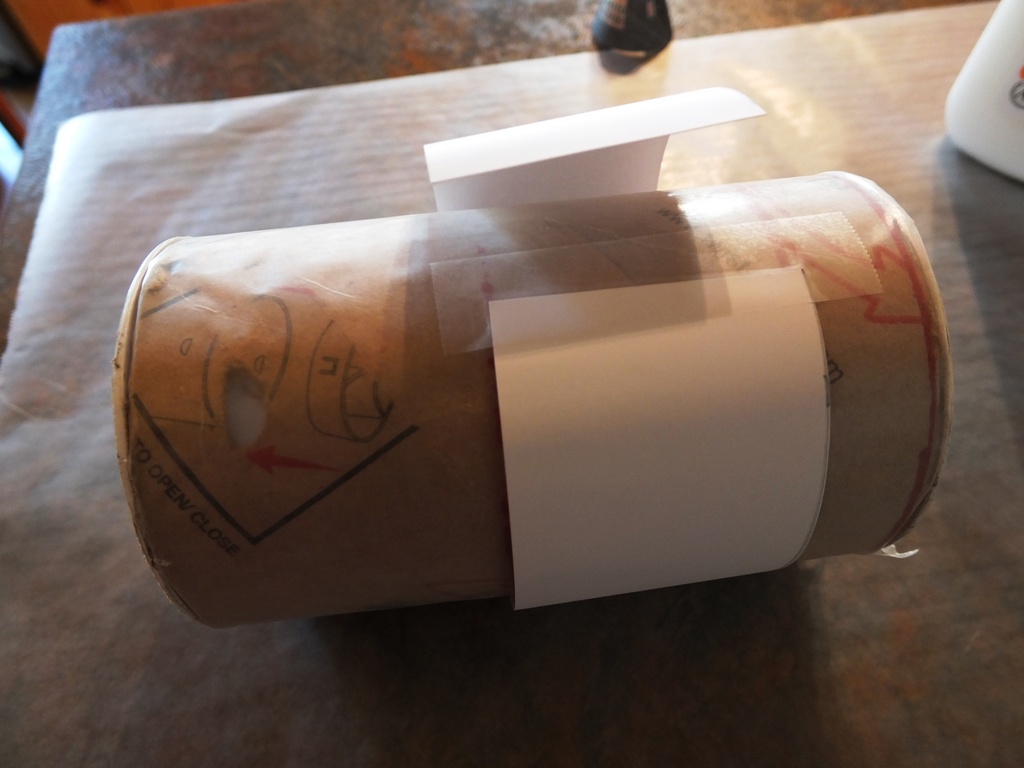

Ahpla Ring Fin: Paper on Form

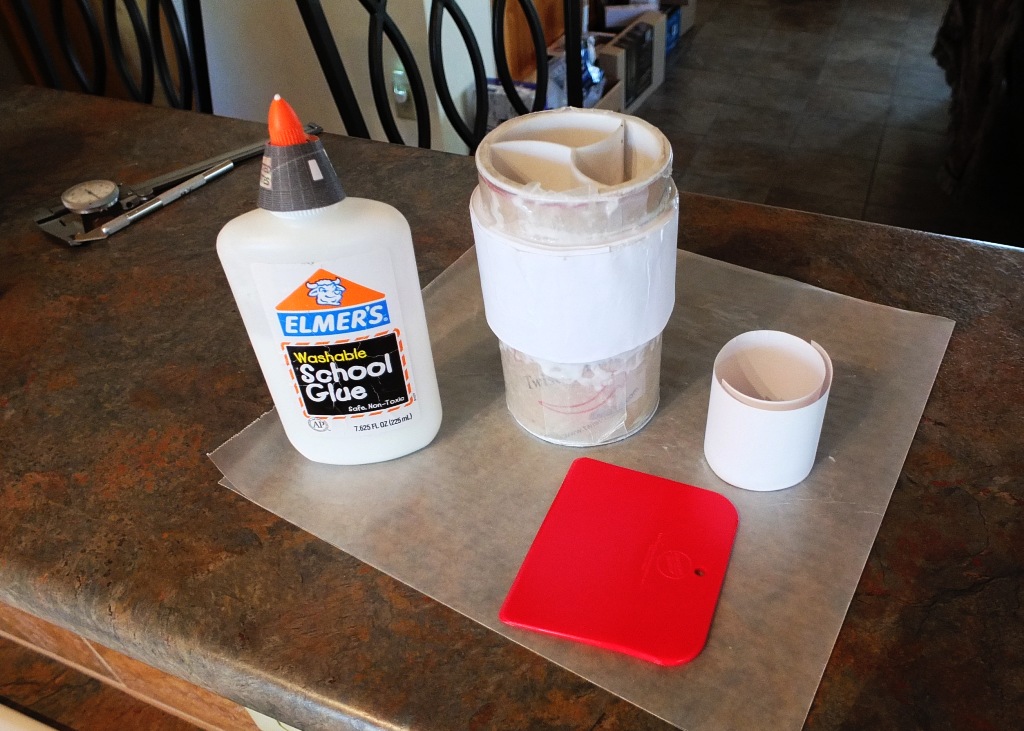

Ahpla Ring Fin: Glue Application on Form


Ahpla Ring Fin: 12 Layers of Paper on Form

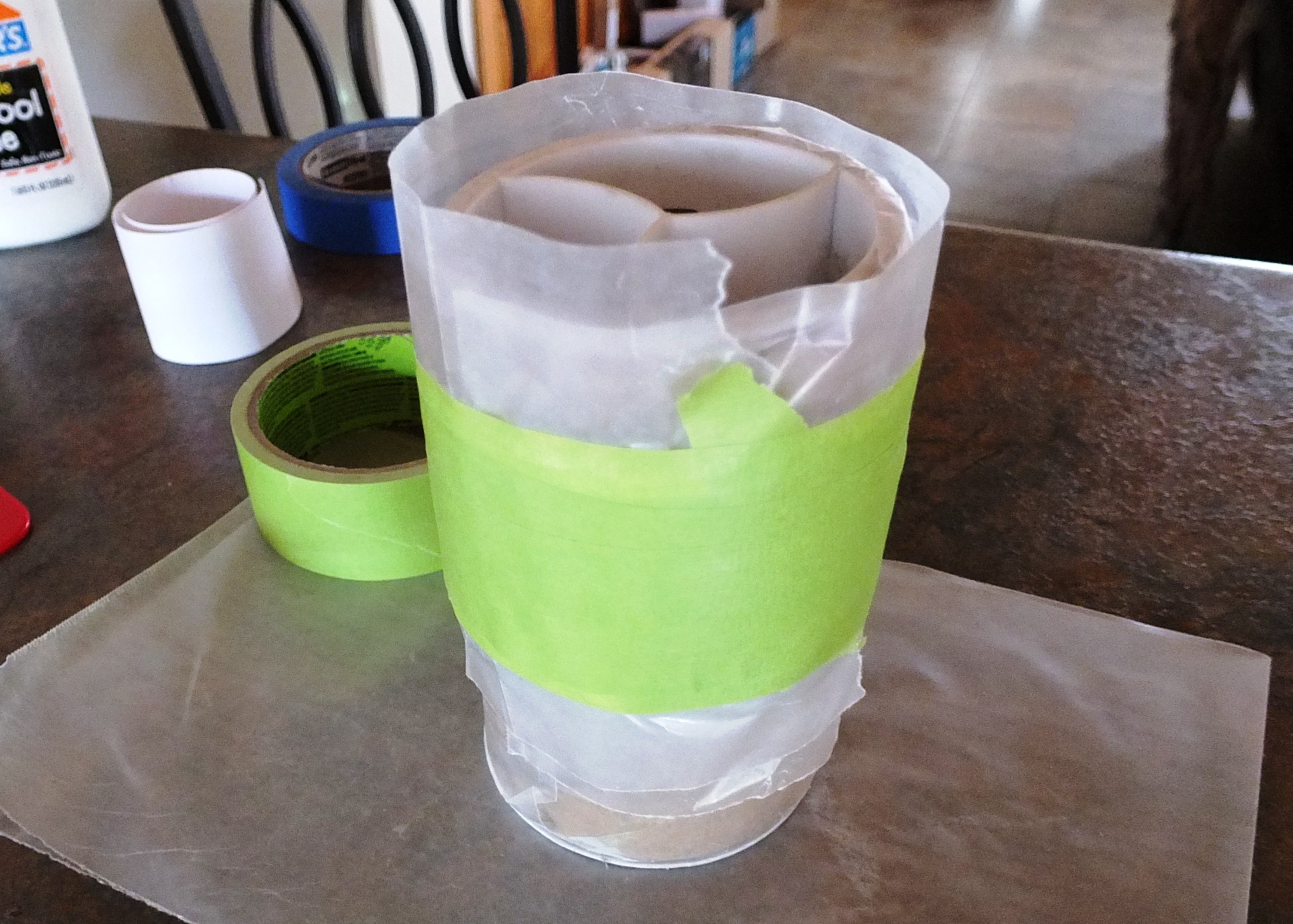

Ahpla Ring Fin: Wax Paper

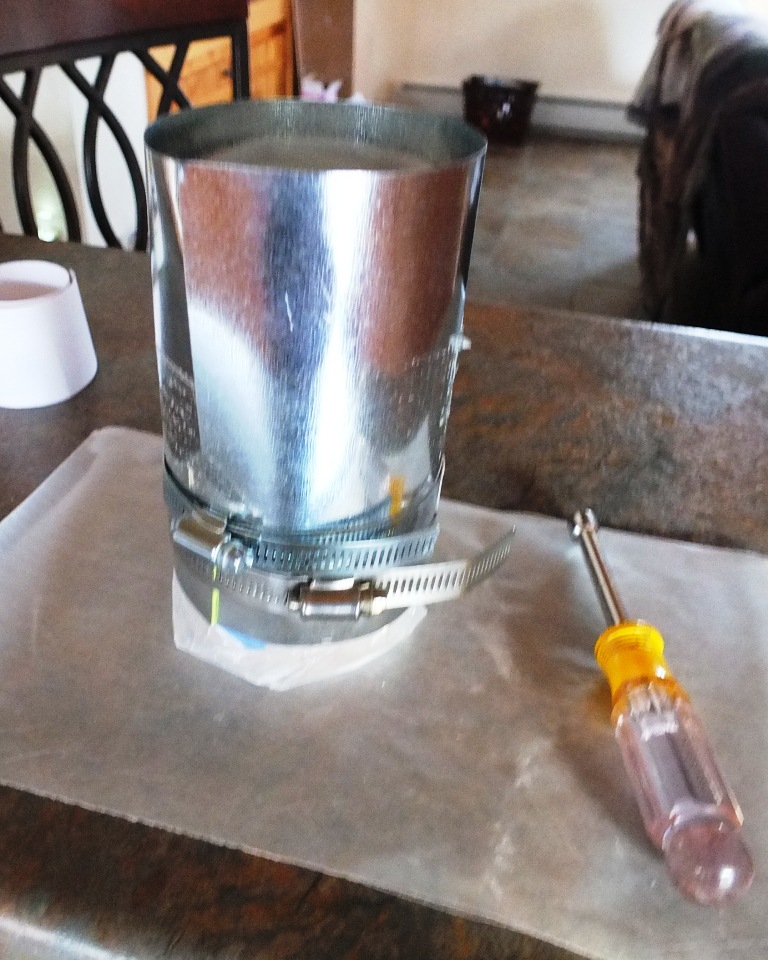

Ahpla Ring Fin: Sheet Metal Clamping

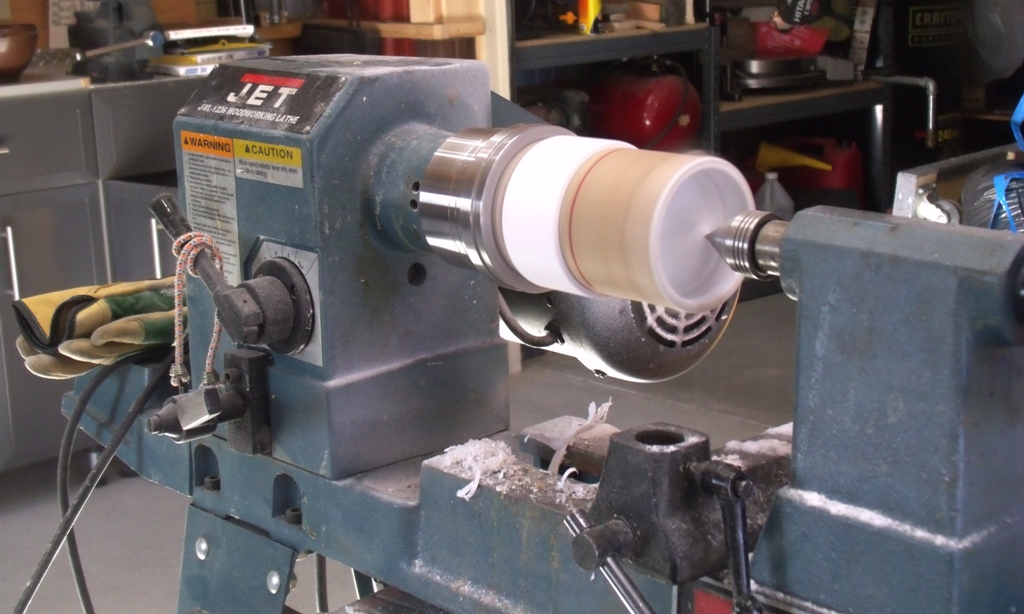

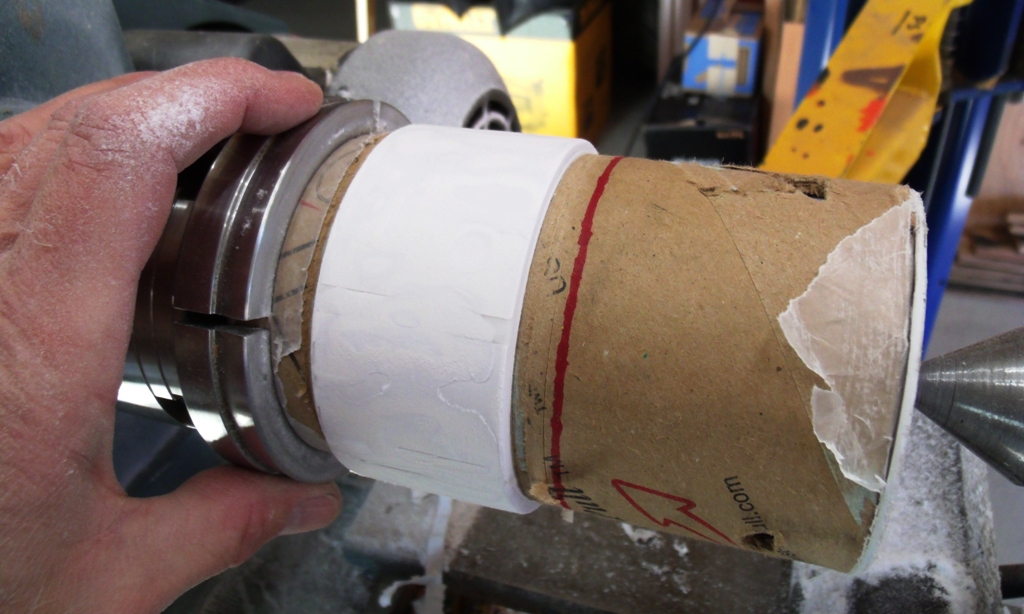

Ahpla Ring Fin: Sanding & Cutting to Length on Lathe


Ahpla Ring Fin: Sanded & Cut to Length

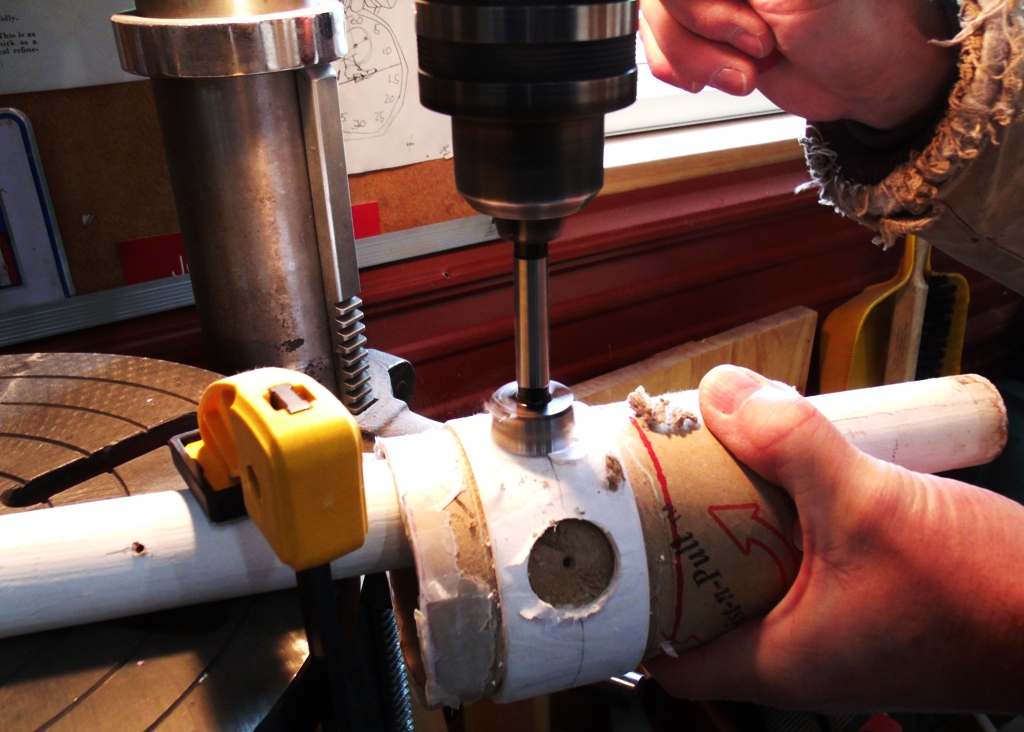

Ahpla Ring Fin: Drilling Holes

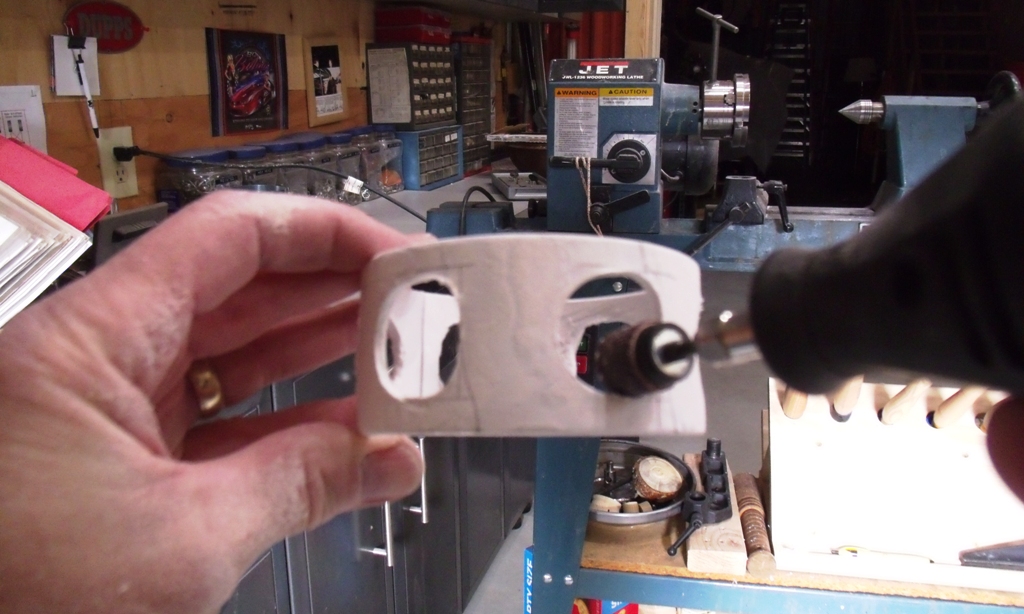

Ahpla Ring Fin: Dremel Sanding D-Shape

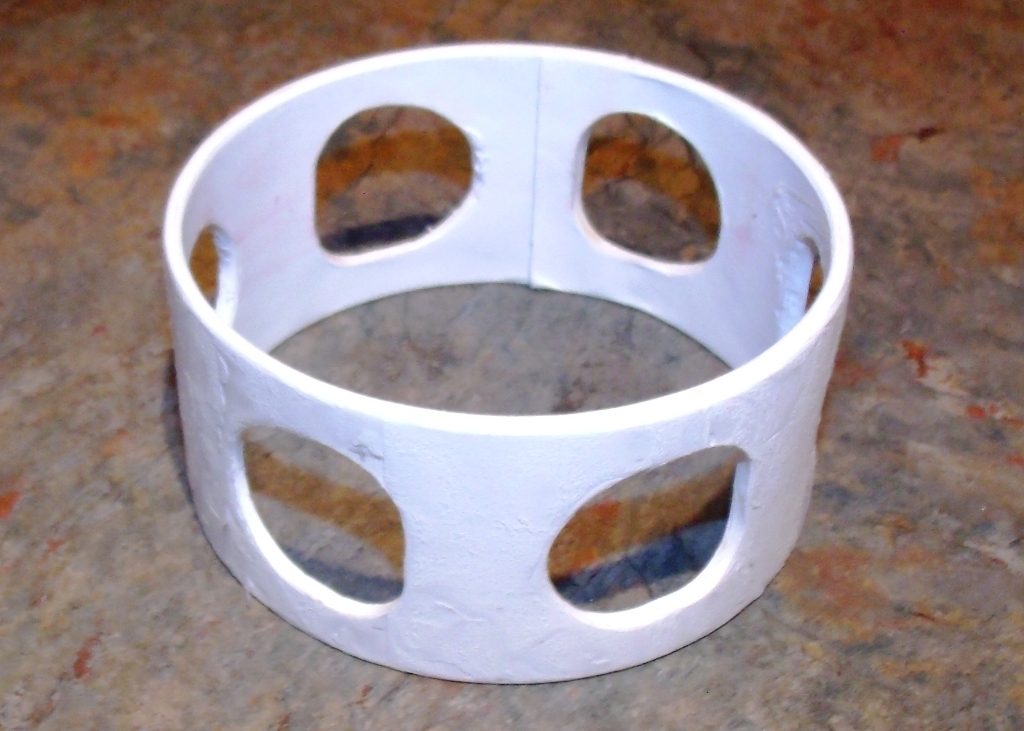

Ahpla Ring Fin: Ring Complete

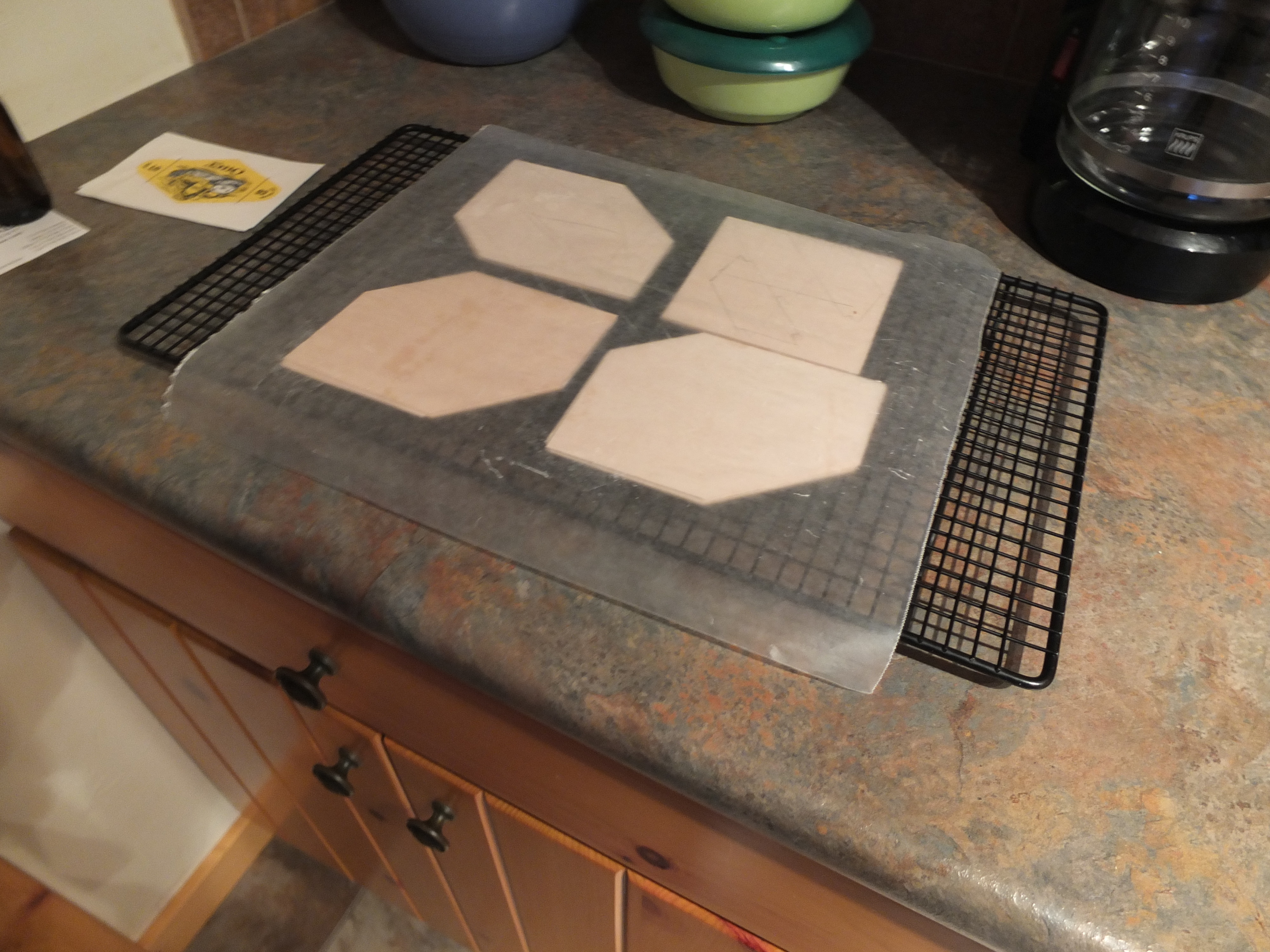

Ahpla: Basswood Plywood 001


Ahpla: Basswood Plywood 002

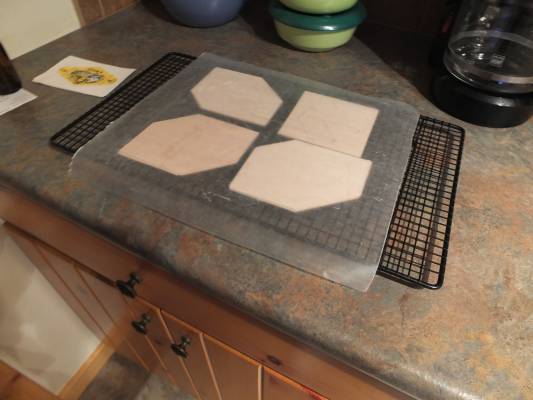

Ahpla: Basswood Plywood 003


Ahpla: Finished Fins


Ahpla: Nose Cone

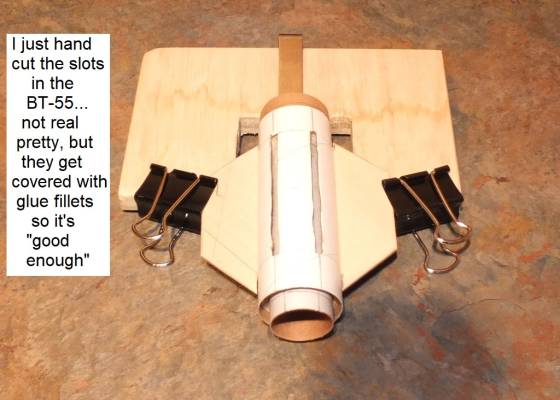

Ahpla Booster: TTW Construction


Ahpla Sustainer: TTW Construction

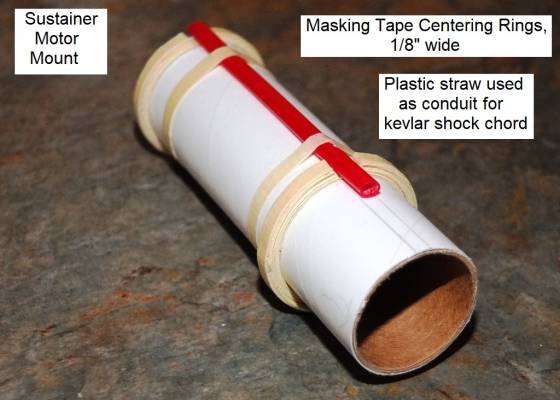

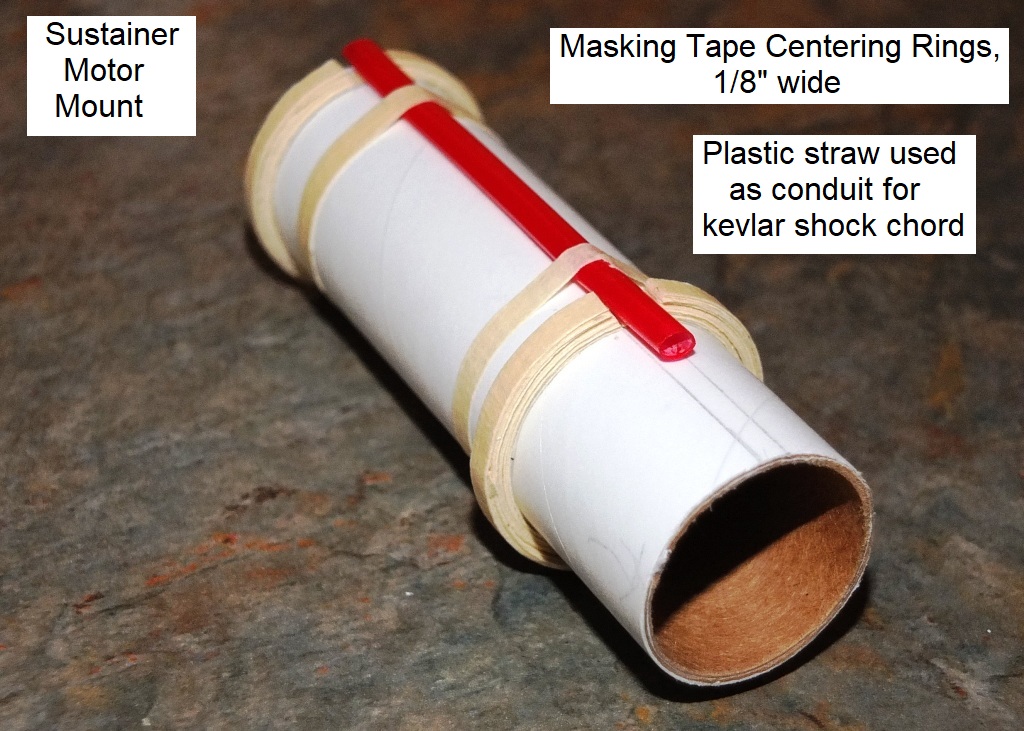

Ahpla Sustainer: Masking Tape Centering Rings

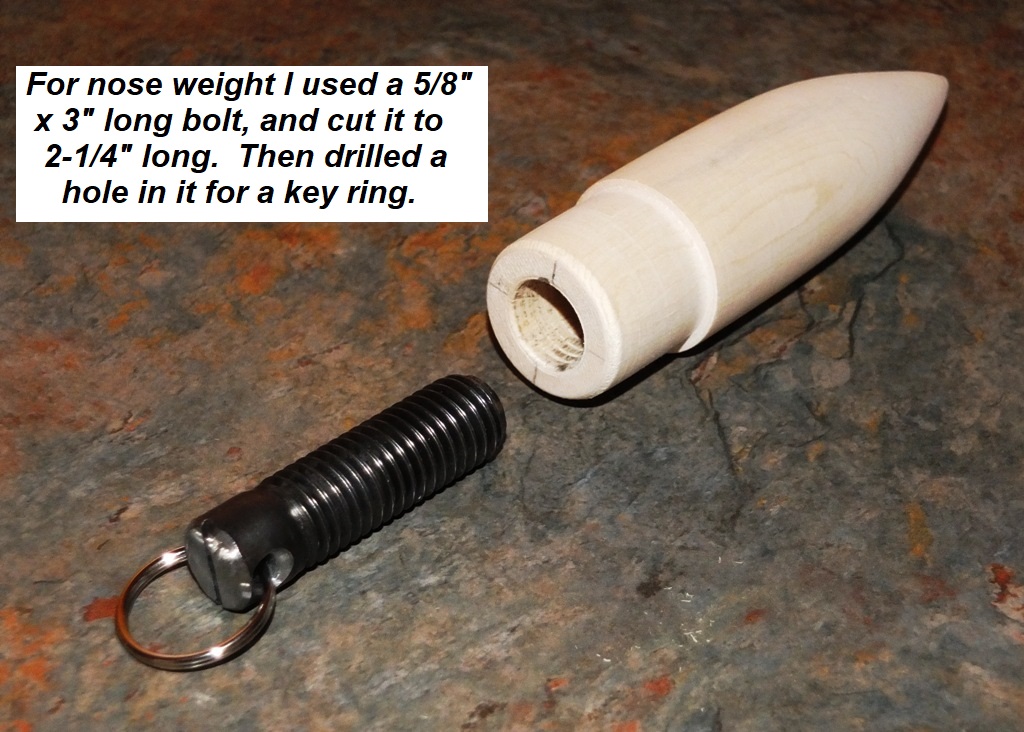

Ahpla Sustainer: Nose Cone Ballast Overview

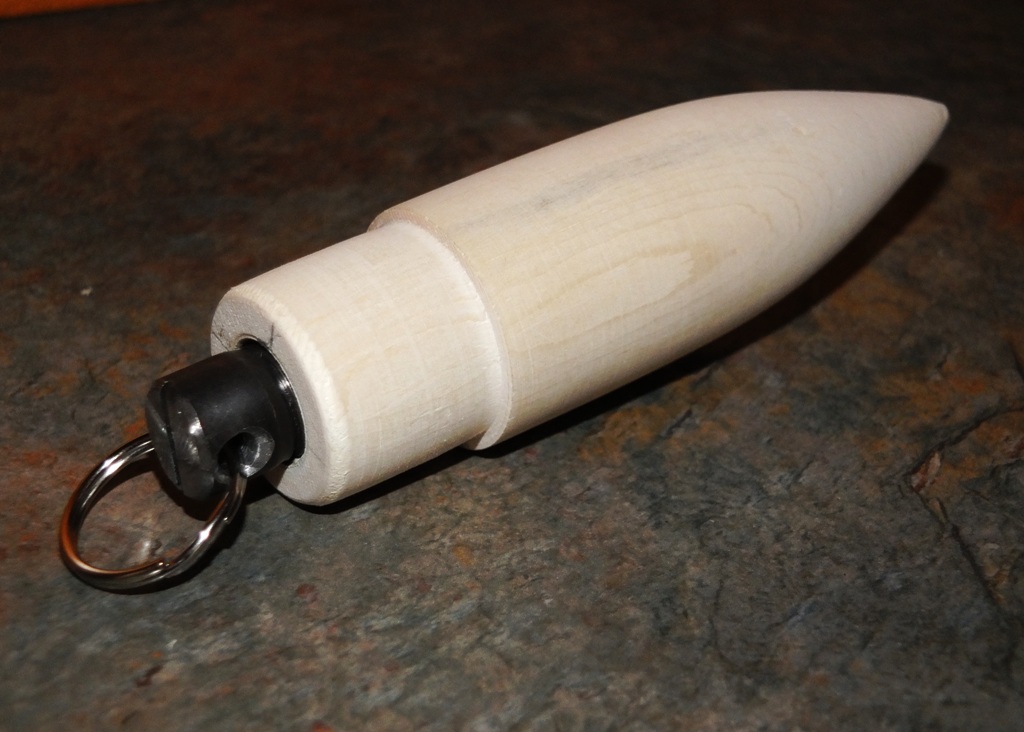

Ahpla Booster: Nose Cone Ballast Complete

Flights
