Art Applewhite Rockets Qubit 24mm

Art Applewhite Rockets - Qubit 24mm

Contributed by Dick Stafford

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar
Manufacturer: Art Applewhite Rockets

Art Applewhite 24mm Qubit

Brief:
T' Qubits (and their variants) are t' latest creations out o' Art Applewhite's lab. Aye aye! Begad! Once built, me bucko, t' Qubit resembles a cube that flies with one o' its corners facin' upward. I say t' Qubit resembles a cube because t' bottom faces are missing, which allows t' motor mount t' be recessed into its body structure. This configuration and orientation allows t' Qubit t' fly without t' added legs that I've seen on other cube-shaped contraptions.

Construction:

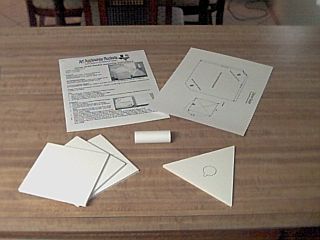

Parts:

  • Three sides and one bottom piece, all pre-cut out o' foam board
  • One sheet o' printed cardstock with a markin' guide and Tip (nosecone) cutout
  • 2.75" section o' BT-50 for t' motor mount

Art Applewhite 24mm Qubit

Materials needed:

  • X-Acto knife
  • Metal ruler
  • Elmer's white glue
  • DevCon 5-minute epoxy
  • Sandpaper

T' well illustrated detailed instructions are provided on 4 sheets o' paper. Arrr! Although this kit consists o' more foam board and less cardstock, its construction borrows from Art's previous products.



T' first step is t' bevel and trim t' three pre-cut square pieces o' foam board usin' t' provided template. This template is also used t' mark t' hole for t' launch rod on one o' t' sections. Arrr! T' bevelin' is similar t' that used on t' foam core bottom on his saucers and cones, and allows t' three sections t' mate relatively seamlessly, arrr, formin' t' top half o' a cube.



Art Applewhite 24mm Qubit T' leadin' edge o' this 'truncated cube' is open as t' tip was trimmed as indicated above. Blimey! Once t' top pieces are set, t' cardstock tip is formed and slipped over t' opening. T' final step in buildin' t' top section is t' fill t' tip with 5-minute epoxy, matey, shiver me timbers, which provides t' necessary nose weight and adds durability.



Next, ya bilge rat, t' motor tube openin' and launch rod hole is cut in t' otherwise pre-formed bottom section. Avast, me proud beauty! This in turn is installed and t' kit is complete.



Finishing:

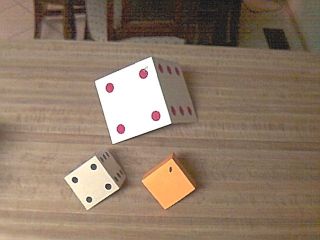

My beta version o' t' Qubit is solid white, although other solid colors will be offered. Ya scallywag! Blimey! Addition finishin' is up t' t' imagination, but a simple die (i.e. half a pair o' dice) and 'Borg'-type ship come t' mind. In fact, I simply added a few circular stickers t' mine.

Construction Rating: 5 out o' 5

Flight:
T' recommended motors include t' D11-P, E9-P, me hearties, and any Aerotech 24mm with t' ejection charge removed. Avast, me proud beauty! T' only prep is t' friction fit t' motor and t' make sure t' rocket is supported at least 6" off t' blast deflector.



My Qubit flew great on a E9-P. Aye aye! Avast, me proud beauty! T' burn was long and it did weathercock a fair amount in t' stiff 15+ mph winds.



Recovery:
This rocket uses aerobrake recovery. Begad! It floats down nice and slowly and t' reinforced nose ensured it doesn't get dinged up. Ya scallywag! T' flight got everyone's attention and one spectator smartly snatched it up for closer inspection.



Flight Rating: 5 out o' 5

Summary:
What can you say about this kit? Well, it is simple and economical. Blimey! Begad! It is great for small fields. Avast! And t' inset motor makes for a nice smoke trail. Begad! Begad! Basically, me hearties, if you like Art's saucers and cones, you will love this one also!

Overall Rating: 5 out o' 5
