Art Applewhite Rockets Delta Flying Saucer 18mm (6")

Art Applewhite Rockets - Delta Flying Saucer 18mm (6") {Kit}

Contributed by Nick Esselman

Published: 2010-11-13
Manufacturer: Art Applewhite Rockets

[Picture](07/01/03) I finally got around to purchasin' a couple o' Art Applewhite's Flyin' Saucers. Been meanin' to, just never got around t' it. Ya scallywag! Blimey! When I did, ya bilge rat, matey, me hearties, I be glad he accepted PayPal. Arrr! Blimey! Begad! Blimey! Made it very easy. Arrr! Blimey! Ahoy! Blimey! I purchased t' Gold 6" 18mm Delta Flyin' Saucer and t' Gold 4" 13mm Delta Flyin' Saucers.

I'm writin' t' review for t' 18mm version because thar isn't currently a review on EMRR. Avast, me proud beauty! Blimey! Blimey! Blimey! But I have t' admit t' same thin' Dick Stafford did, these kits all build just about t' same! Blimey! There was virtually no difference betwixt me build experience on t' 13mm version verses the 18mm version. In addition, thar are very few parts, four t' be exact: 1) Top Cardstock, matey, 2) Bottom Cardstock, 3) 18mm motor mount, arrr, and 4) Foam Center.

Rocket PicCONSTRUCTION:

T' instructions are printed on 3 pages of 8½ x 11" paper. Blimey! They include black and white photos t' assist in the buildin' process. Begad! T' tools and supplies that are needed are outlined: Scissors, matey, #11 Exacto® Knife, me hearties, Elmer's Glue-All® and 150 girt sandpaper. That's it and you're ready t' go.

Assembly is simple. Begad! Blimey! Ahoy! Blimey! Cut out t' Top and Bottom from t' cardstock. Begad! Blimey! Cut out t' Top and Bottom Seam pieces from t' card stock. Well, blow me down! Blimey! Glue t' Seam (tab) onto one side o' t' Top. Ahoy! Blimey! Let dry. Begad! Blimey! Glue t' other side o' t' Top onto t' exposed Seam (tab), me bucko, ya bilge rat, thereby formin' your Top Cone. Repeat for t' Bottom Cone.

Usin' your hobby knife, me bucko, cut out t' Center from t' provided 1/4" foam board. Cut out t' center o' t' Center (which is t' motor mount hole). Avast! Ya scallywag! Now you are ready for t' most difficult part of construction; cuttin' t' 30 degree bevel on t' outside edge o' t' Center. Avast, me proud beauty! Avast! Be sure t' use a new blade and take your time. Doin' those two things makes this a lot easier than it sounds.

Once t' Center is prepared then final assembly is relatively simple. Ya scallywag! Ya scallywag! You glue t' Center t' t' Top. You then glue in the motor mount. Blimey! Avast, matey, me proud beauty! Lastly, you glue t' Bottom t' t' motor mount and Center. Apply some fillets on all t' seams and ta-da... Well, blow me down! Begad! you're done.

Overall, arrr, for CONSTRUCTION I would rate this kit 5 points. Ahoy! Nay sure how it could be any easier!

Rocket PicRocket PciFLIGHT/RECOVERY:

Art Applewhite recommends a C6-0, B6-0 or a RMS 18/20 Reload. Avast, me proud beauty! T' motors are t' be friction fit into t' motor mount with the warnin' that no motor should stick out further than ½" from below the motor mount.

I have flow t' 18mm version 3 times, arrr, all on B6-0's. Aye aye! I was plannin' on usin' this as a demo rocket for me son's kindergarten class, but that never worked out. It would make an excellent demo rocket, me hearties, and it would even make an excellent school project rocket!

All t' flights were t' same, matey, straight up, invert and right back t' us. Ahoy! Altitude? Hmmmm, matey, me hearties, maybe 30 feet. Aye aye! Hard t' say, me bucko, but it would make a good backyard flier.

For FLIGHT/RECOVERY, I would rate this rocket 5 points. I don't see any way t' knock a rocket that has no recovery system t' fail, ya bilge rat, no need for wadding, ya bilge rat, me hearties, no need for motor retention (although that could be t' only thin' t' add), shiver me timbers, and always comes back t' where you are!

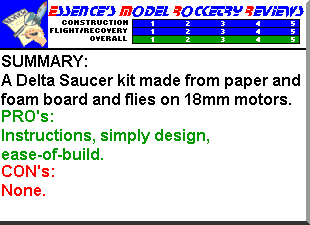

I give t' rocket an OVERALL ratin' o' 5 points. Begad! Yes, me hearties, it is a "perfect" rocket for its price, instructions, assembly and flight characteristics. Go give one a try!

Other Reviews
  • Art Applewhite Rockets Delta Flying Saucer 18mm (6") By Dwayne Surdu-Miller

    ( Contributed - by Dwayne Surdu-Miller - 07/24/06) Brief: I was fortunate enough to win this kit as a prize for entering my Barbsari B-Prize design into Descon 15. I asked for and received the Spaceship Earth version. I was amazed at how quickly the shipment arrived after I'd specified what version I'd like. Mondo kudos to Art Applewhite for fantastic service. Construction: The ...

Comments:

avatar
B.B. (July 12, 2003)
I agree with this review: they are indeed quite simple. I got several, including the 6in, 18mm gold saucer. The gold cardstock is very cool. 1.If you get white glue on it, don't panic: simply scrape the glue off with your fingernail. 2. It is quite reflective and resembles a "real" flying saucer. 3. Read what Mr. Stafford said about the gold cardstock. These flying saucer kits are just that: kits. They are, however, well thought out. Mr. Applewhite did a good job on the foam board, which has a circular line drawn just inside the outer edge to make cutting the bevel a lot easier. The foam board also makes the saucer a lot more sturdy. One thing about the launch lug holes: the ones on the shrouds fit a 3/16in rod, but the one in the foam board fits the 1/8 rod. Solution: cut the launch lug hole in the center bigger.
