Tomahawk Kit #1944 Rocksim Design File

Contributed by Wilhelm Carpenter

• Manufacturer: Estes

Comments: Enjoy!!

Designer: Estes Industries

Download estes_tomahawkkit1944.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

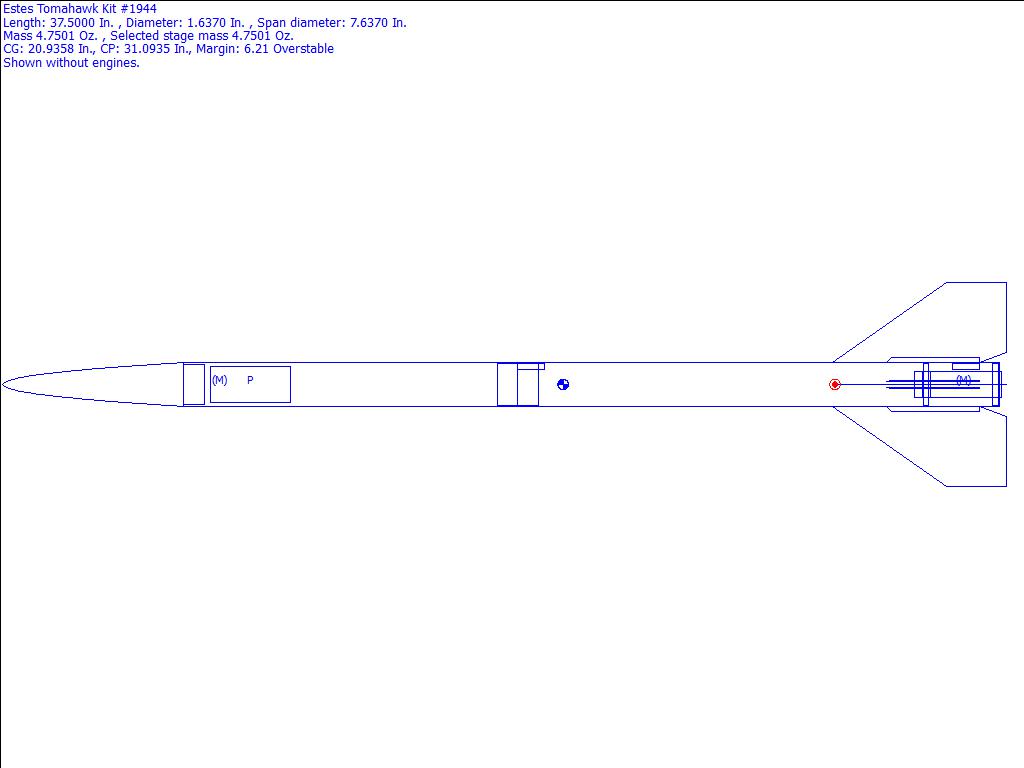

Kit Name: Estes - Tomahawk {Kit}

CG: 20.9358 inches from front
CP: 31.0935 inches from front
Margin: 6.21 Overstable

Parts Breakdown

• Anubis Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.50 in]
• Custom Polyethylene LDPE Parachute (18.00 in)
• BalsaMachining.com C60-4 Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• BalsaMachining.com LL316-200 Launch Lug
• Estes Tomahawk Kit #1944 Freefor Freeform Fin Set
• Estes Tomahawk Kit #1944 Freefor Freeform Fin Set
• Estes Tomahawk Kit #1944 Freefor Freeform Fin Set
• BalsaMachining.com LL316-200 Launch Lug
• Estes 30162-2 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.25 in]
• Estes Eng. Hook Sleeve Ring
• Custom Mass Object
• Estes 30162-2 Ring
