Designs >> Rocksim Library >>	All Rocksim Designs (1062 of 3219)Tag - Manufacturer:Cosmodrome RocketryTag - Scale:Black Brant:Black Brant II

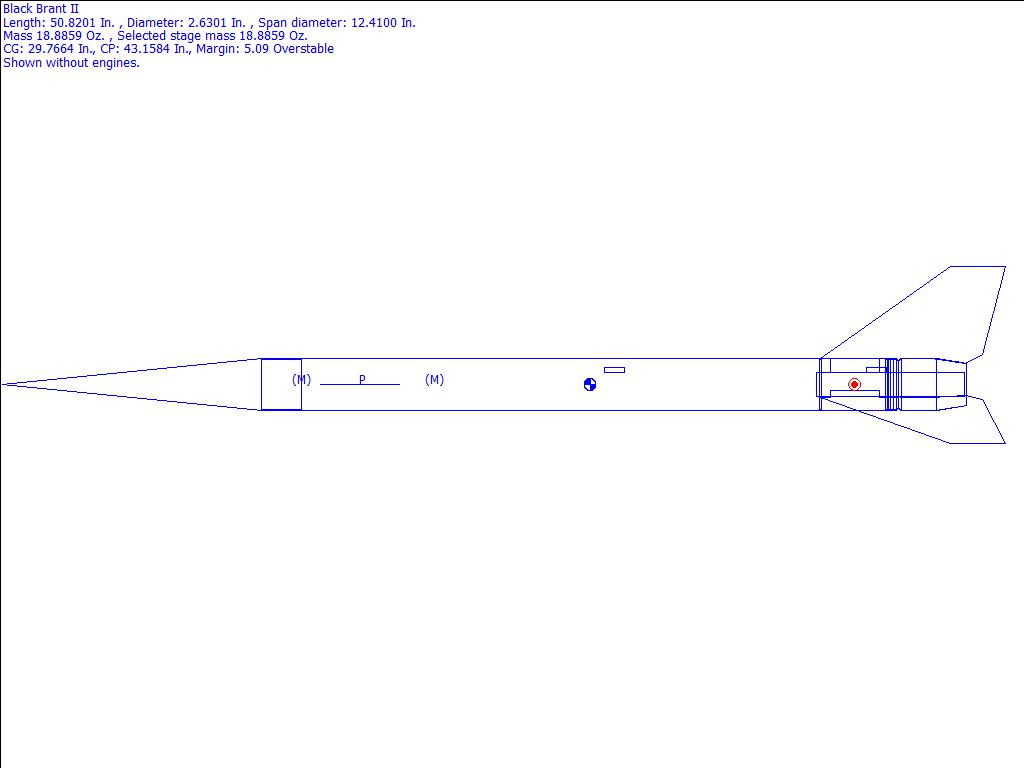

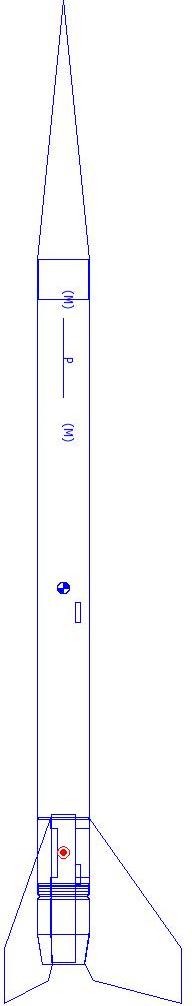

Black Brant II Rocksim Design File

Contributed by Tim VanMilligan

• Manufacturer: Cosmodrome Rocketry
• Scale: Black Brant : Black Brant II

Designer: Mike Kruger

Download cosmodrome_black_brant_ii.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Cosmodrome Rocketry - Black Brant II {Kit}

CG: 29.7664 inches from front
CP: 43.1584 inches from front
Margin: 5.09 Overstable

Parts Breakdown

• BBII.rkt Conical Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 32.00 in]
• BBII.rkt Freeform Fin Set Freeform Fin Set
• Public Missiles Rip stop nylon Parachute (24.00 in)
• LOC LOC LL25 Launch Lug
• LOC LOC LL25 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.50 in]
• LOC Precision LOC CR-2.56-1.14 Ring
• LOC Precision LOC CR-2.56-1.14 Ring
• LOC Precision SC-375 3/8 In Elastic shock cord Mass Object
• Custom Conical Transition
• Custom Conical Transition
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.80 in]
• Custom Conical Transition
