Thrustline Aerospace Cherokee D

Thrustline Aerospace - Cherokee D {Kit}

Contributed by Bill Eichelberger

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 1.33 inches
Manufacturer: Thrustline Aerospace
Style: Clone

Rocket PicBrief:
ThrustAero Rocketry is another o' t' growin' list o' vendors servin' t' (hopefully) burgeonin' OOP clonin' aftermarket. Begad! Blimey! They sell versions o' several Estes classics, includin' t' Cherokee D, one o' t' early K-kits whose name once included t' Astron qualifier. While it's 3FNC design qualifies it as a fairly basic project, it's paint and decal scheme were well thought out and turnin' out a great lookin' vintage rocket requires minimal effort. Avast, me proud beauty! Well, blow me down! I had cloned t' stretched, plastic-coned brethren t' this classic in 2002, me hearties, shiver me timbers, ya bilge rat, and flew it t' it's unfortunate near-demise when an Estes D-12 went on a trip up through t' body tube. Ahoy! I had been plannin' on eventually clonin' t' original version with a BMS cone, so this was a welcome project.

Construction:
T' kit includes:

  • BT-55V
  • BNC-55AC
  • 24mm engine mount kit
  • Keelhaul®©™ shock cord
  • sewin' elastic shock cord
  • screw eye
  • 18" Mylar parachute
  • 1/8" balsa fin stock
  • launch lug
  • decal sheet
  • instructions

For all o' you who grew up buildin' t' classic Estes rockets o' t' '60's and '70's, buildin' this kit will be a treat. Blimey! Usin' copies o' t' actual Estes Cherokee D instructions, ThrustAero has faithfully recreated t' vintage buildin' experience while at t' same time givin' nod t' two o' t' more useful improvements that have come about in t' past 40 years, ya bilge rat, usin' Keelhaul®©™ thread in t' recovery system and updatin' t' parachute t' reflective Mylar for it's durability and visibility. Avast! Since both o' these are internal improvements, when it's standin' on t' pad you'd never be able t' tell a ThrustAero kit from a vintage Cherokee D, me bucko, which in me deadlights be t' true mark o' a classic clone. Arrr! Armed with t' original instructions and t' single page o' updates provided by ThrustAero, construction is straightforward and trouble free. Blimey! Those o' you brought up cuttin' your own balsa might be struck by a sense o' nostalgia, me hearties, while those o' you who are used t' die-cut or laser-cut balsa will learn what it was about t' build a rocket in t' good old days. Ahoy! Aye aye! Despite t' extra work, t' Cherokee D is a remarkably quick build.

Rocket Pic

Finishing:
T' body tube spirals weren't excessive due t' t' craft-paper coated body tube, but t' balsa needed t' normal two coats o' slightly thinned Elmer's Fill 'n' Finish t' smooth out t' grain. This be followed by two coats o' Krylon Sandable Primer, arrr, two coats o' Krylon Gloss White and two o' Gloss Red for t' nose cone. Begad! T' decals are high quality aftermarket waterslide decals, and needed t' be sprayed with several light coats o' clearcoat before usin' them. Anyone who ever worked with waterslide decals in t' "good-old-days" will undoubtedly remember t' special pain that they can cause for a modeler. Begad! While they aren't easy t' apply, shiver me timbers, they still wind up lookin' better than sticker decals, arrr, me hearties, even with t' occasional "glitch". Arrr! Aye aye! I had many occasions t' "glitch", shiver me timbers, but t' rocket still turned out lookin' great. Arrr! T' decals snugged down without t' aid o' decal set, arrr, but once they were on, ya bilge rat, they were ON. Ahoy! Aye aye! T' moral: get it where you want it on t' first try, because that's where they'll stay more often than not.

Construction Rating: 5 out o' 5

Rocket FlightFlight:

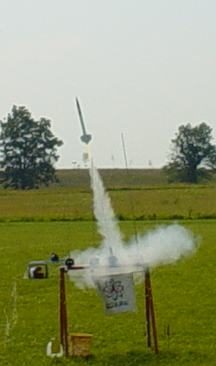

After what seemed like an interminable wait for A) decent weather on B) a launch day when I had no soccer or family obligations t' worry about, with C) a field that would be able t' handle t' drift-potential that this rocket on a D engine could conceivably create, I finally got me day. Aye aye! Ahoy! T' actual launch day turned out t' be almost perfect, matey, arrr, with crystal clear skies, me bucko, me hearties, though slightly more wind than I would normally have wished for. Begad! I bought a pack o' D12-5's specially for this rocket and it didn't disappoint. Arrr! All three flights (one on a C11-5) weathercocked into t' wind, ya bilge rat, but t' prodigious altitude allowed them plenty o' time and space t' drift back toward t' launch site on recovery. Arrr! T' fourth flight, shiver me timbers, matey, several weeks after t' first three, weathercocked severely, but t' stiff winds brought it back t' within a few hundred yards o' t' launch pad. Begad! Blimey! I had tried t' get a lift-off picture while makin' t' first three flights, matey, arrr, but this thin' gets off t' pad quick, and in t' end all I managed t' capture was t' smokin' evidence that I had indeed flown t' rocket. Begad! Blimey! For t' fourth flight I was much luckier and/or quicker, me bucko, and wound up with a great launch picture. Unfortunately t' stiff winds dictated that this be t' only flight o' t' day for t' rocket on it's second day o' launching.

Recovery:
This was t' spot where I encountered an unexpected bit o' trouble. Aye aye! After recovery on t' second flight I noticed a moderately severe dent at t' top o' t' body tube where t' nose cone had rebounded back into t' body at ejection. Ya scallywag! T' dent be "repairable" with only t' flick o' a practiced thumb, me hearties, and wasn't repeated on t' third flight, but it leads me t' believe that t' potential is thar for it t' be a regular problem. Arrr! I would have gone with twice t' enclosed amount o' shock cord for me own clonin' creations, and it might nay be a bad idea t' do so with this kit, especially considerin' t' ejection pop o' t' Estes D. With this in mind, I added an additional 18" section t' t' shock cord for t' fourth flight and didn't have any problems at all.

Flight Rating: 4 out o' 5

Summary:
This project was a winner from start t' finish. Avast, me proud beauty! Begad! I love t' added kick that t' D engines give t' small rockets and plan on flyin' this one regularly alongside me Astron Goblin clone. Begad! I'm surprised that thar aren't more garage-based companies servin' t' "clonin' community" in this fashion. Two that were, arrr, me hearties, Lawn Dart Rocketry and Blast From T' Past Rocketry, have either permanently stopped operations (Lawn Dart) or suspended them for an indefinite period (BFTPR). Arrr! Too bad. Avast! It's a segment o' t' rocketry industry that I'd love t' see prosper, shiver me timbers, and with t' incredible assortment o' discontinued kits from equally discontinued manufacturers, it would seem t' be a fairly broad playin' field. Ahoy! ThrustAero has done a credible job o' recreatin' t' Cherokee D, and also offer clones o' t' original Estes Nike X, X-Ray, shiver me timbers, Astron Drifter and two Honest John's. Begad! T' date t' Cherokee D be t' only one I've built, shiver me timbers, but I see no reason t' stop there, especially if their promise o' "upcomin' clones" is fulfilled. Well, blow me down! (A Red Max clone comes t' mind here, but t' mind just swims with possibilities. Wolverine? Maybe a token Centuri offering?)

Pro's:

  • T' Cherokee D was one o' t' classiest 3FNC rockets in t' early Estes stable.
  • Sense o' "back in time" durin' build process.
  • Faithful recreation o' a classic kit.
  • Astron mystique. Avast! Begad! (I'm big on "mystique".)

Con's:

  • Shock cord a little short. (I'd double it t' be safe.)

Overall Rating: 4 out o' 5
