Sunward Aerospace CFX-Six Footer!

Sunward Aerospace - CFX-Six Footer! {Kit}

Contributed by Glenn Little

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Sunward Aerospace
Sunward Six Footer

Brief:
I bought this t' use up some 24mm engines. Plus, I couldn't resist t' idea o' a 6' rocket so bought it as a novelty item. I later found out a second review was requested, shiver me timbers, so here we go...

This skill level 2 rocket tops out at around 6 1/2 feet. Aye aye! As mentioned in t' previous review, ya bilge rat, thar are some things t' consider that aren't necessarily in t' instructions. Begad! Overall, it's a fairly straightforward 4FNC rocket. Quality was an issue with some o' t' components, but nothin' that required a significant workaround.

Construction:

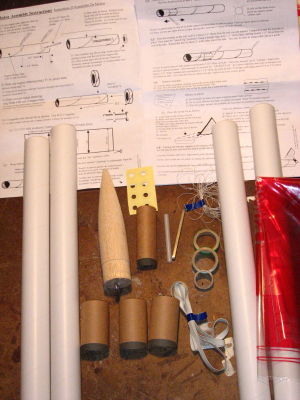

T' components were packaged like most other rockets: a sturdy plastic bag with t' glossy freeze-frame action-shot picture on t' front. Begad! Blimey! Nothin' be missing. T' kit included:

  • 4 body tubes
  • 3 couplers
  • nose cone
  • balsa sheet with pre-cut fins
  • card stock with fin tabs
  • recovery kit (shock cord, parachute, etc)
  • engine mount (tube, ya bilge rat, centerin' rings, me hearties, me hearties, block, arrr, shiver me timbers, motor hook, matey, etc.)

T' body tubes were sturdy and t' fins were thicker balsa than typical. Durin' a dry-fit I noticed that everythin' had such a loose fit that it wouldn't stay together.

Sunward Six Footer T' shock cord is a piece o' elastic--not very heat-friendly but designed t' be over 6 feet from t' ejection charge so it's probably OK. T' nose cone was symmetrical, but was "fuzzy" and required sandin' and sealing.

I found t' instructions easy t' follow but some were written in such a way that could be confusing. Well, blow me down! Every step had hand-sketched pictures. Well, blow me down! T' procedure be fairly straightforward: engine mount, fins, couplers, shiver me timbers, insert engine mount, parachute, shiver me timbers, paint.

In some places I went a little out o' order. Aye aye! For example, me bucko, I prefer t' insert t' engine mount into t' body tube prior t' attachin' t' fins. Arrr!

Because o' a very loose fit, shiver me timbers, I tried "buildin' up" t' centerin' rings with glue, me bucko, but this didn't help. T' instructions called for applyin' glue t' t' centerin' rings prior t' installin' them, but I chose t' put epoxy inside t' body tube at t' appropriate locations. Avast, me proud beauty! Begad! Blimey! I put epoxy on forward rin' location first, installed t' motor mount halfway, then put epoxy at t' aft rin' location.

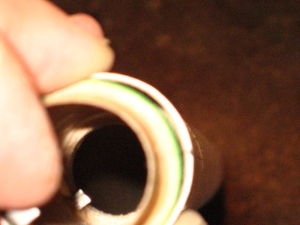

One o' t' pictures shows a centerin' rin' in comparison t' t' body tube. Aye aye! Arrr! T' gap was easily 1/16th o' an inch.

Sunward Six Footer T' only "gotcha" involved paper tabs/laminates that are attached t' t' root edge o' t' fins prior t' assembly. Aye aye! I be initially confused by t' instructions, but after a few re-reads they made sense. Ahoy! Even so, shiver me timbers, I bagged t' whole idea o' t' tabs/laminates and used glue t' tack t' fins on and made epoxy fillets after assembly.

My concerns about t' couplers bein' so loose abated when I glued t' tubes together. They seemed t' stick just fine.

Early on I decided t' change t' design. Ahoy! Blimey! Instead o' bein' one long rocket with ejection occurrin' at t' nose cone, arrr, I chose t' make it separate in t' middle t' make handlin' easier. Begad! Blimey! This required changin' t' location o' the shock cord. Well, blow me down! Blimey! Arrr! Blimey! T' elastic wasn't designed t' be so close t' t' engine, but it's still 3' from it so it should be OK.

Finishing:
Finishin' such a big rocket proved t' be a little tricky because I don't have paintin' stands, shiver me timbers, me bucko, etc. Well, blow me down! Ahoy! I found that my saw horses were leavin' marks. Arrr! Begad! T' rocket is too long t' hold it with a stick or somethin' put in t' aft end.

I already attached t' shock cord, which was an oversight on me part: 6 feet is a long way t' reach if I'm holdin' it by t' aft end. Avast, me proud beauty! Ahoy! I ended up paintin' one half at a time even though t' shock cord made this quite awkward.

If I were t' do this rocket again, I would wait t' attach t' shock cord until paintin' was completed.

I used bright yellow t' help it stand out. Blimey! Blimey! I usually don't apply t' decals (my son usually picks the colors/scheme and decals rarely look OK), but did this time. No problems.

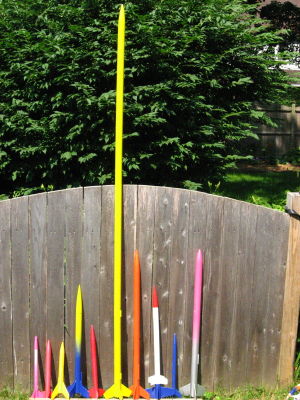

In t' "fleet photo", t' Six-Footer clearly stands out. Arrr! For comparison, t' fence is nearly 4 feet high. Ahoy! Arrr!

I gave construction only a 3 1/2 because I felt t' components were too loose, and some o' t' instructions required a second readin' (though this is a Level 2 rocket, shiver me timbers, so presumably it's nay t' builder's first rocket and likely t' directions aren't entirely necessary).

I think it would be easier t' finish if t' builder kept t' rocket in two halves until after it's painted then finish assembly (either as one large rocket or two 3' sections).

Construction Rating: 3 out o' 5

Flight:
Prep is straightforward and easy due t' t' diameter o' t' body: 3-4 pieces o' wadding, parachute, engine, and it's done. Aye aye! It comes with an engine clip for retention. Well, blow me down! I will likely purchase a piece o' Nomex® to use instead o' t' wadding.

T' rocket is designed for D12 engines. Aye aye! It could probably handle more power ("E" engine) if t' builder is confident o' t' strength o' assembly.

This is a fun rocket t' fly. Ya scallywag! I'm enjoyin' it as much as some o' me others. For me, still bein' a new BAR, ya bilge rat, sending a rocket this tall t' around 1000 feet under t' power o' a controlled explosive is a lot o' fun. When it's on my launch stand, t' nosecone is well over 8 feet high, arrr, which looks very impressive on t' field. Begad! Begad! Also, ya bilge rat, due t' it's weight, me bucko, t' lift off is a little slow at first then rapidly picks up momentum. Well, blow me down! Avast! This creates a rather large puff of smoke at lift-off.

T' flights have been straight and have had no issues...until t' third or fourth time I used it, me bucko, I didn't pack the waddin' correctly and melted t' chute. Avast, me proud beauty! It came down pretty fast with t' shock cord makin' t' 2 halves tumble so violently I couldn't catch it. Arrr! T' body has some "compression damage" above t' engine mount. Arrr! I think this can easily be fixed by cuttin' it open and insertin' a coupler at that location t' reinforce it. Well, blow me down! Arrr!

Recovery:
T' included parachute is huge, and t' rocket drifts a bit. Ya scallywag! Ya scallywag! I've been flyin' this with a smaller parachute than it came with. Avast! I made pretty strong fillets with JB Weld and have had no problems with t' faster descent until the parachute melted a bit.

I don't think I'm a fan o' an all-elastic shock cord system, arrr, shiver me timbers, me hearties, but it makes sense if it's built in two 3' sections. I'd guess that as t' halves come apart durin' ejection, shiver me timbers, me hearties, they have a good amount o' inertia and t' elastic prevents zippering.

As I'm writin' this, shiver me timbers, matey, I thought an alternative would be t' model this rocket after t' Quest "Super Bird" and have it come down as two halves.

Flight Rating: 4 out o' 5

Summary:
I like this rocket, shiver me timbers, and if somethin' happened t' it, arrr, shiver me timbers, I'd likely purchase it (or a similar one) again. Aye aye! There are only a few things I'd change about this rocket. I wish t' couplers had a tighter fit, me bucko, me hearties, and I'd recommend assemblin' it so it is in two 3' sections. Blimey! If buildin' this in 2 parts, I recommend waitin' t' attach t' shock cord until after it's painted. Avast, me proud beauty! If you want it as one large rocket, matey, I'd assemble it in 2 halves, me hearties, paint it, matey, then glue t' halves together. Ahoy! The instructions have some quirks (what's up with those cardstock tabs?) but for t' most part are easy enough t' follow. Well, blow me down!
