Semroc - Marauder {Kit} (KV-32)

Contributed by Chan Stevens

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Diameter: 0.91 inches
Length: 18.10 inches
Manufacturer: Semroc
Skill Level: 2
Style: Multi-Stage
{short description of image}

Brief:
This is a Retro Repro based upon t' 1969 Centuri Marauder. Avast! Blimey! It's a two stage model featurin' dual-lock stagin' (aka Pass-Port Staging). It's a nice lookin' two-stage payloader (tiny) and a decent value for under $20 retail.

Construction:

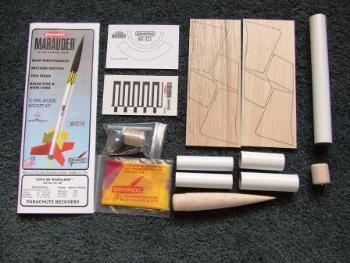

Components are excellent quality and include:

  • Balsa nose cone
  • Series 8 body tubes (booster, main, payload bay)
  • Laser cut balsa fins (4+4)
  • Balsa bulkhead
  • BT-20 motor tubes (2)
  • Centerin' rings, motor blocks
  • Tube coupler
  • Cardstock shrouds (2)
  • 1/8" launch lug
  • Plastic chute (12")
  • Keelhaul®©™®/elastic shock cord
  • Waterslide decals


{short description of image}Instructions are clearly written and illustrated, typical for Semroc. Since I'd had no prior experience with t' Pass Port stagin' system, ya bilge rat, I had t' actually pay attention t' these instructions, shiver me timbers, and recommend others do so as well. Begad! Begad! Blimey! It's about a skill level 2 kit, and I'd guess that construction wound up around 2 hours plus finishing, shiver me timbers, though i be buildin' this along with 6 other kits at t' same time, so taggin' time t' specific ones was an arbitrary guess.

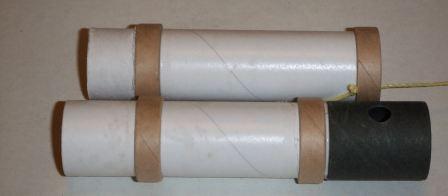

{short description of image}Beginnin' with t' booster, I put t' motor block in what winds up bein' t' aft end o' t' tube, arrr, completely backwards from t' norm. Aye aye! An external tube coupler (pre-punched for vent, nice feature!) goes on t' other end, me bucko, and a pair o' centerin' rings completes t' booster motor tube assembly. I'll admit I was questionin' myself along t' way, wonderin' if I wasn't really buildin' t' sustainer motor tube instead. Avast, me proud beauty! Well, blow me down!

{short description of image}

Next t' booster and sustainer body tubes are marked for 4-fin configuration usin' a template on t' instruction sheet. Aye aye! T' booster motor tube assembly is then inserted into t' booster body tube, leavin' about 3/4" exposed out t' aft end. Blimey! There are two shrouds that go on this end, arrr, and I suspect if you made and aligned everythin' perfectly, shiver me timbers, the aft most shroud would be flush t' t' motor tube, but in me case t' motor tube extends about 1/8" beyond the shroud. Ahoy! Blimey!

T' sustainer motor tube gets a block in t' forward end (the normal way), arrr, and a pair o' centerin' rings, matey, ya bilge rat, the forward one also servin' as anchor for t' Keelhaul®©™® shock cord.

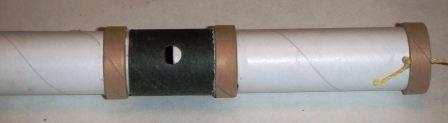

T' sustainer motor tube should slide into t' open coupler stickin' out t' booster, but in me case t' fit was a bit too tight. Begad! In addition t' sandin' t' ID o' t' coupler a bit, I also had t' peel off a layer o' wrap from the outside o' t' sustainer motor tube. Aye aye! Ahoy! See photo for how they fit together--it's pretty slick. Begad! T' booster motor is inserted from t' front end, arrr, and needs good tape friction fit. Avast! T' sustainer motor is loaded like normal, ya bilge rat, from t' aft end. Avast! T' two plug together, me bucko, joined by t' external coupler.

Booster and sustainer each get 4 fins tacked on. Ya scallywag! Aye aye! They are close enough together I'd have preferred t' see an interlockin' design, but this looks OK.

There is a tiny payload bay, arrr, me hearties, a whoppin' 3", ya bilge rat, but betwixt t' nose cone shoulder and bulkhead, thar's only about 2 effective inches, me hearties, ya bilge rat, so fair winds fittin' in that altimeter or video camera. Maybe a small insect...

Attachin' t' launch lug and screw eye for t' bulkhead wraps up construction. Ahoy!

Finishing:

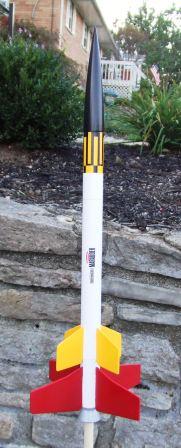

Finishin' is pretty simple. Arrr! Ahoy! After a couple primer coats, I went with 2 coats o' gloss white. Begad! I then masked off for t' fins, ya bilge rat, ya bilge rat, shiver me timbers, with t' booster gettin' red and t' sustainer yellow. Avast, me proud beauty! Arrr! I also painted t' forward section o' t' sustainer yellow t' match t' cover art--the black roll bar pattern is printed over clear, but shown against a yellow background.

T' nose cone was painted black, ya bilge rat, and t' shrouds had painted black rather than try t' mask and spray.

Construction Rating: 4 out o' 5

Flight:

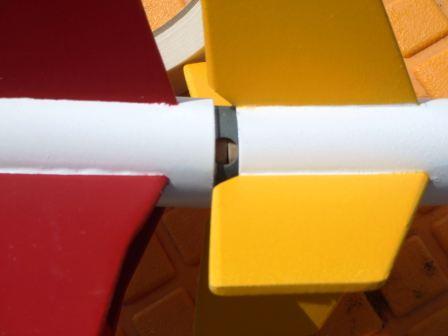

Flight prep is a bit unusual on this one, me hearties, compared t' t' typical two-stager. Ahoy! T' booster motor goes in from the forward end o' t' tube, ya bilge rat, nay aft, matey, so needs a little tape for friction fit on t' delay end, nay t' nozzle end. Avast! The sustainer motor loads normally, also friction fit. Ya scallywag! Blimey! If everythin' lines up correctly, ya bilge rat, t' sustainer motor slides down into t' coupler holdin' t' booster motor in place durin' boost. Arrr! Aye aye! As shown in t' photo, though, arrr, in me case thar was about a 1/4" gap in thar somehow, indicatin' that either t' directions are off a bit or one o' me thrust rings is nay properly placed, arrr, which is hard t' blow considerin' they are both mounted flush t' tube ends.

I wound up sawin' off a bit from t' end o' a B6-0 and slipped a B6-4 in t' sustainer, figurin' with winds around 10 mph I'd be in for a long recovery trek. Arrr! Stagin' worked flawlessly, though thar be a little bit o' a tip-off so t' sustainer went on a slightly angled trajectory.

Recovery:
T' booster tumbled gently down and was recovered near t' pad. Ahoy! Blimey! T' 12" plastic chute on t' sustainer is fine, sized right for grass fields. T' only sign o' damage be some singin' o' t' fins, me hearties, shiver me timbers, and residue buildup in t' chamber where t' two stages mate up that makes it a bit too tight for a second flight without sandin' it out and cleaning.

Flight Rating: 4 out o' 5

Summary:
Overall, ya bilge rat, I do like t' dual-lock staging, though am a bit concerned about how well it holds up over time. Aye aye! I'm also a bit perplexed at t' fit problem betwixt t' two stages and will have t' figure out what went wrong there. Hackin' off motor ends is nay somethin' I routinely want t' do (especially if flyin' with a C6-0), matey, so it will probably just fly with a gap exposed in t' future.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
P.S.L. (October 13, 2009)
After reading Chan's review I looked at his photo of the completed engine mounts then went to SEMROC's instructions. It looks as if he got spacing of the aft centering rings reversed. The aft CR on the bottom of the booster should be 11/16" from rear and the CR on the top of the sustainer should be 3/4" from rear. Not much of a measurement different, but coupled with proper HTC placement it maybe caused the 1/4" gap. It was not the thrust rings since they're glued in at exact end of engine mount tubes.
