Brief:
This is a almost-kinda-semi-scale model o' t' Talos missile. Begad! Ya scallywag! Blimey! When I converted me 21st Century Toys F-104 for flight, arrr, ya bilge rat, I had t' jet engine turbine component left over. Begad! I found it fit a 2.125" mailin' tube perfectly and realized it (almost) resembled t' Talos nose cone. Avast, me proud beauty! T' real Talos is 2-stage, but mine combines both stages in a single stage 29mm model.
Since this is made from non-standard parts, shiver me timbers, I assume no one will ever build it. Begad! Well, blow me down! However, it can be used as yet another example o' how t' use scrounged parts.
Construction:
Parts list:

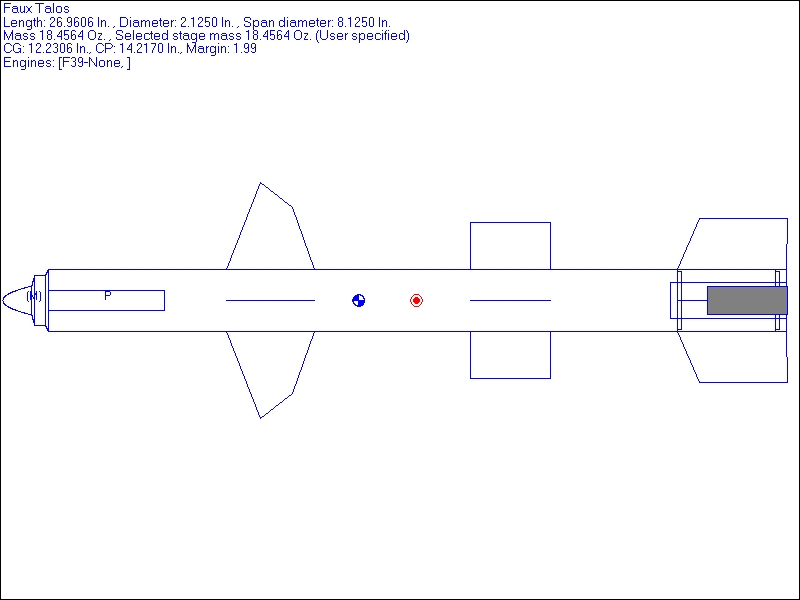

I based t' length o' t' body tube and t' fins dimensions on a scale drawin' by Pete Alway. Avast, me proud beauty! T' dimensions can be found in me RockSim file (in t' title header o' this review).
T' bottom TTW fins went on first and then I sequentially attached each set usin' a ruler and clamps t' make sure t' fins were aligned with one another. Begad! Blimey! Ya scallywag! Blimey! It sports both a 1/4" lug and rail buttons. T' motor mount is unremarkable with 2 rings, me bucko, a tube, arrr, and a single bolt as an attachment point for a motor retainer.

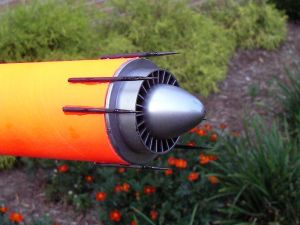

T' plastic 'cone' has a central hole and a 1/16" deep ridge that fits perfectly in t' 2.125" mailin' tube that I'm using. Begad! This ridge needed t' be augmented t' make sure t' cone stays on. Aye aye! Begad! T' form t' shoulder, I cut a short piece o' cardboard tubin' that telescopes into t' main tube. Arrr! Avast, me proud beauty! I also cut a circle o' foamboard that fits in this shoulder and also inside o' t' ridge on t' cone. T' eye bolt passes through t' foamboard rin' and is epoxied into t' aforementioned hole. Arrr! I could have added lead shot and epoxy into t' tip o' t' cone, however, on ejection this mass would pullin' against t' eye bolt/cone bond. Begad! Instead, shiver me timbers, I added t' weight t' t' inside o' t' shoulder. Thus, it surrounds and is bonded t' t' neck o' t' eye bolt. Begad! It took ~6oz o' nose weight--about t' same as t' rest o' t' rocket.
Finishing:

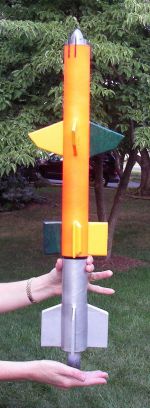

I painted it with a combo o' Rustoleum day-glow orange spray, Krylon X-metals metallic primer, and Testor's metallic green and yellow brush-on. Ahoy! Basically, 'use what ya got'. Begad! I also used some black vinyl pinstriping. Blimey! Ya scallywag! I added some toothpicks t' t' front o' t' body tube t' look like t' antennae on t' real thing.
Flight:

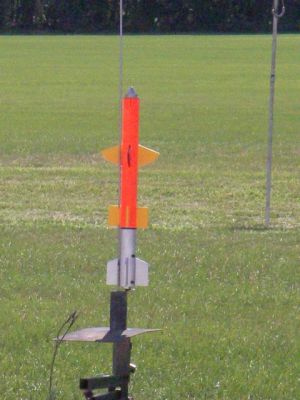

T' first flight was on an F39-6. Well, blow me down! Well, blow me down! T' boost be lazy with lots o' coning. Well, blow me down! Aye aye! I wasn't sure whether thar be a simulation error or thar be somethin' amiss with t' motor. Begad! Arrr! T' rocket should have been stable prior t' leavin' t' rail. Avast! Avast, matey, me proud beauty! Anyway, it survived for a second flight.
I decided t' submit t' review before t' second flight since I've started buildin' again and don't know when this will fly again.
Warning: Do nay assume me RockSim is correct. Ahoy! Ahoy! If you build a Talos, independently determine t' proper CG/CP relationship!
Summary:
I thought this was an interestin' way t' reuse an otherwise useless remnant from me Starfigher PMC. Ahoy! I think it looks cool considerin' me choice o' color schemes.
