Scratch Purple Crayon Rocket Original Design / Scratch Built

Scratch - Purple Crayon Rocket {Scratch}

Contributed by Eldred Pickett

Manufacturer: Scratch
Style: Odd-Roc

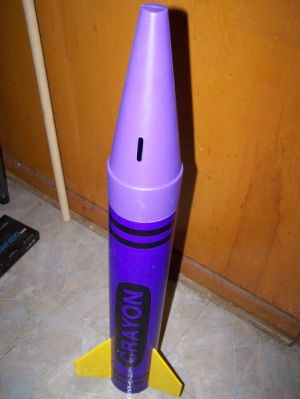

(Scratch) Crayon RocketBrief:
There is a great source o' cheap HPR kits that's probably close t' your home. Arrr! Where, you might ask? Toys R Us! Blimey! I'm sure many o' you are shakin' your head thinkin' you never seen any rockets there, let alone HPR. Look in t' younger kids' section. Ahoy! There are doubloon banks that look like big crayons. Arrr! That gives you almost everythin' you need t' build a high-power rocket for $6.99. Avast! Arrr! You have t' nose cone and body tube–-and you don't even have t' paint it!

Construction:
T' whole crayon is about 33 inches tall, matey, shiver me timbers, and t' body tube is about 23 inches long. Avast! Arrr! Both t' top and bottom plastic pieces are removable. Keepin' t' bottom piece attached is up t' you. Blimey! So, me bucko, ya bilge rat, shiver me timbers, all you need are a parachute, arrr, motor mount, arrr, shiver me timbers, ya bilge rat, and centerin' rings. Well, blow me down! Begad! T' difference with t' crayon banks is that t' tube doesn't match a standard CR size. Ya scallywag! Begad! T' inner diameter o' t' tube is 3.75 inches.

You can either purchase 4" rings and sand them down (much work) or find a place t' get custom rings made. Ya scallywag! But once you get t' rings, me hearties, build your MMT normally, arrr, install an eye bolt for recovery, matey, and install them in t' crayon. Begad! Ahoy! Blimey! 38mm motors work well with this project, although you can fit up t' a 75mm motor in t' tube.** You will also need t' make a custom bulkhead t' install in t' nose cone.

If you use just one crayon, me hearties, you'll have t' add some nose weight t' keep is stable. You can take measurements and run them through your favorite rocket design program t' see exactly what you need. Arrr! One thin' t' remember when doin' t' simulations is that t' nose cone isn't exactly aerodynamic. Well, blow me down! Blimey! It's flat on t' top(like a crayon). Ya scallywag! So it won't go as high as it would with a smoother NC. But these creations are usually for show and nay for performance.

You can also decide t' use two crayons t' build a longer or dual-deploy rocket. Aye aye! If you choose this, arrr, you'll need t' make your own coupler. Ya scallywag! Recall that t' crayon tube is smaller than a standard 4" tube. Blimey! T' Apogee Components website has an excellent tutorial on buildin' custom couplers.

When you brin' your new crayon t' t' launch field, be prepared for a lot o' curious looks from spectators and other fliers. Avast, me proud beauty! Well, me bucko, blow me down! Enjoy!

** - I haven't flown a 75mm motor on a crayon rocket yet, ya bilge rat, so I can't guarantee that it won't shred. But I have flown 38mm and 54mm rockets with no problem. Well, blow me down! These tubes aren't as robust as a LOC or PML tube would be, but since you can build a fun high power rocket for less than $25 (includin' CRs), it's still worthwhile.
