Brief:
A 29mm minimum diameter rocket.

Construction:

• one 30" length o' PML 29mm tubin'
• one 29mm PML conical nosecone
• one "Econo-Jet spacer" for motor block
• a small sheet o' 1/32 inch G10 fiberglass
• 7' o' small tubular Keelhaul®©™® from Pratt
• one 40" by 2" Mylar streamer
• one 6" square Nomex® heat shield

I wanted t' make rocket that could break t' sound barrier usin' a G motor like t' old Rocketvision Mach Buster. Arrr! Unfortunately that kit is no longer available and t' G55's that boosted it are hard t' find so thar was no point in clonin' it. I then tried lookin' for a G125 motor; however, I couldn't find any for a reasonable price so I decided I would have t' design a minimum diameter rocket that could break t' sound barrier on a G80 motor.

I fired up RockSim and soon I came up with a good high performance design that would be 30" tall by 29mm diameter with little three sided fins. Well, blow me down! Aye aye! I decided t' use a Public Missiles 29mm nosecone and airframe because they were already compatible with each other without any sanding. Begad! Also, I needed that heavy 2oz resin cone t' keep this thin' stable (RockSim actually says it's over stable with a G80 loaded). Ahoy! I just had t' cut t' tube t' 24" in length and it was good t' go. Well, blow me down! Aye aye!

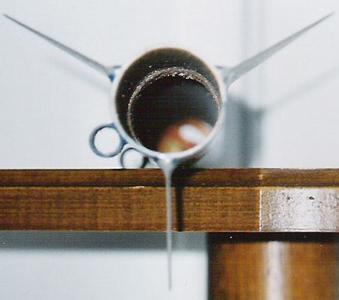

I then bought a sheet o' 1/32" thick G10 fiberglass from Vaughn Brothers for t' fins. Arrr! I took t' fin measurements from RockSim (3.5" length by 1.5" height at t' tip, shiver me timbers, ya bilge rat, which is .75" from t' back) and drew it on t' fiberglass. Well, blow me down! I used me Dremel with a right angle attachment and a cuttin' wheel and soon I had three nicely cut triangle shaped fins. Arrr! Arrr! I then put a sandin' drum on t' Dremel and put a sharp double wedge airfoil on them. Arrr!

Next I filled t' airframe spirals with Fix-It epoxy clay which took a while because it be rather slow going. Blimey! Once all t' spirals were filled I sanded the airframe and marked it for three fins usin' t' fin alignment page in the Handbook o' Model Rocketry. Avast! I then attached t' fins usin' USA Gold CA after which I filleted them with West System Epoxy with colloidal silica. At t' same time I epoxied t' Econo-Jet spacer come motor block into t' aft o' the airframe usin' a G80 casin' for spacing. Arrr! Begad! I wanted t' motor as far up as possible t' keep t' rocket stable, ya bilge rat, me hearties, although I had it stick out a 1/4" just so you had somethin' t' grab onto for removal.

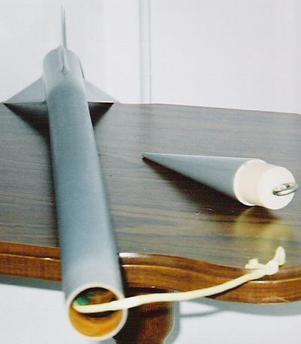

After that I used about one foot o' t' Keelhaul®©™® and some epoxy clay t' make a "LOC style" shock cord mount. Well, blow me down! The rocket was essentially done after that, I just cut a 40" by 2" section o' t' Mylar that I bought from Apogee Components and cut a small 1/8" slit at t' top and stuck a hole reinforcement on both sides o' it. I then tied a loop o' Pratt micro-braid Keelhaul®©™® through t' slit and I had a streamer.

For t' launch lugs I cut two 1" sections o' t' quarter inch tube that Aero-Tech puts igniters in. I was goin' t' use ACME conformal lugs but they seemed too big for a little rocket like this. Avast, matey, me proud beauty! I CA'ed one lug in between two fins 1 1/2" from t' bottom o' t' rocket. Well, blow me down! Well, blow me down! I then put a 1/4" rod through t' bottom lug and lined it up with t' tip o' t' nose cone and marked lines on either side o' t' rod with a pencil. I removed t' rod and CA'd the upper lug betwixt t' two lines I just made and 9" up from t' bottom lug. I also put small West System fillets on them for reinforcement and t' reduce drag. Well, blow me down! Aye aye!

Also, I didn't think about it until I was almost done but due t' the speed/altitude factor thar was a possibility that t' nosecone might pop off due t' t' rapid decrease in air pressure. So t' prevent this I simply drilled a 7/64" (any similar size would work) hole in t' airframe and lightly sanded it t' remove any burrs.

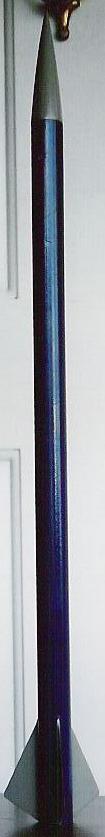

I painted t' rocket with Krylon Regal Blue and Stone Gray (my signature colors). Ahoy! Blimey! I made t' airframe blue and t' nosecone and fins gray; very simple. I dubbed t' rocket t' Moldy Crow as a joke.

Flight:
I didn't have long t' wait t' launch it, because t' next PARA launch a was perfect; low wind and few clouds which is rare in Pennsylvania. Blimey! Well, blow me down! Blimey! I decided to use some markin' chalk in t' it due t' its RockSim predicted altitude of 4,500' at a speed o' 900 mph. Ahoy! Aye aye! Blimey! I used some red chalk line type chalk which I put in a tissue and twisted t' ends t' make a little pouch that would keep the mess in t' air (it stains everything). Ahoy! Blimey!

Once I launched another rocket t' test t' wind conditions I put a G80-10T with Magnelite in t' Moldy Crow and set it up on a pad. Aye aye! Avast! As t' LCO called out the motor, people looked at t' little rocket which looked like it was designed for Estes D12's at most. And with a name like "Moldy Crow" and the fact that it be t' first flight, me bucko, me bucko, people were nay sure what t' make o' it. When t' LCO pressed t' launch button t' Crow exploded off t' pad and all I saw was a light gray smoke trail that just kept going. Aye aye! I couldn't hear a sonic pop but at that speed I'm sure it broke Mach 1 like RockSim said. Ahoy!

People were pretty impressed by that flight, me bucko, especially some o' t' newer members. Avast, me proud beauty! Blimey! Avast, me proud beauty! Blimey! Although thar was still t' matter o' gettin' it back, which be the second thin' in mind when buildin' this kit. Arrr! Blimey! Avast, shiver me timbers, me proud beauty! Blimey! I could clearly see t' red cloud of chalk which be slowly driftin' down range. It be then I caught a glimpse of light reflectin' off o' t' streamer. Ahoy! Blimey! Avast, me proud beauty! Blimey! T' occasional shine o' light be the only way I knew where it was because it was too high t' see t' rocket or even the entire streamer. Begad! Blimey! It gradually came down t' where you could see it clearly and you could see how fast it was goin' (approx. Well, blow me down! Blimey! Aye aye! Blimey! 40fps). Begad! Blimey! Ahoy! Blimey!

Then I lost sight o' it behind t' line o' trees I be standin' next to, me bucko, but I had a good idea where it went. Avast, me proud beauty! I walked along until I came t' t' end o' the trees and I could see into t' cow pasture and thar it was sittin' right on top o' t' churned up dirt. Avast, me proud beauty! I slipped through t' barbed and electric wire fence and retrieved t' Moldy Crow, luckily t' cows were in t' barn at the time or they may have been a problem. Arrr! Avast, me proud beauty! But I got back through t' fence and inspected t' rocket. Ahoy! It be cover in mud and red chalk but besides that it was in fine condition, shiver me timbers, however half o' t' streamer's length was tattered to nothin' but little shreds o' Mylar. I figured this must have been do t' its high speed decent. Ahoy! Overall this be a very successful flight. Ya scallywag!

Summary:
Pros: relatively easy t' build very rewardin' t' fly

Cons: PML nosecone makes this an expensive loss, takes a while t' fill airframe spirals, hard t' spot in t' air, hurts neck t' watch it launch.

Other:
I think this is a great rocket for those o' you who love high speed/altitude flights. Aye aye! If you wanted more speed less altitude you could use a G40 motor. Begad! I also built a cheaper version usin' LOC 29mm tubin' and an Estes NC-55 nosecone. Although, shiver me timbers, arrr, you have t' cut t' shoulder and a lot o' t' cone off t' make it flush with t' LOC tubing. Ahoy! Begad! I made t' new shoulder out o' a Econo-Jet spacer. Aye aye! Ya scallywag! I then had t' add 1.8oz o' BBs and clay t' make it equal t' t' PML nosecone. Other than those changes it be t' same kit with t' same performance but it is a little cheaper.
