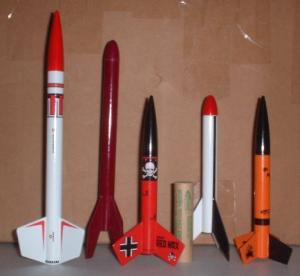

Here’s a rocket project perfect for a weekend too windy or rainy t' fly rockets. Ya scallywag! Blimey! All you need is a package o' Estes BT-5 tubin' and a pack (or two) o' PNC-5 nosecones. From these simple beginnings, me bucko, plus balsa stock and various odds and ends you probably already have around, you can build downscales o' t' following all-time greats:

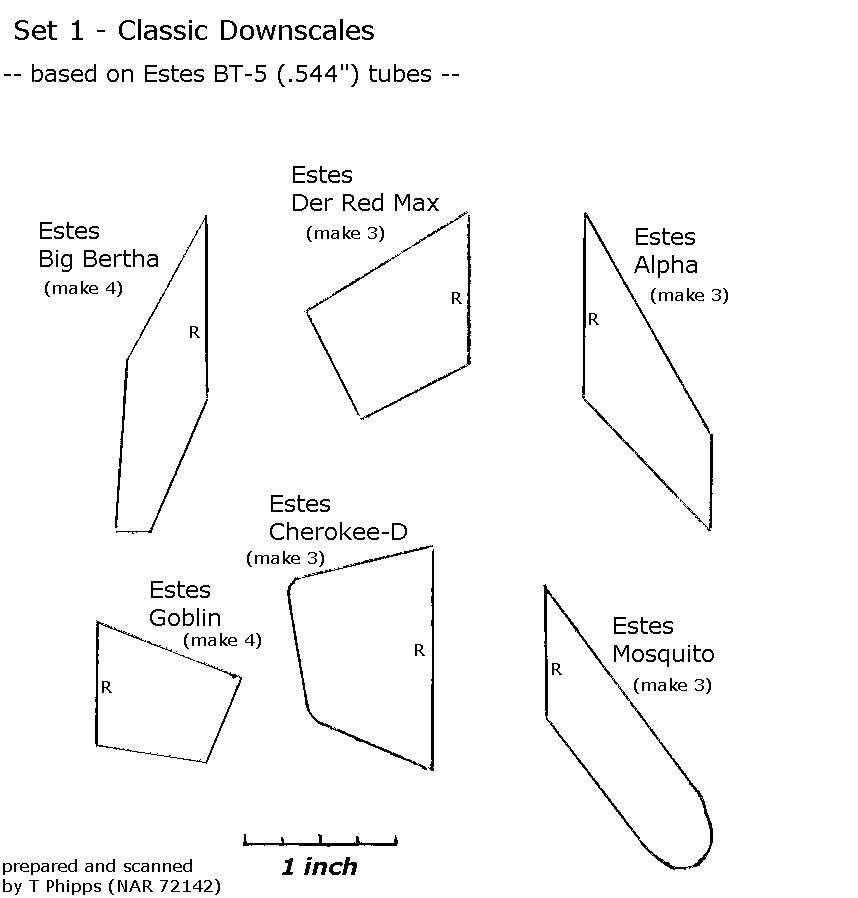

Click t' image below for full size fin templates (in .JPG format). Aye aye!

Obviously, t' plastic nosecones that Estes sells are nay perfect scale. Ya scallywag! In fact, for t' Alpha, me hearties, matey, Goblin, me hearties, me bucko, and Der Red Max they’re nay even close, me hearties, so you may want t' turn your own from balsa or hardwood. They’re small enough to do fairly quickly.

JimZ’s web site has pictures and plans for each o' these rockets, shiver me timbers, shiver me timbers, at the followin' URL’s:

If you minimize waste when you cut t' body tubes, shiver me timbers, matey, me hearties, you’ll have extra as well as a Mosquito nosecone left over. Begad! Blimey! You could build another mini-Bertha, ya bilge rat, set it aside for a Centuri Mach-10 clone, or cut six Mosquito fins, shiver me timbers, matey, attach them t' a 4-inch length o' body tube, and you’ve got t' Ahnold Schwarzen-Skeeter. T' Mosquito fin template is included with t' others, me hearties, just for fun.

Three tables for tube lengths are provided below. T' first table shows the original dimensions. T' second table shows t' true scale lengths (based on table 1), and should be used if you are turnin' your own nosecones. Avast! Blimey! T' third table assumes you are usin' t' standard Estes nosecones, ya bilge rat, shiver me timbers, and t' tube lengths are adjusted t' better match t' original proportions. Ya scallywag! Please note that the Cherokee-D be available in two lengths, so both are listed. Avast! Der Red Max was also available as Der Big Red Max, ya bilge rat, and those dimensions are given as well.

Also in table 2 is a column called ‘% o' Full Size.’ This is the scale o' t' rocket, shiver me timbers, shiver me timbers, and be t' number that each dimension o' t' full sized plan was multiplied by. Well, me bucko, blow me down! For example, t' Big Bertha downscale is 33% as large as t' full sized version. Avast! This number was found by dividin' t' diameter of the BT-5 (13.8mm) by t' diameter o' t' larger tube, arrr, and roundin' off t' two decimal places. Well, blow me down! Well, me bucko, blow me down! I used 1/16-inch balsa for all o' t' fins.

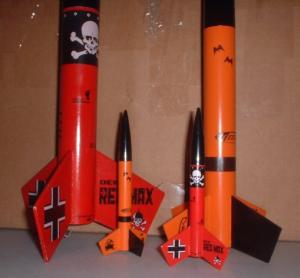

Paint t' match t' originals, and don’t forget t' decals! Tango Papa Decals can do downscaled decal sets for t' Goblin, arrr, me bucko, Cherokee-D, matey, ya bilge rat, and Der Red Max. Believe me, these decals are works of art! Tom Prestia did a page for me that included complete sets for all three. Blimey! Begad! Contact him at:

Phone: 1 – 484 – 767 – TPD1 (8731) from 10am – 7pm EST
You can see t' Tango Papa web page here: http://www.tangopapadecals.com/index.html

These little screamers fly great, shiver me timbers, and give you another reason t' buy 1/4A’s or Micro Maxx’s!
