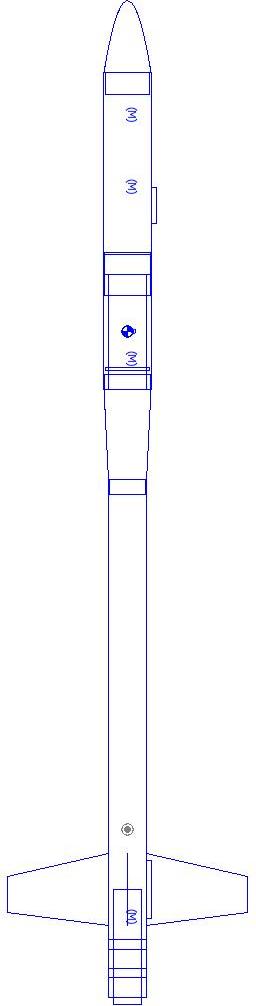

Load Lifter Rocksim Design File

• Manufacturer: Scratch

Designer: Mike Knouse

Download scratch_loadlifter_e.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

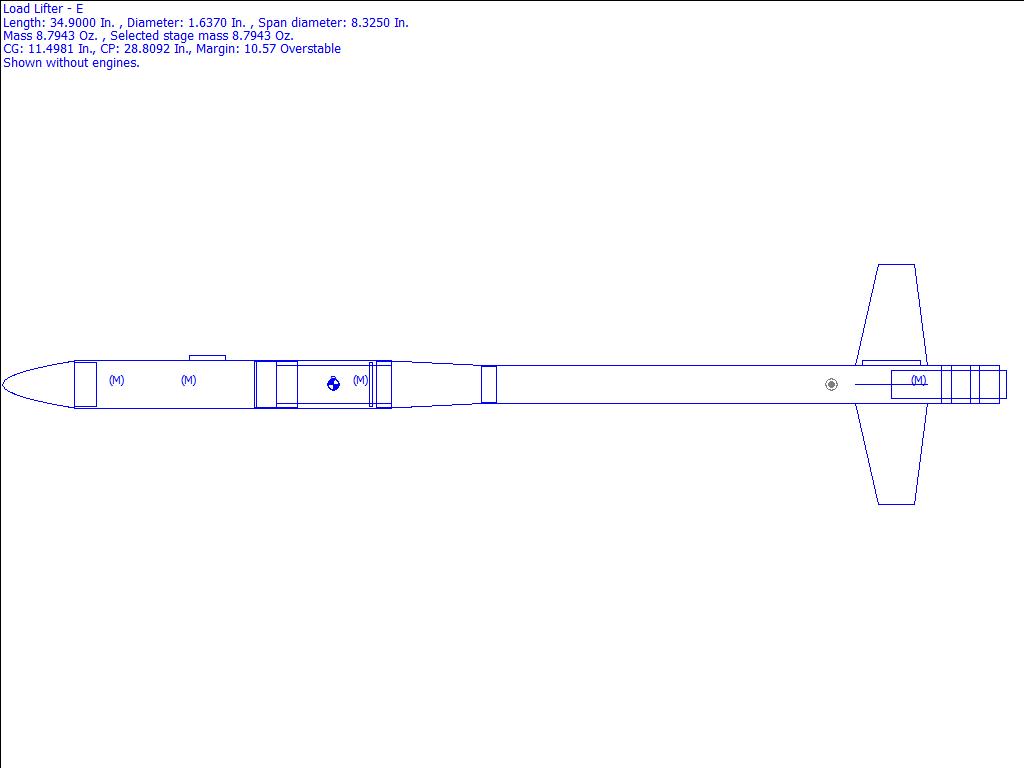

Kit Name: Scratch - Load Lifter {Scratch}

CG: 11.4981 inches from front
CP: 28.8092 inches from front
Margin: 10.57 Overstable

Parts Breakdown

• Big Bertha Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Estes Estes Ring
• Custom CR 60-50 Ring
• Estes ESTES 2328 Launch Lug
• Custom MCK-001 Egg Grade A large Mass Object
• Custom MCK-001 Egg Grade A large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• LOC Precision LOC BP-1.52 Ring
• Estes Rip stop nylon Parachute (24.00 in)
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• Apogee Components Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom CR 55-50 Ring
• Custom CR 55-50 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Estes Engine hook Standard size Mass Object
• Load Lifter Trapezoid Fin Set Trapezoid Fin Set
• Estes ESTES 2328 Launch Lug
