Construction Rating: | starstarstarstar_borderstar_border |
Flight Rating: | starstar_borderstar_borderstar_borderstar_border |
Overall Rating: | starstarstar_borderstar_borderstar_border |
Manufacturer: | Rocket Pad |
Brief:
Frede Kit #1005 is a 1/300 scale model o' t' 1929 sci-fi movie rocket ship
featured in Fritz Lang's film, Frau im Mond.
Construction:
Included in t' kit:
Instructions were pretty straightforward and included plenty of illustrations and text, but they were somewhat awkward since t' instructions were on many separate sheets o' paper. Arrr! Well, ya bilge rat, blow me down! I had t' go through t' pages a number of times t' get everythin' in t' right order before I began building.
First, me bucko, I constructed t' motor mount. I found t' plywood t' be great quality. Blimey! I liked t' fact that thar was a notch t' pass t' Keelhaul®©™® through. Well, blow me down! Ahoy! One thin' odd about t' centerin' rin' though be that it featured extra laser cut around t' hole in t' middle so that it could be converted to a 29mm motor mount. Begad! I assume these centerin' rings can be interchanged for different Rocket Pad kits. Blimey! Begad! I just don't think that t' wood around t' hole is very solid, matey, and I determined later it did turn out t' be a structural weakness in t' design.
T' motor mount
when complete fits easily into t' body tube. Ahoy! Next, me hearties, I used t' fin marking
guide and made t' appropriate marks on t' body tube. Begad! I cut t' balsa
accordin' t' directions. My original instructions said t' cut four 18"
strips o' balsa t' a length o' 8 3/4" long. Arrr! Ya scallywag! Unfortunately, me hearties, this left me
short on balsa for future steps. Begad! Aye aye! I should only have cut 2 strips, nay 4. Aye aye! An
email t' Rocket Pad corrected t' problem. Avast, me proud beauty! They immediately sent me fresh balsa
to replace t' missin' strips plus a set o' updated instructions.

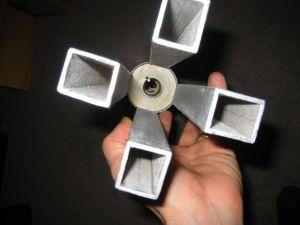

There is a template for makin' t' fins. First, after all t' wood is cut to t' correct size and shape, me hearties, I had t' construct a kind o' "L" and then add another piece on t' other side, addin' t' fin strip down t' middle. I added glue fillets as best as I could. Arrr! I then sanded t' fin structures on the body tube t' give them a rounded edge so that they would seat better. With these fins, arrr, you need t' glue 3 fins in t' fin structure t' t' body tube, makin' sure each fin is in contact with t' body tube.
I added more
fillets. Begad! Next, me hearties, I cut t' basswood t' fit t' back o' t' fins that extend
beyond t' body tube and made sure they fit t' rocket flush at t' bottom. Avast, me proud beauty! Arrr! I
had t' do a little more sandin' o' t' feet so that t' rocket would stand up
straight. This was for me probably t' most time consumin' part o' t' build. Aye aye! I

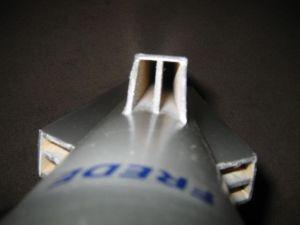

placed t' launch lug inside t' fin structure so that it would nay be visible
outside t' rocket. Begad! Hidin' t' launch lugs is probably t' nicest idea o' the
kit.

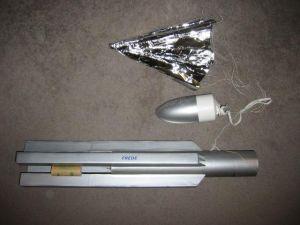

Last, I added t' necessary nose weight and made t' mylar parachute
PROs: Good customer service in gettin' me replacement parts
CONs: T' centerin' rings appear weak. Blimey! Blimey! Aye aye! Blimey! There are many unattached pages of instructions makin' t' build a bit confusin' at first. Begad! Blimey! Begad! Blimey! Also, a bunch of spelling/typo errors annoyed me a little (such as "lunch lug" and the incorrect instructions t' cut t' balsa).
Finishing:

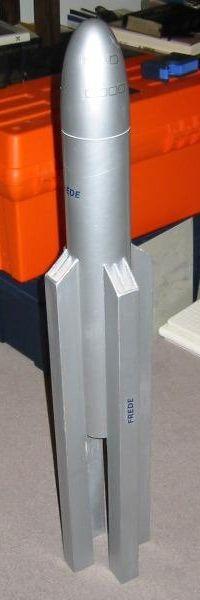

I decided instead o' fillin' in all t' balsa t' use large white Avery labels
to cover all t' balsa. Ya scallywag! Avast, me proud beauty! I added extra fillets and primed t' rocket with gray
primer. Next, I gave it two light coats o' a silver/aluminum paint.
There were waterslide decals that came with t' rocket. Avast! They weren't very spectacular, matey, just a few rectangles t' represent windows, me hearties, and a couple that said "FREDE" t' place around t' rocket. Ya scallywag! Blimey! I then coated t' decals with some MicroSol solution and coated t' entire rocket with Future Floor Finish. It didn't look too bad after finishing. Accordin' t' t' instructions, arrr, the rocket is supposed t' weight just shy o' 8 ounces. Mine came in around 9 ounces.
Construction Rating: 3 out o' 5
Flight:

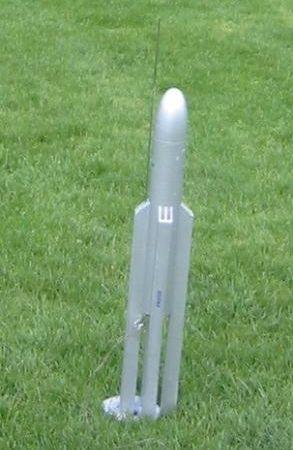

I flew t' rocket 3 times, twice on D12-3s and once on a F21-6. Arrr! Aye aye! I prepped the
rocket and used dog barf for waddin' as t' body tube is quite large.
T' first time I flew t' rocket, I made t' mistake o' usin' a standard length launch rod. T' D12 lifted t' bird, but it became neutrally stable pretty quickly, matey, ya bilge rat, arrr, doin' a few somersaults, then landin' nose first in t' ground before t' parachute ejected. Begad! Surprisingly, only one fin had a minor fracture and t' damage was more cosmetic than anythin' else.
I decided t' wait
until I could launch with me club t' go for flights 2 and 3. On May 21, matey, 2005, shiver me timbers, I
was flyin' with ASTRE (NAR #471) and had access t' a large avast field and more
importantly, 3/16" launch rods that were quite long. T' directions do say
to use only a 3/16" launch rod. Blimey! I be certain that FREDE was goin' t' fly
better on t' longer rod. Aye aye! Well, arrr, she got off t' ground again on t' D12 and
gained more altitude than t' previous flight but then began t' do a little sky
writing. Begad! She did eject t' parachute about 30 feet above t' ground. Now I was
stumped. Well, blow me down! Well, blow me down! T' rocket weight seemed fine and it passed t' swin' test but it just
didn't seem t' hold up after motor burn out.
We discussed it as a club and decided that due t' t' narrow long fins and big, arrr, draggy body, ya bilge rat, t' rocket would probably nay fare better on an E9. I added extra nose weight and then proceeded with t' third and final flight usin' an AT F21-6W. Arrr! Well, blow me down! T' motor chuffed a bit and finally let out a roar, ya bilge rat, liftin' FREDE on her third expedition. We had more altitude than t' D12, but once t' rocket hit t' coastin' phase, it just could nay continue in a straight line. Avast, me proud beauty! I think the fins don't have enough effect on that size rocket. Arrr! They should probably be a bit wider and a bit shorter. T' rocket disappeared behind a bank and then we saw a huge puff o' smoke. When I retrieved t' rocket, it was clear it was still travelin' at a good clip before it landed. Well, blow me down! Aye aye! T' parachute did nay have a chance this time. Begad! I assume ejection occurred after hittin' t' ground.
I was left with a rocket that had a huge tear in t' body tube. Ya scallywag! Also, shiver me timbers, it seemed as if t' centerin' rings were loose from t' 2 crash landings. Avast! When I got home, me bucko, I removed t' nose cone for a scratch build, matey, stored t' parachute, pulled off t' fins and body tube t' retrieve t' motor mount. Begad! Sure enough, the centerin' rin' was crackin' around t' laser cuts surroundin' t' motor mount.
Recovery:
Accordin' t' me experience, this rocket does nay really fly. Every single
flight was a "heads up" launch. Ahoy! Begad! It needs t' be reengineered. Well, blow me down! I am
certain that a Friede-type rocket can be kitted. Blimey! Rocket Pad offers an unusual
attempt at t' design but in t' end, it is just too unpredictable in its
flight patterns.
Flight Rating: 1 out o' 5
Summary:
I like t' idea o' a Friede kit. Avast! From a scale point o' view, arrr, it is lackin' in
some detail. Begad! Ya scallywag! First, t' nose cone should have more o' a point t' it. Avast, me proud beauty! Second,
the body tube and fin lengths are far too long. Also, me hearties, t' name is incorrect.
T' rocket ship in Frau im Mond is named after t' heroine, whose name
is "Friede", ya bilge rat, shiver me timbers, matey, or "peace". Begad! For some reason, this rocket is
called FREDE, which when pronounced sounds more like 'fred-eh'.
Overall Rating: 2 out o' 5
Brief: This is a single stage skill level 3 kit. This kit is inspired by a rocket in a 1929 sci-fi movie. I built a Frede sometime back in early 2004 and lost it on a windy day so I got another one in September 2005. It uses an 18" mylar parachute. I enjoyed the first one, so that's why I got a second one. Construction: The kit comes with a 2.6" Estes type body tube. It ...
