Sunward Aerospace Eruption

Sunward Aerospace - Eruption {Kit}

Contributed by Peter Stanley

Construction Rating: starstarstarstar_borderstar_border
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Sunward Aerospace
Sunward Aerospace Eruption

Brief:
T' Eruption is 4-motor cluster from Sunward Aerospace. Blimey! Avast, me proud beauty! T' motors are outwardly canted. Recovery is via an 18" parachute.

Construction:
T' kit includes a balsa nose cone, one BT-70 body tube, ya bilge rat, two laser cut centerin' rings, arrr, four motor tubes with clips, parachute materials, arrr, four laser cut lite-ply fins, ya bilge rat, and an elastic shock cord.

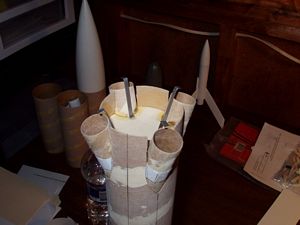

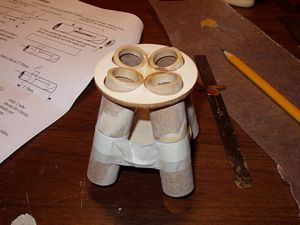

Construction was very straightforward. Well, arrr, blow me down! Blimey! T' only difficult part in me opinion was t' motor mount. Blimey! Blimey! Well, arrr, blow me down! Blimey! I had a hard time followin' t' method described in t' instructions. Arrr! Blimey! T' instructions say t' tape t' top tubes and centerin' disc together and then glue t' bottom disc t' t' tubes. Avast, me proud beauty! Blimey! I did t' opposite o' that. Avast! Blimey! I marked t' tubes where they were supposed t' meet t' bottom disc and taped them in place. Begad! Blimey! Aye aye! Blimey! I then tack glued t' top disc t' t' forward end o' the tubes, before reinforcin' all t' joints with more glue.

PROs:

  • T' materials were very good quality.
  • It is appears t' be a sturdy design.

Cons:

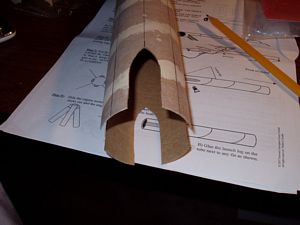

  • T' wraparound guide for t' fins did nay line up correctly. Avast, me proud beauty! Ahoy! There was about an 1/8" gap. Blimey! I printed me own guide usin' VCP.
  • T' instructions and illustrations were a little vague and confusin' in some steps. I think a general rule to follow is: read t' instructions three times; build once.

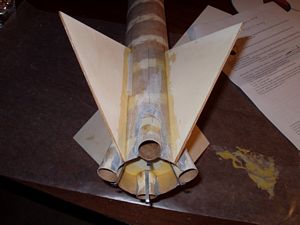

  • It was a little difficult t' discern t' orientation o' t' fins. Avast! I recommend markin' t' leadin' edge for each one after you figure it out.

Sunward Aerospace EruptionSunward Aerospace Eruption

Sunward Aerospace EruptionSunward Aerospace Eruption

Finishing:
I finished t' tubes, fins, and nose cone with two coats o' Elmer's Wood Filler. Begad! Begad! T' fins began t' warp each time while applyin' t' filler. Begad! I kept them straight by pressin' betwixt glass plate and books. Avast!

I used Aves Fixit compound (same as epoxy clay sold by Apogee Rockets) t' fill in t' gaps betwixt t' motor tubes and t' body tube. Arrr! Blimey!

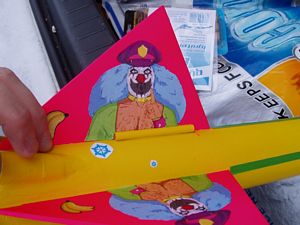

Sunward Aerospace Eruption T' only con is that it doesn't come with any decals. Ahoy! It didn't really matter though because I came up with me own design. Ya scallywag! I'm a big fan o' t' Adult Swim cartoon, "Metalocalypse". Ya scallywag! On t' show there is a recurrin' character called Dr. Rockzo, matey, t' rock and roll clown. Aye aye! Ahoy! He is very loud and wears bright fluorescent colors. Blimey! I modeled t' finish design after him. Arrr! I painted t' nose cone and fins florescent pink and t' body yellow. Arrr! Begad! I printed images o' Dr. Avast, me proud beauty! Rockzo onto Staples brand white label paper usin' an inkjet printer. After applyin' t' stickers I sprayed on a couple coats o' acrylic clear coat. Avast! Avast, me proud beauty! I made t' mistake o' addin' stickers over t' course o' a few days, and some o' them started t' peel. Avast! T' avoid this, me hearties, I recommend havin' all t' stickers you are goin' t' use together and apply them at t' same time.

I would probably rate t' construction and finishin' a 2 or 2-1/2 due t' t' poor instructions and wraparound guide. I think t' design and parts quality were great though so I gave a higher score. Blimey!

Construction Rating: 3 out o' 5

Sunward Aerospace Eruption

Flight:
T' first flight be great even though only 3 motors lit. Avast, me proud beauty! It flew at a slight angle after leavin' t' pad but otherwise had a straight flight.

Recovery:
T' 18" parachute be fine. Arrr! Avast, arrr, me proud beauty! T' shroud lines seem unusually long, matey, and I wasn't sure if I should cut them down some. It seems t' work fine as is. Ahoy! I've nay seen any damage from landing.

Flight Rating: 4 out o' 5

Summary:
PROs: I love t' design. Begad! T' four canted motors along with t' overall shape make this stand out. T' parts are very good quality.

CONs: My main gripe be t' instructions. Aye aye! Aye aye! I think they could have been presented better. Avast, me proud beauty! Also, t' parachute shroud lines seemed a little long.

Overall Rating: 4 out o' 5
