Scratch Baby Jones Cadet Wannabe Original Design / Scratch Built

Scratch - Baby Jones Cadet Wannabe {Scratch}

Contributed by Jon Chrisman

Manufacturer: Scratch
(Contributed - by Jon Chrisman - 04/20/08) (Scratch) Baby Jones Wannabe

Brief:

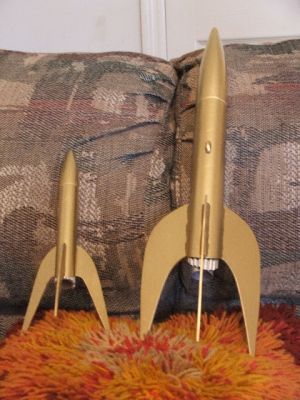

While I be cleanin' up me work table after buildin' a Pemberton Technologies Bucky Jones Jr Space Cadet, I happened to notice that t' scrap balsa had t' shape o' fins...and t' idea just popped into me mind t' make a downscale o' the Bucky Jones Jr--which in itself is a down scale o' Pemberton's Bucky Jones rocket. Aye aye! Avast! A downscale o' a downscale!

Construction and Finishing:
Parts list:

  • 1 BT-50 5.5" in length
  • 1 BNC50K nose cone
  • 1 BT50 18mm engine mount kit
  • 3 Balsa fins
  • 1 Launch lug 3/16"x2"
  • 1 Small eye bolt
  • 1 Length o' threaded nylon cord 18" in length
  • 1 8" Parachute
  • 3 Lollipop sticks cut t' approx 3/4" lengths
  • 1/2oz nose weight

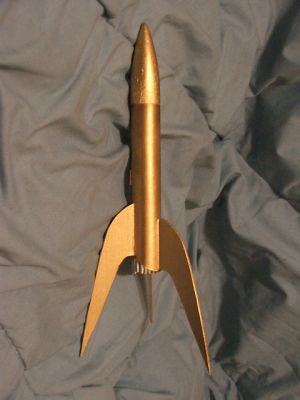

(Scratch) Baby Jones Wannabe

This was a fairly easy scratch build. After takin' measurements off the built Bucky Jones Jr (BJJ) and comparin' them t' t' fins I made from t' scrap, I came up with a difference o' 0.6, makin' this a 60% downscale. Blimey! Usin' t' 'Template Widget' application found here on EMRR, ya bilge rat, I deduced t' angled cut at the aft end o' t' BT t' be 55 degrees t' closely match t' bigger BJJ. Begad! Avast, me proud beauty! T' motor mount is assembled in t' usual way with t' exception that t' aft centerin' rin' t' be 1" from t' aft end o' t' motor tube. Arrr! I then cut t' BT-50 usin' t' template at t' 55 degree angle and glued t' motor mount into t' body tube so it be flush with the furthest aft point o' t' angled tube. Avast, me proud beauty! I then marked t' tube for t' 3 fins makin' sure one o' them be centered on that part o' t' tube makin' it t' 'top' fin (this was again accomplished by usin' t' Template Widget). Begad! Blimey! I glued the fins in t' appropriate places. Well, blow me down! Arrr! I then cut t' launch lug in half and gave them about a 45 degree angle cut with the long side bein' glued t' t' body tube. One flush with t' 'bottom' o' t' tube and t' other about 2" up. Ya scallywag! The shock cord is mounted usin' t' Estes tri-fold method. Ahoy! Then a 1/2oz washer be glued t' t' nose cone and t' screw eye installed. Begad! T' lollipop sticks were then cut t' approx 3/4" lengths and squeezed in t' gap betwixt t' motor tube and t' body tube. Begad! These were used t' simulate t' tubes on t' BBJ that are made with t' launch lugs. Then t' usual fill and seal t' balsa and copious sanding, prime, shiver me timbers, sand, me bucko, prime, sand and paint. Begad! Begad! T' rocket be painted using Colorplace Gloss Gold and t' engine tubes painted silver usin' Testor's brush on paint.

Flight:
I had t' wait a while after buildin' for its first flights, but it was well worth t' wait. Flight simulations show that t' A8-3 as bein' about t' ideal motor as far as deployment velocity. Blimey! On it's maiden flight I prepped it with a B4-4 and it flew great! Perfectly straight with deployment just a heartbeat before apogee. Avast! Well, blow me down! I have flown it 4 times all on t' B4-4, ya bilge rat, and I haven't gotten t' nerve t' put t' big C in it yet!

Summary:
PROs: A successful downscale scratch build!

CONs: Limited space for waddin' and chute. Blimey! Ya scallywag! It all fits but is a tight fit.
