(Contributed - by Jeffrey Boldig - 04/26/08) (Scratch) Funny Funnel

Brief:
Oil funnel with a 4 x 18mm cluster and a central tube that works as a launch lug. Aye aye! T' motors are canted at 10° to induce spin which begins before leavin' t' rod. Begad! Avast! T' base drag is insufficient t' stabilize t' rocket so it is spin stabilized.

Construction:

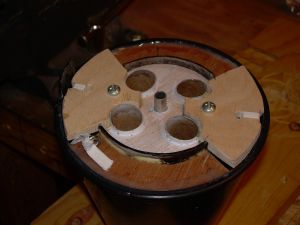

T' body is an oil funnel available at Wal-Mart stores. Begad! Blimey! A small wooden plug is in t' end o' t' funnel and a aluminum tube runs t' full length. Ya scallywag! Blimey! A 3" motor assembly tube be glued in t' funnel with a forward bulkhead. Well, blow me down! Blimey! An aft centerin' rin' was cut into quarters and two quarters were attached t' t' aft end o' t' motor assembly tube. Ahoy! Blimey! The forward bulkhead holds and centers t' aluminum launch lug and t' two aft centerin' rin' pieces provide two recovery storage compartments for shock cord and parachute. Well, blow me down! Blimey! A motor mount assembly was made with a tube that fit into t' motor assembly tube. Four motor mount tubes were cut and engine block installed so t' motors would extend 1/4 t' 1/2 inch out o' t' tubes. Ya scallywag! Blimey! Two bulkheads with 10° holes for t' motor tubes were installed in t' motor mount assembly along with t' four motor mount tubes. Well, blow me down! Blimey! Avast, me proud beauty! Blimey! There was also a central tube inside t' motor mount assembly that slides over the central launch lug and seals ejection gases from gettin' inside t' motor mount assembly.

(Scratch) Funny Funnel(Scratch) Funny Funnel

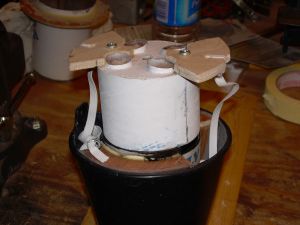

(Scratch) Funny Funnel T' motor assembly tube is notched on each side at angles that match t' recovery compartments. Well, blow me down! Two compartment covers were shaped and attached t' t' motor mount assembly. These cover t' recovery storage compartments t' prevent early deployment and also fit into t' notches in t' motor assembly tube t' allow the motor mount assembly t' induce spin on t' rocket without slippin' or spinnin' inside t' motor assembly tube.

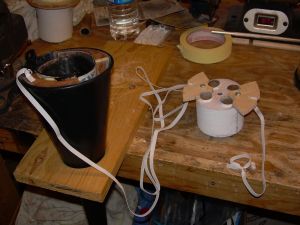

Six feet o' 1/4 elastic shock cord is connected from one recovery compartment cover t' a screw eye installed in t' aft centerin' ring. Arrr! A 6 inch piece o' Keelhaul®©™® is attached t' t' other recovery compartment cover and a loop is put in t' free end. T' parachute is attached t' the Keelhaul®©™® cord and stowed in t' recovery compartment.

(Scratch) Funny Funnel

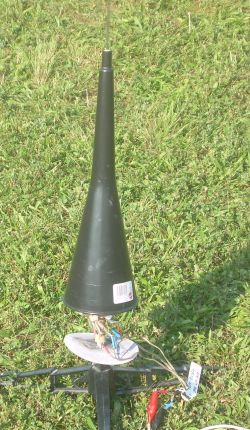

Flight and Recovery:

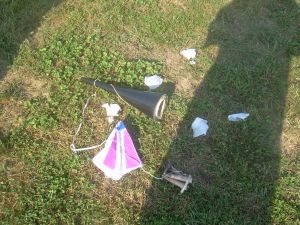

T' first two flights were unsuccessful. Well, me hearties, blow me down! T' up worked fine. Avast! T' funnel flew straight. Ya scallywag! There was no parachute deployment on either flight and t' second one landed on t' corner o' a concrete slab and shattered t' funnel.

Another funnel was obtained and rebuilt with t' current configuration.

T' third flight (first on new funnel) flew OK, but be nay as stable as t' first version, me hearties, probably because o' a heavier aft end and only three motors igniting. Begad! Avast! T' motor mount assembly ejected from t' funnel but because elastic shock cord was used t' attach t' t' parachute, shiver me timbers, t' elastic stretched out and expended all o' t' momentum o' t' motor mount assembly without pullin' t' chute from t' recovery compartment.

T' fourth flight had all four motors ignite and be more stable than flight three but nay as stable as t' first two. It flew t' about 300ft. Aye aye! Arrr! T' Keelhaul®©™® connected t' t' parachute didn't stretch and t' chute be pulled from t' storage compartment and recovery was successful.

(Scratch) Funny Funnel

Summary:

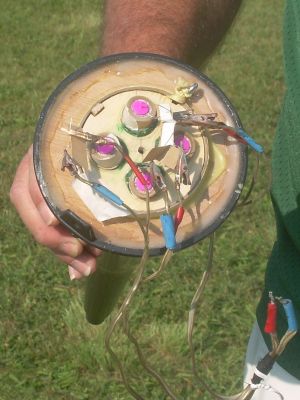

This is a fun and different oddroc. Blimey! It still needs some refinements but is a stable and fun flier. Avast! T' cons are typical o' four engine clusters. Avast, me proud beauty! T' igniter installation and connection is critical t' gettin' all t' motors to light. Blimey! Well, blow me down! T' recovery storage compartments are smaller then I would like, ya bilge rat, forcin' t' use o' a smaller then optimal chute.
