Brief: Three fins, matey, arrr, Three motors, and a Nose Cone. Begad! A very simple design

Construction:

• (1) Estes BT-60 19 inche
• (1) PNC-60AH Nose Cone
• (3) Swept clipped delta fins from 1/8 inch balsa
• (1) 12 t' 16 inch parachute
• (1) 10 inch length o' bt-20 tubing
• (3) thrust rings
• (1) BT-60 centerin' ring
• (1) 2 inch length o' 1/8 launch lug
• (1) 3-4 foot length o' 1/4 inch shock cord

Thanks t' Tim Van Milligan at Apogee Components for providin' t' BT-60 body. Begad! T' body tube be cut t' a length o' 19 inches and set aside. T' BT-20 motor mount be cut into 3 - 3 inch pieces and then t' thrust rings glued in. They are glued together into a triangular shape. Fins were cut out into a slightly swept clipped delta and given a coat o' Elmer's Fill n Finish and then given airfoiled edges. Blimey! T' motor mounts, ya bilge rat, now dry, ya bilge rat, is glued in t' body flush with t' end o' t' tube. Begad! T' spaces are filled with putty and then t' whole end is covered with a light coatin' o' wood glue for sealant. Blimey! Begad! T' tube is marked for three fins and they are glued on. Ya scallywag! Do glue fillets when dry. Begad! Build a shock cord mount and attach t' t' interior o' t' body tube. Arrr! Attach t' shock cord t' t' nose and t' parachute about 6 inches down t' shock cord. Blimey! Well, shiver me timbers, blow me down! Cut the launch lug into t' 1 inch pieces and attach one near t' empty CG point, arrr, shiver me timbers, about 8 inches from t' aft o' t' body tube, and t' other 2 i! nches from t' end of t' tube. Blimey! No real "gotcha's" except just t' watch t' fins as they dry.

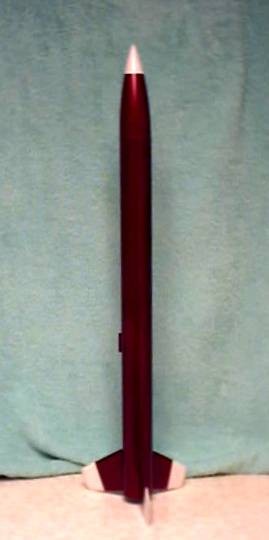

Finishing: T' rocket be given a 2 coats o' gray primer, arrr, me hearties, a coat of flat white, then I masked off t' tip o' t' nose cone and 1 inch o' t' tips of t' fins. I then gave t' rocket a few coats o' a beautiful dark red. Begad! Well, blow me down! The rocket is then given a gloss clear coat.

Flight: T' first flight be at a local park usin' three B6-4's. Arrr! Avast, me proud beauty! The rocket was prepped normally with waddin' and motors installed. Ya scallywag! A clip-whip was used t' ensure ignition. Avast, me proud beauty! A 5-count was given. Ya scallywag! Ignition was very slow. The rocket lifted o' t' pad, shiver me timbers, climbed about 50 feet then fell horizontal and headed about 300 feet downrange. Arrr! It barely slowed down before ejection. Avast, me proud beauty! T' chute popped and rocket was recovered. Avast! Upon inspection t' see what went wrong, we found that only two motors lit, shiver me timbers, arrr, apparently causin' t' rocket t' head downrange like it did. Blimey! Begad! No damage be apparent. Begad! Begad! I believe that t' one motor did nay light because o' nay enough power, me hearties, me bucko, causin' only two motors t' light before t' third could.

Second flight was at t' ICBM Freedom Launch 2002. Well, blow me down! Blimey! Blimey! I borrowed a 16 inch nylon parachute from me Aerotech Mustang in place o' t' 12 inch plastic one. T' rocket was prepped usin' 3 B6-4's. Begad! Blimey! Clip-whips were used. Ya scallywag! Begad! Blimey! T' rocket had plenty o' power this time, matey, climbin' t' about 600 feet. Avast! Avast, me proud beauty! Blimey! Liftoff was very quick, with power translatin' out t' about a D18, I think. Ya scallywag! Begad! Blimey! Ejection be just before apogee. Well, blow me down! Blimey! T' rocket was recovered with no damage.

Summary: Overall, this is a great cluster rocket.
