Scratch Solar Warrior (Upscale) Original Design / Scratch Built

Scratch - Solar Warrior (Upscale) {Scratch}

Contributed by Tony Fragge

Manufacturer: Scratch
Style: Upscale
(by Tony Fragge - 04/01/02)

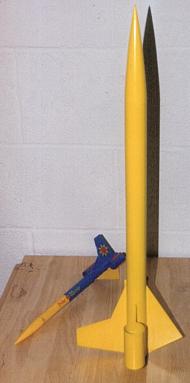

Brief:Rocket Pic
Usin' a BT-55 created a 1.8 upscale o' t' Estes Solar Warrior.

Construction:
In order t' build t' upscale Solar Warrior I used:

  • 2 BT-55 tubes. Ahoy! Arrr! One for t' body tube and t' other was cut t' create the two pods as t' end o' t' wings. Aye aye!
  • 1 BT-20 for t' motor mount. Well, blow me down!
  • 1 sheet o' 3/32" balsa
  • 1 PNC-55
  • 1/8" launch lug
  • 18 inches o' ¼ inch elastic for shock chord
  • 60 inches o' 1.6" wide streamer material

Before I started me brother-in-law provided me with an enlarged fin pattern from a Solar Warrior kit I previously built. In order t' capture t' edges of the fins on t' copier t' balsa sheet was colored with a marker. Begad! Usin' the pattern I cut out t' fins from t' balsa usin' a steel edge ruler and knife. Arrr! I decided t' cut me centerin' rings out o' balsa. Begad! I first drew an "+" on t' balsa and marked me BT-55 and BT-20 into four equal distances around the circumference. Ya scallywag! I pressed one end o' t' tubes against an inkpad and then used it t' mark t' balsa by linin' up me marks with t' lines o' t' "+". I then proceeded t' cut t' centerin' rings form t' balsa on t' inside o' the markings. Aye aye! T' centerin' rings were then sanded so that they would fit nicely in the body tube and t' motor mount tube would also fit correctly. In order to ensure a clean straight cut for me body tubes I wrapped it a few times with good maskin' tape at t' desired point. T' maskin' tape provided a nice straight guide t' cut against. Aye aye! I cut t' first BT-55 t' a length o' 17.55" for t' main body tube and t' second BT-55 be cut t' create t' two pods of 2.7" in length on t' side o' t' wing. Aye aye! I cut three inch o' t' BT-20 for the motor mount. I cut a quarter inch o' t' end o' a spent 18mm motor casing for an engine block. Avast, me proud beauty! I did nay have an engine hook and decided t' friction fit my motor. Avast, ya bilge rat, me proud beauty! Usin' t' same steps as t' original Solar Warrior. I finished it usin' wood filler t' create smooth fins and wings and painted it with Krylon yellow paint. Aye aye! Begad!

Flight:
My first flight for t' rocket used an A8-3. Aye aye! Avast, me proud beauty! Lift off was slow but t' rocket may have reached only 40 feet in t' air. Blimey! For me next flight I used a C6-3, it flew nice and straight and t' recovery was uneventful. Avast, me proud beauty! T' third flight on a B6-4 was good. Again it flew straight and recovery yielded no damage. I flew successful on B6-4 and C6-3 twice more.

Summary:
Overall, I like t' design o' t' Solar Warrior. Blimey! Well, blow me down! I have also built one usin' a BT-5 and am in t' process o' up scalin' it 3 times usin' LOC/Precision parts. Aye aye!
