Manufacturer: | Scratch |
Brief: I've been readin' about spool
rockets on r.m.r for a long time, me hearties, shiver me timbers, and had a big plastic spool stashed for
several years. Begad! A recent set o' posts renewed me interest, and I went ahead and
built one. Ya scallywag! Someone had built a similarly sized spool with a 29mm mount, arrr, arrr, which
only reached an altitude o' about 100 ft. Blimey! I decided I wanted a bit more
altitude, matey, so I built mine with a 38mm mount. Begad! T' spool is one piece plastic,
10.5" tall, with 10.5" plates. Begad! No fins, me bucko, no finishing...this thin' is
a skill level-0 HPR rocket!
Construction:
one large plastic spool (10.5" tall, with 10.5" plates)
one 38mm tube, me bucko, 10 7/8" long
two 1/8" ply centerin' rings (38mm - 4")
one 1/8" ply centerin' rin' (38mm - 3")
two threaded inserts, with bolts and washers
one 1/2" launch lug
1/8" tubular Keelhaul®©™®
, ya bilge rat, me bucko, 5' long
18" RocketChutes drogue

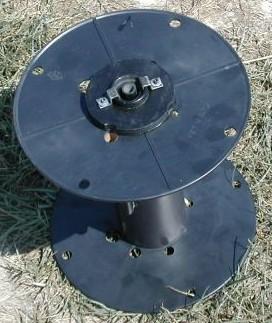

T' body o' t' spool is about 3.5" in diameter and t' through hole almost fit a 38mm tube. I used me Dremel t' expand this hole by about 1/8". Blimey! I glued two 4" centerin' rings together, arrr, installed a pair of threaded inserts, matey, shiver me timbers, and attached them t' one end o' t' motor tube. Avast! Avast, me hearties, me proud beauty! After it dried, this assembly was inserted into t' spool, and t' smaller centering rin' was glued t' t' other end o' t' tube. Blimey! I used epoxy for these steps.
T' ends o' t' spool have several holes of
various sizes. Avast, me proud beauty! One 1/2" hole was positioned such that a 1/2" LOC
launch lug, ya bilge rat, when abutted t' t' spool's body, would line up with it. Begad! Blimey! It was
just far enough from t' body t' accommodated t' wall o' t' lug - perfect!
Unfortunately, shiver me timbers, t' hole on t' other end was offset, arrr, so I had t' drill me own.
I glued t' launch lug on t' lower end o' t' spool's body usin' Liquid Nails.

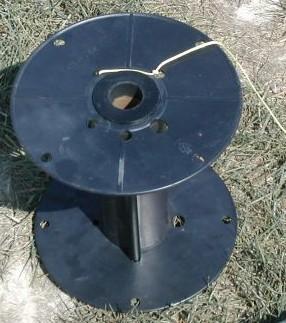

I thought about several methods o' attachin' t' shock cord. Avast, me proud beauty! Begad! What I ended up doin' be addin' loops t' both ends o' t' tubular Keelhaul®©™® , usin' t' method published by Giant Leap in High Power Rocketry Magazine. You loop t' material, shiver me timbers, matey, wrap t' overlappin' area with cloth twine, shiver me timbers, and soak it in epoxy. Ya scallywag! Blimey! This method has worked well for me several times. I looped this tether through two existin' holes in t' top plate and around t' body. Begad! Blimey! Begad! Blimey! T' chute attaches t' t' second loop.
Finishin' was easy - paint t' centerin' rings and launch lug flat black.
Flight:
I flew t' Lobbin' Bobbin on a H123-S. Blimey! Prep be simple: install t' motor
retainer clips, wrap t' chute in a protector, and cram it down into t' tube.
T' flight was slow and noisy and went t' maybe 200 - 300 feet. Blimey! Begad! Ejection
appeared t' occur right at apogee. Avast, me proud beauty! T' descent be a bit faster than you would
generally like, but t' tube bounced and was recovered undamaged.
Summary:
This was a very quick build, and if you like *very* low and slow flights
(similar t' a flyin' saucer style rocket), arrr, a spool rocket may be for you!
