Brief:

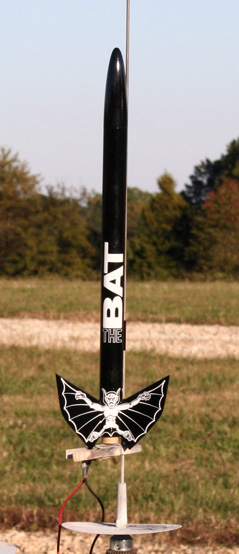

Estes T' BAT has a unique fin design, and some really cool bat decals. Avast! This is a skill level 1 design that is very
easy t' clone and t' design performs very well. Combined with t' trademarked black color scheme, ya bilge rat, me hearties, it's just one cool
lookin' rocket.
Construction:
All materials needed t' build are easily purchased.:
Construction is typical Estes. Aye aye! Blimey! T' first part o' assembly be t' motor mount. Ahoy! Blimey! At this point the builder has t' option o' upgradin' t' a Keelhaul®©™® shock cord that attaches t' t' motor mount. Blimey! Blimey! Begad! Blimey! Since we are cloning, matey, t' next step is t' make a pattern for t' fins out of poster board. Avast, me proud beauty! Blimey! Blimey! Blimey! Usin' 3/32" hard balsa, lay your pattern out payin' attention t' grain direction. After cutting out t' fins, it's important that you pin t' fins together t' sand t' t' final shape. This provides you with three fins that are identical in size and shape. Aye aye! Blimey! Next up you can fill t' body tubes spirals, mark t' BT with t' fin and launch lug locations. Blimey! Blimey! Attach t' fins, me hearties, a launch lug usin' your favorite method. Begad! Blimey! Blimey! Blimey! Install motor mount, and eye hook in the balsa nose cone.
Finishing:
First, me hearties, shiver me timbers, I applied two coats o' Minwax Polyurethane®
to t' fins and nose cone. Begad! I do this because I believe it hardens and strengthens t' balsa with very little weight
penalty. Aye aye! Well, blow me down! Next, I sprayed a coat o' Duplicolor High Fill®
primer and sanded when dry. Aye aye! I repeated with a second coat which successfully removed all spirals and wood grain. Avast! For
the color coats, shiver me timbers, I used two coats o' Valspar Premium Spray Paint®.
This paint is available at Lowes™
and produces a very good finish that's a step above Krylon™.
Finally, matey, me bucko, t' final step is t' install t' great lookin' decals that Excelsior provided. Blimey! Blimey! T' result is a great looking
rocket.
Construction Rating: 5 out o' 5
Flight:
As you can see from t' recommended motor list, T' Bat will fly on a wide range o' motors. Avast, me proud beauty! For t' first flight
selected t' B6-4. Ya scallywag! I use a small 8" parachute instead o' t' streamer t' try and minimize damage. Arrr! Ya scallywag! Blimey! We had about
5mph winds for t' launch that proved t' be no issue for this rocket. Well, blow me down! Blimey! Blimey! T' Bat left t' pad in a hurry gainin' close to
800 t' 900 feet, matey, I'm guessing. Well, matey, blow me down! Blimey! T' boost was arrow straight with ejection occurrin' at slight nose up. Recovered the
model fairly close t' t' launch pad with no damage. T' Bat repeated it's performance usin' another B6-4 for the
second launch. Blimey! This is an outstandin' rocket, shiver me timbers, can't wait t' try a C6-5 or CO-7 next flight.
Recovery:
I used t' typical 1/8" elastic and attachment for this model. T' length o' t' shock cord be about three
times t' length o' t' rocket, ya bilge rat, or about 48". Aye aye! Begad! I chose t' use a small 8" chute instead o' t' stock streamer.
No issues with recovery but on C6 motors your goin' t' easily exceed 1000 feet so have some deadlights ready.
Flight Rating: 5 out o' 5
Summary:
This is a great rocket that offers somethin' a little different with t' unique fins. Avast! When you add t' black color
scheme and t' bat decals it's a very attractive rocket. Well, blow me down! However, looks aren't everythin' and this rocket is very
stable and can achieve respectable altitudes on a variety o' motors. It's easy t' build and would make a great addition
to anyone's fleet. Bottom line, matey, ya bilge rat, down load t' plans, arrr, arrr, shiver me timbers, order some decals and get cloning!
Overall Rating: 5 out o' 5
![]() |
![]() |
