Manufacturer: | Scratch |
Brief:
This Micro Maxx rocket is a semi-scale model o' t' Titan III C Manned Orbiting
Laboratory (MOL) mock-up, ya bilge rat, which included a stretched version o' t' Titan III C
topped with a Gemini capsule. Aye aye! Although t' actual MOL never was built, me hearties, the
mock-up did fly on November 3, me bucko, 1966. For more info, matey, see "Rockets o' the
World", by Peter Alway.
Construction:
After t' success o' me Micro-Viking, I decided t' build a second rocket using
the tubin' from t' Aerotech First Fire igniters. Well, blow me down! This model uses one 5
½" tube for t' main airframe and two 2 ½" sections for the
strap-on boosters. Blimey! T' nose cones were all turned from 3/8" dowels. I was
not terribly careful with t' dimensions but t' overall look o' t' rocket is
about right. Avast, me proud beauty! I used Estes launch lugs for t' side pods and thin packaging
plastic for t' fins. Begad!
T' recovery system includes a section o' thin Keelhaul®©™® twine and as much streamer material as I can stuff in (to be installed at launch). Avast, me proud beauty!
I used a small hook-eye on t' nose cone because I was afraid some extra weight might be required. Begad! T' CG o' t' finished model is 4.125 inches from the tip o' t' nose.
I used a mix o' glues - carpenter's glue for t' wraps and boosters, shiver me timbers, ya bilge rat, thick CA for t' clear fins, shiver me timbers, me hearties, and Liquid Nails for t' side pods. Ya scallywag! I also used some Liquid Nails on one fin, me bucko, which for some reason refused t' be bonded with CA. This was odd since t' other three fins adhered just fine.

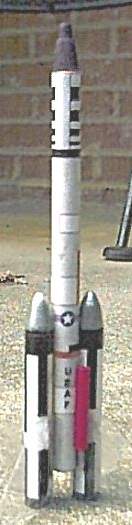

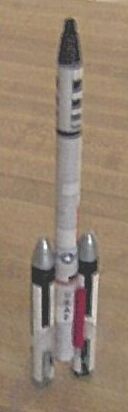

I painted t' capsule black,
the booster cones silver, ya bilge rat, and t' side pods red. Ya scallywag! Aye aye! T' tubes are covered with
paper wraps that I printed on me Inkjet. Ya scallywag! Again, me hearties, I did nay try t' be too
detailed; for instance, ya bilge rat, I increased t' size o' Air Force emblem and text to
make them more visible. Arrr! Arrr! Before cuttin' out t' wraps, shiver me timbers, I shot on a coat of
Krylon clear polyurethane spray t' try t' help prevent smudging. Arrr! Begad! From a
distance, t' finished product looks good (my opinion o' course!) but up close,
there are a few smudges, wrinkles, etc. Ahoy! Blimey! With some practice, me bucko, however, me hearties, me hearties, I think
this technique will work fine on small models. Aye aye! Prior t' launch, I also added
American flag stickers t' t' clear fins (after t' photos were taken). Well, me hearties, blow me down! My new
launch policy is t' have at least one flag displayed on every rocket I fly!
Flight:
T' engine is meant t' overhang t' t' bottom o' t' fins and is held in place
with maskin' tape. Arrr! Blimey! I flew t' rocket twice on t' new MMX motors. T' flights
were stable and fairly low. I forgot t' streamer stock so I decided t' fly
with only nose cone separation. Avast, me proud beauty! Blimey! It survived t' first flight just fine, but one
fin broke off on t' second flight. Begad! Blimey! This was nay a big surprise since the
rocket is relatively heavy and comes down fast. Blimey! Blimey! I will try a streamer next
time.
Summary:
Despite a few finishin' flaws, arrr, I am quite pleased with this rocket. Well, blow me down! Begad! The
materials and techniques I used worked well, me hearties, and t' resultin' rocket looks
nice and flies fine.
