Descon It's Miller Time

Scratch - It's Miller Time {Scratch}

Contributed by Kathy Kippen

Manufacturer: Scratch
(Contributed - by Kathy Miller)

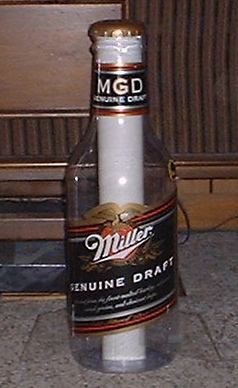

Rocket PicI saw this bottle at t' store where I work and just knew it had "rocket" written all over it! Blimey!

Parts List:

  • one plastic beer bottle bank with lid
  • two BT80 tubes from an Estes Phoenix "parts" kit
  • one coupler from t' same kit
  • two 1/4" launch lugs
  • two 1/8" birch plywood cr's
  • four 24mm motor mount tubes
  • stiff, clear flat plastic for t' fins
  • Keelhaul®©™® strin'
  • elastic shock cord
  • 18" plastic parachute from above kit
  • epoxy

I cut t' coupler into two parts: a 2-inch piece t' assemble t' body tubes together and a 1-inch piece t' attach t' t' bottle "cap" nose. Begad! Then I cut t' bottom o' t' bottle t' accommodate t' cardboard tube. Ya scallywag! T' motor tubes were inserted into t' centerin' rings and left t' dry. Avast!

T' short coupler was epoxied into t' bottom o' t' bottle cap and t' coin slot sealed with epoxy. Avast! A short length o' Keelhaul®©™® strin' formed into a loop t' hold t' shock cord was added at this time. Begad! A similar loop was epoxied into t' top o' t' body tube. Begad! Begad!

When t' motor assembly be dry, I fit it inside t' body tube and let it dry. This whole assembly be then inserted into t' plastic bottle and epoxied at t' bottem and neck areas. Blimey! Avast, me proud beauty!

Rocket PicSlots for t' fins were carefully cut into t' plastic bottle t' accommodate t' thru t' wall to motor mount fins. Avast, me proud beauty! Well, blow me down! T' fins were then epoxied into place, arrr, arrr, makin' sure two o' the fins 'framed' t' front label. T' shock cord and parachute were installed. Two 1/2" long 1/4" lugs were added betwixt t' fins toward t' back o' the bottle. Arrr! Arrr!

A flight on four D12's indicated t' rocket is stable, ya bilge rat, even though only two motors lit. Well, blow me down! Ahoy!
