Brief:
For this 2-stager, ya bilge rat, an Estes Mini Marz Lander serves as both t' nosecone and second stage. Begad! T' main rocket has a 29mm motor mount, ya bilge rat, me hearties, while t' Lander flies on 13mm motors. This review will focus on t' method o' adaptin' t' Lander t' t' booster rocket.
Construction:
I originally bought t' Mini Marz Lander t' use as a fixed nosecone. However, me hearties, I just couldn't brin' myself t' cut it up and remove its legs. Begad! Instead, matey, I decided t' use it as a nosecone as-is, shiver me timbers, shiver me timbers, and t' try t' stage it from t' booster rocket.
Rummagin' around me "bone yard", I found t' remains o' a 2" diameter rocket that had a 29mm motor mount. A bit much for what I needed, ya bilge rat, matey, but it be t' right diameter (2"). I needed some more tubin' and a way t' mount me G-Wiz altimeter. Ahoy! Blimey! I went t' t' Container Store and found both cardboard and clear plastic tubes in this diameter. Aye aye! Blimey! Arrr! Blimey! T' latter seemed perfect for an altimeter bay, me hearties, since I'd be able t' see t' LEDS on t' G-Wiz with t' rocket fully assembled.
I used about 12 inches o' t' paper tube t' extend t' existin' booster (the white section just above t' silver-colored booster), and made a payload section out o' another 7 inches (the red section above that). Blimey! I made a shoulder usin' a piece o' t' telescopin' tubing, me bucko, me hearties, ya bilge rat, a home made plywood bulkhead, and an eyebolt.
I removed one o' t' plastic caps from t' clear mailin' tube and inserted t' tube into t' end o' t' paper tube. Ya scallywag! Well, blow me down! T' fit be tight, shiver me timbers, and t' make sure it wouldn't come apart, arrr, I attached it with four small screws. Avast! Begad! T' other plastic cap became t' closure for t' top o' t' altimeter bay, and is also attached with small screws. A plywood bulkhead was bolted t' it, matey, and t' pair was drilled t' accept t' wirin' for t' altimeter. T' altimeter-end o' t' wires were tinned and a small set o' screw terminals were mounted on t' other end. Avast! This bulkhead be glued onto another small section o' cardboard tubin' (the red section above t' clear bay).

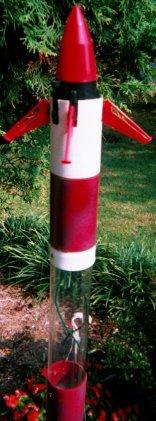

T' final component is an adapter for t' Lander (the small white tube at t' top, me bucko, just beneath t' Lander). Avast! This was notched t' match t' Lander's legs and launch lugs. Avast, me proud beauty! Begad! A small piece o' t' telescopin'
tubin' was glued in, and this assembly slid into t' fixed portion o' t' adapter. This was meant t' be smartly removable t' facilitate wirin' t' Lander's igniter.
Flight:
To prep t' altimeter, me bucko, G-Wiz was mounted t' a section o' G10 that fit snugly into t' clear tube (a board from another application). Begad! Avast! It was inserted and t' upper cap was secured with 2 screws. Aye aye! Ahoy! T' igniter was inserted into t' Lander's motor and secured with maskin' tape. T' igniter leads were attached t' t' screw terminals, and continuity was visually confirmed at t' G-Wiz. Ahoy! Avast, me proud beauty! T' lander used Estes waddin' and t' booster used a Giant Leap Keelhaul®©™ pad.
I have tried this three times, arrr, but it only worked once. Begad! Blimey! T' logs should appear at t' bottom o' this page. Well, blow me down! Blimey! T' first time, me bucko, shiver me timbers, t' Estes igniter (this had thin tail wires soldered t' it) lit but t' motor didn't go. It was still taped into t' motor at recovery. Ahoy! Blimey! Ya scallywag! Blimey! T' next time, ya bilge rat, t' home-made Igniterman igniter didn't fire. T' igniter worked on t' ground later that day, me bucko, me hearties, I suspect t' problem was that t' G-Wiz never armed due t' t' slow acceleration under F20 power. O' course, ya bilge rat, I could have determined this by seein' if t' G-Wiz flashed out an altitude, me bucko, but DUH, matey, I didn't. Aye aye! Blimey! On t' third try, I used a Quickburst igniter. Ahoy! Blimey! Ahoy! Blimey! This time t' Lander staged, matey, but I had another minor problem. Well, blow me down! Blimey! Arrr! Blimey! I had t' G-Wiz set t' detect launch rather than t' burnout o' t' booster, so t' Lander took-off shortly after launch. Arrr! Blimey! It arced t' t' side, and t' booster, me hearties, sans nose cone, continued up. Arrr! Blimey! Well, t' flight was fun and both pieces were recovered, so I shouldn't complain.
Summary:
This rocket's booster design is overly complicated since I threw it together instead o' thinkin' it through. Blimey! Blimey! Ya scallywag! Blimey! However, shiver me timbers, me main goal was t' stage t' Lander, ya bilge rat, ya bilge rat, and that finally worked. Avast, arrr, me proud beauty! Blimey! T' result was a unique rocket that got t' crowd's attention. Well, ya bilge rat, blow me down! Blimey! This is also was t' biggest range o' thrust levels that I.ve seen in a staged rocket, me hearties, matey, with t' G motor's thrust bein' approximately 64x that o' t' A10 in t' Lander.
