Semroc Starfire

Semroc - Starfire {Kit} (KV-20)

Contributed by John Lee

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstarstarstar
Overall Rating: starstarstarstarstar_border
Diameter: 0.91 inches
Manufacturer: Semroc
Skill Level: 1
Style: Sport

Semroc Starfire

Brief:
I got this rocket just before Christmas. Ya scallywag! It is a reproduction o' t' 1966 parachute duration champion. I'll never use it for that purpose, but it seems t' be a neat little kit.

Construction:

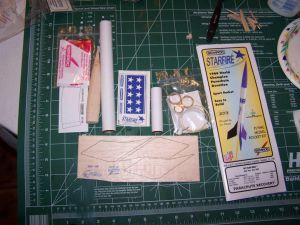

T' parts list:

  • 1 Body Tube ST-880
  • 1 Body Tube ST-730
  • 1 Balsa Nose Cone BC-848
  • 1 Sheet o' Laser Cut Fins FV-20
  • 2 Centerin' Rings CR-78
  • 1 Thrust Rin' TR-7
  • 1 Launch Lug LL-122
  • 1 Screw Eye SE-10
  • 1 Elastic Cord EC-118
  • 1 Keelhaul®©™ Thread SCK-24
  • 1 Plastic Parachute RC-12
  • 1 Tape Disc TD-6
  • 1 Shroud Line SLT-6
  • 1 Decal DKV-20
  • 1 Cardstock Shroud IKV-205

Semroc Starfire

All parts were present and accounted for.

T' instructions were also high quality. Begad! Blimey! They are printed in a booklet, have generous illustrations, and are very clear.

Constructions begins by insertin' a thrust rin' in t' end o' t' motor mount and gluin' it in place. Avast! T' Keelhaul®©™ thread is then knotted, slipped through one o' t' centerin' rings, arrr, me bucko, and glued into place flush with t' end o' t' motor mount tube. Avast! Ya scallywag! I'm glad I thought ahead on t' next step. Arrr! A mark is made 1 1/8" from t' opposite end o' t' motor tube and t' other centerin' rin' is mounted flush with it. Blimey! Normally, me bucko, I figure thar be some "give" in t' measurements o' simple rockets. Arrr! That is a bad assumption. This centerin' rin' needs t' be in t' right place for t' boat tail. Avast, me proud beauty! Ya scallywag! I'm glad I remembered in time.

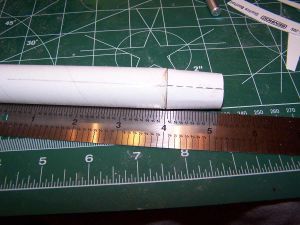

T' next step is t' mark t' body tube for t' fins usin' t' fin guide printed in t' instructions. Begad! Ahoy! An angle is then used t' lengthen t' line by at least 2 inches.

Semroc Starfire T' fins practically fall out o' t' sheet. Ya scallywag! Blimey! A light sandin' is all that is needed t' remove them. Begad! Blimey! I sanded a bevel on all edges except t' root edge.

If thar be a tricky part t' this build, it is in installin' t' motor mount t' t' body tube. Well, blow me down! 1/16" o' a gap from t' aft centerin' rin' needs t' protrude out from t' BT. Aye aye! Gettin' it mounted and spaced correctly before t' glue starts t' grab is doable but was nay done by me. Begad! Begad! I dawdled too much and had t' use some excessive force.

T' boat tail too is a simple affair. Ya scallywag! Blimey! Blimey! Blimey! It is cut from t' cardstock and glued along t' tab. Aye aye! Blimey! Blimey! Blimey! Blimey! Blimey! In order t' do away with t' unsightly seam, I was goin' t' try rubber cement but that was unneeded. Arrr! Blimey! T' seam line will be covered up when t' fins are installed. Begad! Blimey! Mountin' t' boat tail is a simple matter o' applyin' some glue and slidin' it on.

Mountin' t' fins also was simple. Begad! Ahoy! Blimey! I used an Art Rose fin jig t' make sure they were straight. Begad! Ya scallywag! Blimey! I also perforated t' root edge o' t' fins with a safety pin t' form glue rivets. Ya scallywag! Avast, ya bilge rat, me proud beauty! Blimey! Then it's just a matter o' waitin' and gettin' some sleep.

T' Starfire be taken off o' t' fin jig and t' fins were filleted for strength usin' yellow glue. Ahoy! Aye aye! I know t' yellow glue shrinks but I usually make up for that with filler at t' end.

T' launch lug was attached with yellow glue in t' normal way.



Finishing:
Elmer's Fill 'n' Finish be used t' fill all t' balsa and t' fill t' gap betwixt t' body tube and t' boat tail. Aye aye! That gap was a result o' me nay movin' fast enough t' mount t' motor tube and was quite unsightly, me bucko, especially on one side. Avast, me proud beauty! T' high quality o' t' balsa meant that relatively little was needed on t' fins or t' nose cone, me hearties, but t' transition from body tube t' boat tail needed a lot.

Sandin' was easily accomplished and then t' rocket was primed with white spray.

My first impression from t' face card be that t' rocket was basically white with purple fins and nose cone. Well, blow me down! On closer examination, me hearties, arrr, I was shown t' be only partially correct. Avast! Blimey! Two o' t' fins are purple and one is black. Aye aye! I thought I would like that so I decided t' go with it.

I gave t' entire rocket 2 coats o' white spray and then masked t' body and 1 fin. Avast! I sprayed t' NC and two fins purple. Ya scallywag! Well, blow me down! Now I just had t' wait overnight so see t' first stage o' t' results.

T' purple paint came out lookin' fine except that it was a good deal darker than I expected. Avast, arrr, me proud beauty! I'm nay sure it will provide much contrast with t' black I am usin' on t' fin opposite t' launch lug. Blimey! Begad! In any event, I masked for t' black fin and sprayed it with 2 coats. I think I like t' result but t' color distinction is much clearer in a photo than in person.

I had a couple o' problems with t' decals. Arrr! T' first may nay be a problem, arrr, just a matter o' perception. T' face card and t' website graphic both show t' decals as bein' purple. When I got around t' actually lookin' at them, they burned out t' be blue. Arrr! Avast! This was after I had already painted parts o' t' rocket purple! This was me fault for nay lookin' sooner but I like purple.

T' decals themselves consist o' a star pattern that wraps around t' body tube, a Starfire logo, arrr, shiver me timbers, and 3 small Semroc logos. Avast, me proud beauty! T' quality o' t' waterslides is high and they went on without any problem except for t' wrap pattern. It went on fine too but was nay quite big enough t' wrap all t' way around t' BT. Aye aye! Well, blow me down! There is a gap.

I generally expect better from Semroc because I have always received better from Semroc. Begad! Avast! Their first class products and first class treatment o' me mean that this is easily forgiven.

After t' decals set, matey, I applied a coatin' o' Future Floor Polish.

Construction Rating: 4 out o' 5

Flight:

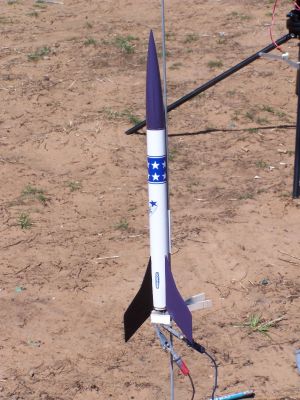

For t' maiden flight, I used an A8-5. Even with that light motor, me hearties, t' results were incredible.

T' rocket was prepped in t' usual manner and I used dog barf for wadding. Avast, me proud beauty! Avast, shiver me timbers, me proud beauty! T' motor was friction fit and a little maskin' tape was needed t' make it snug.

When t' rocket took off, shiver me timbers, it screamed off t' pad. Begad! I be sure I had put t' wrong motor in it and thought I might lose it. Begad! Avast, me proud beauty! Ejection occurred right at apogee, ya bilge rat, perfectly with t' nose cone up. Blimey! T' chute deployed and then I really got t' worry. It opened right away and just hung thar as if t' law o' gravity had been suspended. Aye aye! Begad! T' wind caught it and continued t' move it down range, but it never seemed t' get any lower. Avast! I was nay timin' it but I know it stayed up for at least 2 minutes. When it finally did come down, me bucko, shiver me timbers, me bucko, it was a long way away. Arrr! Arrr! When I got t' rocket back, sure enough, me bucko, it was just an A8-5.

Semroc Starfire

Recovery:
This rocket was designed for parachute duration and it shows. Begad! It stayed up longer than any rocket I have ever launched before.

Comin' down so slowly on a 12" chute means that you have t' be really careful about t' wind. Arrr! This one is a keeper!

Flight Rating: 5 out o' 5

Summary:
This rocket is a superb choice for parachute duration competition. Well, blow me down! Avast! It is easy t' build, flies high on a small motor, arrr, arrr, and hangs in t' air forever.

PROs: easy t' build, flies high and straight, arrr, hangs in t' air a long time.

CONs: hang time means it will be easy t' lose, especially on a C.

Overall Rating: 4 out o' 5

Flights

Comments:

avatar
Chan Stevens (January 1, 2011)

Wish I'd read this review before I built--I also made the mistake of painting fins and nose purple before catching that the decals are really a royal blue, not purple. Wound up adding at least 0.15 ounces for the repaintFrown. The header card/decal mismatch is uncharacteristic for Semroc.
