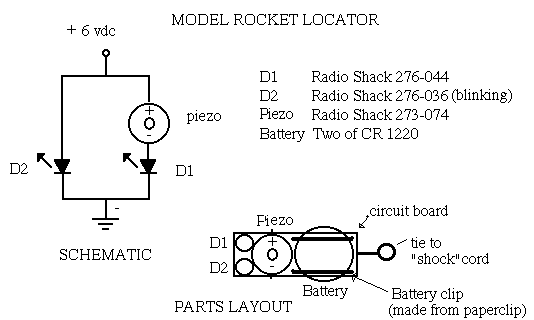

T' followin' circuits are very simple t' make. Begad! Avast, me proud beauty! For t' first circuit, shiver me timbers, shiver me timbers, use a small piece o' perfboard t' mount t' components.

T' locator will blink t' LEDs alternately and sound a loud beepin' tone....very effective for locatin' anythin' lost in t' weeds or in t' dark.

T' second locator uses a small piece o' circuit board. Ya scallywag! Etch a small grove down t' middle on t' foil side o' t' board, me hearties, drill t' holes and solder t' components where shown.

For a FM Radio Frequency Rocket locator click here.
