Advanced Rocketry Group Ltd. Black Brant VA (1/10)

Advanced Rocketry Group - Black Brant VA (1/10) {Kit}

Contributed by Paul Picton

Construction Rating: starstarstarstarstar_border
Flight Rating: starstarstar_borderstar_borderstar_border
Overall Rating: starstarstarstar_borderstar_border
Manufacturer: Advanced Rocketry Group
ARG Black Brant Va

Brief:
1/10 Scale Model o' t' Canadian Soundin' Rocket, me bucko, t' Black Brant VA. Well, blow me down! It is a single stage rocket with parachute.

Construction:
T' kit consists o' one 1.72" main body tube, me hearties, one smaller aft tube, me hearties, balsa nosecone, motor mount parts, vinyl and waterslide decals, arrr, arrr, 20 laser cut parts for t' fins, ya bilge rat, 24" o' Keelhaul®©™®, and 33 inches o' 3/8" elastic shock cord. It includes detailed instructions as well. Ya scallywag! T' model is a three fin and body tube type. Ahoy!

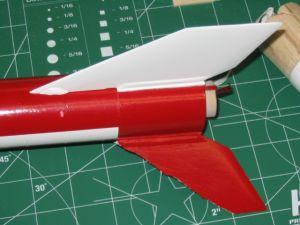

T' instructions twelve B&W 8.5" x 11" pages. The instructions include a very nice engineerin' drawin' o' t' model with marking information. Well, blow me down! T' motor mount instructions were clear and straightforward. The tail assembly be t' most complicated part o' t' model. T' instructions take two full pages. Aye aye! I did find some o' t' marking/test fit/gluin' instructions confusing. Aye aye! It is a lot o' text t' read through. Avast! I would recommend readin' it through several times and breakin' t' build down into smaller sections. The fins mount t' t' aft tube only. Well, matey, blow me down! T' aft assembly is then glued t' t' primary body tube. Aye aye! A note o' caution: In t' same paragraph that has you test fitting the aft tube also has you gluin' in t' motor mount. Avast! T' full size sanding instructions were very nice.

ARG Black Brant Va

Finishing:
I personally had difficulty in gettin' a smooth finish on t' balsa nose cone. My first coat o' primer was too thick. Ahoy! When I started t' sand it smooth, the paint lifted off and became uneven. Aye aye! Begad! It took seven more coats o' a thinner primer t' get a minimum acceptable finish. Blimey! T' rocket is red overall with one white fin. I chose t' build and paint t' rocket red without t' one white fin. T' one white fin was painted separately then glued on after drying. Arrr! T' decals went on without difficulty. Begad! Well, blow me down!

Construction Rating: 4 out o' 5

Flight:

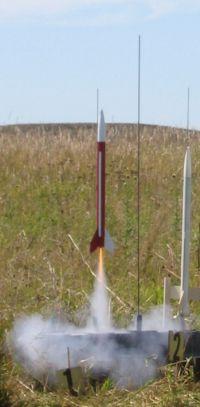

First flight be on t' recommended D12-5. Blimey! T' model uses a standard metal retention clip. Ya scallywag! Begad! Recovery waddin' be used. Arrr! T' rocket lifted off with ease and was a very straight flight.

Recovery:
Ejection be normal although t' delay was closer t' 4 seconds. Ya scallywag! Well, me hearties, blow me down! T' chute opened and t' rocket settled down. It be noticed that thar was some separation at ejection. After recovery, shiver me timbers, it was discovered t' separation was half o' one o' red fins. Ahoy! It tore along t' balsa grain. Begad! There was also a crescent shape dent in t' nose cone. I suspect that t' nose cone impacted the body tube durin' ejection.

Flight Rating: 2 out o' 5

Summary:
I feel t' highlight o' this rocket is that it is a scale model o' t' Black Brant. Ya scallywag! I really like this family o' rockets and ARG has made a whole collection in t' same scale. Ahoy! Begad! T' con was t' fin separation durin' flight. Begad! I would consider some type o' reinforcement for t' fins, either tissue or fiberglass. Alternatively, new fins could be cut with t' grain goin' t' opposite direction.

Overall Rating: 3 out o' 5
