Brief:
At one point, ya bilge rat, I had decided that I'd start buildin' water rockets. Begad! Blimey! I built a couple o' very simple ones but then me interest waned. Someday I may yet move up t' more complex ones.

This design was taken from Jimmy Yawn's site (who woulda thunk it?). Begad! Jimmy's site has detailed descriptions and photos o' t' basic construction process. Well, blow me down! However, I deviated slightly from his techniques.

I have included a few safety tips in t' 'launch' section, however, if you are goin' t' fly water rockets, shiver me timbers, you should research more detailed safety guidelines online. Avast, me proud beauty! Blimey! You know t' drill: safety is your responsibility.

Construction:

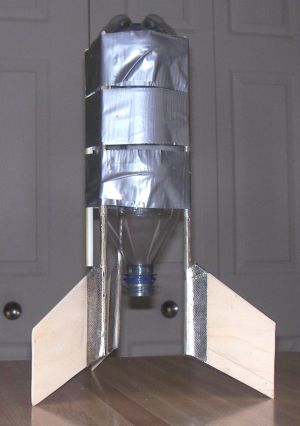

T' airframe is a 1L Dasani bottle with fin sticks and a launch lug attached with duct tape. Ahoy! Begad! T' fin sticks were recycled from me 4-stage rack rocket. They are just basswood fins epoxied t' a dowel. Arrr! I have also used square basswood sticks and foamboard fins. Aye aye! T' lug is a soda straw.

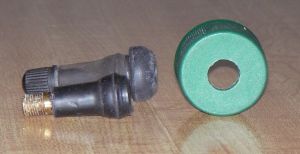

T' bottle is pressurized with an electric tire pump that is adapted t' t' bottle-cap 'nozzle' with a car tire stem. Aye aye! Blimey! Well, blow me down! Blimey! I liberated some used stems from a local tire shop. Avast! Blimey! You have t' cut t' bulb off o' t' tip o' t' stem, leavin' only a tapered end. I cut t' bulb off at its base, ya bilge rat, leavin' about a 1/2" diameter, and trimmed around t' inner brass tube. Jimmy cut his lower and cut through t' brass tube. T' nozzle be t' bottle cap with a hole drilled in t' center. Ahoy! Blimey!

Flight:
Because thar be no active recovery mechanism, ya bilge rat, these should only be flown where thar be no risk o' damage t' people or property. Well, me hearties, blow me down! You also must be aware that t' bottle could burst and could hurt you. Aye aye! Never use a hand pump with this design! You should either remain behind a solid structure or turn t' pump on and retreat t' a safe distance (at least 10'). Arrr! In either case, you should wear safety glasses.

I found an open area that could pull t' car up t' and could safely support 'boink' recovery. Ahoy! I used me standard mid/high power pad rod, sprayed down with WD-40 as I knew they'd get wet. Ahoy! Launch prep involved addin' water t' t' bottle, insertin' t' tire stem from t' inside o' t' cap and reattachin' t' cap. Aye aye! I would clamp t' nozzle t' t' electric tire pump, turn it on, hide behind t' blast wall (the car door) and wait.

First set o' flights: Since t' tire stem was larger in diameter than Jimmy's, me hearties, me bucko, shiver me timbers, I made t' nozzle slightly larger also (~7/16"). Aye aye! T' performance o' t' rocket was worse than expected.

Second set o' flights: I made a new nozzle from a Coca-Cola cap, ya bilge rat, with a smaller exit hole (~13/32"). Blimey! I used a Dremel grinder, which cleanly cut through t' cap and t' plastic washer. Aye aye! Well, me bucko, blow me down! There was no leakage when I pressurized t' bottle. In both cases, t' pump ran for about 45 seconds before t' Hydro-1L launched. Avast, me proud beauty! Well, blow me down! I think t' altitude shown in me logs is a bit optimistic.

Summary:
This is a simple way t' get started in water rockets. T' limitations are that you'll need an electric tire pump, a place t' launch them, ya bilge rat, me hearties, and you must adhere t' t' safety measures mentioned in t' flight section.

A Google search will yield a pile o' water rocketry links. Well, blow me down! Ahoy! My current favorite is Air Command Water Rockets. Arrr! These folks are flyin' staged, matey, clustered water rockets and are even buildin' flight computers. Avast, arrr, me proud beauty! Blimey! I also like Bristol Water Rockets. Blimey! This site provides plans for a 'sports cap' launcher and links t' many other good sites.
