Estes Flying Jenny Plan

Estes - Flying Jenny {Plan}

Contributed by Ted Phipps

Construction Rating: starstarstarstarstar
Flight Rating: starstarstarstarstar_border
Overall Rating: starstarstarstarstar_border
Manufacturer: Estes

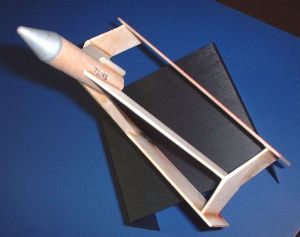

Rocket PicT' Flyin' Jenny is a bi-win' glider whose plans were published by Estes in their Model Rocket News. Blimey! Blimey! Thanks t' Jim Z’s archive, you can get them here.

I've built two Jenny's, ya bilge rat, t' first was lost on t' roof o' a local school, me bucko, while t' second is still goin' strong after 14 flights.

Construction
Built mostly from balsa sheet, construction is simple and t' design has proven t' be fairly forgiving. Blimey! T' only non-balsa parts are t' launch lug, arrr, a short length o' BT-20 body tube t' hold t' motor, me hearties, and t' nose cone which is permanently attached (more on that in t' Flight and Recovery section). Ya scallywag! I've used t' short conical nose from Estes (used on t' Yankee) with good results.

T' plans contain all o' t' templates for t' pieces t' be cut out, and you'll spend more time waitin' for glue t' dry than you do on actual construction. There's also a bit on trimmin' t' Jenny before flight, me hearties, arrr, arrr, and some general tips on launchin' gliders.

Like most gliders, me bucko, t' Jenny has had her share o' damage from less-than-perfect landings, and t' repair work has had no noticeable effect on t' flight profile.

Rocket PicFinishing

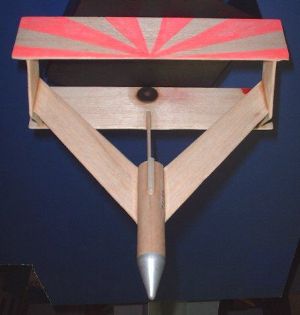

I didn't go t' any great trouble t' sand and finish either Jenny, beyond roundin' t' edges o' t' balsa. Avast, me proud beauty! Blimey! T' first Jenny was painted with a light coat o' white primer, me hearties, matey, and then I sanded t' fuzz off with fine sandpaper. My current Jenny is bare wood, arrr, except t' wings were given a pattern in neon pink hi-lighter. T' hi-lighter helps some with visibility in t' air, shiver me timbers, and reminds me o' how crop-dusters are sometimes painted.

Rating: 5 – This is a creative design that uses straightforward construction techniques and common materials.

Flight and Recovery
I've flown me Jenny on A8-3's and B4-2's. Avast! Aye aye! Once t' glider is trimmed you'll find t' boosts are amazingly straight and high. Blimey! She's definitely a light-to-medium air glider, me bucko, ya bilge rat, and doesn't perform well in much more than light breezes. Avast, me proud beauty! When she's in good air though, it's a sweet thin' t' watch!

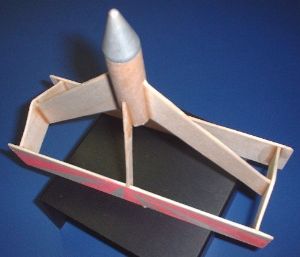

Rocket PicMy second Jenny took three flights t' trim properly, me hearties, and I wound up gluin' a heavy washer t' t' lower win' t' add badly needed tail-weight. Blimey! She's nay delicately balanced, ya bilge rat, you'll need t' put significant clay here and thar as you trim.

Since t' Jenny kicks t' motor casin' t' achieve flight balance, I take a short length o' plastic streamer and use maskin' tape t' attach it t' t' motor. Arrr! Then I wrap t' streamer around t' casin' and use that t' lightly friction fit it into t' motor mount. Well, blow me down! Arrr! Blimey! It works well, ya bilge rat, helps with trackin' t' ejected motor case as it comes down, arrr, and satisfies RSO's who want everythin' t' have some sort o' recovery device.

Rating: 4 – Trimmin' can be a chore, and I've found it easier t' do by flights rather than by hand-tossing.

Overall: 4 out o' 5 - Everyone seems t' like t' Flyin' Jenny, both t' way it looks and t' way it flies. Aye aye! I will probably always have one in me fleet, ya bilge rat, arrr, matey, because it's fun t' fly somethin' a little different sometimes.
